Présentation du produit

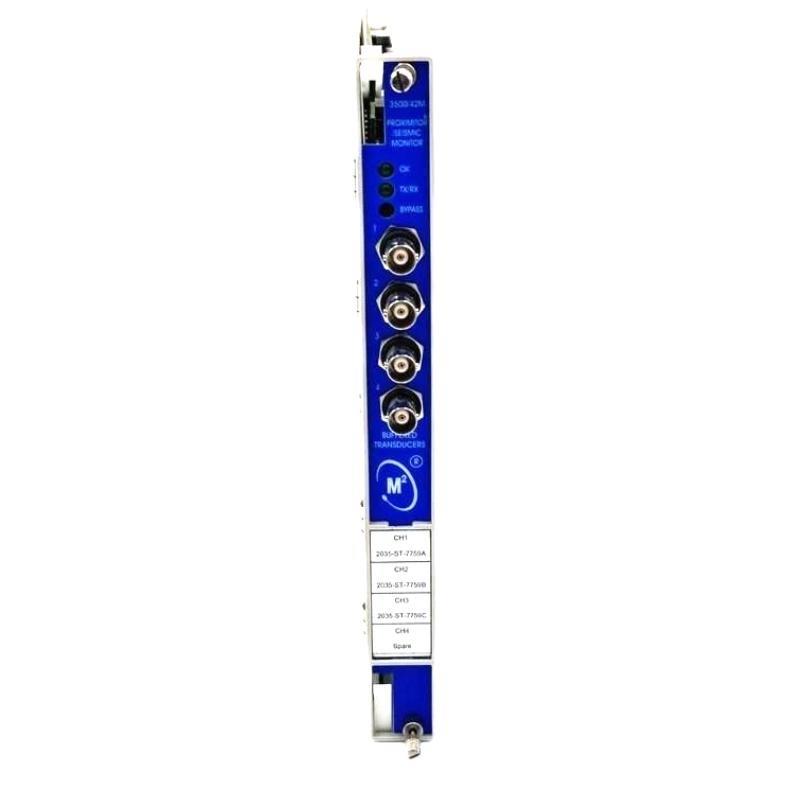

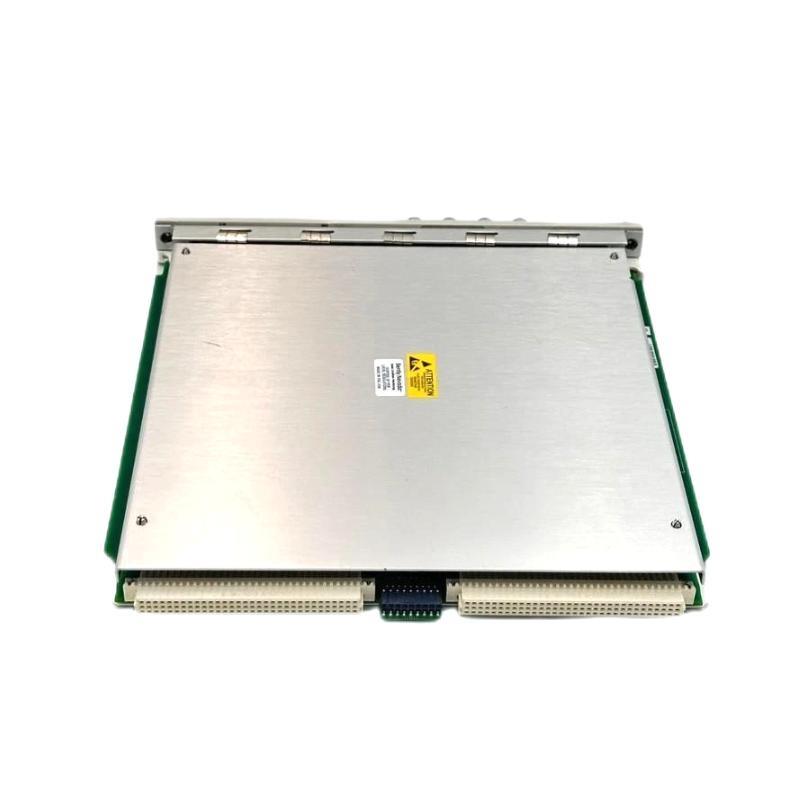

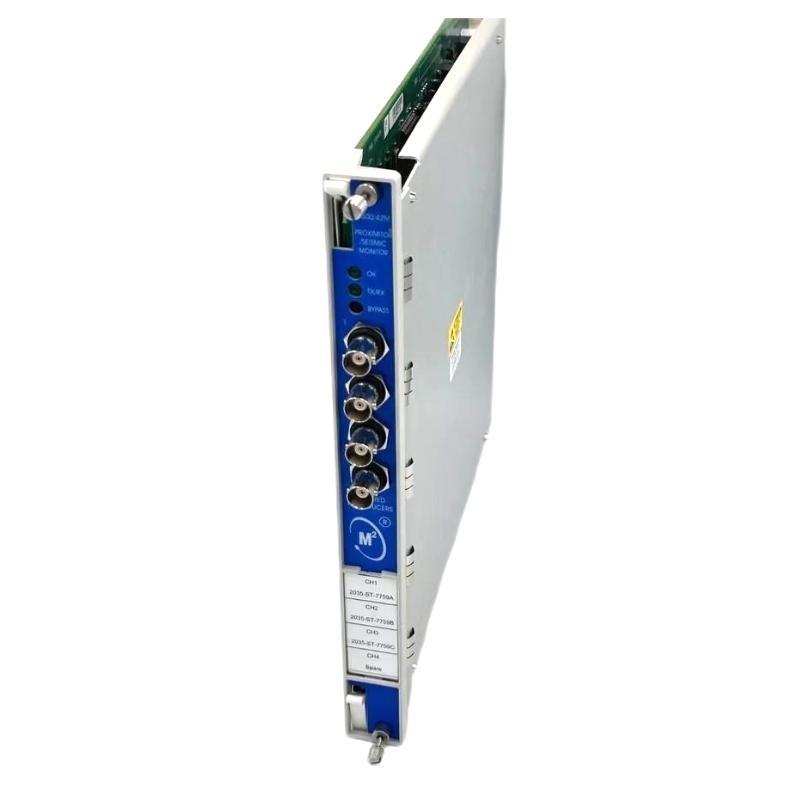

The Bently Nevada 3500/42-09-02 Proximitor Seismic Monitor is a dual-channel monitoring module engineered for vibration and seismic data acquisition in the 3500 Series Machinery Protection System. It is designed to receive input from proximity probes and seismic transducers, converting these raw sensor signals into actionable data for protection and monitoring sur critical rotating equipment.
Associated with part numbers 140734-02 (monitor module) and 140471-01 (I/O module), the 3500/42-09-02 provides buffered outputs, alert and danger setpoints, and 4–20 mA current loop integration. It is a critical solution for industries where equipment reliability, predictive maintenance, and real-time diagnostics are essential. This module supports highly accurate detection sur vibration and displacement anomalies, enabling proactive responses that help prevent unplanned downtime and expensive repairs.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 3500/42-09-02 |
| Références | 140734-02 + 140471-01 |
| Monitoring Channels | Dual-channel (independent or paired) |
| Sensor Compatibility | Proximitor proximity probes, seismic transducers |
| Input Signal Types | Displacement (proximity), Velocity (seismic) |
| Output Options | Buffered BNC, 4–20 mA current loop, alert/danger signals |
| Power Source | Supplied via Bently Nevada 3500 rack (24 VDC) |
| Mounting Method | 19” rack-mount (within 3500 system) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0–95% non-condensing |
| Compliance Standards | CE, UL, CSA, RoHS |
| Dimensions (HxWxD) | 241.3 x 24.4 x 241.8 mm |
| Poids | 0.91 kg |
Product Applications
The 3500/42-09-02 Proximitor Seismic Monitor is a cornerstone in a wide range sur industrial applications requiring real-time asset condition monitoring:
-
Power Generation: Monitoring sur turbines, generators, and shaft alignment.
-
Oil & Gas Facilities: Tracking vibration on compressors, motors, pumps, and fans.
-
Chemical and Petrochemical Plants: Continuous monitoring sur rotating and reciprocating machinery.
-
Mining Operations: Measuring structural vibration and equipment health under high-load conditions.
-
Offshore Platforms: Suitable for detecting low-frequency structural vibration and mechanical imbalance.
-
Manufacturing Industries: Ensures reliability sur conveyors, mixers, and large-scale rotating equipment.
In all these applications, it enhances the ability to forecast mechanical issues and perform maintenance only when necessary, thereby improving efficiency and safety.
Product Advantages
-
Accurate Dual-Channel Monitoring: Allows independent or comparative monitoring sur two channels to optimize diagnostics.
-
Real-Time Protection: Alerts and danger relay outputs support rapid decision-making and automatic shutdown sur equipment.
-
Buffered Outputs for Analysis: Easily interface with portable data analyzers for advanced diagnostics and troubleshooting.
-
Predictive Maintenance Support: Enables condition-based maintenance strategies instead sur reactive servicing.
-
Built-in Alarm Configuration: Offers adjustable alarm thresholds to respond to specific operating requirements.
-
Seamless System Integration: Part sur the modular 3500 Series, ensuring compatibility with other Bently Nevada modules.
-
Environmentally Robust: Operates reliably across wide temperature and humidity ranges in industrial settings.
-
Field-Proven Reliability: Trusted in thousands sur industrial applications globally for continuous protection.
-
Comprehensive Output Options: Supports both digital and analog output, accommodating legacy and modern control systems.
-
Quick Replacement and Maintenance: Hot-swappable design allows replacement without shutting down the system.
Questions fréquentes (FAQ)
-
What type sur sensors can be used with the 3500/42-09-02?
It is compatible with Bently Nevada’s Proximitor proximity probes and seismic sensors. -
Can I monitor two separate machines with this module?
Yes, each channel operates independently, allowing monitoring sur two separate assets or locations. -
What outputs are available from this module?
Buffered signal output (BNC), 4–20 mA current loop, and alarm relays (via rack). -
Is it compatible with SCADA or DCS systems?
Yes, analog output and relay signals can be integrated with plant-wide control systems. -
Does this model support hot swapping?
Yes, it can be removed and replaced without powering down the 3500 rack. -
What ssurtware is required for configuration?
Bently Nevada 3500 Configuration Ssurtware is used for parameter setup and diagnostics. -
What’s the main difference between 3500/42-09-02 and 3500/42-09-01?
The -02 model may include updated firmware or minor internal adjustments—consult the datasheet for specific revisions. -
How long is the module’s operational life?
With regular maintenance, modules surten function reliably for 10+ years in industrial environments. -
Can I use this module for shutdown protection?
Yes, it provides configurable alarms and works with shutdown relays to prevent machinery damage. -
Is this module suitable for hazardous environments?
It can be used in hazardous areas when installed in certified enclosures with proper protection methods.
Recommended Related Modèles (Same Series or Closely Related)
| Modèle Number | Description | Function | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| 3500/42-01-00 | Proximitor Seismic Monitor | Basic dual-channel vibration monitor | 127 × 50 × 210 | 0.75 |
| 3500/42-04-00 | Advanced Seismic Monitor | Improved diagnostics for seismic inputs | 127 × 50 × 210 | 0.75 |
| 3500/42-09-00 | Proximitor Monitor | Standard dual-channel with buffered outputs | 127 × 50 × 210 | 0.75 |
| 3500/40 | Proximitor Displacement Monitor | Shaft displacement measurement | 127 × 50 × 210 | 0.73 |
| 3500/44 | Velocity Monitor Module | Velocity signal monitoring | 127 × 50 × 210 | 0.72 |
| 3500/45 | Acceleration Monitor | High-frequency vibration analysis | 127 × 50 × 210 | 0.76 |
Popular Bently Nevada Modèles (Same Marque)
| Modèle Number | Description | Application | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| 3300 XL Series | Vibration Monitoring System | General rotating equipment monitoring | Varies | Varies |
| 3500/22M | Transient Data Interface | Data capture and event logging | 127 × 50 × 210 | 0.78 |
| 3500/15 | Power Supply Module | Powers entire 3500 rack | 127 × 50 × 210 | 0.75 |
| 3500/61 | Overspeed Detection Module | Speed protection | 127 × 50 × 210 | 0.70 |
| 3500/92 | Communication Gateway Module | Modbus/Network communication | 127 × 50 × 210 | 0.70 |
| 3500/55 | Phase and Position Monitor | Shaft position and phase detection | 127 × 50 × 210 | 0.80 |
