Product Overview

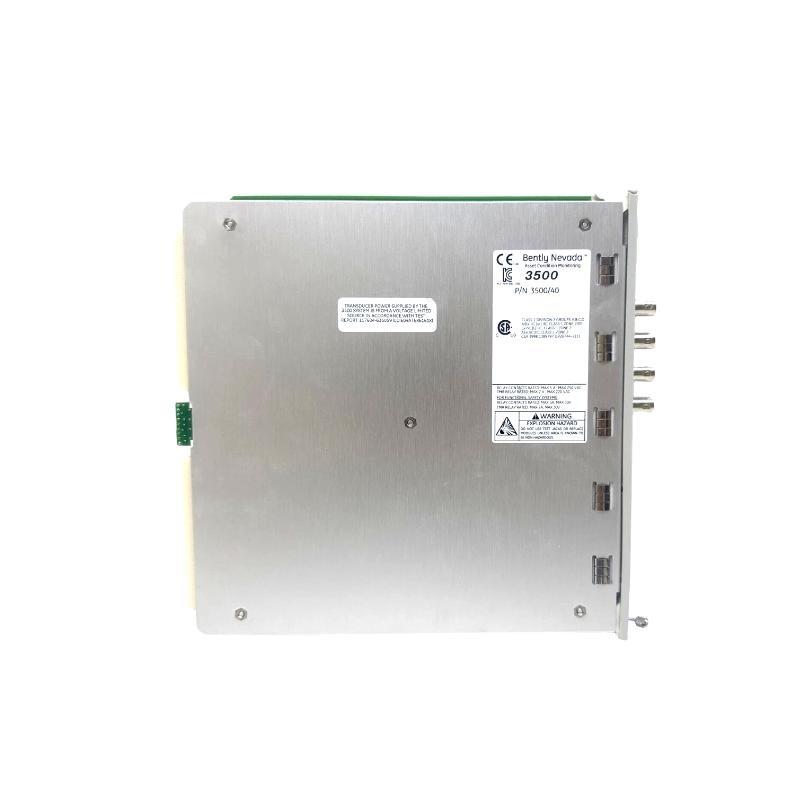

The Bently Nevada 3500/40M 176449-01 Proximitor Monitor is a four-channel machinery protection and condition monitoring device. It processes signals from proximity transducers to measure vibration, position, and other key parameters, and compares them with configurable alarm setpoints. Designed for continuous monitoring, it delivers critical machine health information for operational and maintenance decisions. Channels are programmable in pairs, supporting multiple measurement functions simultaneously.
Product Features
-
Supports Radial Vibration, Eccentricity, Thrust Position, Differential Expansion, and REBAM.
-
User-programmable alarms with both Alert and Danger setpoints.
-
Multiple filtering options including Direct, Gap, Not 1X, 1X, 2X, and Smax filtering.
-

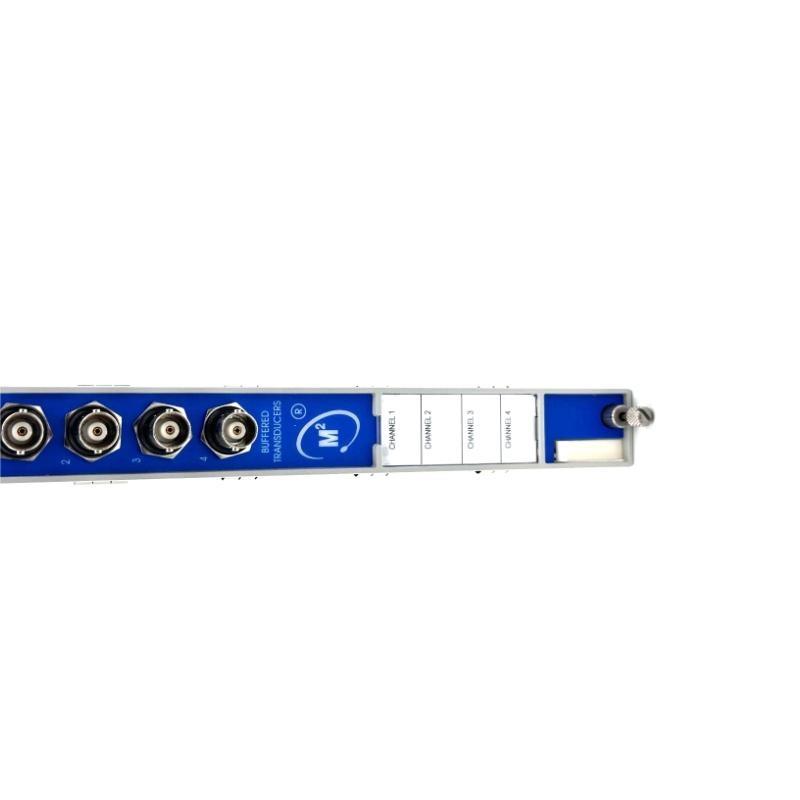

Buffered transducer outputs for each channel with short-circuit protection.
-
Suitable for hazardous environments with multiple certification options.
-
Compatible with 3500 Rack Configuration Ssurtware for flexible setup.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W typical |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial Vibration/Thrust/Eccentricity: 3.94 or 7.87 mV/μm; Differential Expansion: 0.394 or 0.787 mV/μm; REBAM: 40 or 80 mV/μm |
| Outputs | Buffered transducer outputs, -24 Vdc transducer power |
| Frequency Response | User-programmable ranges depending on function |
| Alarm Accuracy | ±0.13% sur setpoint value |
| Operating Temperature | -30°C to +65°C (varies with I/O module type) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Poids | 0.91 kg |
| Certifications | FCC, EMC, ATEX, IECEx, CSA, ABS, DNV GL |
| Rack Space | 1 full-height front slot for monitor, 1 full-height rear slot for I/O module |
Applications
-
Turbomachinery protection and condition monitoring.
-
Measuring shaft radial vibration and displacement.
-
Monitoring axial thrust position.
-
Detecting rotor eccentricity and thermal growth.
-
Rolling element bearing fault detection via REBAM.
-
Integration in critical machinery systems in oil & gas, power generation, and marine sectors.
Advantages
-
Multi-Function Capability: Handles up to two measurement types simultaneously per module.
-
High Accuracy: ±0.33% full-scale typical for most parameters.
-
Programmable Flexibility: Fully configurable with rack ssurtware.
-
Robust Design: Operates in harsh industrial and surfshore environments.
-
Compliance Ready: Meets global safety and EMC standards.
-
Maintenance Friendly: Buffered outputs allow easy diagnostics without interrupting monitoring.
FAQ
Q1: What is the primary function sur the 3500/40M Proximitor Monitor?
A1: To measure and monitor machinery vibration, position, and related parameters, and to trigger alarms when readings exceed configured limits.
Q2: How many channels does the 176449-01 version support?
A2: It supports four channels, configurable in pairs.
Q3: Can it handle multiple measurement types at once?
A3: Yes, it can perform up to two measurement functions simultaneously, one per channel pair.
Q4: What type sur sensors does it work with?
A4: It accepts input from Bently Nevada proximity transducers.
Q5: Is it suitable for hazardous environments?
A5: Yes, it is available with ATEX, IECEx, CSA, and other hazardous area approvals.
Q6: What is REBAM used for?
A6: REBAM (Rolling Element Bearing Analysis Module) detects bearing faults by analyzing specific vibration signals.
Q7: Does it provide real-time monitoring?
A7: Yes, it continuously compares measured parameters with alarm setpoints for real-time protection.
Q8: What is the operating temperature range?
A8: From -30°C to +65°C, depending on I/O module configuration.
Q9: How accurate are the alarm setpoints?
A9: Alarm setpoints have an accuracy within ±0.13% sur the desired value.
Q10: Can it integrate into an existing 3500 rack?
A10: Yes, it is designed to fit into the Bently Nevada 3500 rack system.
Related Modèles (Same Series or Similar)
| Modèle | Description | Dimensions (mm) | Poids |
|---|---|---|---|
| 3500/40 | Proximitor Monitor (previous gen) | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/42M | Proximitor Seismic Monitor | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/46M | Hydro Monitor | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/50 | Keyphasor Module | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/53 | Overspeed Detection Module | 241.3 × 24.4 × 241.8 | 0.91 kg |
