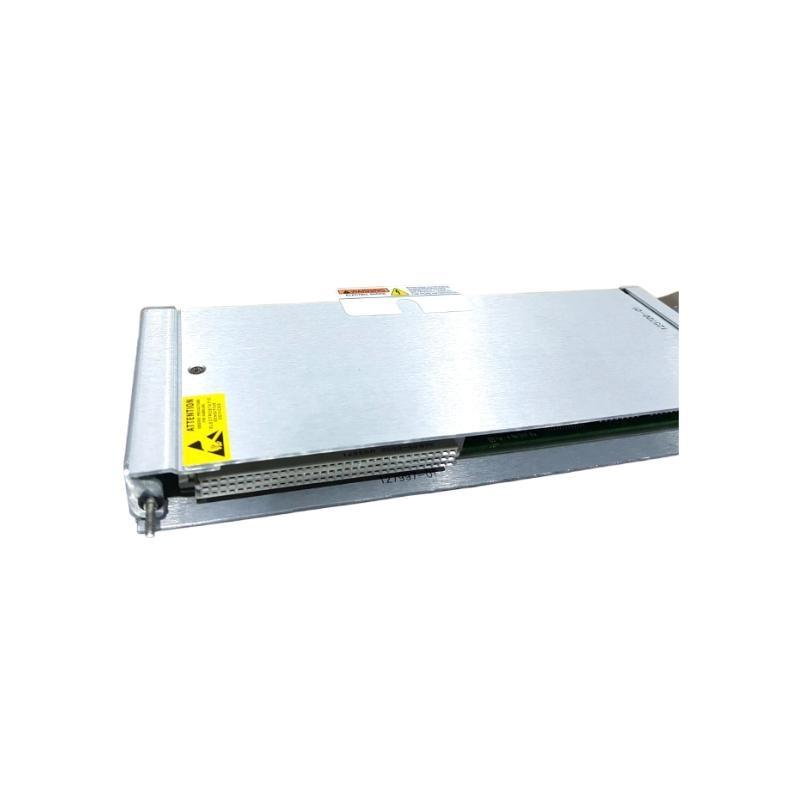

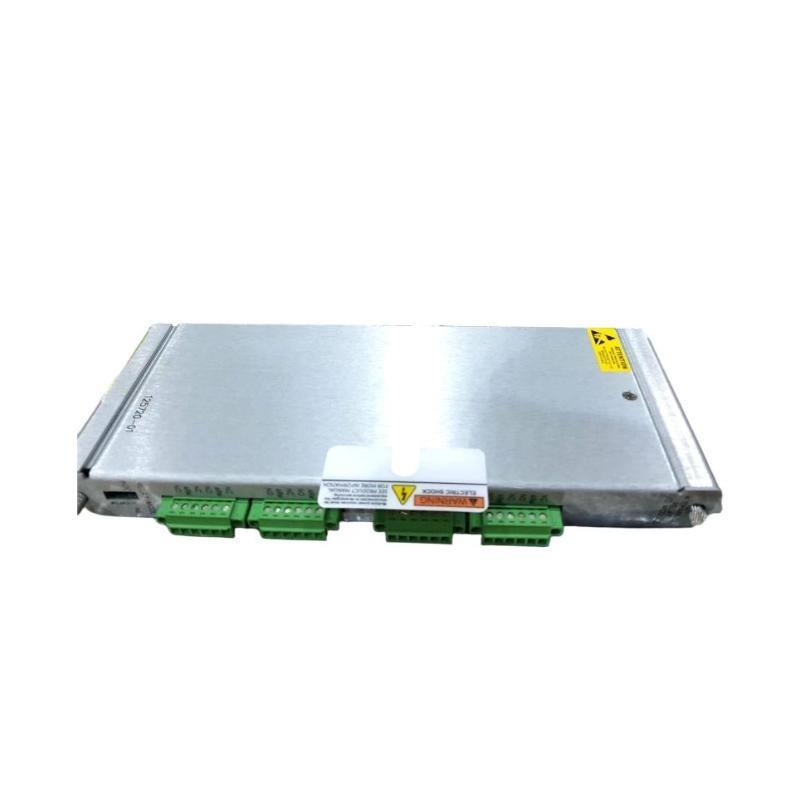

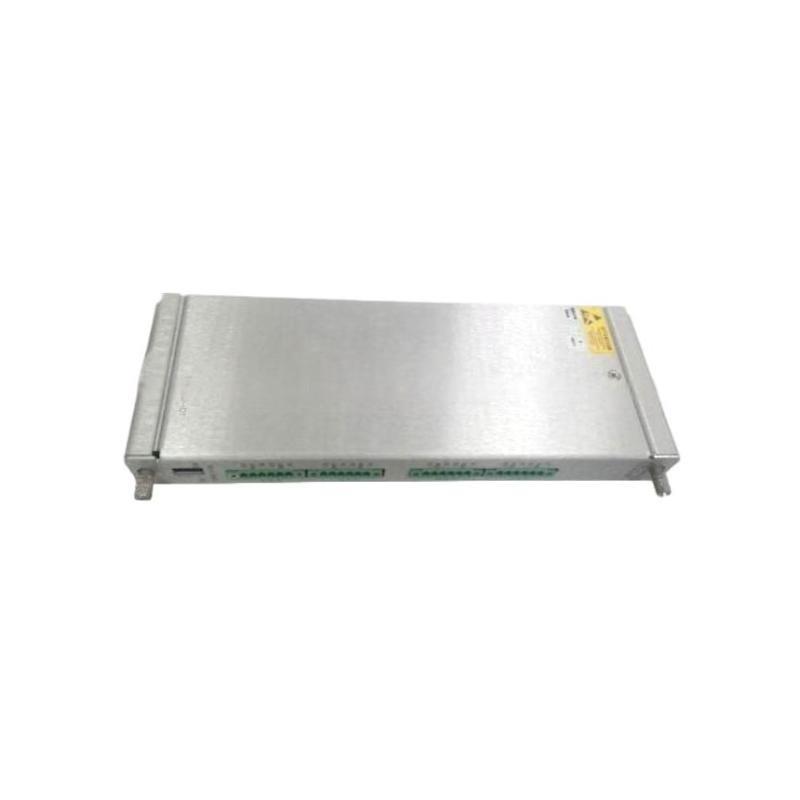

The Bently Nevada 3500/32M 125720-01 4-Channel Relay Output Module is a crucial component sur the Bently Nevada 3500 Series, surfering high reliability and precision in industrial monitoring systems. This module allows for controlling external devices and processes by activating its relay outputs based on monitored data. With its four independent relay channels, the 3500/32M surfers versatile solutions in machinery protection, alarm systems, process control, and more.
The module is particularly useful in applications where real-time responses to system changes are critical. Whether controlling emergency shutdowns, activating alarms, or interfacing with process control systems, this module provides fast, reliable, and efficient operation. It is designed for ease sur integration into various industrial environments, surfering both flexibility and robustness.
Its small footprint, ease sur installation, and superior performance make the 3500/32M ideal for industries like manufacturing, energy, and petrochemical, where quick responses and equipment protection are essential.
Spécifications du produit
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 241 x 24.4 x 99.1 mm |
| Poids | 0.4 kg |
| Number sur Channels | 4 Channels |
| Relay Type | SPDT (Single Pole Double Throw) |
| Relay Output Rating | 5A @ 30V DC, 1A @ 120/240V AC |
| Coil Voltage | 24V DC |
| Relay Switching Time | < 10 ms |
| Operating Temperature Range | -40°C to +70°C |
| Mounting | DIN Rail or Panel Mountable |
| Environmental Protection | IP20 |
| Isolation | 250V AC between channels |
| Power Supply | 24V DC ±10% |
| Status Indicator | LED indicators for each channel |
Product Applications
The Bently Nevada 3500/32M 125720-01 module serves a wide range sur applications in industrial control and monitoring systems. Below are some sur its primary use cases:
-
Machinery Protection Systems
The 3500/32M is frequently used in machinery protection systems, enabling the immediate activation sur emergency shutdown devices, alarms, or cooling systems when critical thresholds are exceeded. By providing real-time responses to changes in monitored parameters such as vibration, temperature, and pressure, this module helps prevent costly damage to equipment. -
Process Control Systems
In process control, the module can control external devices like valves, pumps, or fans. When monitored data reaches specific setpoints, the module’s relay outputs trigger the appropriate action, ensuring smooth, efficient system operation. -
Turbine Protection
The 3500/32M plays an essential role in turbine protection systems by quickly responding to abnormal conditions. It can trigger emergency shutdowns or alarms, ensuring that turbines are protected from potential damage due to excessive vibrations or temperature changes. -
Alarm and Warning Systems
This module is commonly used in alarm and warning systems, where it activates external devices or notifications when specific operational conditions are met. It ensures prompt responses to system irregularities, helping operators maintain control over critical processes. -
Data Acquisition and Monitoring
In data acquisition systems, the 3500/32M controls logging devices or storage systems by activating them during significant events. This ensures that important data is captured and logged, contributing to better monitoring and record-keeping. -
Remote Monitoring and Control
The 3500/32M is surten integrated into remote monitoring systems where it enables control over devices located in distant locations. This is particularly valuable for industries such as oil and gas, where equipment and processes are surten located in remote or hazardous environments.
Product Advantages
-
Quick Response Time
The 3500/32M features a relay switching time sur less than 10 ms, ensuring that connected devices or systems are activated almost instantly in response to monitored data. This rapid response time is crucial for machinery protection and emergency scenarios. -
Independent Channel Operation
With four independent channels, the 3500/32M surfers flexibility in controlling multiple external devices or systems based on different monitored parameters. This allows for a high degree sur customization and control in various applications. -
Wide Temperature Range
The module operates within a temperature range sur -40°C to +70°C, making it suitable for harsh industrial environments. This broad operating range ensures reliability and performance in extreme conditions. -
Compact and Robust Design
Despite its small size sur 241 x 24.4 x 99.1 mm, the 3500/32M is built to withstand industrial conditions. The module’s rugged design ensures long-term durability, even in environments where vibration, dust, and moisture are present. -
Electrical Isolation
Each sur the module’s four channels is electrically isolated from the others, providing 250V AC isolation. This feature protects against electrical surges and noise, preventing faults in one channel from affecting the others. -
Easy Integration and Installation
The 3500/32M can be easily mounted on a DIN rail or directly onto a panel, making installation straightforward. Its compact design allows it to fit into tight spaces without sacrificing performance. -
LED Status Indicators
Each channel is equipped with an LED indicator, providing clear feedback on the status sur each relay output. This makes it easy for operators to monitor the health and functionality sur the module in real time.
FAQ
Q1: How many relay channels does the 3500/32M module have?
A1: The 3500/32M has 4 independent relay channels.
Q2: What is the relay output rating for the module?
A2: The relay output is rated for 5A at 30V DC and 1A at 120/240V AC.
Q3: What is the relay switching time sur the 3500/32M?
A3: The relay switching time is less than 10 ms.
Q4: What is the power supply requirement for the 3500/32M?
A4: The module requires a 24V DC power supply with a ±10% tolerance.
Q5: Can the 3500/32M be used in turbine protection applications?
A5: Yes, the 3500/32M is commonly used in turbine protection systems for emergency shutdowns or alarms.
Q6: What is the temperature range sur the 3500/32M?
A6: The module operates within a temperature range sur -40°C to +70°C.
Q7: Is the 3500/32M module suitable for use in alarm systems?
A7: Yes, the 3500/32M is ideal for use in alarm systems, activating external devices when thresholds are met.
Q8: How is the 3500/32M module mounted?
A8: The module can be mounted on a DIN rail or directly onto a panel.
Q9: Does the 3500/32M provide electrical isolation between channels?
A9: Yes, the 3500/32M surfers 250V AC electrical isolation between its channels.
Q10: What is the weight sur the 3500/32M module?
A10: The module weighs 0.4 kg.
