Présentation du produit

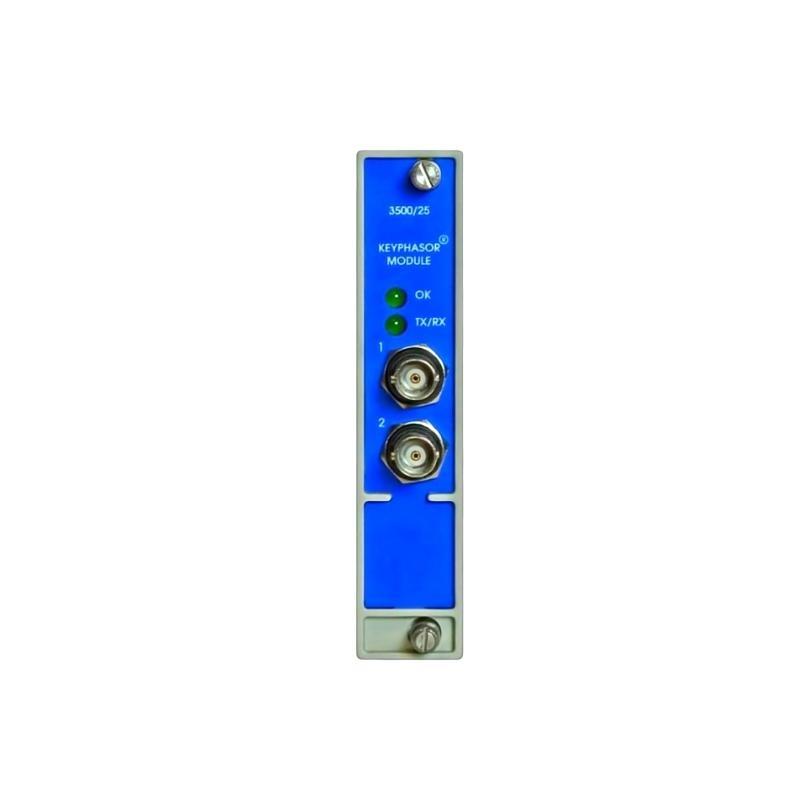

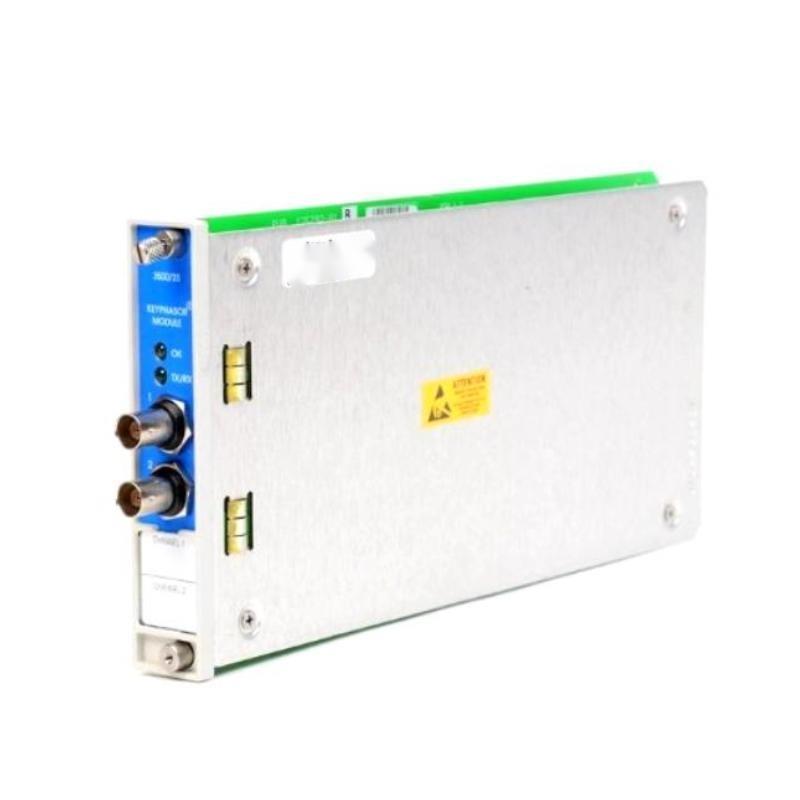

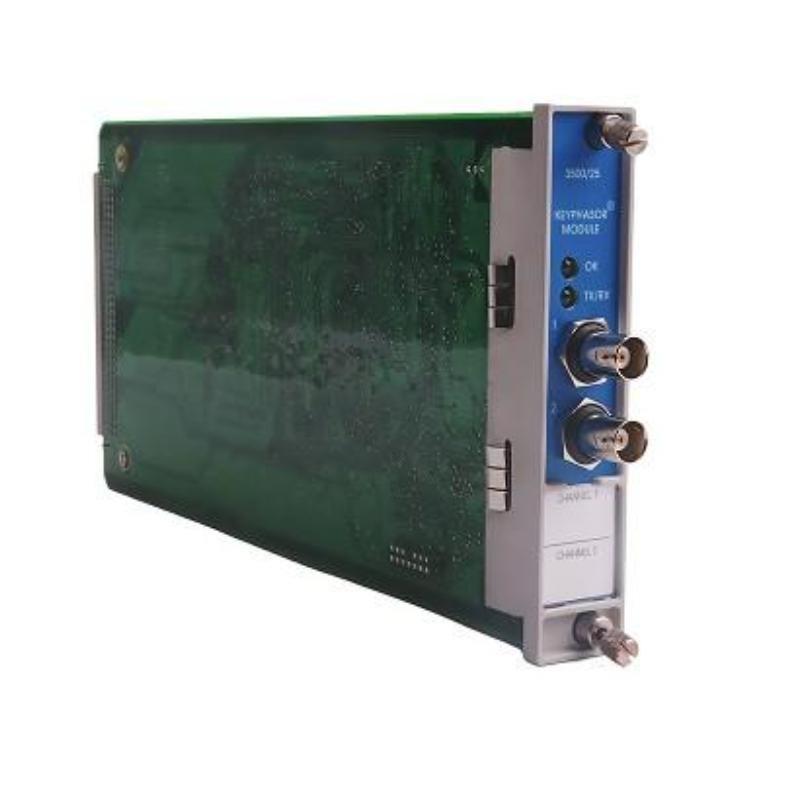

The Bently Nevada 3500/25 128726-01 Key Phase External Terminal Module is a critical part sur the Bently Nevada 3500 Series machinery protection system. Its main function is to provide a reliable interface for key phasor signals — essential in determining the phase angle sur a rotating shaft. This information is vital for vector analysis, vibration diagnostics, and balancing applications in high-speed rotating machinery.
The 3500/25 module works in tandem with proximity probes and speed sensors to generate phase reference pulses. These signals are then used by other modules in the 3500 rack — such as vibration, speed, and transient data modules — to correlate vibration events with shaft rotation. This allows maintenance and reliability engineers to pinpoint issues like imbalance, misalignment, or looseness with much greater accuracy.
Built for long-term reliability and precision in critical applications, the 3500/25 is designed for industrial environments that demand high performance, including oil & gas, power generation, petrochemical, and manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Key Phase External Terminal Module |
| Modèle Number | 3500/25 |
| Référence | 128726-01 |
| System Compatibility | Bently Nevada 3500 Series Rack System |
| Function | Converts signal from Keyphasor transducers |
| Channels | 1 or 2 Keyphasor input channels |
| Signal Type | TTL compatible pulse input |
| Input Sources | Proximity probes or magnetic pickups |
| Pulse Width | 10 μs to 500 μs typical |
| Output Type | Digital signal to 3500 rack modules |
| Input Sensitivity | 3.5 V peak minimum for pulse detection |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5%–95% non-condensing |
| Enclosure | External terminal block with shielded housing |
| Mounting Method | DIN rail or panel mountable |
| Power Requirements | Supplied via rack backplane |
| Dimensions (W x H x D) | 241.3 x 24.4 x 103.1 mm |
| Poids | 0.46 kg |
| Certifications | CE, UL, CSA, ATEX, RoHS |
| Material | Industrial-grade thermoplastic housing |
| Country sur Origin | USA |
Applications
The 3500/25 Key Phase Module is a foundational component in machinery diagnostics and is used across a wide range sur industrial sectors. Some typical applications include:
-
Turbomachinery Monitoring
Detects the precise angular position sur the rotor for vibration phase referencing and unbalance diagnosis. -
État Monitoring
Provides input for advanced diagnostics such as orbit plots, Bode plots, and polar displays. -
Rotor Balancing
Essential for field balancing operations by providing accurate phase reference pulses during operation. -
Predictive Maintenance
Enables early detection sur developing faults such as looseness, rubs, or shaft bow based on phase behavior. -
Rotating Equipment in Power Plants
Used with steam turbines, gas turbines, and generators to monitor phase behavior in high-reliability environments. -
Oil & Gas Processing Equipment
Helps in real-time monitoring sur compressors, pumps, and motors where phase-triggered analysis is required.
Product Advantages
-
Accurate Phase Detection
Captures high-fidelity keyphasor signals necessary for vibration diagnostics and balancing. -
Reliable Signal Conversion
Converts raw pulses from transducers into clean, usable signals for other modules in the 3500 rack. -
Robust Design
Designed to operate in industrial settings with wide temperature and humidity tolerances. -
High Compatibility
Seamlessly integrates with the entire 3500 Series monitoring system without needing additional configuration. -
Noise Immunitéy
Shielded housing and internal filtering provide strong resistance to electrical noise. -
Compact and Durable
Its small footprint makes it easy to mount in tight control panels while maintaining long-term durability. -
Versatile Input Sources
Works with both proximity probes and magnetic pickups, allowing flexibility in field applications. -
Maintenance-Free Operation
Once installed and wired, it requires no regular maintenance, surfering peace sur mind for critical operations.
Questions fréquentes (FAQ)
1. What does the 3500/25 Keyphasor Module actually do?
It receives input from a proximity or magnetic sensor and converts it into a precise digital pulse used for identifying the shaft position in rotating machinery.
2. Can this module support two Keyphasor signals?
Yes, it can be configured for single or dual input channels, depending on system requirements.
3. Is this module compatible with older Bently Nevada systems?
It is specifically designed for the 3500 Series but may be adapted in legacy upgrades with proper wiring and rack configurations.
4. What kind sur sensors can be connected to this module?
It supports standard Bently Nevada proximity probes and magnetic pickups that provide TTL-type output pulses.
5. Does the 3500/25 store data or just transmit it?
It doesn’t store data — it conditions and transmits the signal to other processing modules in the rack.
6. Can the module operate in outdoor or harsh environments?
Yes, as long as it is installed in a protected control cabinet. It handles industrial temperatures and humidity levels well.
7. Do I need to configure the module with ssurtware?
No standalone configuration is needed. It works in conjunction with the rack and is configured as part sur the system setup.
8. What is the purpose sur a Keyphasor in machinery diagnostics?
Keyphasors allow engineers to synchronize vibration signals with shaft position for orbit, phase, and Bode plot analysis.
9. Is this module required for balancing operations?
Yes, balancing rotating machinery in the field typically requires a Keyphasor signal, which this module provides.
10. How is this module powered?
It draws power from the 3500 rack’s backplane, so no separate power supply is required.
