Product Overview

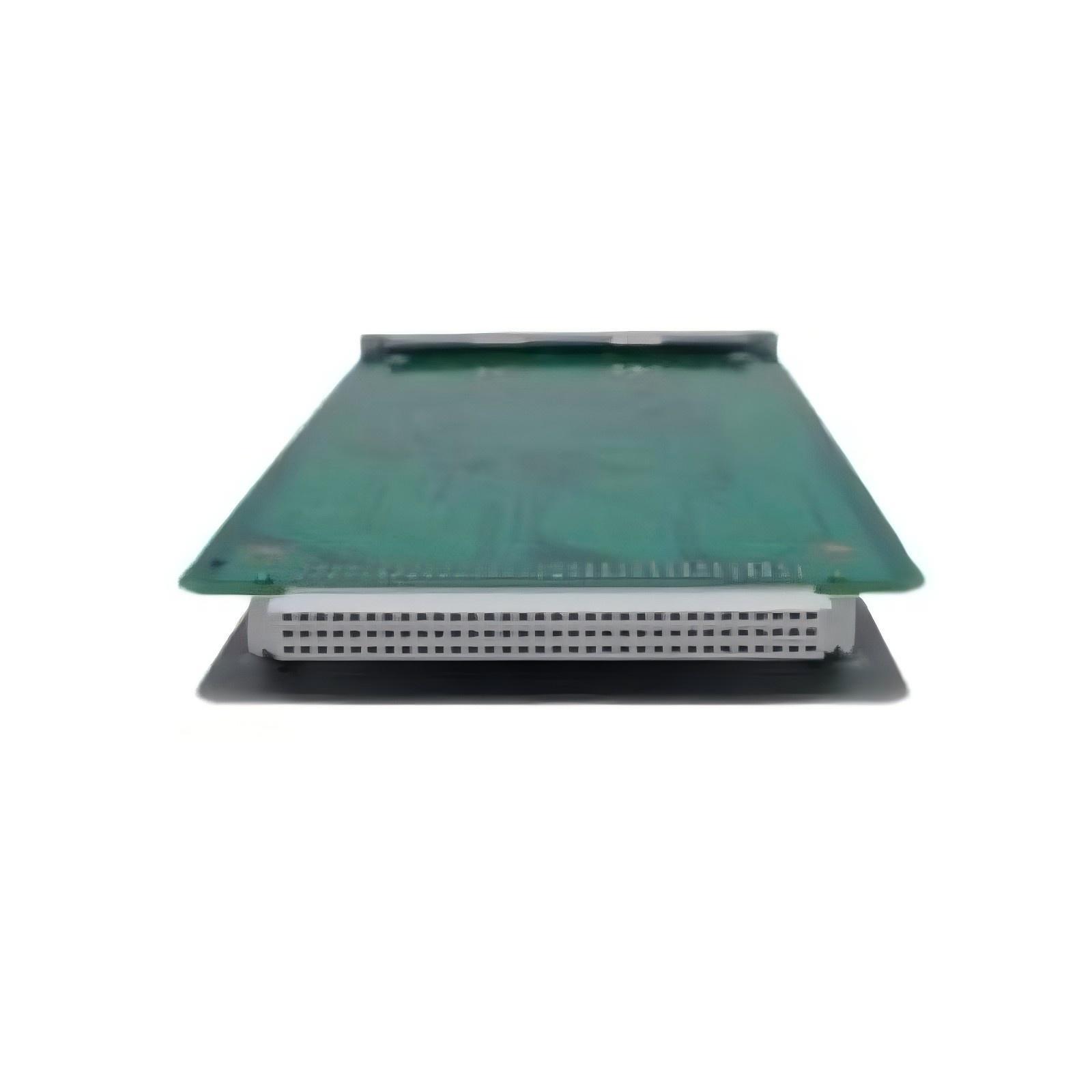

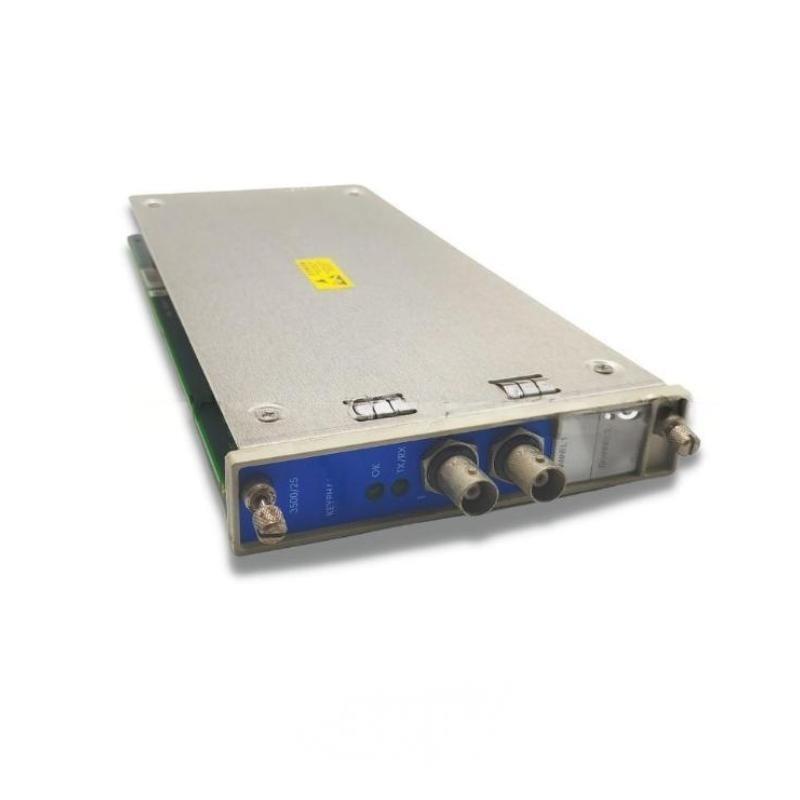

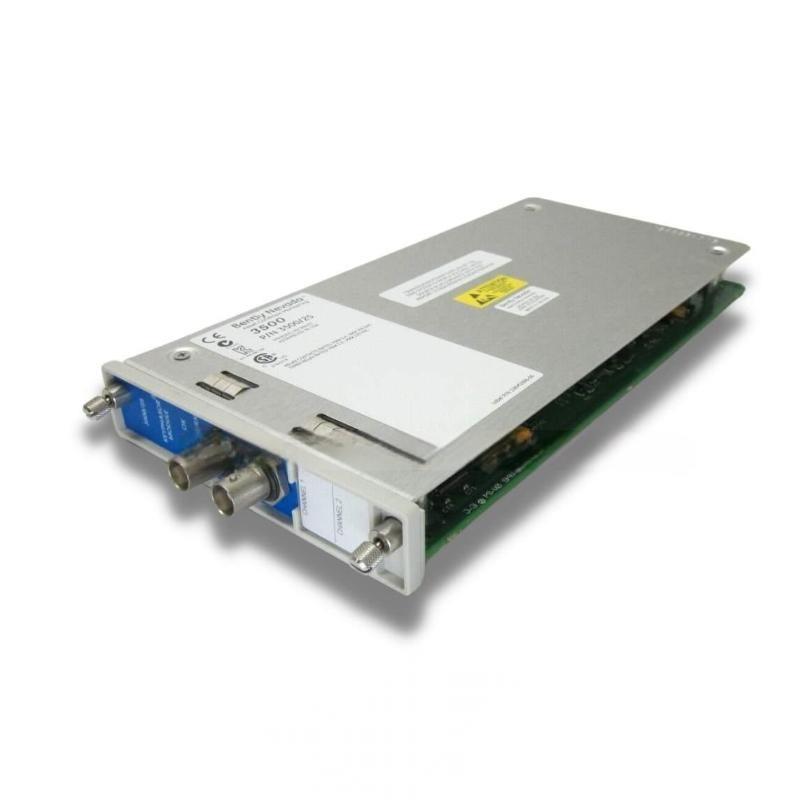

The Bently Nevada 3500/25-02-01-01 is an Enhanced Key Phase Module designed for precise measurement sur rotational speed and keyphasor signals from rotating machinery. It is a critical component sur the 3500 Series Monitoring System, providing reliable keyphasor pulse generation for vibration analysis and machinery protection.
Key Features
-
Accurate keyphasor pulse generation for rotating machinery
-
Compatible with 3500 Series Monitoring Systems
-
Enhanced signal processing for precise phase measurement
-
High reliability under harsh industrial environments
-
Provides essential data for vibration monitoring and machinery protection
Technical Specifications
| Specification | Details |
|---|---|
| Modèle | 3500/25-02-01-01 |
| Type | Enhanced Key Phase Module |
| Input Signal Type | Proximity probe or magnetic pickup |
| Output Signal Type | Keyphasor pulse for 3500 Series system |
| Power Requirements | 24 VDC ±10% |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Signal Processing | Enhanced digital processing for accurate phase |
| Mounting | Rack-mount compatible with 3500 Series |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Poids | 0.34 kg |
Questions fréquentes (FAQ)
1. What is the primary function sur the 3500/25-02-01-01 module?
It generates accurate keyphasor pulses for vibration monitoring and machinery protection.
2. Is this module compatible with the 3500 Series Monitoring System?
Yes, it integrates fully with all 3500 Series modules.
3. What types sur input signals does it accept?
It accepts signals from proximity probes or magnetic pickups.
4. What is the output signal sur this module?
It outputs keyphasor pulses for the 3500 Series monitoring system.
5. What is the operating temperature range?
It operates from 0 °C to +70 °C.
6. Can this module be stored at extreme temperatures?
Yes, it can be stored between –40 °C and +85 °C.
7. How is the module mounted?
It is designed for rack-mounting in the 3500 Series system.
8. What power supply does the module require?
The module requires 24 VDC ±10%.
