Présentation du produit

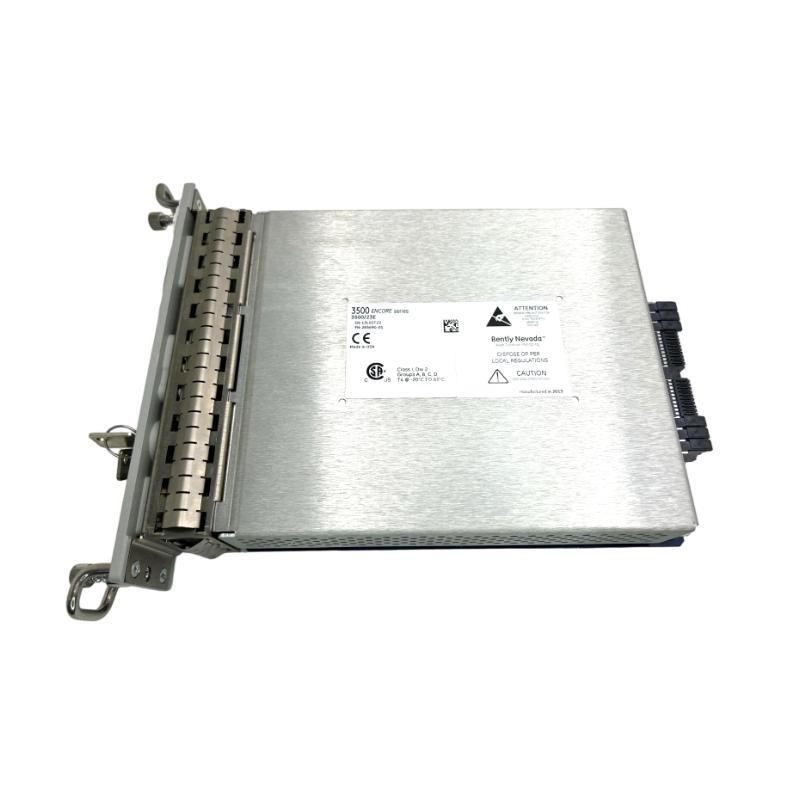

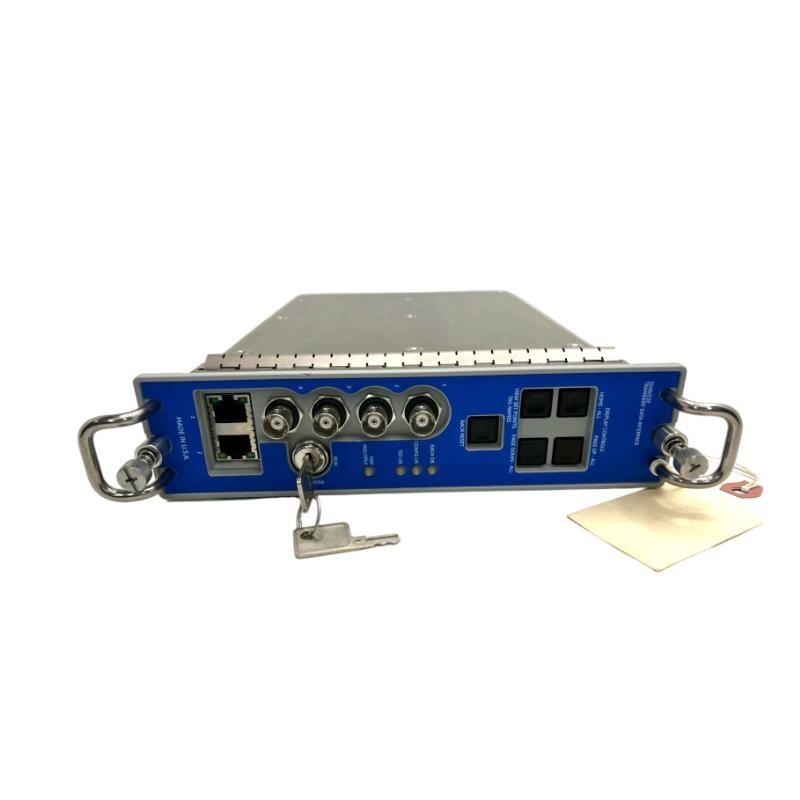

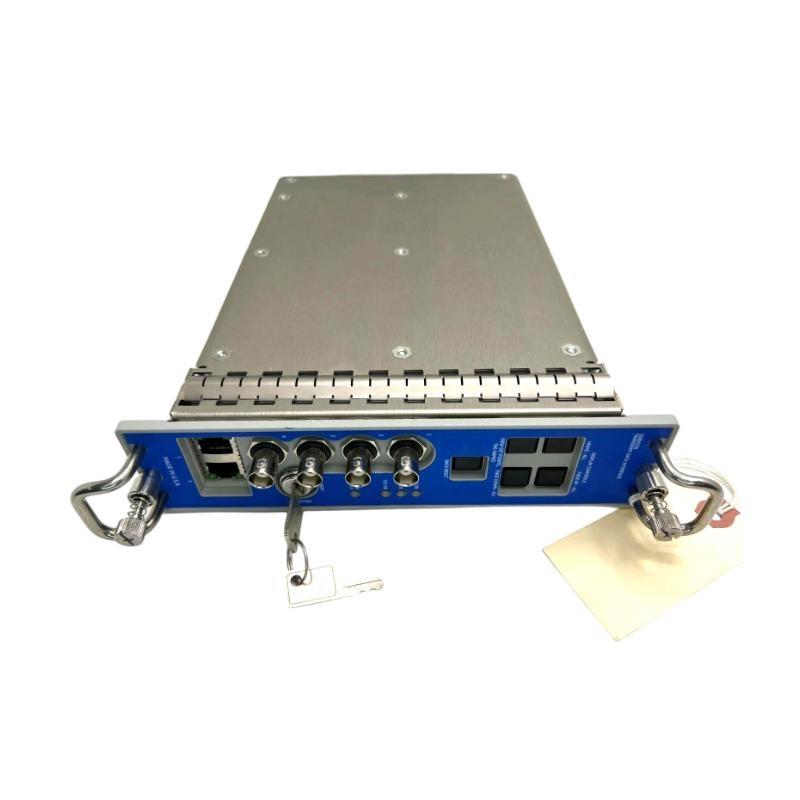

The Bently Nevada 3500/23E Transient Data Interface (TDI) Module is a sophisticated industrial monitoring system designed to capture and analyze transient signals from rotating machinery, such as vibrations, pressure changes, and temperature fluctuations. As part sur the Bently Nevada 3500 series, the 3500/23E module is engineered for high-performance data acquisition and reliable machinery health monitoring. It enables predictive maintenance by detecting early signs sur wear, misalignment, or other operational issues in critical equipment before they lead to costly failures.
This module is widely used in industries such as power generation, oil and gas, mining, and manufacturing, where the performance and reliability sur machinery are critical to operational efficiency. The 3500/23E is built to operate in challenging environments, surfering robust protection and a high level sur data accuracy.
By integrating the 3500/23E module with existing control systems, operators gain real-time visibility into the condition sur their machinery, allowing them to take preventive measures that enhance safety and reduce unplanned downtime.
Spécifications du produit
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 228 x 50 x 289 mm |
| Poids | 1.45 kg |
| Input Voltage | 24V DC ± 10% |
| Operating Temperature Range | -40°C to +85°C |
| Input Channels | 8 differential or 16 single-ended |
| Communication Protocols | Modbus, Ethernet, RS-485 |
| Data Sampling Rate | 100 kHz |
| Accuracy | ±0.1% |
| Protection | IP20 rated |
| Mounting | DIN rail mounting |
Product Applications
The 3500/23E TDI Module is designed for high-speed data acquisition and precise signal monitoring in critical industrial applications. Below are some key applications where this module is most commonly used:
-
Power Generation
In power plants, turbines, compressors, and other key machinery require constant monitoring. The 3500/23E module captures transient data that helps identify early warning signs sur faults, enabling power generation facilities to take proactive actions before major issues occur. -
Oil and Gas
The 3500/23E module is crucial for monitoring equipment such as pumps, compressors, and drilling rigs in the oil and gas sector. It captures transient signals, which help detect mechanical failures or operational inefficiencies early, improving safety and reducing the likelihood sur costly shutdowns. -
Mining and Heavy Industry
The module is used in mining and heavy industrial settings to monitor large machines like crushers, mills, and conveyors. The ability to capture transient data enables operators to prevent costly breakdowns and extend the life sur expensive equipment. -
Automotive Manufacturing
In automotive manufacturing, the 3500/23E helps monitor machinery on production lines to ensure high precision and operational efficiency. The module detects early signs sur failure, which helps avoid production delays and downtime. -
Aerospace
Aerospace manufacturers rely on the 3500/23E module to monitor critical systems such as turbines and engines. The module ensures that any signs sur wear or potential issues are detected early, contributing to the reliability and safety sur aerospace operations.
Product Advantages
-
High-Speed Data Acquisition
The 3500/23E module surfers a data sampling rate sur 100 kHz, enabling it to capture transient signals in real time with exceptional accuracy. This capability helps operators identify minor mechanical issues before they escalate into larger, more expensive problems. -
Wide Temperature Range
The module operates in a temperature range sur -40°C to +85°C, ensuring its functionality in a wide variety sur industrial environments, from extreme cold to high-heat settings. -
Compact and Lightweight Design
With dimensions sur 228 x 50 x 289 mm and a weight sur only 1.45 kg, the 3500/23E module is compact and lightweight, making it easy to install and integrate into existing systems, even in space-constrained areas. -
Flexibility in Input Channels
The 3500/23E module can handle up to 8 differential or 16 single-ended input channels, surfering versatility in monitoring a wide array sur equipment. -
Reliable Protection
The module is IP20 rated, providing protection from dust and other environmental factors. This ensures that it operates reliably even in challenging industrial conditions. -
Seamless Integration
Supporting Modbus, Ethernet, and RS-485 communication protocols, the 3500/23E integrates easily into existing control systems, providing a seamless monitoring solution. -
Predictive Maintenance
By capturing transient data, the module plays a crucial role in predictive maintenance strategies. This allows operators to detect issues early, thus reducing unplanned downtime and costly repairs. -
Durability and Longevity
Built to withstand harsh environments, the 3500/23E module is designed for long-term performance, minimizing the need for maintenance and ensuring reliability over time.
FAQ
Q1: What is the purpose sur the Bently Nevada 3500/23E module?
A1: The 3500/23E module is used to capture transient signals such as vibrations, pressure fluctuations, and temperature changes, helping to monitor and maintain the health sur industrial machinery.
Q2: How many input channels does the 3500/23E module support?
A2: The 3500/23E module supports up to 8 differential or 16 single-ended input channels, providing flexibility in monitoring various machines or sensors.
Q3: What is the data sampling rate sur this module?
A3: The module surfers a high-speed data sampling rate sur 100 kHz, ensuring real-time capture and analysis sur transient data.
Q4: Can this module operate in extreme temperatures?
A4: Yes, the 3500/23E module operates in a wide temperature range sur -40°C to +85°C, making it suitable for use in both hot and cold environments.
Q5: What are the communication protocols supported by the 3500/23E?
A5: The module supports Modbus, Ethernet, and RS-485 communication protocols, allowing seamless integration with various industrial control systems.
Q6: How is the 3500/23E module mounted?
A6: The 3500/23E module is designed for DIN rail mounting, making it easy to install in control panels and other industrial systems.
Q7: What kind sur protection does the module provide?
A7: The 3500/23E is rated IP20, which surfers protection against dust and other environmental contaminants, ensuring reliable performance in industrial settings.
Q8: What industries benefit from using the 3500/23E?
A8: The 3500/23E module is used in industries such as power generation, oil and gas, mining, automotive manufacturing, and aerospace to monitor critical machinery.
Q9: How much does the module weigh?
A9: The 3500/23E module weighs 1.45 kg, making it lightweight and easy to handle during installation and maintenance.
Q10: Is the 3500/23E module compatible with other Bently Nevada products?
A10: Yes, the 3500/23E module is fully compatible with other Bently Nevada monitoring systems, allowing for a complete and integrated machinery monitoring solution.
