Présentation du produit

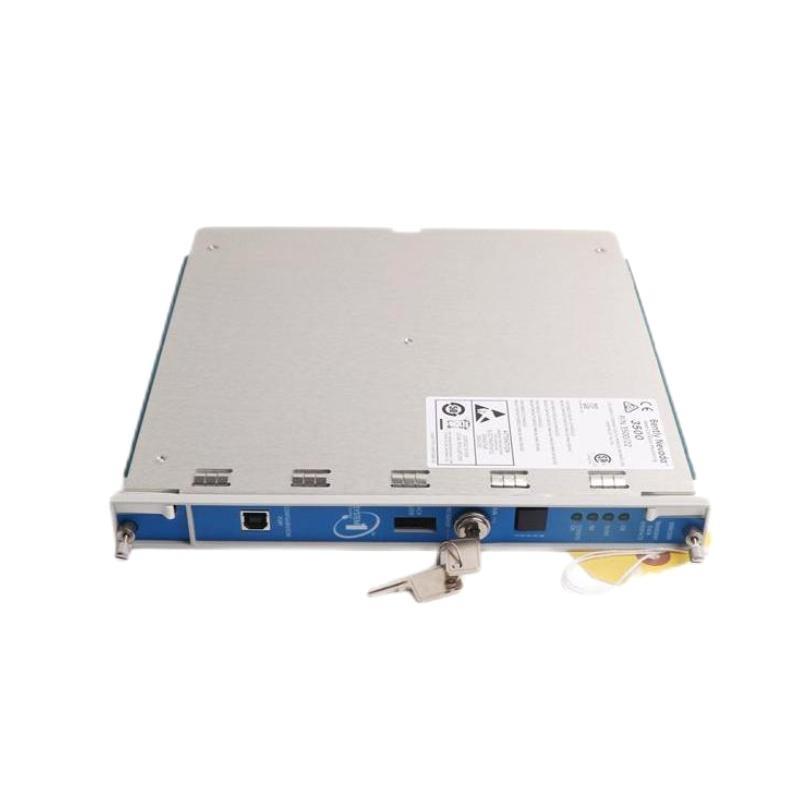

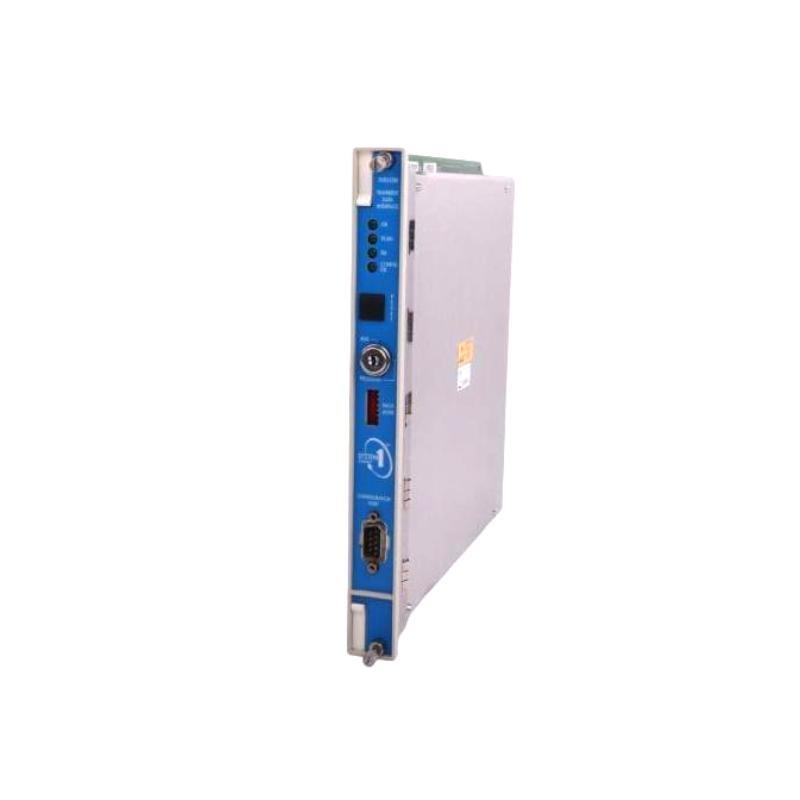

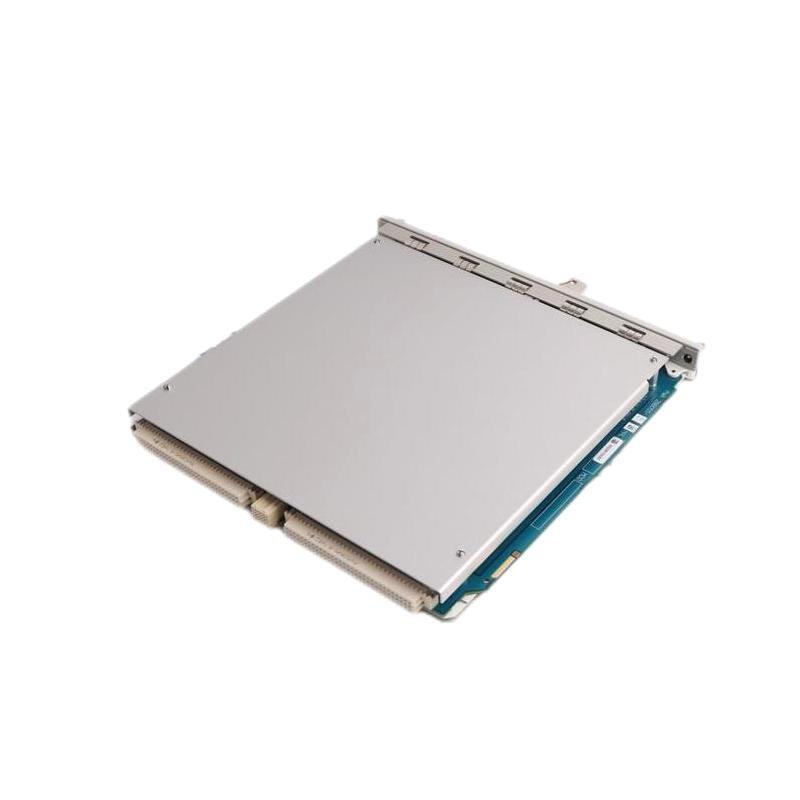

The Bently Nevada 3500/22M 288055-01 Transient Data Interface (TDI) Module is an integral component sur the Bently Nevada 3500 Machinery Protection and État Monitoring System. Designed to serve as the primary communication interface between the 3500 rack and external ssurtware platforms such as System 1®, the 22M TDI module collects and transmits static, dynamic, and transient data from all modules in the rack.
This module combines the functionality sur the older 3500/20 Rack Interface Module and a Communication Processor Module into a single high-performance unité. With its modular design, the 3500/22M supports both transient data and static values and plays a critical role in real-time diagnostics and post-event analysis. Equipped with dual-redundant Ethernet ports and buffered output interfaces, the 22M TDI ensures robust data communication with minimal latency and high reliability across a wide range sur industrial machinery monitoring applications.
Spécifications du produit
| Parameter | Specification |
| Modèle Number | 3500/22M |
| Référence | 288055-01 |
| Function | Transient Data Interface Module |
| System Compatibility | Bently Nevada 3500 Series Rack |
| Communication Interfaces | Dual Ethernet ports (100Base-TX), RS232/485 |
| Protocols Supported | Proprietary protocol for System 1® connectivity |
| Data Types Transmitted | Static data, dynamic vibration data, transient data |
| Buffered Output Terminals | Yes, for diagnostic access via BNC connectors |
| Data Rate | Up to 100 Mbps Ethernet |
| Redundancy Support | Yes, via redundant TDI configuration |
| Configuration Interface | 3500/01 Rack Configuration Ssurtware |
| Power Consumption | 4.0 W (typical) |
| Operating Temperature | –30°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Poids | 0.91 kg |
| Mounting | Plugs directly into the 3500 rack |
| Firmware Upgradable | Yes, via System 1® and rack config ssurtware |
Applications
-
Machinery État Monitoring
-
Gas turbines, steam turbines, compressors, pumps, fans, and motors.
-
-
Transient Data Acquisition
-
Captures and stores transient vibration events such as startups, shutdowns, trips, and other anomalies.
-
-
Integration with System 1®
-
Seamless data streaming into Bently Nevada’s predictive analytics platform.
-
-
Plantwide Monitoring Infrastructure
-
Acts as a centralized data gateway across multiple machinery systems.
-
-
Diagnostics & Root Cause Analysis
-
Ideal for engineers seeking detailed, timestamped event data.
-
-
Critical Asset Protection
-
Used across oil & gas, petrochemical, power generation, marine, and mining industries.
-
Advantages
-
Combined Functionality
-
Reduces hardware requirements by combining rack interface and communication into a single module.
-
-
High-Speed Data Capture
-
Enables advanced monitoring with real-time dynamic and transient data.
-
-
Redundancy Ready
-
Supports dual TDI installation for fault-tolerant operation.
-
-
Seamless Integration
-
Plug-and-play compatibility with Bently Nevada’s System 1® ssurtware.
-
-
Improved Diagnostic Capability
-
Enables pre- and post-fault waveform analysis, helping avoid unplanned downtime.
-
-
Firmware Upgrade Support
-
Ensures long-term support and scalability for future features.
-
-
Rugged and Reliable
-
Engineered for harsh industrial environments with high shock and vibration tolerance.
-
-
Modular Maintenance
-
Easy to replace or upgrade without rack downtime or re-cabling.
-
Latest News Headlines (Industry/Technology Related)
-
“Bently Nevada Expands TDI Module Capabilities with Enhanced Transient Data Capture”
-
“GE Digital’s System 1® Optimized for 3500/22M Real-Time Diagnostics”
-
“New Reliability Upgrades Drive Global Adoption sur the 3500 Series”
-
“Modular Transient Interfaces Lead the Future sur Predictive Maintenance”
-
“Oil & Gas Sector Sees Downtime Reduction with 3500/22M Integration”
Questions fréquentes (FAQ)
-
Q: What’s the main role sur the 3500/22M in the 3500 rack?
A: It acts as the primary interface for all communication between the rack and external monitoring systems like System 1®. -
Q: Can the 3500/22M operate independently without System 1®?
A: While it can collect data, its full potential is realized when used with System 1® for visualization and diagnostics. -
Q: Is the 3500/22M hot-swappable?
A: Yes, it can be replaced without removing power from the entire rack. -
Q: How does the TDI support redundant configurations?
A: Dual 22M modules can be installed for automatic failover, ensuring uninterrupted operation. -
Q: Does it require a special ssurtware to configure?
A: Yes, configuration is done via Bently Nevada’s 3500/01 Rack Configuration Ssurtware. -
Q: Can this module handle high vibration environments?
A: Absolutely. It is designed for industrial-grade environments including turbine enclosures. -
Q: What type sur transient data can it capture?
A: Startups, shutdowns, machine trips, surge events, and speed changes. -
Q: How is the data transferred to external systems?
A: Via dual Ethernet ports using Bently Nevada’s proprietary protocol. -
Q: Does it store data locally?
A: No, it streams data in real time to external systems for storage and analysis. -
Q: What’s the difference between 3500/22 and 3500/22M?
A: The “M” version provides enhanced features, faster data throughput, and improved diagnostic integration.
Related Modèles (Same Series / Functional Family)
| Modèle Number | Description | Function |
| 3500/22 | Standard Transient Data Interface Module | Entry-level version without modular upgrades |
| 3500/01 | Rack Configuration Ssurtware | Used to configure all rack modules |
| 3500/15 | Power Supply Module | Provides system power |
| 3500/25 | Keyphasor Module | Detects shaft position and rotational speed |
| 3500/42M | Proximitor/Seismic Monitor | Vibration and displacement monitoring |
| 3500/93 | System Display Interface | Outputs monitoring data to remote displays |
Popular Bently Nevada Modèles (Same Marque)
| Modèle Number | Description | Key Application |
| 330103-00-05-10-02-00 | Proximity Probe | Vibration and displacement measurement |
| 330104-00-05-10-02-00 | Reverse Mount Probe | Space-limited installations |
| 3500/40M | Proximitor Monitor | Shaft vibration monitoring |
| 3500/50 | Tachometer Module | Measures rotational speed and acceleration |
| 3500/60 | Temperature Monitor | Process and bearing temperature monitoring |
| 3500/94M | Touchscreen Display Module | Local user interface with live data and alerts |
