Présentation du produit

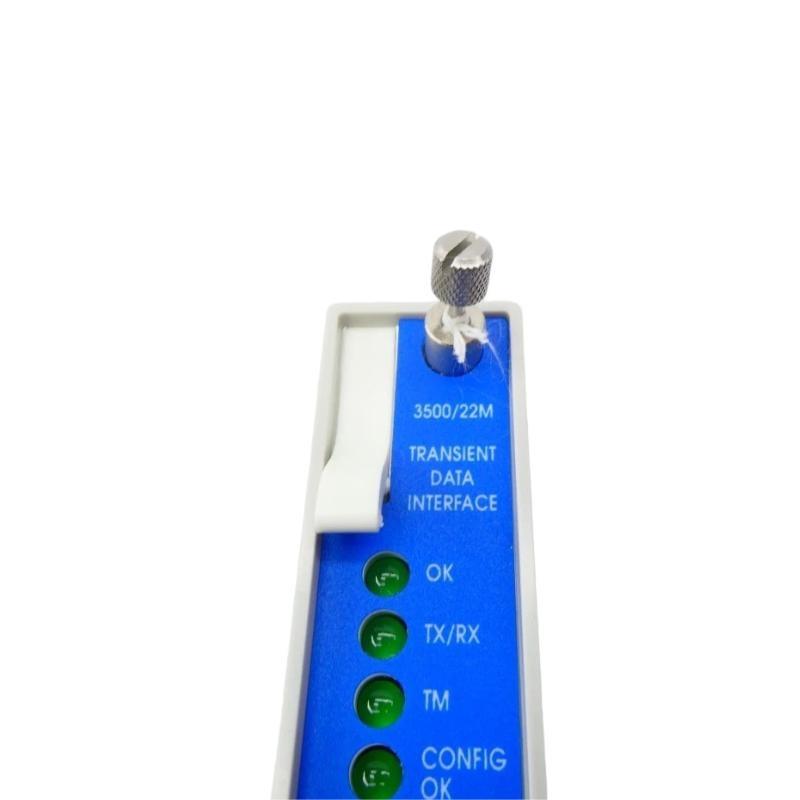

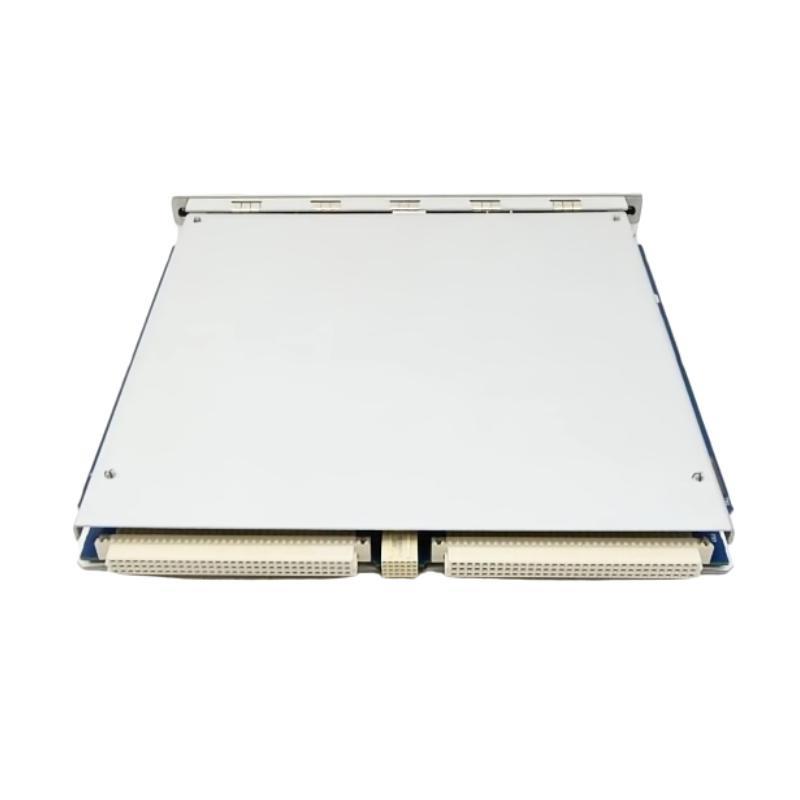

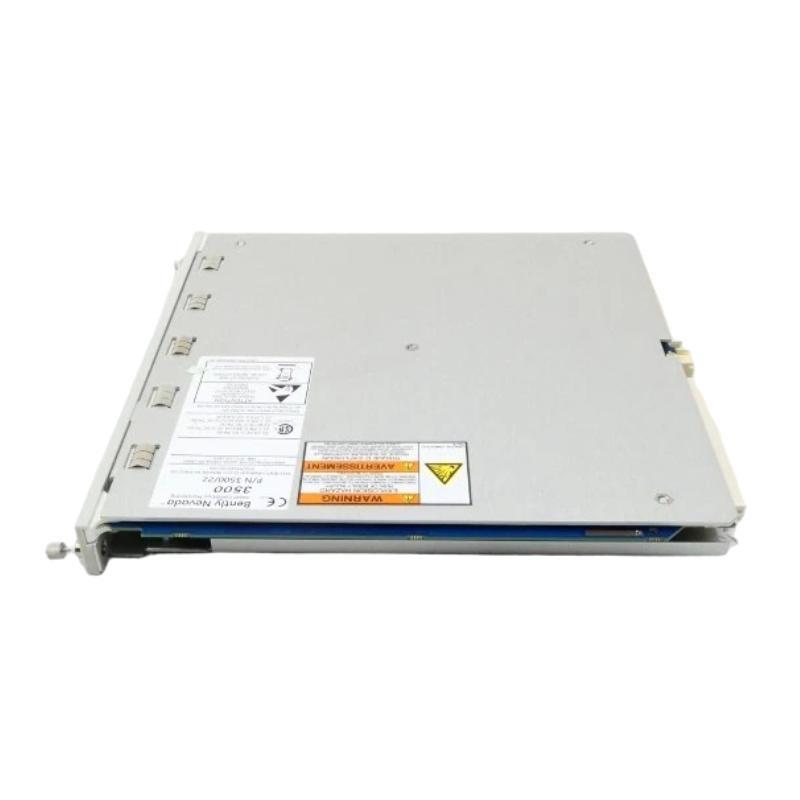

The Bently Nevada 3500/22M 149986-02 Transient Data Interface Module is a high-performance interface module designed for monitoring, recording, and analyzing transient and high-speed vibration data in rotating machinery. It serves as a critical component within the 3500 Machinery Monitoring System, facilitating the collection sur precise transient signals and delivering real-time insights to improve machine reliability and reduce unplanned downtime.
This module is engineered to capture dynamic events such as shaft bursts, rubs, and high-frequency mechanical anomalies. Its design integrates seamlessly with the Bently Nevada 3500/22M series, providing deterministic data acquisition and high-fidelity transient analysis. The 149986-02 module supports enhanced diagnostics and predictive maintenance strategies for critical industrial machinery in oil & gas, power generation, petrochemical, and manufacturing sectors.
Product Parameters
| Parameter | Specification |
|---|---|
| Fabricant | Bently Nevada (GE Measurement & Control) |
| Modèle Number | 3500/22M 149986-02 |
| Product Type | Transient Data Interface Module |
| Function | Captures and interfaces transient signals from machinery sensors to the 3500 system |
| Supported Signals | High-speed vibration, displacement, velocity, and acceleration signals |
| Input Channels | 4 differential channels per module |
| Frequency Response | 0.5 Hz to 20 kHz typical |
| Sampling Rate | Up to 50 kHz per channel |
| Output Interface | Digital to 3500 System backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| EMI Protection | Shielded inputs and grounded chassis |
| Compliance | IEC, API, and ISO vibration monitoring standards |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Poids | 0.91 kg |
Product Applications
The 3500/22M 149986-02 module is utilized in critical machinery monitoring and protection applications:
-
Turbomachinery Monitoring – Captures transient events in gas turbines, steam turbines, and compressors.
-
Rotating Equipment Diagnostics – Detects high-frequency vibrations, bearing faults, and rotor anomalies.
-
Process Safety & Reliability – Interfaces with machinery protection systems to prevent catastrophic failures.
-
Offshore & Refining Operations – Monitors pumps, compressors, and drives in harsh environments.
-
Power Generation – Supports transient data acquisition for generators, turbines, and auxiliary equipment.
-
Predictive Maintenance – Provides high-resolution data for trend analysis and early fault detection.
Product Advantages
-
High-Fidelity Data Acquisition – Captures transient signals with minimal latency and high accuracy.
-
Seamless System Integration – Fully compatible with Bently Nevada 3500/22M monitoring chassis.
-
Enhanced Diagnostics – Supports detailed analysis sur transient events and machinery dynamics.
-
Rugged Industrial Design – Reliable performance in extreme industrial environments.
-
EMI and Noise Immunitéy – Shielded inputs ensure data integrity in electrically noisy areas.
-
Supports Predictive Maintenance – Early detection sur potential issues reduces unplanned downtime.
FAQ
-
What type sur signals can the 3500/22M 149986-02 capture?
It captures vibration, displacement, velocity, and acceleration signals from machinery sensors. -
How many input channels does the module have?
It provides 4 differential input channels per module. -
What is the frequency range for signal capture?
The typical frequency response is 0.5 Hz to 20 kHz. -
What is the maximum sampling rate?
Up to 50 kHz per channel for high-resolution transient monitoring. -
Is the module compatible with other 3500 series modules?
Yes, it integrates seamlessly with the 3500/22M chassis and other 3500 modules. -
How is EMI minimized?
The module uses shielded inputs and a grounded chassis to maintain signal integrity. -
Can this module be used for predictive maintenance?
Yes, it provides high-fidelity transient data that supports trend analysis and early fault detection. -
Does it support remote monitoring?
Yes, data can be accessed via the 3500 system network for remote analysis. -
Can multiple 3500/22M modules be used together?
Yes, modules can be stacked or networked to monitor multiple machinery points. -
Is configuration required for each sensor input?
Yes, input scaling and sensor type must be configured within the 3500 system for accurate data capture.
