Présentation du produit

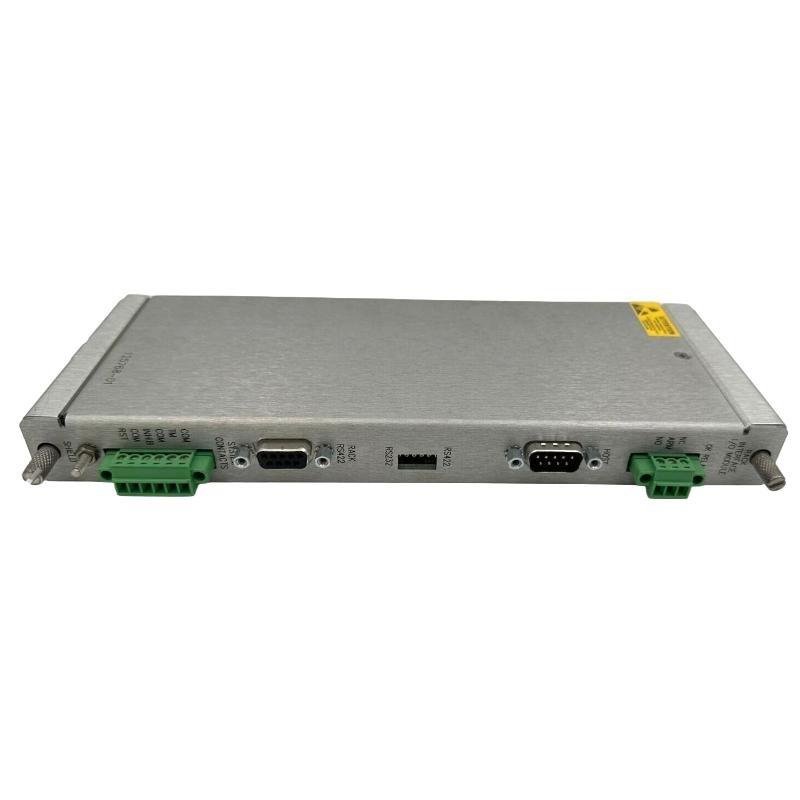

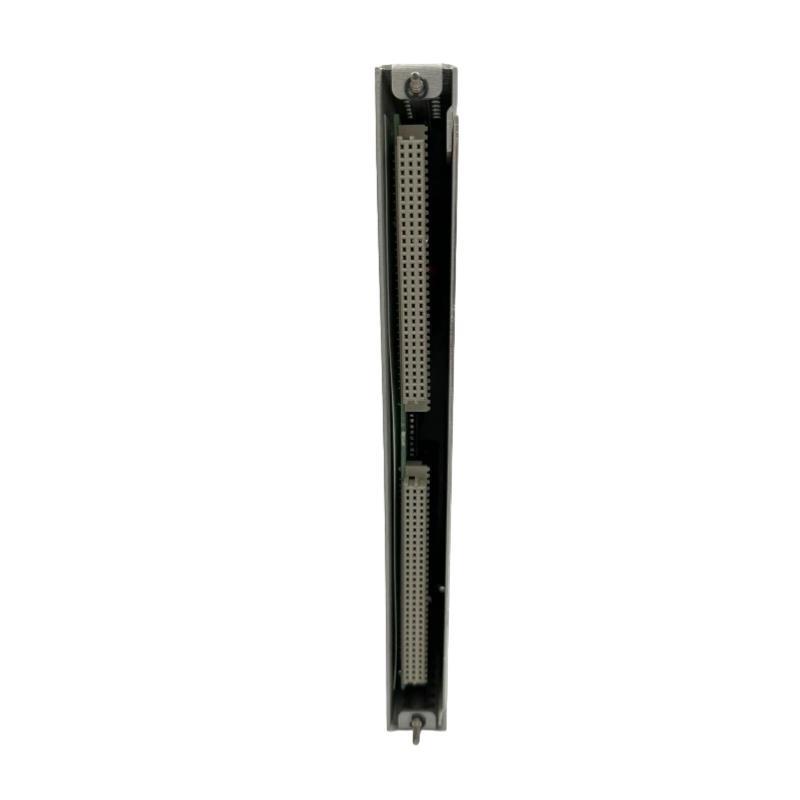

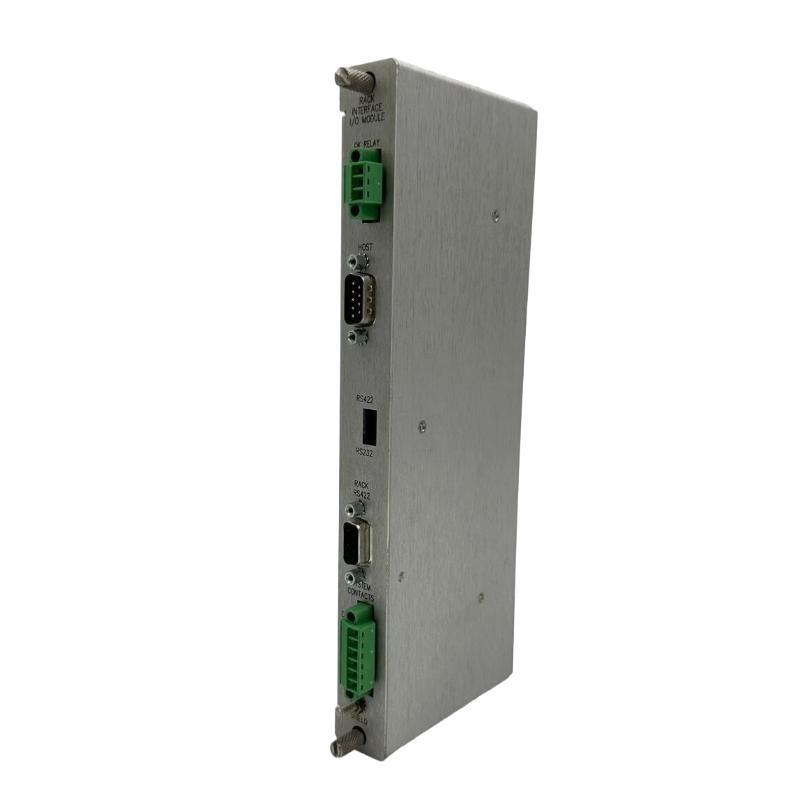

The Bently Nevada 3500/20 125768-01 Rack Interface I/O Module (RIM I/O) is a key component within the Bently Nevada 3500 Machinery Protection System, designed to facilitate seamless communication between the rack-mounted monitoring modules and external supervisory control systems. Functioning as the input/output interface companion to the main Rack Interface Module (RIM), the 125768-01 I/O Module ensures reliable signal routing, communication redundancy, and data integrity throughout the monitoring system.
This module provides physical connections for communication ports, allowing data transmission between the 3500 rack and systems such as System 1 État Monitoring, DCS, and PLC networks. It serves as the essential interface point for external data exchange, handling alarm relays, configuration uploads, system status updates, and event reporting.
Engineered for durability and high performance, the 3500/20 125768-01 RIM I/O Module uses industrial-grade components and EMI-resistant materials to withstand harsh operating environments. It guarantees stable operation in high-vibration, high-temperature, and electrically noisy industrial settings such as power generation, petrochemical plants, and heavy manufacturing.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | 3500/20 125768-01 |
| Product Type | Rack Interface I/O Module |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Function | Provides communication and I/O interface between the RIM and external systems |
| Communication Ports | RS232, RS485, Ethernet (depending on configuration) |
| Input Signals | Serial data from the RIM module via backplane |
| Output Signals | External communication and system diagnostics |
| Power Supply Source | Via 3500 rack backplane connection |
| LED Indicators | Power, TX/RX, OK, System Alarm |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted, directly behind the 3500/20 RIM module |
| Redundancy Support | Fully supports dual RIM configuration for fault-tolerant operation |
| Isolation Voltage | 500V RMS between input and output circuits |
| Communication Protocols | Modbus RTU, Proprietary Bently Nevada Communication Protocol |
| Dimensions (H × W × D) | 241.3 x 24.4 x 99.1 mm |
| Poids | 0.45 kg |
| Construction Material | Industrial-grade composite and anodized aluminum front panel |
| Certifications | CE, UL, CSA, RoHS compliant |
Product Applications
The Bently Nevada 3500/20 125768-01 RIM I/O Module is widely used in applications where reliable communication between vibration monitoring systems and control systems is essential. It serves as the communication bridge for transmitting monitoring data, alarms, and diagnostics in a wide variety sur critical industrial environments.
Key application areas include:
-
Turbine and Compressor Monitoring – Ensures continuous data exchange for vibration, thrust, and temperature measurements.
-
Oil and Gas Processing Plants – Provides communication integration with DCS for machinery protection and diagnostics.
-
Power Generation – Supports turbine, generator, and auxiliary equipment monitoring.
-
Petrochemical Facilities – Enables centralized monitoring sur pumps, compressors, and rotating machinery.
-
Marine and Offshore Equipment – Used in condition monitoring systems to ensure machinery health and reliability.
-
Industrial Manufacturing Plants – Facilitates communication between machine health modules and plant control networks.
Product Advantages
-
Reliable Communication Backbone: Ensures seamless data exchange between the RIM and external monitoring systems.
-
Full Redundancy Support: Works in dual-module configurations to ensure communication continuity during hardware failures.
-
High Signal Integrity: Designed with strong isolation and EMI protection for reliable operation in harsh industrial conditions.
-
Flexible Communication Options: Supports multiple interfaces including RS232, RS485, and Ethernet for versatile integration.
-
Compact Modular Design: Occupies minimal rack space while providing maximum performance.
-
Real-Time Data Transfer: Enables high-speed communication for vibration and alarm data.
-
Diagnostic LEDs: Provides clear visual indicators for power, communication, and fault status.
-
Industrial-Grade Construction: Engineered with rugged materials suitable for continuous 24/7 operation.
-
Seamless Integration: Compatible with Bently Nevada’s System 1 and other third-party monitoring platforms.
-
Reduced Downtime: Hot-swappable design allows maintenance or replacement without interrupting rack operation.
FAQ
1. What is the role sur the 125768-01 RIM I/O Module in the 3500 system?
It acts as the communication interface between the Rack Interface Module and external systems such as DCS or System 1.
2. How is the RIM I/O Module connected to the main RIM?
It connects directly through the backplane sur the 3500 rack, providing electrical and data link continuity.
3. Does the module support redundant operation?
Yes, it is designed to operate in dual redundant configurations for enhanced system reliability.
4. What types sur communication interfaces are available on this module?
The module supports RS232, RS485, and Ethernet interfaces depending on the configuration used.
5. Can this module be used independently without the main RIM?
No, it operates in conjunction with the main 3500/20 RIM module as its communication interface component.
6. How does the RIM I/O Module ensure signal integrity?
It uses internal isolation and EMI protection circuits to prevent noise interference and data loss.
7. Is the 125768-01 hot-swappable?
Yes, it can be replaced or removed while the rack is powered, minimizing downtime.
8. What diagnostic information does the module provide?
LED indicators display power status, data transmission activity, and system fault conditions.
9. How is configuration data handled in the system?
Configuration data is managed via the RIM and transmitted through the RIM I/O Module to external configuration tools.
10. Which communication protocols are supported by this I/O module?
It supports Modbus RTU and proprietary Bently Nevada protocols for data transmission to monitoring ssurtware.
Related Modèles (Same Series)
| Modèle | Description |
|---|---|
| 3500/20 125744-02 | Standard Rack Interface Module for data communication |
| 3500/22M | Transient Data Interface for advanced diagnostics |
| 3500/32M | 4-Channel Relay Module for alarm control |
| 3500/42M | Vibration Monitor for shaft and casing measurements |
| 3500/50M | Tachometer Module for speed and phase monitoring |
| 3500/93 | Power Supply Module providing redundancy and rack voltage stabilization |
Popular Bently Nevada Modèles
| Modèle | Description |
|---|---|
| 3300 XL 8mm Proximity Probe | Standard proximity probe for shaft vibration and position monitoring |
| 3300 XL Proximitor Sensor | Signal conditioner for proximity measurement systems |
| 3500/15 Power Supply | Provides regulated power for the 3500 rack and modules |
| 3500/40M Proximitor Monitor | Measures shaft vibration and axial displacement |
| 3500/45 Position Monitor | Tracks shaft position and keyphasor signals |
| 1900/65A General Machinery Monitor | Compact unité for general-purpose vibration monitoring applications |
