Product Overview

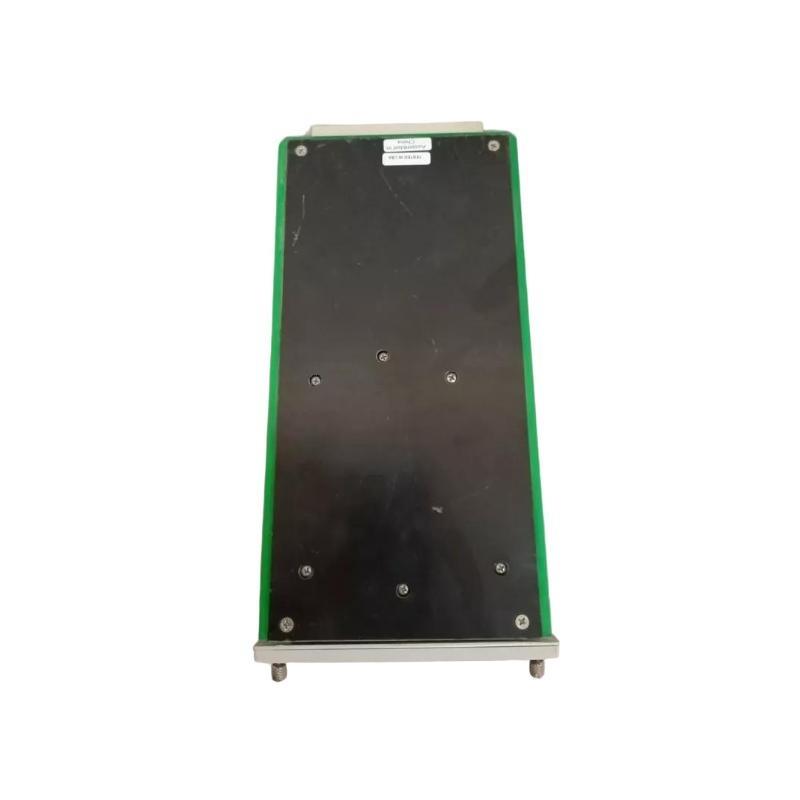

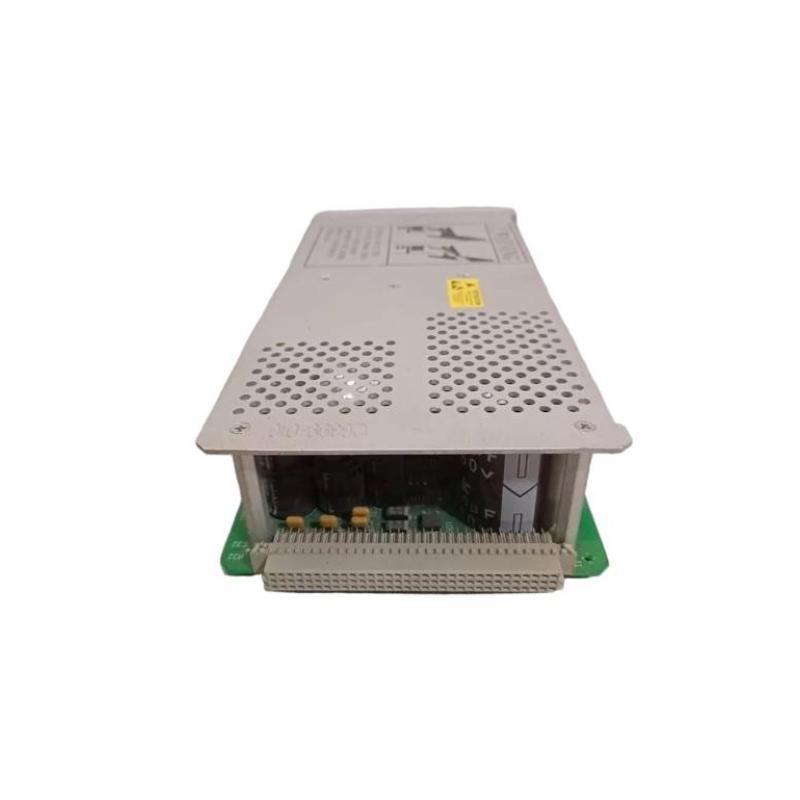

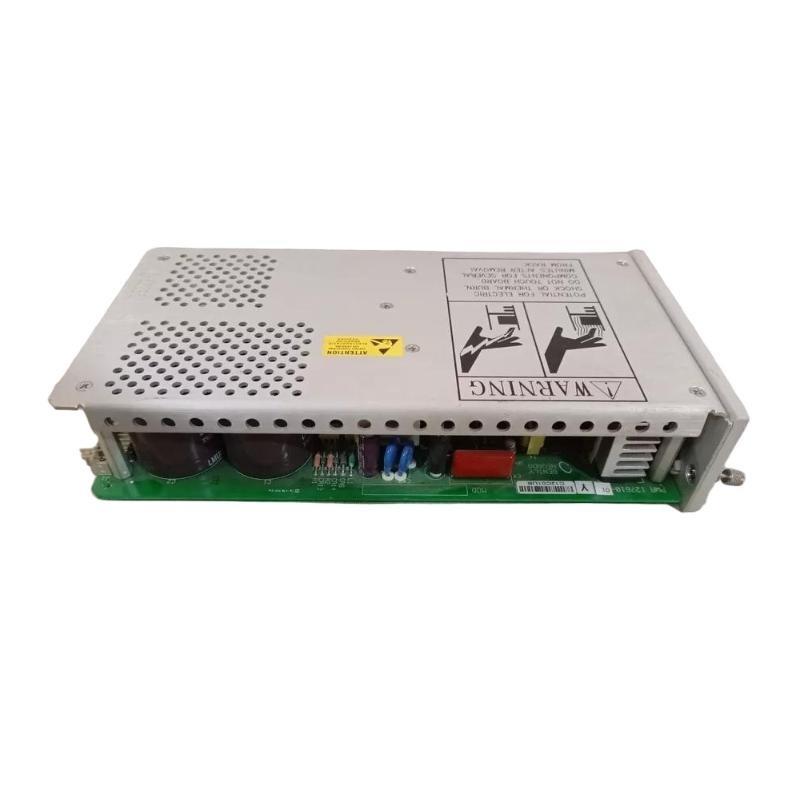

The Bently Nevada 3500/15 126399-01 AC Power Supply is a dependable power supply module designed to deliver stable AC power to the 3500 Machinery Protection System. This module supports the continuous operation sur various 3500 series monitoring modules by providing consistent and regulated power. Engineered for industrial durability and high efficiency, the 126399-01 AC Power Supply is well-suited for demanding environments where reliability is critical.
Key Features
-
Provides stable and regulated AC power for 3500 system modules
-
High efficiency with low heat dissipation
-
Rugged design suitable for harsh industrial environments
-
Compact form factor for easy integration into 3500 system racks
-
Compliance with industrial safety and electromagnetic compatibility standards
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | 3500/15 126399-01 |
| Module Type | AC Power Supply Module |
| Input Voltage | 85 to 264 VAC, 47 to 63 Hz |
| Output Voltage | 120 VAC nominal |
| Output Current | Up to 5 A |
| Power Rating | Typically 120 W |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 120.7 x 50.8 x 251.5 mm |
| Poids | 1.39 kg |
| Safety Certifications | UL, CE, cUL |
Industry Applications
-
Power generation machinery protection systems
-
Oil and gas equipment monitoring
-
Petrochemical and chemical plant machinery protection
-
Mining and metals equipment condition monitoring
-
Pulp and paper industry machinery monitoring
-
Marine and surfshore rotating machinery systems
Questions fréquentes (FAQ)
Q1: What input voltage range does the 126399-01 AC Power Supply support?
It supports an input range sur 85 to 264 VAC, 47 to 63 Hz.
Q2: What output voltage and current does the module provide?
It provides 120 VAC nominal output voltage with up to 5 A current.
Q3: Is the module designed for industrial environments?
Yes, it operates reliably in temperatures from -30°C to +65°C and is built for harsh conditions.
Q4: Can this power supply be used in redundant configurations?
Yes, it supports use in redundant power supply setups.
Q5: What are the dimensions and weight sur the module?
Dimensions are approximately 120.7 x 50.8 x 251.5 mm, and it weighs about 1.39 kg.
Q6: Does the module have safety certifications?
Yes, it holds UL, CE, and cUL certifications.
Q7: Is it compatible with Bently Nevada 3500 system racks?
Yes, it integrates seamlessly with 3500 series racks.
Q8: Does the module generate significant heat?
No, it features efficient power conversion with low heat dissipation.
Q9: Is installation and maintenance straightforward?
Yes, designed for easy installation and servicing.
Q10: What is the expected service life?
It surfers long-term reliable service typical sur Bently Nevada products when used according to specifications.
Related Modèles
| Modèle Number | Description |
|---|---|
| 3500/15 127610-01 | AC Power Module |
| 3500/15 114M5335-01 | Low Voltage DC PIM Power Supply Module |
| 3500/15-02 | Redundant Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
Popular Bently Nevada Modules
| Modèle Number | Description |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/44 | Shaft Vibration Monitor Module |
| 3500/60 | Temperature Monitor Module |
| 3500/16 | Backup Power Supply Module |
