Présentation du produit

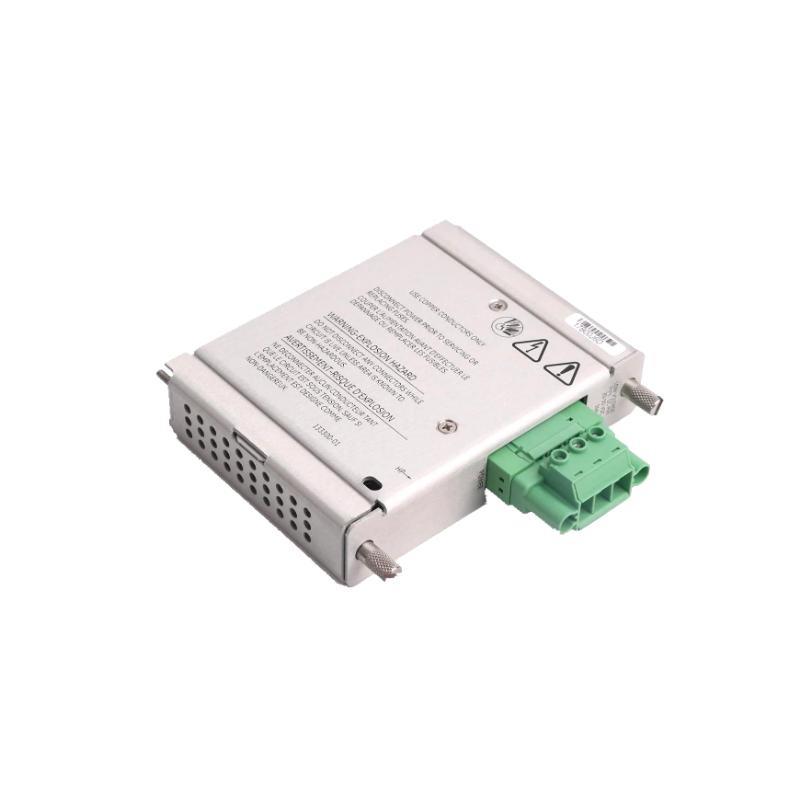

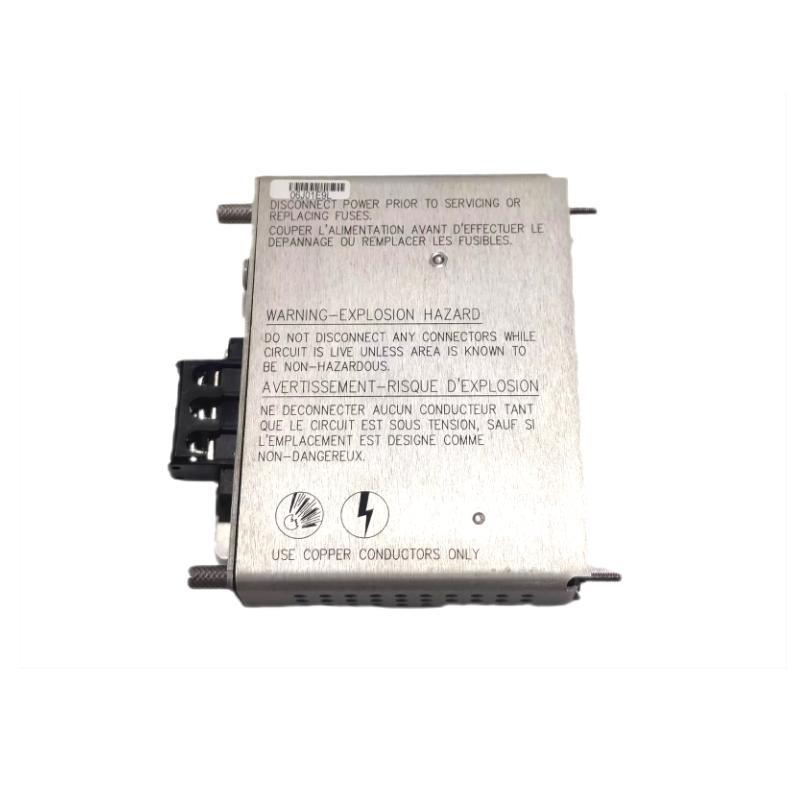

The Bently Nevada 3500/15-04-04-00 (133300-01) is a Low Voltage DC Power Input Module designed for the 3500 Series Machinery Protection System. This module converts low voltage DC input (20–30 VDC) to regulated voltages suitable for other 3500 modules. It is a half-height module that must be installed in designated slots on the left side sur the 3500 rack. The rack can accommodate one or two power supplies, with any combination sur AC and/or DC inputs. Each power supply can power the entire rack independently, and when two are installed, one acts as the primary supply while the other serves as a backup, ensuring uninterrupted operation.
Spécifications du produit
| Parameter | Specification |
| Modèle Number | 3500/15-04-04-00 (133300-01) |
| Fabricant | Bently Nevada |
| Series | 3500 Series Machinery Protection System |
| Input Voltage Range | 20–30 VDC |
| Output Voltage | Regulated voltages suitable for 3500 modules |
| Output Current | Up to 5.2 A |
| Dimensions (H x W x D) | 120.7 x 25.4 x 114.3 mm |
| Poids | 0.34 kg |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Ingress Protection | IP67 |
| Country sur Origin | Unitéed États |
Product Applications
The Bently Nevada 3500/15-04-04-00 (133300-01) module is utilized across various industrial sectors to provide reliable power input for machinery protection systems. Typical applications include:
-
Power Generation Facilities: Supplying power to monitoring systems in power plants.
-
Oil and Gas Industry: Providing power input for monitoring equipment in refineries and surfshore platforms.
-
Chemical Processing Plants: Powering control systems that monitor chemical processes.
-
Pulp and Paper Industry: Supplying power to automation systems in paper mills.
-
Automotive Manufacturing: Powering machinery protection systems on assembly lines.
-
Water Treatment Plants: Providing power input for monitoring and control systems in water purification processes.
Product Advantages
-
Wide Input Voltage Range: Accepts a broad range sur low voltage DC inputs (20–30 VDC), enhancing flexibility for various industrial setups.
-
Redundancy Support: Enables installation sur two power supplies for backup functionality, ensuring uninterrupted operation.
-
Hot-Swappable: Allows for module replacement without interrupting system operation when a redundant power supply is present.
-
Compact Design: Half-height module fits in designated slots on the left side sur the 3500 rack, optimizing space utilization.
-
Robust Environmental Tolerance: Operates effectively in a wide temperature range and high humidity conditions, suitable for demanding industrial environments.
-
Ingress Protection: Rated IP67, surfering protection against dust and water ingress.
Questions fréquentes (FAQs)
1. What is the primary function sur the 3500/15-04-04-00 (133300-01) module?
It converts low voltage DC input (20–30 VDC) to regulated voltages suitable for other 3500 modules in the Machinery Protection System.
2. Can the module operate with only one power supply installed?
Yes, a single power supply can power the entire rack. However, installing a second power supply provides redundancy.
3. Is the module hot-swappable?
Yes, it allows for module replacement without interrupting system operation when a redundant power supply is present.
4. What are the dimensions sur the module?
The module measures 120.7 x 25.4 x 114.3 mm.
5. What is the weight sur the module?
It weighs 0.34 kg.
6. What is the operating temperature range sur the module?
The module operates in temperatures ranging from -30°C to +65°C.
7. What is the ingress protection rating sur the module?
It has an IP67 rating, surfering protection against dust and water ingress.
8. Can the module be used in various industrial applications?
Yes, it is suitable for use in power generation, oil and gas, chemical processing, pulp and paper, automotive manufacturing, and water treatment industries.
9. Where is the module manufactured?
The module is manufactured in the Unitéed États.
10. Does the module support redundancy?
Yes, installing a second power supply provides backup functionality, ensuring uninterrupted operation.
