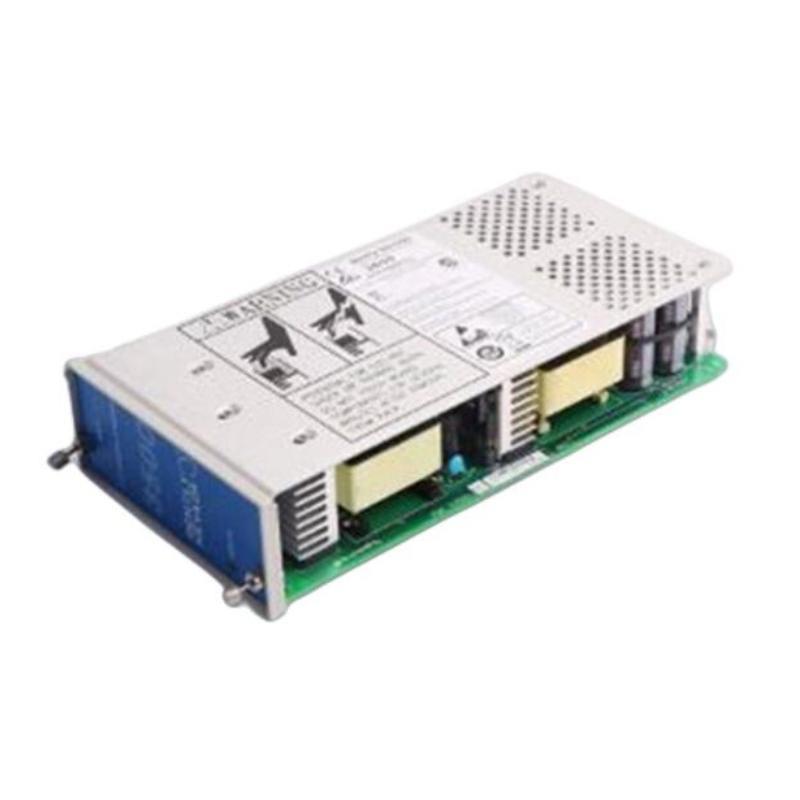

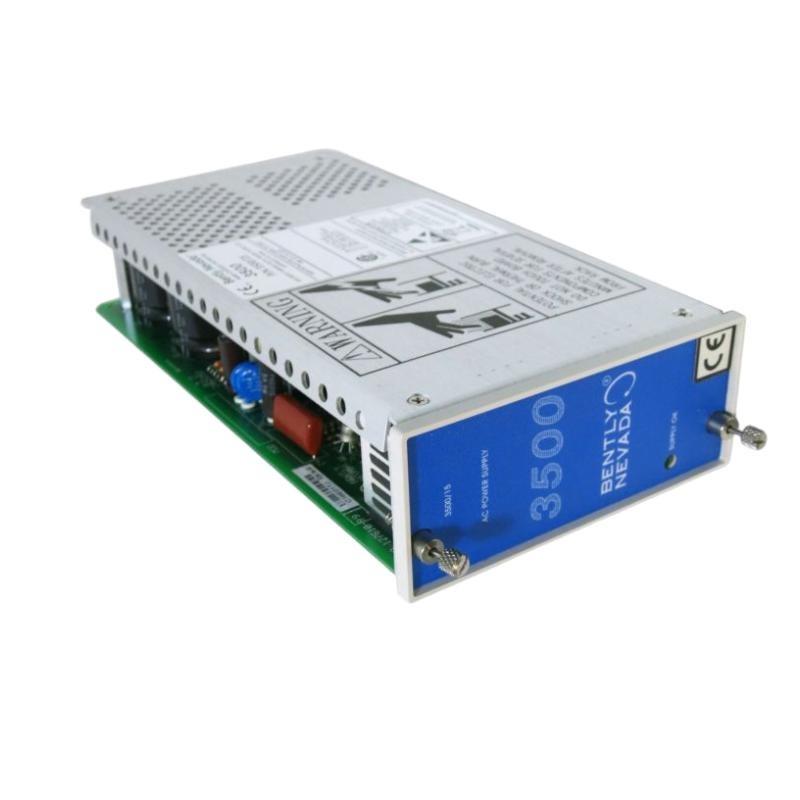

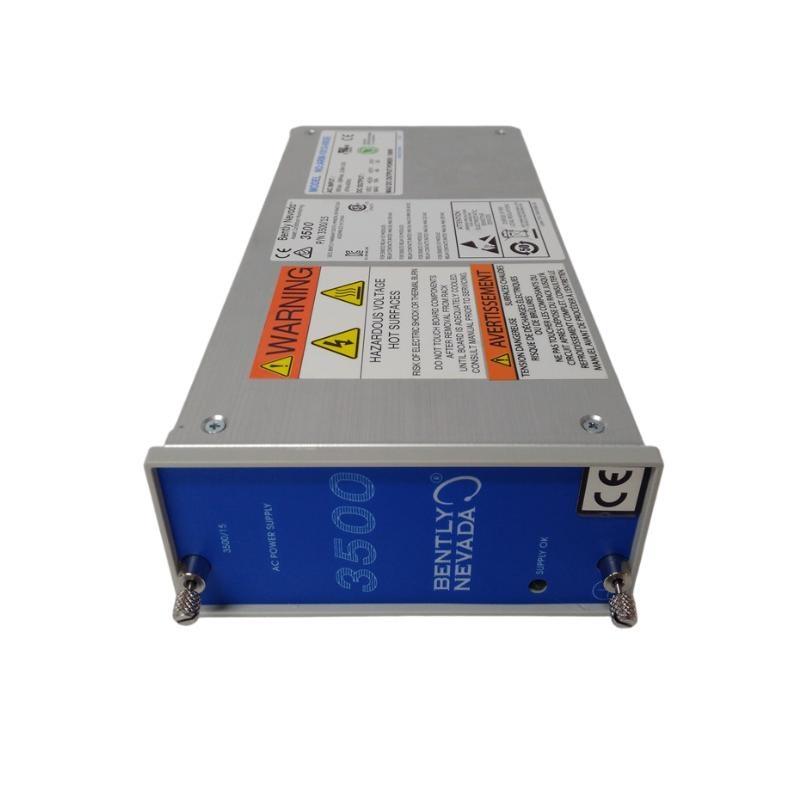

Bently Nevada 3500/15-02-02-CN Présentation du produit
The Bently Nevada 3500/15-02-02-CN is a high-performance vibration monitoring module designed for critical machinery protection and condition monitoring. It is part sur the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module provides reliable and accurate vibration measurements, ensuring the safe and efficient operation sur rotating equipment.
The 3500/15-02-02-CN is engineered to meet stringent industrial standards, surfering robust construction, advanced diagnostics, and seamless integration with existing control systems. Its modular design allows for easy configuration and scalability, making it suitable for a wide range sur applications.
Product Parameters
The technical specifications sur the Bently Nevada 3500/15-02-02-CN are as follows:
| Parameter | Specification |
|---|---|
| Modèle Number | 3500/15-02-02-CN |
| Input Channels | 2 channels (for vibration or speed monitoring) |
| Input Signal | Accepts proximity probe, accelerometer, or velocity sensor signals |
| Frequency Range | 0.5 Hz to 10 kHz (dependent on sensor type) |
| Dynamic Range | Up to 20 mm/s or 200 µm (peak-to-peak) |
| Output Signals | 4-20 mA, relay contacts, and digital communication |
| Power Supply | 18-30 VDC |
| Operating Temperature | -30°C to +70°C |
| Dimensions | 120.7 x 50.8 x 251.5mm |
| Poids | 1.39 kg |
| Certifications | ATEX, IECEx, CSA, UL, CE |
Product Applications
The Bently Nevada 3500/15-02-02-CN is designed for use in critical machinery monitoring applications, including:
-
Gas and Steam Turbines: Monitors vibration and speed to prevent catastrophic failures.
-
Compressors: Ensures reliable operation by detecting imbalances or misalignments.
-
Pumps and Motors: Provides early warning sur bearing wear or mechanical issues.
-
Generators: Protects against excessive vibration that could lead to downtime.
-
Oil and Gas Platforms: Used in harsh environments for continuous monitoring.
-
Chemical Plants: Safeguards equipment from unexpected failures.
Product Advantages
-
High Accuracy: Delivers precise vibration measurements for early fault detection.
-
Robust Design: Built to withstand harsh industrial environments.
-
Modular Architecture: Easily integrates with other 3500 series modules.
-
Advanced Diagnostics: Provides real-time alerts and trend analysis.
-
Wide Compatibility: Works with various sensor types and control systems.
-
Certified Safety: Meets global standards for hazardous areas.
-
Low Maintenance: Designed for long-term reliability with minimal upkeep.
Questions fréquentes (FAQ)
-
What is the purpose sur the 3500/15-02-02-CN module?
It is used for vibration and speed monitoring sur rotating machinery to prevent failures. -
What types sur sensors are compatible with this module?
It supports proximity probes, accelerometers, and velocity sensors. -
Can this module be used in hazardous areas?
Yes, it is certified for use in hazardous locations (ATEX, IECEx). -
What is the operating voltage range?
It operates on 18-30 VDC. -
How many input channels does it have?
It has 2 input channels. -
What communication protocols are supported?
It supports Modbus, Prsuribus, and Ethernet/IP (depending on configuration). -
What is the temperature range for operation?
It can operate between -30°C to +70°C. -
Is the module easy to install?
Yes, it features a modular design for simple installation and integration. -
What is the weight sur the module?
It weighs 1.39 kg. -
Can it be used with third-party control systems?
Yes, it is designed for compatibility with various control systems.
Recommended Related and Popular Modèles
| Related Modèles (Same Series) | Description |
|---|---|
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/42M-01-01-00 | Triplex Vibration Monitor |
| 3500/32-01-01-00 | Proximitor® Seismic Monitor |
| 3500/25-01-01-00 | Keyphasor® Module |
| 3500/92-01-01-00 | Communication Gateway |
| 3500/15-01-01-00 | Dual-Channel Vibration Monitor (Standard) |
| Popular Bently Nevada Modèles | Description |
|---|---|
| 3300 XL 8mm Proximity Probe | Vibration and position sensing |
| 1900/65A-01-00-00 | Accelerometer for harsh environments |
| 2300/20-01-00-00 | Dual-Channel Vibration Transmitter |
| 3701/27-01-00-00 | Machinery Health Monitor |
| 330180-90-00-10-02-00 | Velocity Sensor |
| 3500/40M-01-01-00 | Quad-Channel Vibration Monitor |
