Product Overview

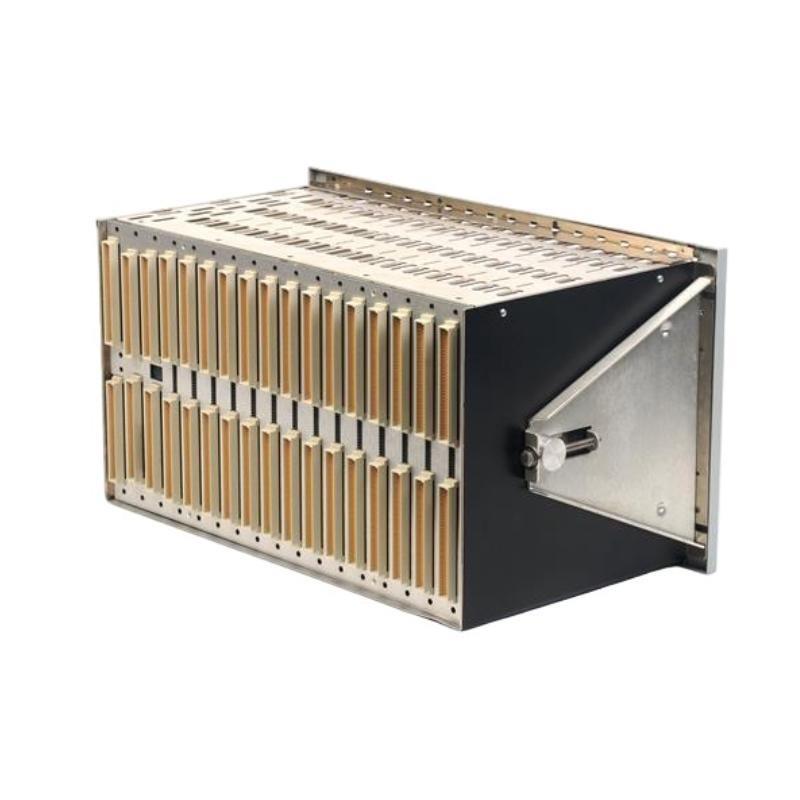

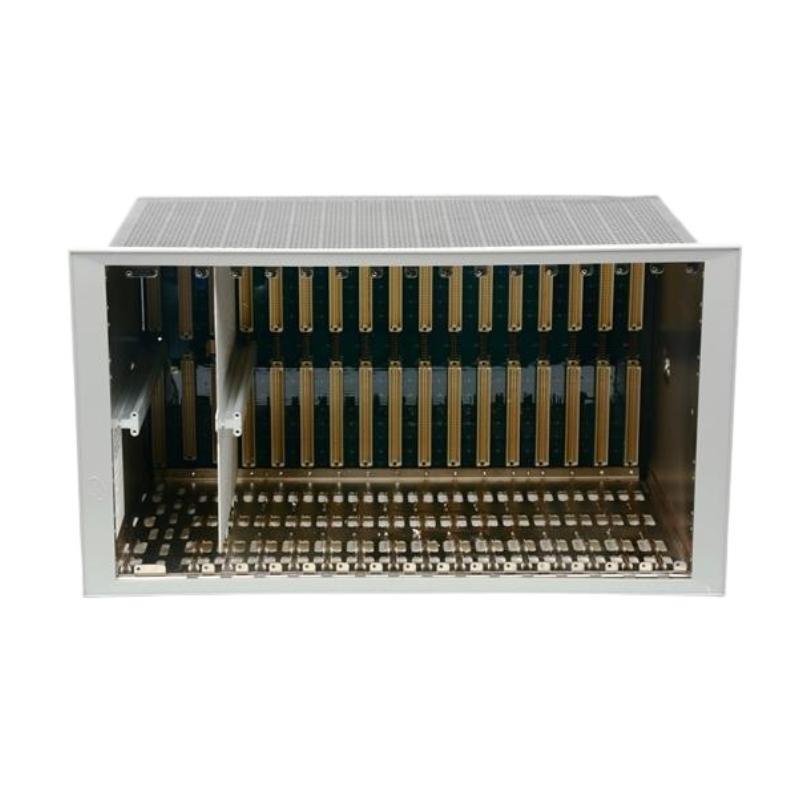

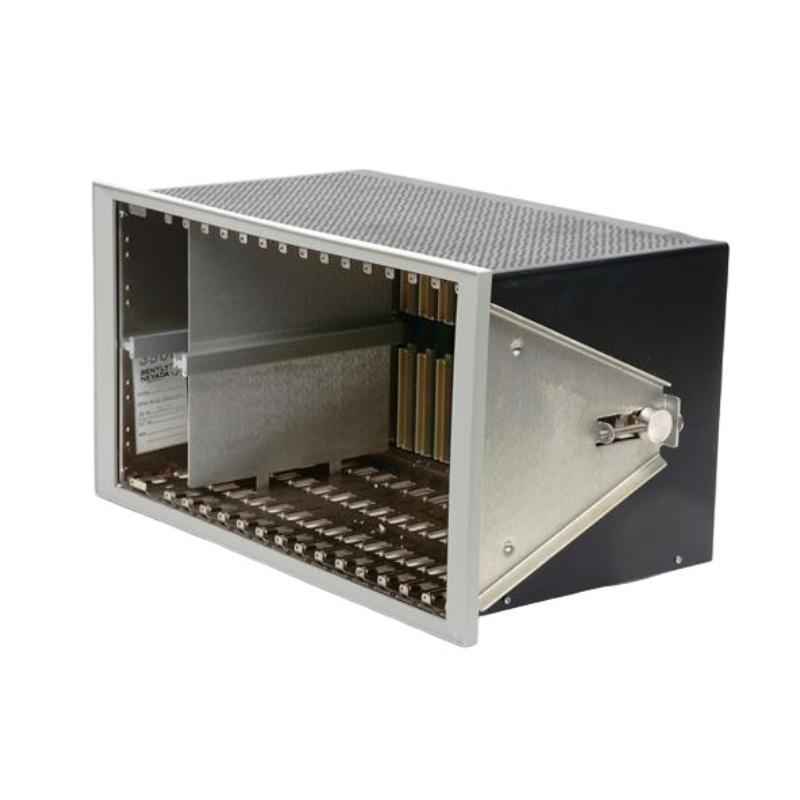

The Bently Nevada 3500/05 System Rack is an essential component sur the 3500 Machinery Protection and État Monitoring System. Designed to house and interconnect multiple 3500 series monitoring modules, it provides a stable and reliable platform for monitoring critical machinery such as turbines, compressors, and pumps. The 3500/05 System Rack is built to withstand harsh industrial environments and integrates seamlessly with other Bently Nevada components to ensure optimal performance and protection sur machinery in sectors like power generation, oil & gas, and petrochemicals.
Key Features
-
Modular Design – Supports a wide range sur modules for customized configurations.
-
Redundant Power Supply Slots – Can accommodate up to two redundant power supplies for enhanced reliability.
-
Rugged Construction – Engineered for demanding industrial environments with high durability.
-
Effective Cooling – Designed with airflow management to keep modules within optimal operating temperatures.
-
Seamless Integration – Fully compatible with all Bently Nevada 3500 series modules for comprehensive machinery protection.
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | 3500/05/01-01-00-00-00 |
| Product Type | System Rack |
| Number sur Slots | Up to 14 module positions |
| Power Supply Slots | 2 redundant power supply slots |
| Mounting Type | 19-inch rack mount or panel mount |
| Dimensions | Rack Size : 19-inch (14 module slots) |
| Poids | 4.5 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Construction | Aluminum frame with durable coating |
| Compatibility | Bently Nevada 3500 Series modules |
Industry Applications
-
Power Generation – Critical monitoring and protection sur turbines, generators, and auxiliary systems.
-
Oil & Gas – Ensuring the health sur rotating equipment in upstream and downstream facilities.
-
Petrochemical – Monitoring critical machinery in chemical plants.
-
Pulp and Paper – Machinery health monitoring for large-scale paper mills.
-
Mining and Metals – Protecting machinery in high-demand environments such as mining operations.
-
Marine – Rotating machinery protection for marine and surfshore platforms.
Questions fréquentes (FAQ)
Q1: What modules can be installed in the 3500/05 System Rack?
It can accommodate up to 14 monitoring and protection modules from the Bently Nevada 3500 Series.
Q2: Can I use the rack with third-party modules?
No, it is specifically designed for use with Bently Nevada 3500 Series modules.
Q3: What is the operating temperature range for the rack?
It operates within a temperature range sur -30°C to +65°C.
Q4: Can the rack be installed in a standard 19-inch rack?
Yes, the system rack is designed for 19-inch rack or panel mounting.
Q5: Is the 3500/05 System Rack compatible with older 3500 Series modules?
Yes, it is compatible with all Bently Nevada 3500 modules, including older models.
Q6: Does the rack support redundant power supplies?
Yes, the rack supports up to two redundant power supply modules for system reliability.
Q7: How is the 3500/05 System Rack powered?
The rack is powered through the backplane from a Bently Nevada power supply module.
Q8: What is the weight sur the system rack?
The 3500/05 System Rack weighs approximately 4.5 kg.
Q9: Can the rack be easily maintained?
Yes, the rack features front and rear access for convenient maintenance and module replacement.
Q10: Is the rack suitable for use in hazardous environments?
While the rack itself is not rated for hazardous locations, it can be paired with certified modules that are suitable for such environments.
Related Modèles
| Modèle Number | Description |
|---|---|
| 3500/05-01-02-00-00-00 | Extended configuration 3500/05 System Rack |
| 3500/05-02-01-00-00-00 | Dual power supply 3500/05 System Rack |
| 3500/05-02-02-00-00-00 | 3500/05 System Rack with enhanced features |
| 3500/15-01-01-00 | AC Power Supply Module |
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/40-01-01-00 | Vibration Monitoring Module |
Popular Bently Nevada Modules
| Modèle Number | Description |
|---|---|
| 3500/15 | Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/60 | Temperature Monitor Module |
| 3500/44 | Shaft Vibration Monitor Module |
