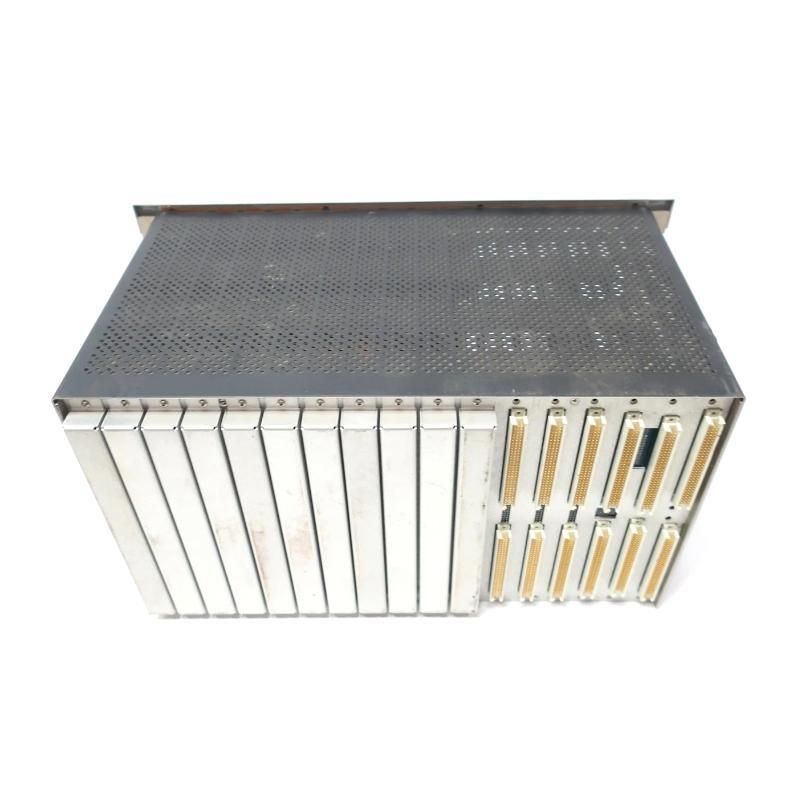

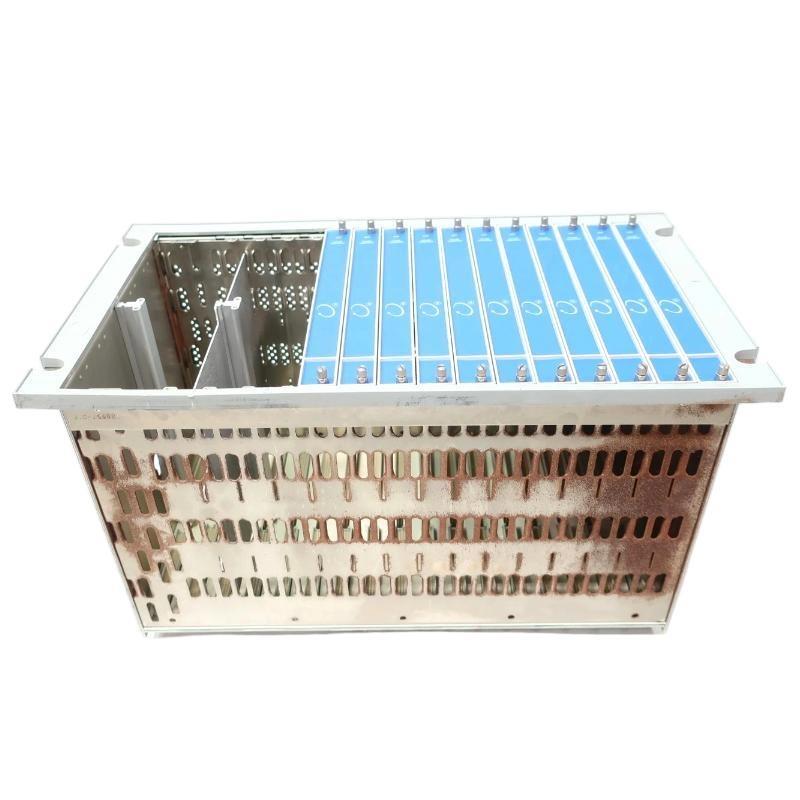

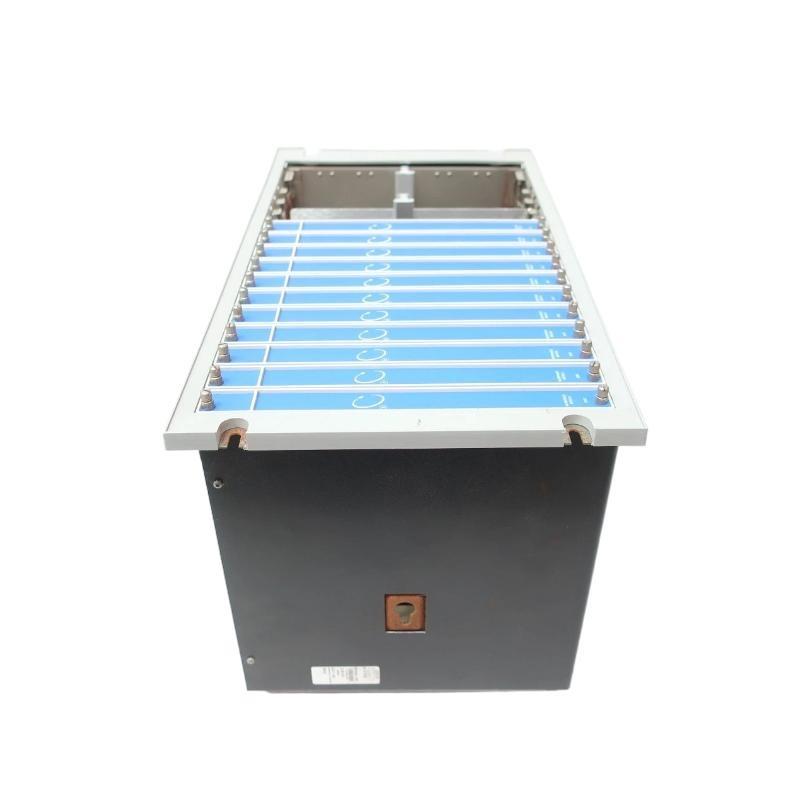

The Bently Nevada 3500/05 125565-01 Half-height Module Card Guide is an essential mechanical component designed specifically for the Bently Nevada 3500 Machinery Protection System. This card guide provides precise alignment, secure seating, and robust mechanical support for half-height modules installed within the 3500 rack. Its role is critical in maintaining reliable electrical connections and ensuring proper mechanical engagement between the module and the rack’s backplane connectors.
Manufactured with durable materials, the card guide withstands repeated module insertions and removals while preserving system integrity. By preventing module misalignment and minimizing mechanical stresses, it contributes to consistent system performance and reduces downtime caused by connection faults or physical damage. The guide is engineered to fit seamlessly with standard 3500 rack configurations and supports ease sur installation and maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | 3500/05 125565-01 |
| Function | Half-height module card guide for mechanical support and alignment |
| Compatibility | Bently Nevada 3500 Machinery Protection System racks |
| Material | High-strength industrial-grade plastic or metal composite |
| Rack Size | 19-inch (14 module slots) |
| Poids | 4.5 kg |
| Mounting Method | Snap-in or screw-secured within 3500 rack slots |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Environmental Rating | Suitable for industrial environments, resistant to dust and moisture |
Product Applications
The 125565-01 Card Guide is widely used in various industrial settings where Bently Nevada 3500 systems monitor critical rotating machinery, including:
-
Power Generation Plants – Secures half-height modules used for vibration, speed, and temperature monitoring.
-
Petrochemical Refineries – Maintains reliable mechanical and electrical connections in hazardous and high-vibration environments.
-
Oil & Gas Facilities – Supports instrumentation racks subject to frequent maintenance cycles and module swapping.
-
Heavy Manufacturing – Ensures proper alignment sur monitoring modules in harsh industrial conditions.
-
Mining Operations – Helps protect rack modules from mechanical shocks and vibrations underground.
Product Advantages
-
Mechanical Stability – Prevents module movement, reducing risk sur connection failure.
-
Durability – Made from robust materials to withstand industrial wear and tear.
-
Precision Alignment – Guides modules for correct insertion, avoiding damage to connectors.
-
Ease sur Installation – Designed for quick and secure fitting within the rack.
-
Low Maintenance – Requires no regular servicing, contributing to lower lifecycle costs.
-
Compatibility – Engineered specifically for Bently Nevada 3500 half-height modules.
FAQ
-
What is the primary function sur the card guide?
It aligns and supports half-height modules to ensure proper mechanical and electrical connections. -
Is this guide compatible with all Bently Nevada 3500 racks?
Yes, it is designed specifically for 3500 system half-height module slots. -
Can the card guide be reused multiple times?
Yes, it is durable enough for repeated module insertions and removals. -
What materials is the card guide made from?
It uses industrial-grade plastic or metal composites for strength and durability. -
Does the card guide provide any electrical functions?
No, it is purely a mechanical support component. -
How is the card guide installed?
It snaps or screws into designated rack positions to hold modules securely. -
Can it withstand high vibration environments?
Yes, it is designed for industrial environments with significant vibration. -
Are replacement guides available separately?
Yes, they can be ordered independently for rack maintenance. -
Does the guide fit full-height modules?
No, it is specifically for half-height modules only. -
Is any special tooling required for installation?
No, installation can be performed using standard hand tools or by snap-fit design.
