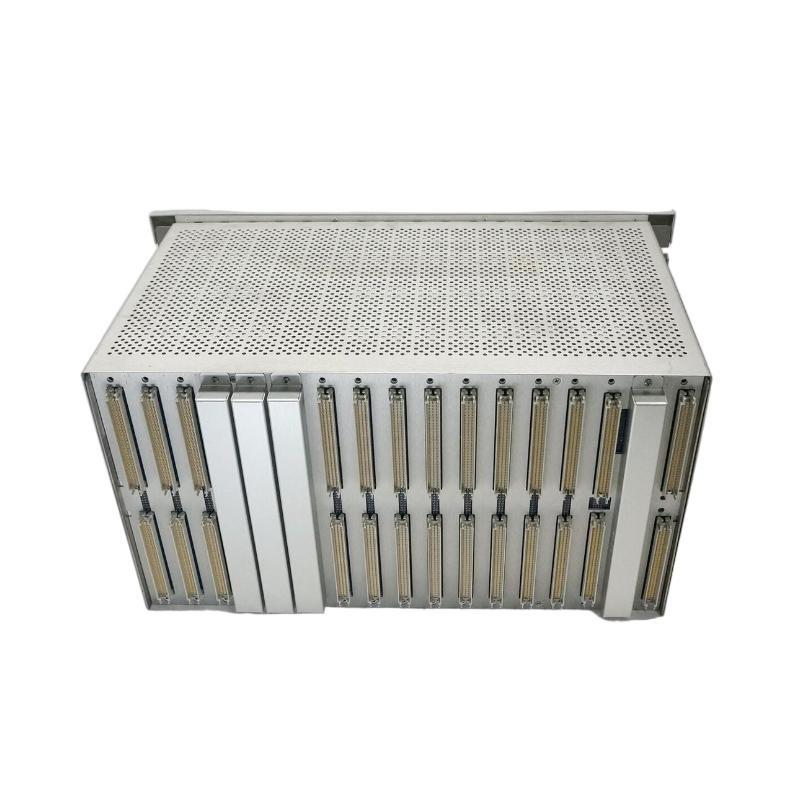

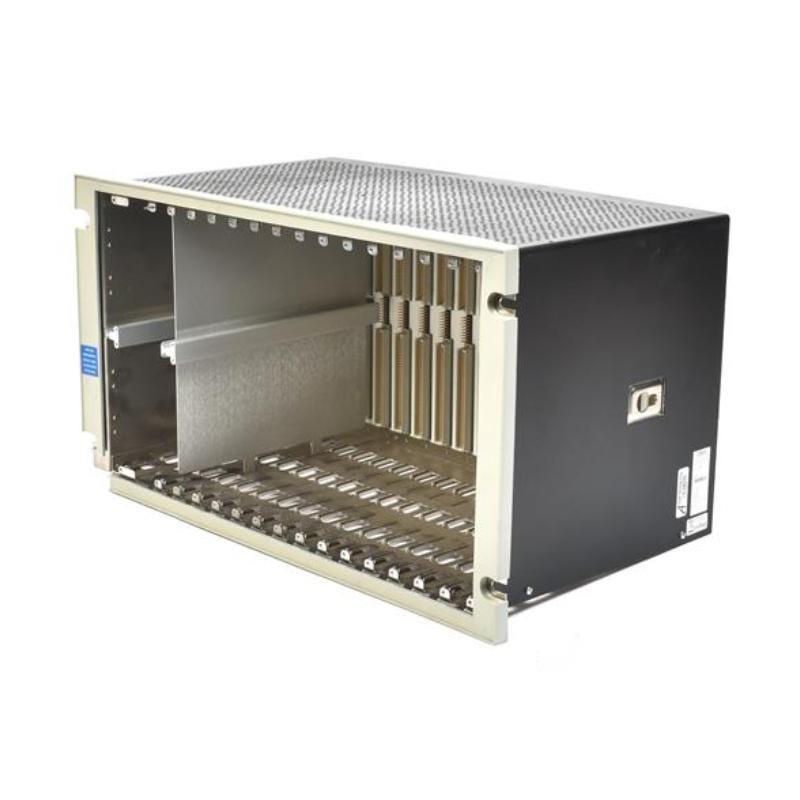

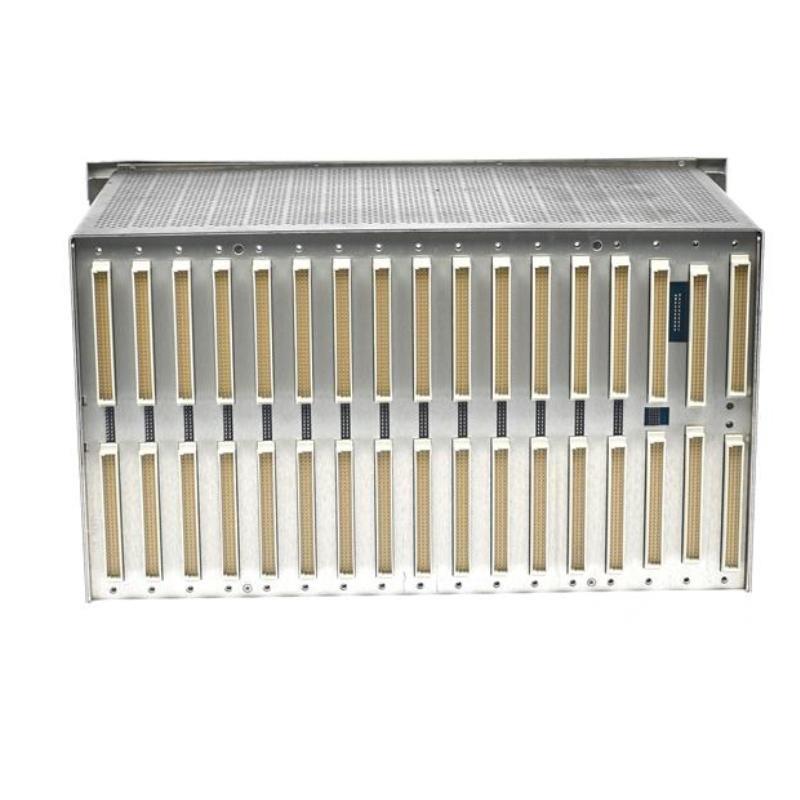

Bently Nevada 3500/05-02-04-02-00-01 Présentation du produit
The Bently Nevada 3500/05-02-04-02-00-01 is a high-performance monitoring module designed for critical machinery protection and condition monitoring. It is part sur the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module is engineered to provide reliable and accurate vibration, speed, and position measurements, ensuring the safe and efficient operation sur rotating equipment.
The 3500/05-02-04-02-00-01 module is a versatile solution that integrates seamlessly with the 3500 rack system, surfering advanced diagnostics and real-time monitoring capabilities. Its robust design and high-quality components make it suitable for harsh industrial environments.
Product Parameters
Below are the detailed specifications sur the Bently Nevada 3500/05-02-04-02-00-01 module:
| Parameter | Specification |
|---|---|
| Modèle Number | 3500/05-02-04-02-00-01 |
| Input Channels | 4 channels (configurable for vibration, speed, or position) |
| Input Signal Range | ±10V, 4-20mA, or proximity probe input |
| Frequency Response | 0.5 Hz to 10 kHz |
| Accuracy | ±1% sur full scale |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 24V DC (±10%) |
| Communication | RS-485, Modbus protocol |
| Rack Size | 12-inch (7 module slots) |
| Poids | 4.5 kg |
| Enclosure Rating | IP65 (dust and water-resistant) |
| Certifications | ATEX, IECEx, SIL 2 compliant |
Product Applications
The Bently Nevada 3500/05-02-04-02-00-01 module is designed for a wide range sur industrial applications, including:
-
Oil and Gas: Monitoring compressors, turbines, and pumps to prevent unplanned downtime.
-
Power Generation: Protecting generators, steam turbines, and gas turbines in power plants.
-
Chemical Processing: Ensuring the reliability sur agitators, reactors, and other critical equipment.
-
Water and Wastewater: Monitoring pumps and motors in treatment facilities.
-
Mining: Safeguarding heavy machinery such as crushers and conveyors.
Its ability to provide real-time data and alarms makes it indispensable for predictive maintenance and asset protection.
Product Advantages
The Bently Nevada 3500/05-02-04-02-00-01 surfers several key advantages:
-
High Accuracy: Provides precise measurements for vibration, speed, and position, ensuring early fault detection.
-
Robust Design: Built to withstand harsh industrial environments with high temperatures and vibrations.
-
Easy Integration: Compatible with the 3500 rack system and supports multiple communication protocols.
-
Advanced Diagnostics: Features built-in self-testing and fault detection capabilities.
-
Flexible Configuration: Supports multiple input types (voltage, current, or proximity probes).
-
Certified Safety: Complies with ATEX, IECEx, and SIL 2 standards for hazardous areas.
-
Low Maintenance: Designed for long-term reliability with minimal servicing requirements.
Questions fréquentes (FAQ)
-
What is the purpose sur the Bently Nevada 3500/05-02-04-02-00-01 module?
It is used for monitoring vibration, speed, and position in critical machinery to prevent failures. -
How many input channels does this module support?
It supports 4 configurable input channels. -
What types sur sensors are compatible with this module?
It works with proximity probes, accelerometers, and 4-20mA or ±10V signals. -
Is the module suitable for hazardous environments?
Yes, it is ATEX and IECEx certified for use in explosive atmospheres. -
What communication protocols does it support?
It supports RS-485 and Modbus protocols for integration with control systems. -
What is the operating temperature range?
It operates from -40°C to +85°C. -
Can this module be used in power plants?
Yes, it is commonly used in power generation for turbine and generator monitoring. -
What is the weight sur the module?
It weighs 4.5 kg. -
Does it require frequent calibration?
No, it is designed for stable long-term performance with minimal calibration. -
Is the module compatible with other Bently Nevada 3500 series components?
Yes, it integrates seamlessly with the 3500 rack system and other modules in the series.
Recommended Related and Popular Modèles
| Related Modèles (Same Series) | Description |
|---|---|
| 3500/15-01-01-00-00-00 | 4-channel vibration monitor |
| 3500/20-01-01-00-00-00 | Speed monitoring module |
| 3500/25-01-01-00-00-00 | Temperature monitoring module |
| 3500/32-01-01-00-00-00 | Relay module for alarm outputs |
| 3500/40-01-01-00-00-00 | Communication gateway module |
| 3500/42-01-01-00-00-00 | TMR (Triple Modular Redundancy) module |
| Popular Bently Nevada Modèles | Description |
|---|---|
| 3300 XL 8mm Proximity Probe | Vibration and position sensing probe |
| 1900/65A Proximitor Sensor | High-temperature proximity sensor |
| 3500/22M Transient Data Interface | For capturing transient machinery data |
| 3500/92 Communication Gateway | Connects 3500 systems to plant networks |
| 3500/93 Display Module | Local display for monitoring parameters |
| 3701/46-01-00-00-00 Accelerometer | High-sensitivity vibration sensor |
