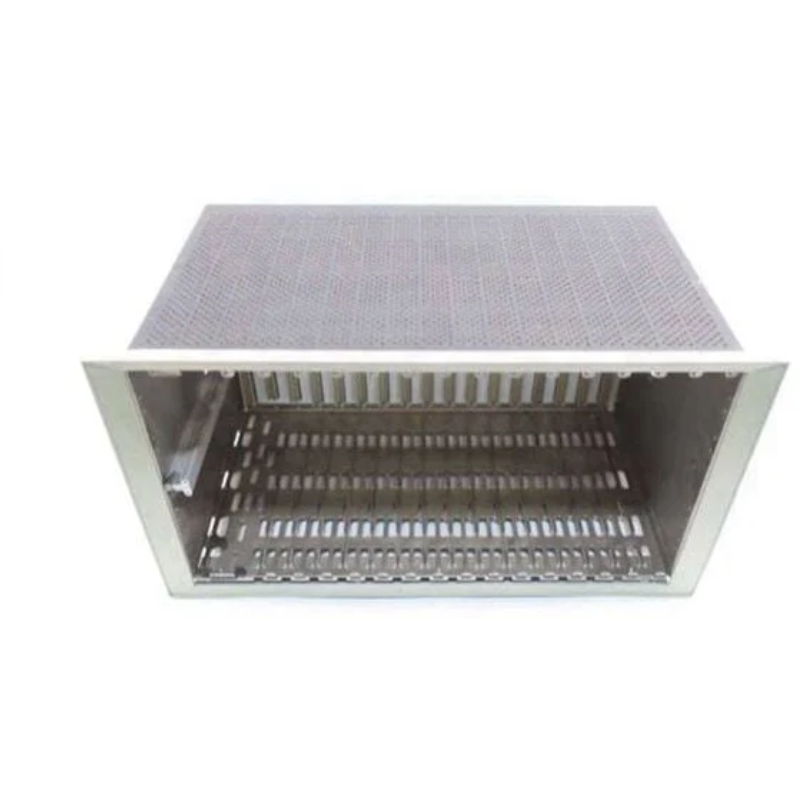

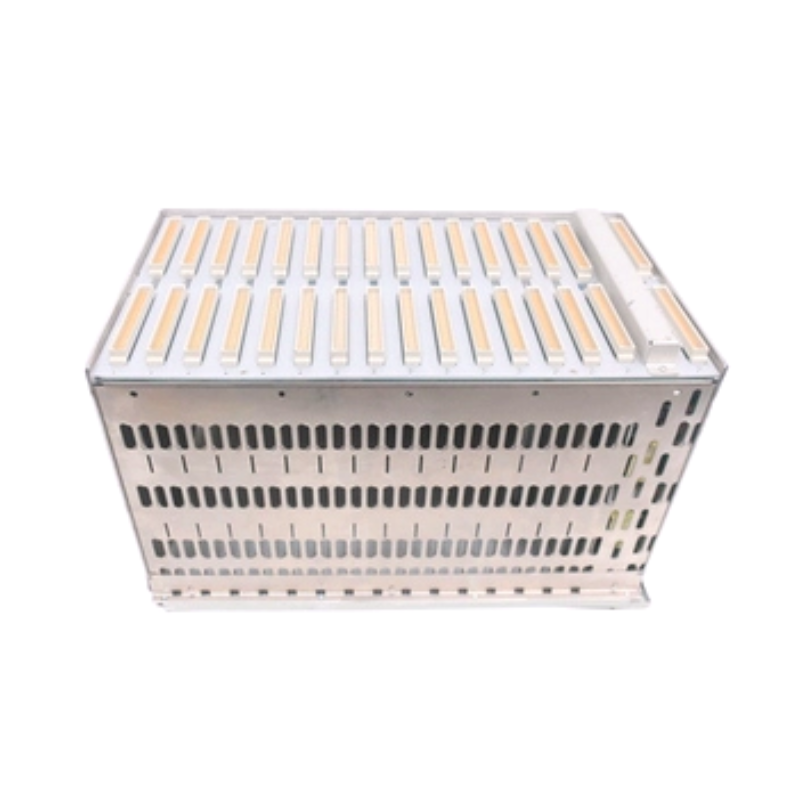

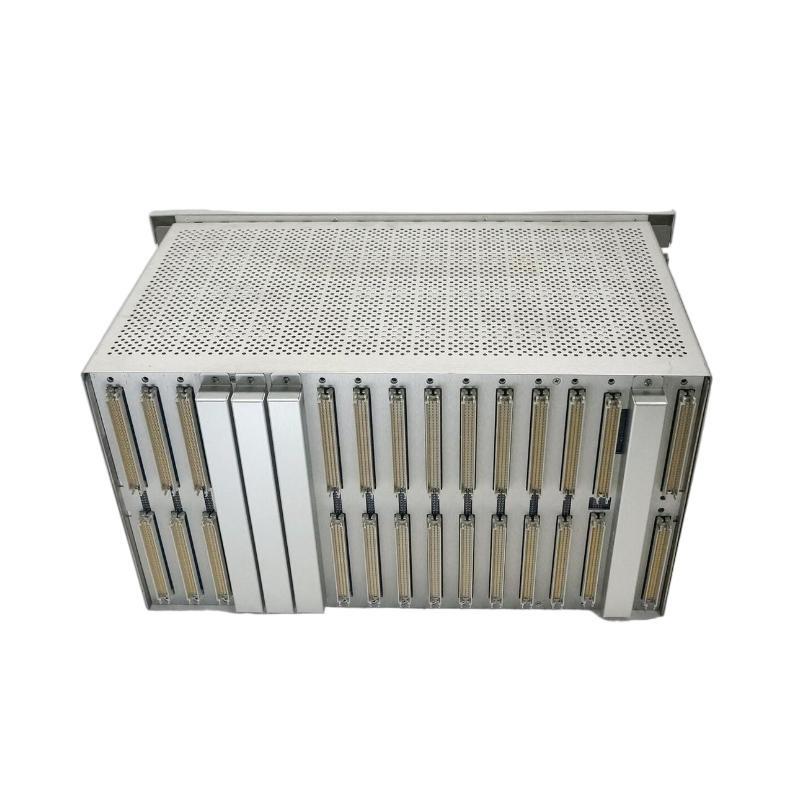

Bently Nevada 3500/05-01-02-CN-00-01 System Rack Overview
The Bently Nevada 3500/05-01-02-CN-00-01 System Rack is an essential component sur the 3500 Machinery Protection System, a globally recognized platform used for vibration, position, speed, and temperature monitoring in critical rotating machinery. This specific model serves as the 19-inch rack mountable enclosure, housing and powering up to 14 modules including system interface modules, input/output modules, and relay modules.
This particular configuration (3500/05-01-02-CN-00-01) features a full-size rack with internal barrier support and Chinese front panel labeling, ensuring suitability for use in regulated environments where both internal partitioning and localized language requirements are necessary.
Designed for high availability in demanding industrial environments, the 3500/05 rack is an integral part sur achieving machine protection, predictive maintenance, and safety compliance in applications across power generation, oil & gas, petrochemical, and industrial processing.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | 3500/05-01-02-CN-00-01 |
| System Type | 3500 Series Rack for Monitoring Modules |
| Front Panel Langue | Chinese |
| Barrier Support | Internal Barrier Configuration |
| Mounting Method | Panel Mount or Rack Mount |
| Rack Size | 19-inch (14 module slots) |
| Poids | 4.5 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Power Supply Configuration | Dual redundant power supply support |
| Compliance | CE, CSA, ATEX, GOST, IECEx |
| Material | Aluminum frame with protective coatings |
Applications
The 3500/05-01-02-CN-00-01 rack is extensively used in mission-critical rotating equipment scenarios, including but not limited to:
-
Steam Turbines
-
Gas Turbines
-
Compressors
-
Pumps
-
Motors
-
Gearboxes
It is commonly installed in:
-
Oil and Gas Facilities
-
Petrochemical Plants
-
Thermal and Nuclear Power Stations
-
Steel and Mining Plants
-
Water Treatment Facilities
The rack’s compatibility with an array sur 3500 modules allows for custom configurations to suit specific monitoring needs, whether vibration, thrust position, temperature, or system relay logic.
Product Advantages
-
Modular and Scalable: Offers full flexibility with support for up to 14 modules, including redundant power supplies and redundant system interfaces.
-
Localized Compliance: Chinese front panel labeling meets the requirements sur regional language regulations and user convenience.
-
Internal Barrier Support: Provides additional safety isolation between hazardous and safe areas, ideal for use in environments requiring intrinsic safety.
-
High Reliability: Redundant power and communication options ensure continuous operation even during failure conditions.
-
Global Certifications: Certified for use in hazardous areas worldwide, meeting CE, CSA, ATEX, IECEx, and GOST standards.
-
Efficient Mounting: Designed for standard 19-inch rack systems, easily integrated into control cabinets.
-
Maintenance-Friendly Design: Hot-swappable modules, front-access terminals, and clear labeling simplify maintenance.
Questions fréquentes (FAQ)
Q1: What does the part number 3500/05-01-02-CN-00-01 signify?
A1: It identifies a full-height 3500 rack with internal barrier support, Chinese front panel labeling, and standard configuration for use in hazardous environments.
Q2: Is the rack compatible with redundant power supply modules?
A2: Yes, it supports dual redundant power supply configurations for enhanced operational reliability.
Q3: What is the significance sur internal barrier support?
A3: Internal barriers provide isolation between safe and hazardous zones, essential for installations in intrinsically safe environments.
Q4: Can the rack be mounted in any orientation?
A4: The 3500/05 rack is intended for vertical orientation in a 19-inch EIA rack. Horizontal or inverted mounting is not recommended.
Q5: What type sur modules can be installed in this rack?
A5: It supports all standard 3500 Series modules, including monitor cards (vibration, temperature), relay cards, power supplies, and communication modules.
Q6: How does the Chinese-labeled front panel benefit the user?
A6: It ensures clarity and compliance in regions where labeling in Chinese is a legal or operational requirement.
Q7: Is this rack suitable for outdoor environments?
A7: No, it should be installed in indoor enclosures or protected environments, typically within control panels.
Q8: What is the maximum power draw sur the rack with all modules installed?
A8: While the rack itself does not draw power, the total power requirement depends on installed modules. Power supply modules provide up to 190 W combined.
Q9: Does it support system redundancy?
A9: Yes. The rack accommodates redundant power supplies and redundant Rack Interface Modules (RIMs) for high-availability setups.
Q10: How do I ensure compatibility when ordering modules for this rack?
A10: Always verify part numbers and rack configuration. This model supports standard 3500 modules; ensure correct input/output type, barrier configuration, and labeling language.
Recommended Same-Series or Related Modèles
-
3500/05-01-02-00-00 – Full-size rack with standard front panel, no barrier support
-
3500/05-01-01-00-00 – Mini-rack configuration
-
3500/15-05-01-00 – Power Supply Module for 3500/05 rack
-
3500/22M-01-01-00 – Rack Interface Module (RIM) with dual-channel communication
-
3500/42M-01-CN – Vibration Monitor with Chinese labeling
-
3500/94M – Display module for visualizing system data
Popular Bently Nevada Modèles (Same Marque)
| Modèle Number | Product Name | Function | Rack Compatible | Key Feature |
|---|---|---|---|---|
| 3500/22M-01-01-00 | Rack Interface Module | Communication interface | Yes | Dual-channel, TDI compatibility |
| 3500/42M-01-00 | Proximitor Monitor | Vibration/Position monitoring | Yes | Four-channel input |
| 3500/15-05-01-00 | Power Supply Module | Power delivery | Yes | Redundant power support |
| 330103-00-05-10-02-00 | Proximity Probe | Shaft position sensing | No | 3300 XL 8mm, proximity style |
| 3500/92-01-01-00 | Communication Gateway Module | Data transmission | Yes | Ethernet and Modbus support |
| 3500/93-01-02-02 | Display Module | Visual system interface | Yes | 6-inch color LCD display |
