Product Overview

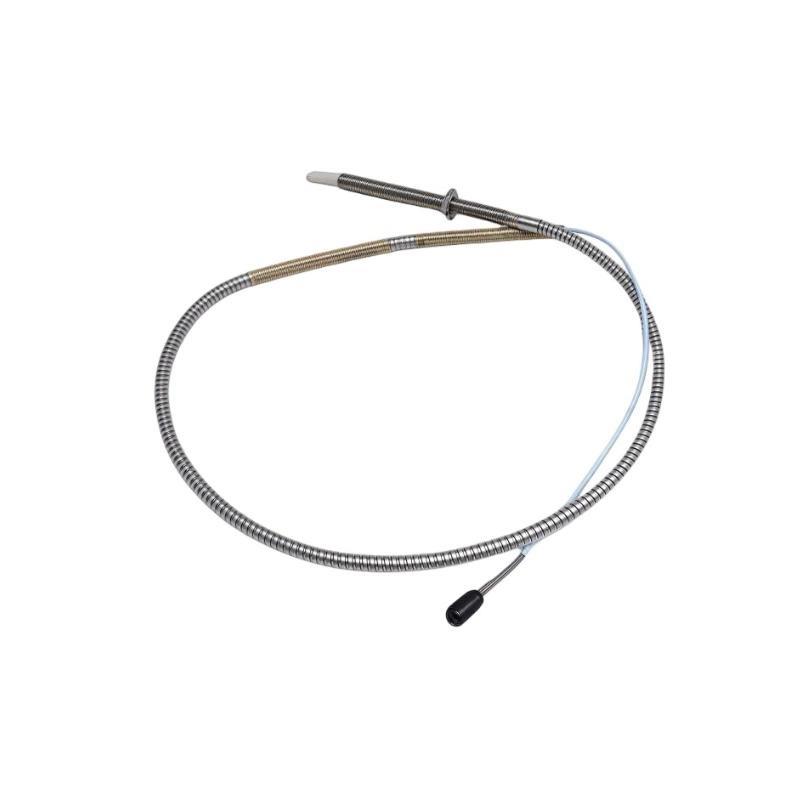

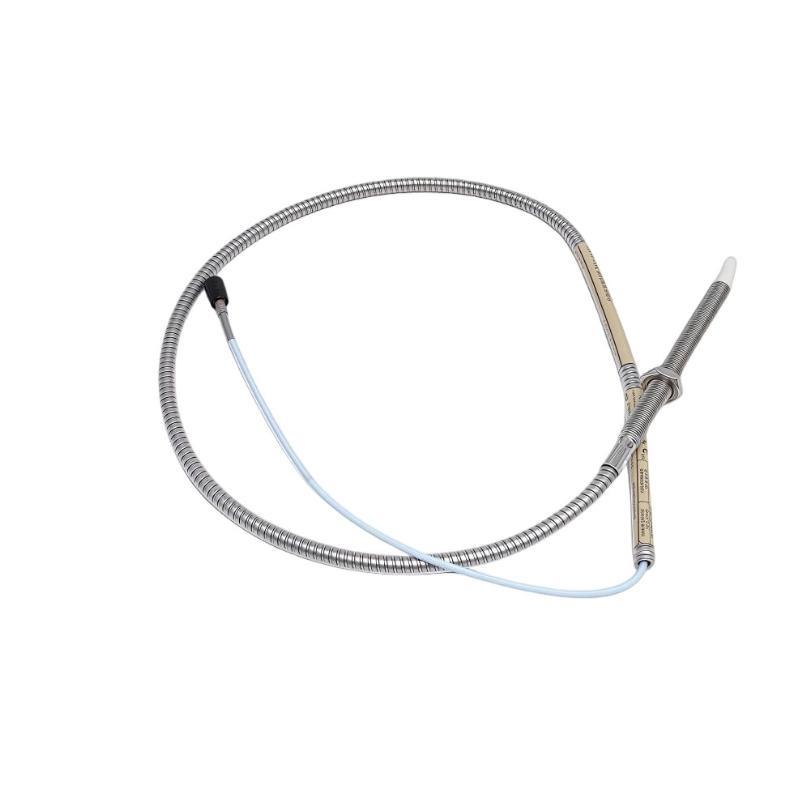

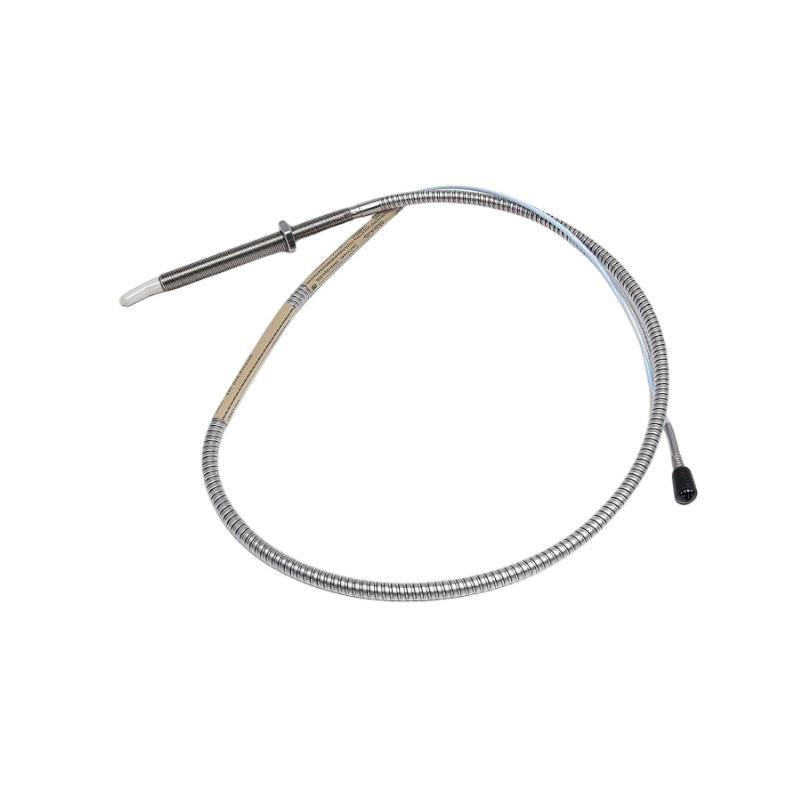

The Bently Nevada 330910-00-13-10-02-00 3300 NSv Proximity Probe is a precision-engineered sensor designed for vibration and position monitoring in compact rotating machinery. As part sur the Bently Nevada 3300 NSv (Narrow Side-view) series, this probe is optimized for installations where limited space and high accuracy are critical.
Key Features
-
Compact design ideal for small or confined machine housings
-
Compatible with the 3300 NSv Proximitor System
-
Provides high linearity and precision in proximity measurement
-
Wide operating temperature range suitable for harsh environments
-
Resistant to oil, dust, and mechanical vibration
-
Factory-calibrated for consistent performance
-
Suitable for both vibration and axial position measurements
-
Long operational life and low maintenance requirements
Technical Specifications
| Item | Specification |
|---|---|
| Fabricant | Bently Nevada |
| Référence | 330910-00-13-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| System Compatibility | 3300 NSv Proximitor Sensor System |
| Dimensions | Total Length : 1.0 meter |
| Poids | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% over specified range |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Material | Stainless steel |
| Cable Type | Integral or extension cable compatible |
| Mounting Method | Threaded sleeve or bracket mounting |
| Applications | Shaft vibration, displacement, and position monitoring |
Industry Applications
-
Turbines (gas, steam, and microturbines)
-
Compressors and blowers
-
Pumps and motors
-
Gearboxes and spindles
-
Power generation systems
-
Oil and gas process equipment
Questions fréquentes (FAQ)
Q1: What is the Bently Nevada 330910-00-13-10-02-00 used for?
It measures shaft vibration and position in small or compact rotating machinery.
Q2: Which system is this probe compatible with?
It is designed for use with the 3300 NSv Proximitor Sensor System.
Q3: What is the diameter sur the probe?
The probe diameter is approximately 5 mm.
Q4: What is its typical measurement range?
It provides a linear measurement range sur 0–1.0 mm (0–40 mils).
Q5: What is the probe’s sensitivity rating?
The typical sensitivity is 7.87 V/mm (200 mV/mil).
Q6: Can this probe be used in harsh environments?
Yes, it is made sur stainless steel and designed for industrial environments with oil, dust, and vibration.
Q7: What is the operating temperature range?
It operates between –35 °C and +177 °C.
Q8: How is it mounted?
It can be installed using a threaded sleeve or mounting bracket for precise positioning.
Related Bently Nevada Modules
| Modèle | Description |
|---|---|
| 330908-10-55-05-02-00 | 3300 NSv Proximity Probe |
| 330908-22-31-10-01-05 | 3300 NSv Proximity Probe |
| 330908-39-71-05-01-00 | 3300 NSv Proximity Probe |
| 330907-05-30-10-02-05 | 3300 NSv Reverse Mount Probe |
| 330172-22-10-05-02-00 | 3300 NSv Extension Cable |
| 330130-040-00-00 | 3300 XL Standard Extension Cable |
Popular Bently Nevada Modules
| Modèle | Description |
|---|---|
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-01-05-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330106-05-30-50-02-05 | 3300 XL 8 mm Reverse Mount Probe |
| 330130-045-13-05 | 3300 XL Standard Extension Cord |
| 3500/42M | Proximitor/Seismic Monitor |
| 330400 | Proximitor Sensor Assembly |
