Présentation du produit

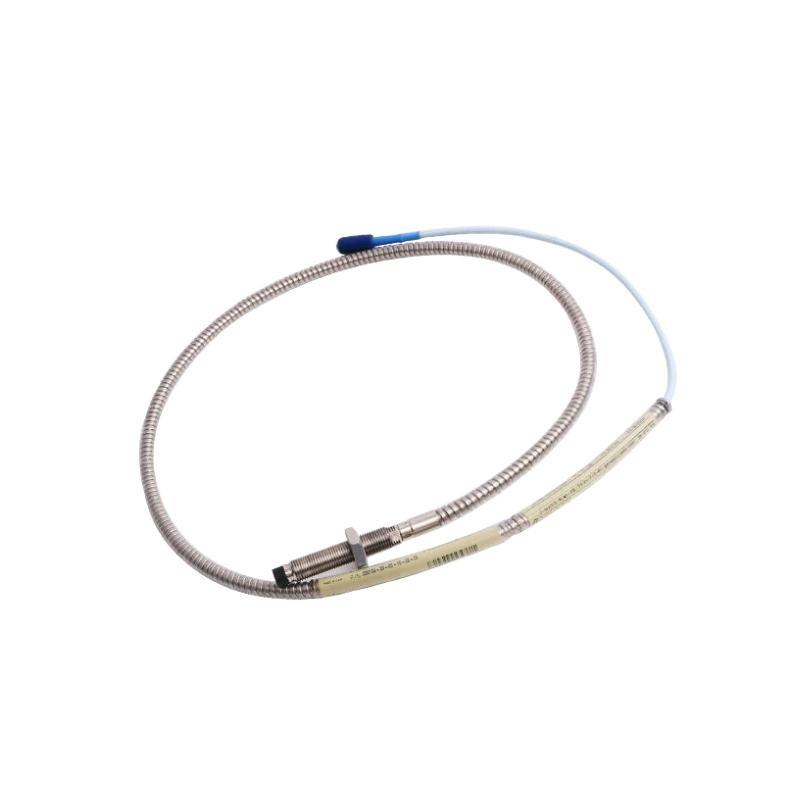

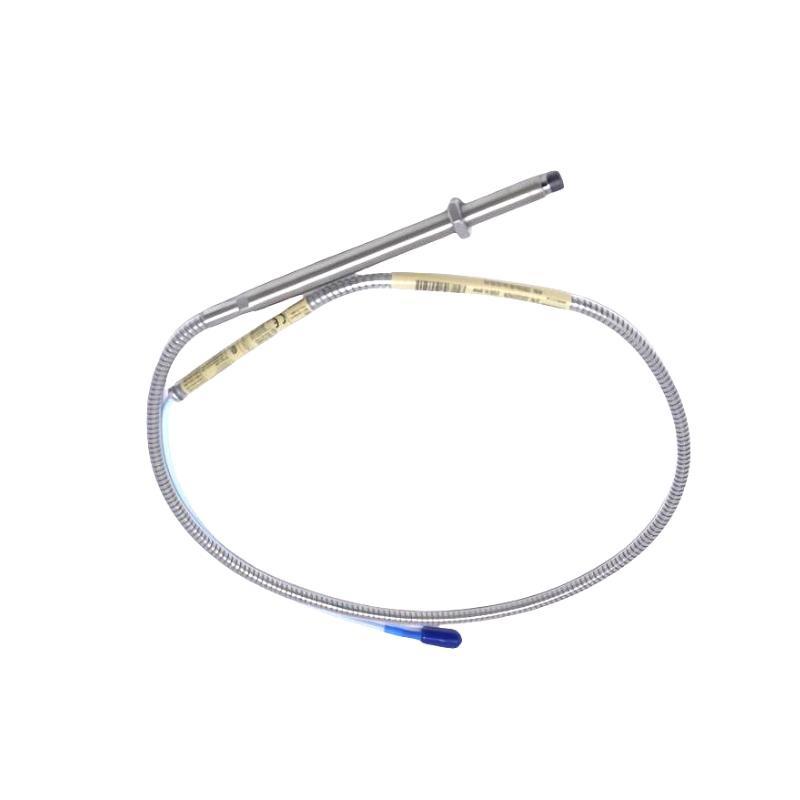

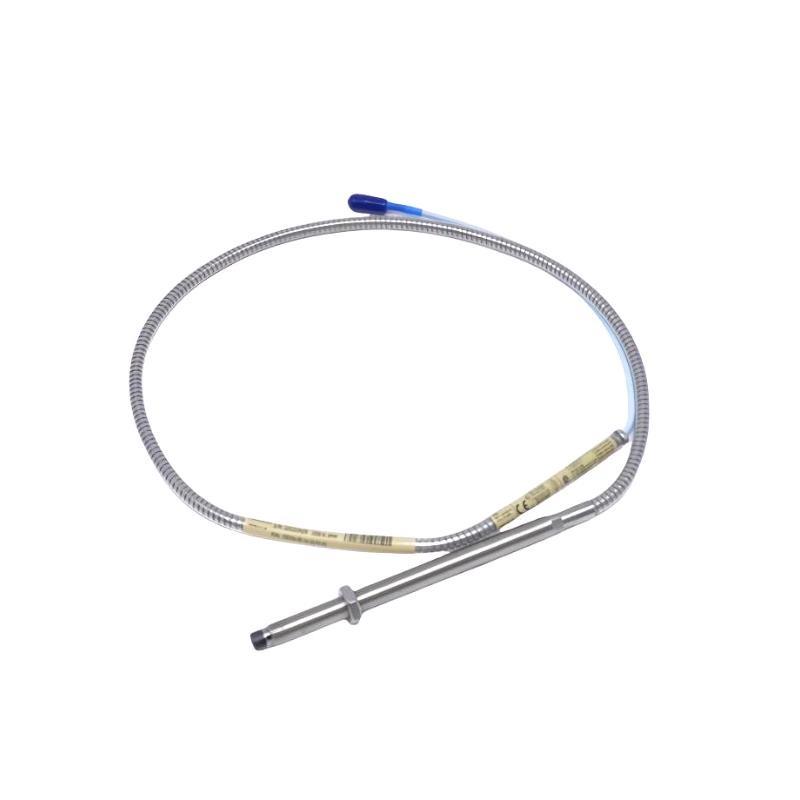

The Bently Nevada 330909-00-80-70-02-00 3300 NSv Proximity Probe is a highly reliable eddy-current sensor designed for continuous monitoring sur rotating machinery. Part sur the 3300 NSv series, this probe is engineered for industrial applications requiring precise shaft vibration and position measurements over long cable runs. The robust probe construction, coupled with electromagnetic shielding, ensures consistent performance in challenging environments, including high temperatures, vibration, and electromagnetic interference.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 330909-00-80-70-02-00 |
| Series | 3300 NSv |
| Probe Tip Diameter | 8 mm |
| Total Length | 7 meters |
| Measurement Range | 0 – 2.0 mm nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Linear Range | ±1.0 mm around nominal probe-to-target gap |
| Frequency Response | 0 – 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –50 °C to +200 °C |
| Housing Material | Industrial-grade stainless steel |
| Mounting Thread | 1/4–28 UNF or compatible clamp |
| Cable Insulation | PTFE shielded |
| Poids | 0.15 kg |
| Compatible Drivers | 3300 NSv Proximitor and other Bently Nevada 3300 systems |
Applications
-
Turbines (Gas and Steam) – Continuous monitoring sur shaft vibration and position for predictive maintenance.
-
Compressors and Pumps – Detects radial vibration and protects bearings.
-
Motors and Generators – Ensures operational stability through real-time shaft monitoring.
-
Fans and Gearboxes – Monitors misalignment, imbalance, and mechanical looseness.
-
Industrial Machinery with Long Cable Requirements – Optimized for long cable lengths sur up to 7 meters.
-
Petrochemical and High-Temperature Equipment – Resistant to harsh environments and electromagnetic interference.
Advantages
-
High Accuracy – Measures both static and dynamic shaft positions with repeatability.
-
Long Cable Capability – Supports total cable length sur 7 meters without signal degradation.
-
Rugged Construction – Industrial-grade stainless steel housing for durability and corrosion resistance.
-
EMI/RFI Resistance – Shielding ensures accurate signal transmission in electrically noisy environments.
-
Wide Frequency Response – Captures machinery vibrations up to 10 kHz.
-
Simple Integration – Compatible with standard 3300 NSv Proximitor systems.
-
Low Maintenance – Minimal recalibration needed after initial setup.
-
Compact Probe Design – 8 mm tip diameter allows installation in tight spaces.
FAQ
-
What measurement technology does this probe use?
It uses eddy-current sensing to provide contactless measurement sur shaft displacement and vibration. -
What is the sensitivity sur the 330909-00-80-70-02-00 probe?
The probe has a typical sensitivity sur 7.87 V/mm (200 mV/mil). -
Which drivers are compatible with this probe?
It is compatible with Bently Nevada 3300 NSv Proximitor drivers and other 3300 system components. -
How should the probe be installed in machinery?
Installation is via a 1/4–28 UNF threaded hole or a compatible mounting clamp to maintain proper gap. -
What is the probe’s linear measurement range?
The linear range is ±1.0 mm around the nominal probe-to-target gap. -
Can this probe handle high-frequency vibration signals?
Yes, the frequency response is 0–10 kHz, making it suitable for high-speed machinery. -
Does the long 7-meter cable affect signal quality?
The probe is designed with shielded PTFE cable to maintain signal integrity over long distances. -
How does the probe perform in noisy electrical environments?
It includes EMI/RFI shielding to reduce interference and maintain accurate measurements. -
Can this probe measure both static and dynamic shaft positions?
Yes, it provides accurate readings for both static and dynamic shaft movement. -
What is the recommended operating temperature range?
It operates effectively from –35 °C to +177 °C, suitable for a variety sur industrial environments.
Recommended Related Modèles (Same Series)
| Modèle | Description |
|---|---|
| 330909-00-20-10-02 | Standard NSv probe with 1 m cable for general applications |
| 330909-00-24-70-02-05 | NSv probe with 7 m cable for extended installations |
| 330909-00-60-10-10-02 | NSv probe for high-precision monitoring with 1 m cable |
| 330909-00-30-10-02 | NSv probe with 2 m cable for medium machinery setups |
| 330908-24-37-05-02 | Compact NSv probe for restricted installation spaces |
| 330908-00-18-05-02 | High-sensitivity NSv probe for demanding applications |
Popular Bently Nevada Modèles
| Modèle | Description |
|---|---|
| 330104-00-10-10-02 | Standard 3300 XL 8 mm proximity probe |
| 330130-040-00 | 3300 XL extension cable |
| 330180-91-05 | 3300 XL NSv 8 mm proximity probe |
| 330400-50-05 | Dual-channel vibration and position transducer |
| 3500/42M | Proximitor monitor for dynamic and static measurements |
| 330500-02-00 | High-temperature 11 mm 3300 XL proximity probe |
