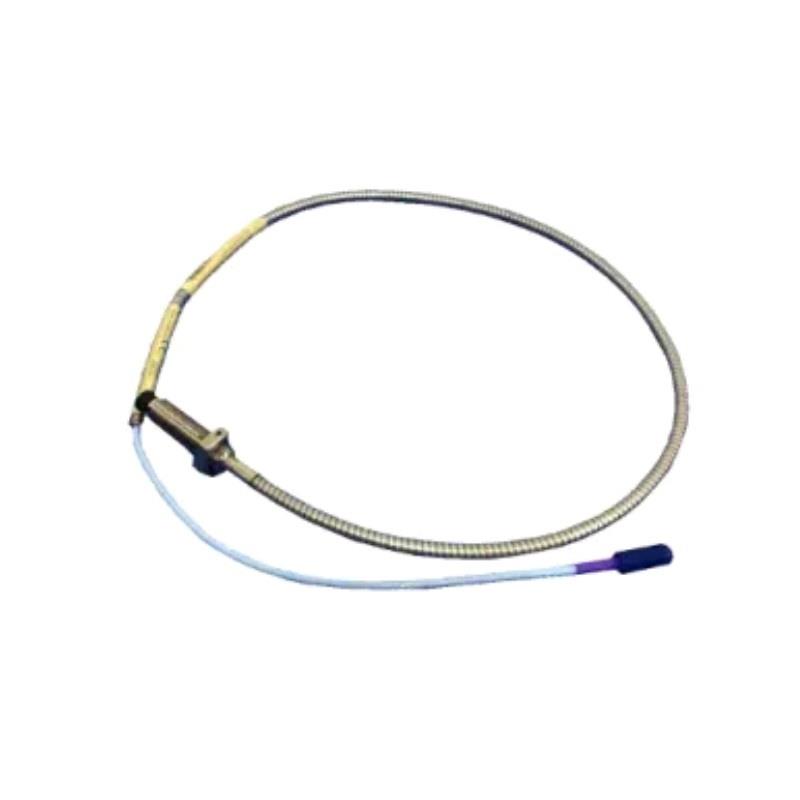

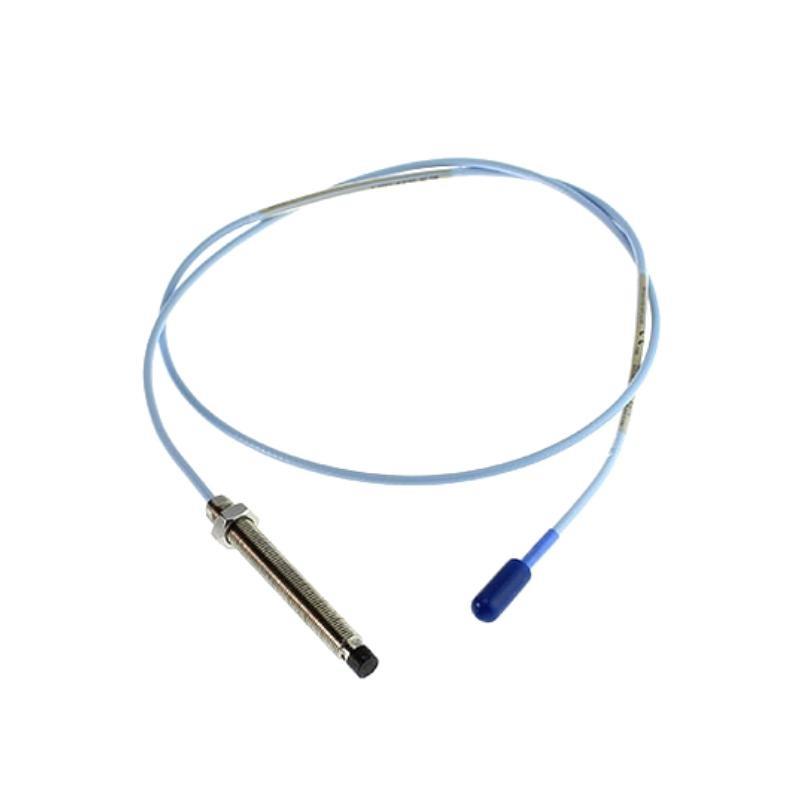

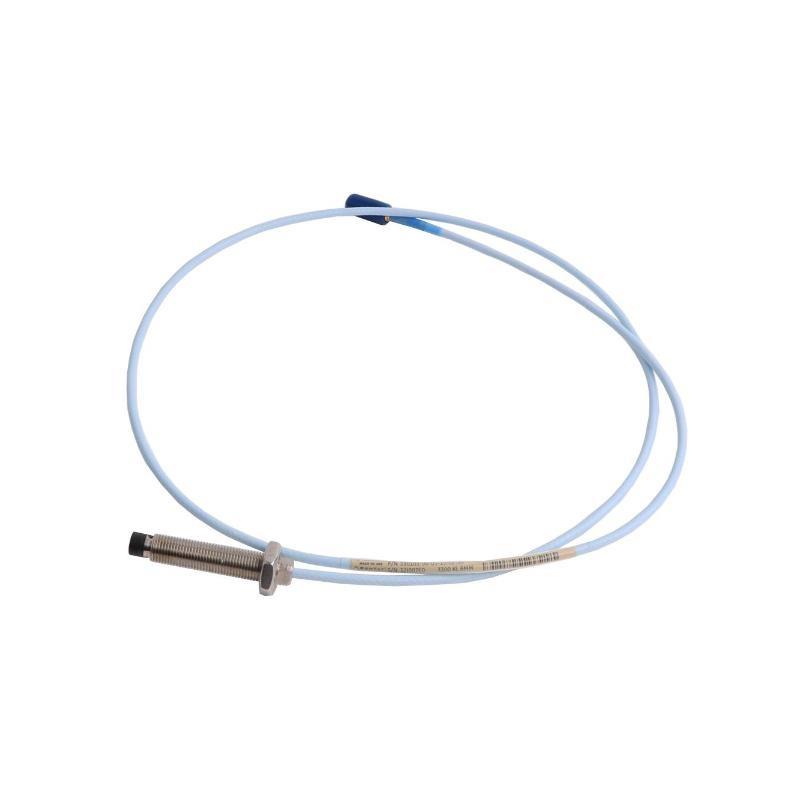

The Bently Nevada 330904-05-14-05-02-00 3300 NSv Proximity Probe is a highly reliable non-contact vibration and position sensing solution designed for machinery protection and condition monitoring in challenging industrial environments. This model belongs to the renowned 3300 NSv (Narrow Side View) series, specifically engineered for small targets and tight installation spaces. With superior frequency response and robust construction, it provides accurate displacement measurements and ensures long-term operational stability even in harsh conditions. Its compatibility with Bently Nevada’s 3300 monitoring systems makes it a trusted choice for critical rotating equipment such as turbines, compressors, pumps, and motors.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle Number | 330904-05-14-05-02-00 |
| Series | 3300 NSv Proximity Probe |
| Total Length | 0.5 meter |
| Poids | 0.15 kg |
| Sensing Principle | Eddy current, non-contact displacement measurement |
| Tip Diameter | 5 mm (nominal) |
| Linear Range | 0.25 mm to 2.0 mm (depending on target material) |
| Sensitivity | 7.87 V/mm ±5% |
| Frequency Response | 0 to 10 kHz (typical) |
| Operating Temperature | –35 °C to +177 °C |
| Probe Material | Stainless steel with hermetic sealing |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Power Supply | Requires compatible Bently Nevada proximitor |
| Connector Type | Standard Bently Nevada miniature coaxial |
| Mounting Thread | M10 × 1.0 or 3/8-24 UNF (varies by configuration) |
| Compliance | CE, RoHS, and ATEX certified for hazardous areas |
Applications
The 330904-05-14-05-02-00 proximity probe is used in a wide range sur industrial and power-generation sectors where precision monitoring is critical:
-
Steam and Gas Turbines – Continuous shaft vibration and axial position monitoring to prevent damage from imbalance or misalignment.
-
Compressors and Pumps – Detects early-stage bearing failures and cavitation issues.
-
Motors and Generators – Monitors shaft movement and rotor dynamics for predictive maintenance.
-
Gearboxes and Fans – Ensures accurate detection sur mechanical looseness and gear mesh irregularities.
-
OEM Machinery – Integrates easily into custom machinery for condition-based maintenance systems.
Advantages
-
High Accuracy and Stability: Advanced eddy-current technology delivers precise displacement measurements under varying temperature and pressure conditions.
-
Compact Design: The Narrow Side View design allows installation in restricted spaces without sacrificing performance.
-
Enhanced Reliability: Hermetically sealed stainless steel body ensures long service life in corrosive or high-moisture environments.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 series monitoring systems for quick setup and calibration.
-
Wide Operating Temperature: Maintains performance from –35 °C to +177 °C for extreme industrial conditions.
-
Low Maintenance: Non-contact operation eliminates wear and reduces downtime compared to traditional sensors.
FAQ
-
What is the recommended target material for optimal linearity?
The probe is factory-calibrated for AISI 4140 steel; other ferromagnetic materials may require calibration adjustments. -
What is the maximum cable length extension supported?
The standard system supports up to 9 meters when used with matching extension cables and a compatible proximitor. -
Can the probe operate in hazardous areas?
Yes, it meets ATEX and CE requirements for Zone 1 hazardous environments when installed with approved accessories. -
How does temperature variation affect measurement accuracy?
The probe is temperature-compensated to minimize drift across its specified operating range. -
What is the typical output from the proximitor for this probe?
The standard output is 200 mV per mil (7.87 V/mm) with ±5 % tolerance. -
Can the probe detect both vibration and shaft position?
Yes, it provides both dynamic vibration and static shaft position signals. -
What is the minimum bend radius for the cable during installation?
The recommended minimum bend radius is 25 mm to prevent cable damage. -
Does the probe require regular recalibration?
Recalibration is generally only necessary after component replacement or major system changes. -
Is the probe resistant to electromagnetic interference (EMI)?
Yes, it features shielding and a coaxial cable design to minimize EMI effects. -
Can it be used with older Bently Nevada 7200 series monitors?
It can, provided the correct proximitor and calibration procedures are followed.
