Product Overview

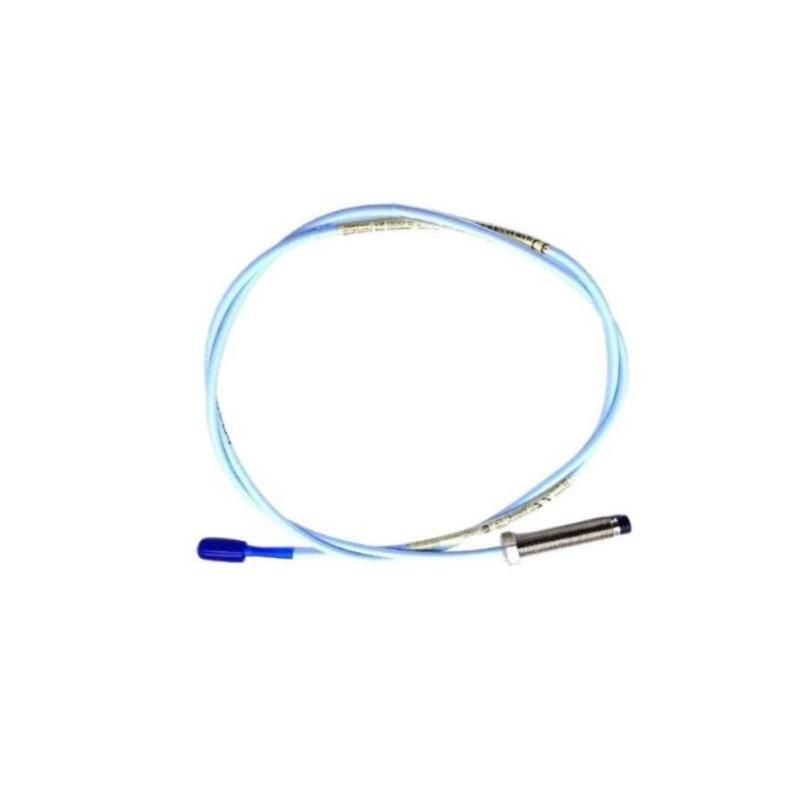

The Bently Nevada 330904-00-03-10-02-00 3300 NSv Proximity Probe is a precision-engineered transducer designed for accurate vibration and position measurement in compact and high-density machinery applications. As part sur the 3300 NSv (Narrow Side-view) Proximity Transducer System, it delivers superior accuracy and stability for shaft vibration and axial position monitoring in industrial environments where space limitations are a concern.
Key Features
-
Compact design ideal for space-constrained installations
-
Fully compatible with the Bently Nevada 3300 NSv Transducer System
-
Factory-calibrated for consistent and reliable accuracy
-
High immunitéy to temperature variation and electromagnetic interference
-
Suitable for both vibration and shaft position monitoring
-
Built in accordance with API 670 standards for machine protection
-
Durable stainless steel housing for industrial environments
-
Outstanding linearity and long-term signal stability
Technical Specifications
| Item | Specification |
|---|---|
| Modèle | 330904-00-03-10-02-00 |
| Series | 3300 NSv (Narrow Side-view) |
| Fabricant | Bently Nevada |
| Measurement Range | 2 mm (80 mils) |
| Linear Range | 1.6 mm (63 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Probe Tip Diameter | 5 mm (0.197 in) |
| Thread Size | M10 x 1 |
| Probe Length | 50 mm (1.97 in) |
| Cable Length | 3 meters (9.8 feet) |
| System Power Supply | -24 VDC (typical through Proximitor) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35°C to +180°C (-31°F to +356°F) |
| Humidity | 95% non-condensing |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Connector Type | Miniature coaxial connector (female) |
| Compatible Proximitor Module | 330910-00-05 |
| System Accuracy | ±5% sur full-scale output |
| Material | Stainless steel housing |
| Poids | 0.15 kg |
| Dimensions | Total Length : 1.0 meter |
Questions fréquentes (FAQ)
1. What is the main function sur the 330904-00-03-10-02-00 probe?
It measures both vibration and shaft position in compact rotating machinery for condition monitoring and machine protection.
2. Which Proximitor module is compatible with this probe?
It works with the Bently Nevada 330910-00-05 Proximitor Sensor.
3. How does the 3300 NSv system differ from the standard 3300 XL system?
The NSv system is optimized for smaller equipment with a reduced probe diameter and shorter linear range, while maintaining full API 670 compliance.
4. What type sur signal does the system provide?
It provides a voltage output proportional to the distance between the probe tip and the target surface, typically 200 mV/mil.
5. Can this probe operate at high temperatures?
Yes, it functions reliably in environments up to +180°C (356°F).
6. Does the probe require special grounding or shielding?
Proper shielding and grounding are required to reduce electrical noise and ensure accurate measurements.
7. How is calibration achieved for this model?
Each unité is factory-calibrated to match its designated Proximitor and cable length for consistent performance.
8. What materials are suitable as target surfaces for accurate readings?
It is calibrated for AISI 4140 steel, but can also measure other conductive ferromagnetic materials with appropriate calibration correction.
Related Bently Nevada Modèles
| Modèle | Description |
|---|---|
| 330904-00-08-10-02-00 | 3300 NSv Proximity Probe |
| 330904-00-12-10-02-00 | 3300 NSv Proximity Probe |
| 330905-00-12-10-02-00 | 3300 XL 5 mm Proximity Probe |
| 330101-00-20-05-01-05 | 3300 XL 8 mm Proximity Probe |
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330708-00-20-50-02-05 | 3300 XL 11 mm Proximity Probe |
Popular Bently Nevada Modèles
| Modèle | Description |
|---|---|
| 330104-00-18-10-02-05 | Standard 8 mm proximity probe for general machinery monitoring |
| 330130-045-01-05 | 3300 XL Extension Cable |
| 330180-90-00 | 3300 XL NSv Proximitor Sensor |
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/93 | System Communication Gateway Module |
