Présentation du produit

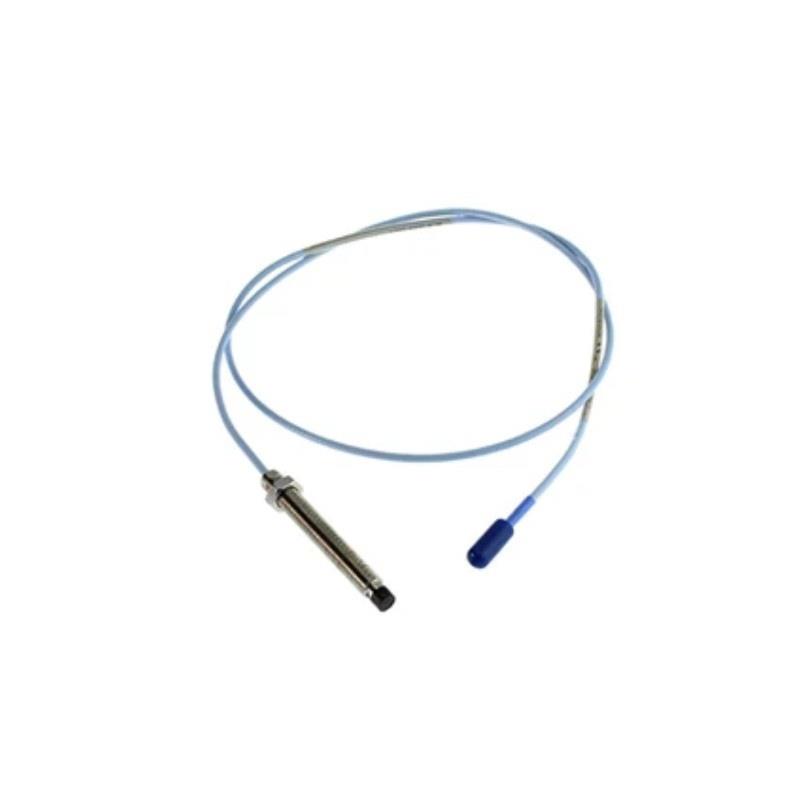

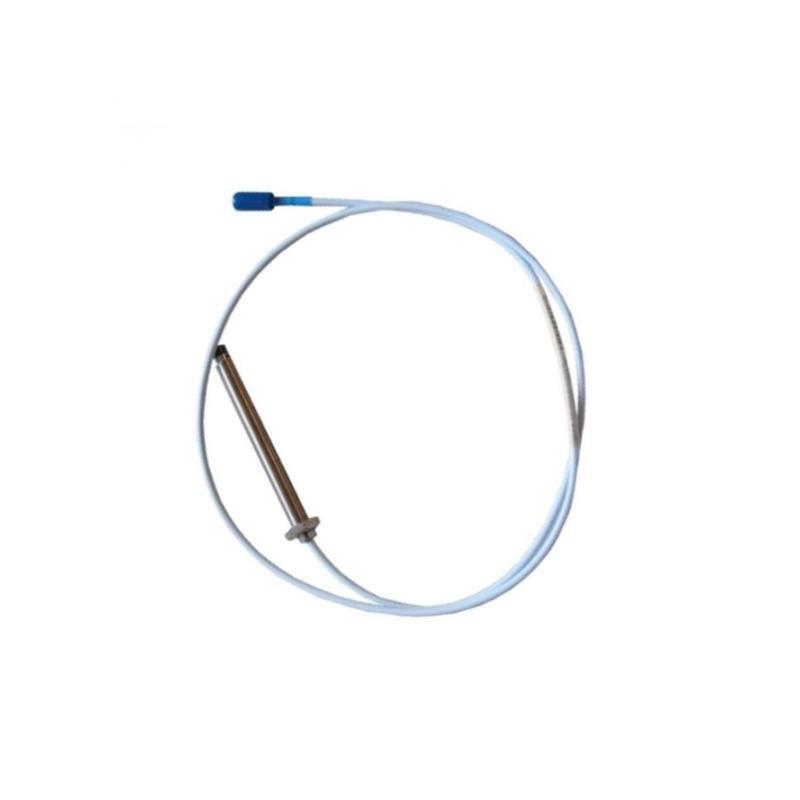

The Bently Nevada 330903-00-06-10-02-05 is a 3300 NSv Proximity Probe designed for precise monitoring sur rotating machinery. It forms a critical part sur the 3300 System, which provides highly reliable vibration measurement and shaft displacement sensing. This probe is optimized for use in industrial environments, including turbines, compressors, and generators, where accurate and consistent measurements are essential for machine protection and performance monitoring.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle Number | 330903-00-06-10-02-05 |
| Probe Type | AC Variable Reluctance |
| Tip Material | Stainless Steel |
| Cable Type | Shielded Coaxial |
| Total Length | 1 m |
| Poids | 0.15 kg |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Frequency Response | 0 – 25 kHz |
| Gap Range | 0.05 mm – 1.5 mm (0.002 – 0.059 in) |
| Connector Type | PT06F-10-6S or equivalent |
| Sensitivity | 1 V/mil typical |
| Cable Bend Radius | ≥25 mm |
| Environmental Rating | IP67 |
Product Applications
-
Monitoring high-speed rotating machinery such as turbines, generators, and compressors.
-
Detecting shaft displacement, vibration, and mechanical misalignment.
-
Integration into condition monitoring systems for predictive maintenance.
-
Providing real-time feedback to machinery protection systems to prevent damage.
-
Suitable for both industrial and power generation applications.
Product Advantages
-
High Accuracy: Offers precise measurement sur shaft displacement for early detection sur potential failures.
-
Robust Construction: Designed to withstand harsh industrial environments, including high temperature, vibration, and moisture.
-
Reliable Connectivity: Shielded coaxial cable ensures minimal signal interference.
-
System Compatibility: Fully compatible with the 3300 Series machinery protection and condition monitoring system.
-
Wide Frequency Range: Capable sur capturing fast transients and high-frequency vibration signals.
-
Ease sur Installation: Flexible cabling and standardized connectors simplify integration into existing systems.
FAQ
Q1: What type sur signal does this probe generate?
-
The 3300 NSv probe generates an AC voltage signal proportional to shaft displacement.
Q2: Can this probe measure both displacement and vibration?
-
Yes, it can measure shaft displacement directly and vibration indirectly by analyzing displacement over time.
Q3: What is the recommended gap setting for optimal performance?
-
The recommended probe-to-target gap is typically 0.25 – 0.5 mm, depending on rotor and system specifications.
Q4: How should the probe be mounted for reliable readings?
-
It should be rigidly mounted near the shaft with minimal axial or radial movement and aligned properly to the target.
Q5: Is the probe compatible with all 3300 Series modules?
-
Yes, it is compatible with all standard 3300 Series monitoring and protection modules.
Q6: Can it operate in high humidity or wet environments?
-
Yes, the probe is rated IP67 and can operate in wet and humid conditions without degradation in performance.
Q7: How does cable length affect signal quality?
-
Signal integrity is maintained up to standard cable lengths; however, shielded coaxial cables should not exceed manufacturer-recommended distances to avoid attenuation.
Q8: Can this probe be used in explosive environments?
-
Intrinsically safe models must be selected for explosive or hazardous environments; standard 3300 NSv probes are not certified for all hazardous areas.
Q9: What maintenance is required for this probe?
-
Periodic inspection for physical damage, checking cable shielding, and confirming proper alignment is sufficient; no calibration is usually required unless system specifications dictate.
Q10: Does the probe require external power?
-
No, the AC variable reluctance probe generates its own voltage signal from shaft movement and does not require external power.
Related or Same-Series Modèles
| Modèle Number | Description |
|---|---|
| 330903-00-06-10-02-01 | 3300 NSv Proximity Probe, 1 m, standard tip |
| 330903-00-06-10-02-02 | 3300 NSv Proximity Probe, 2 m, stainless steel tip |
| 330903-00-06-10-02-03 | 3300 NSv Proximity Probe, high-temperature version |
| 330903-00-06-10-02-04 | 3300 NSv Proximity Probe, armored cable option |
| 330903-00-06-10-02-06 | 3300 NSv Proximity Probe, extra-flex cable |
| 330903-00-06-10-02-07 | 3300 NSv Proximity Probe, intrinsically safe version |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 3300 XL Proximitor | Enhanced proximity sensor for 3300 XL systems |
| 3300 XL Vibration Transducer | For vibration measurement in rotating machinery |
| 3500/22M | Machinery protection module for analog sensors |
| 3500/42M | Dual-channel vibration monitoring module |
| 3300 XL Speed Sensor | Turbine and generator speed monitoring |
| 2300 XL Display | Machinery monitoring and visualization interface |
| 7200/85 | Data acquisition module for condition monitoring |
| 7200/95 | Advanced vibration analysis module |
