Présentation du produit

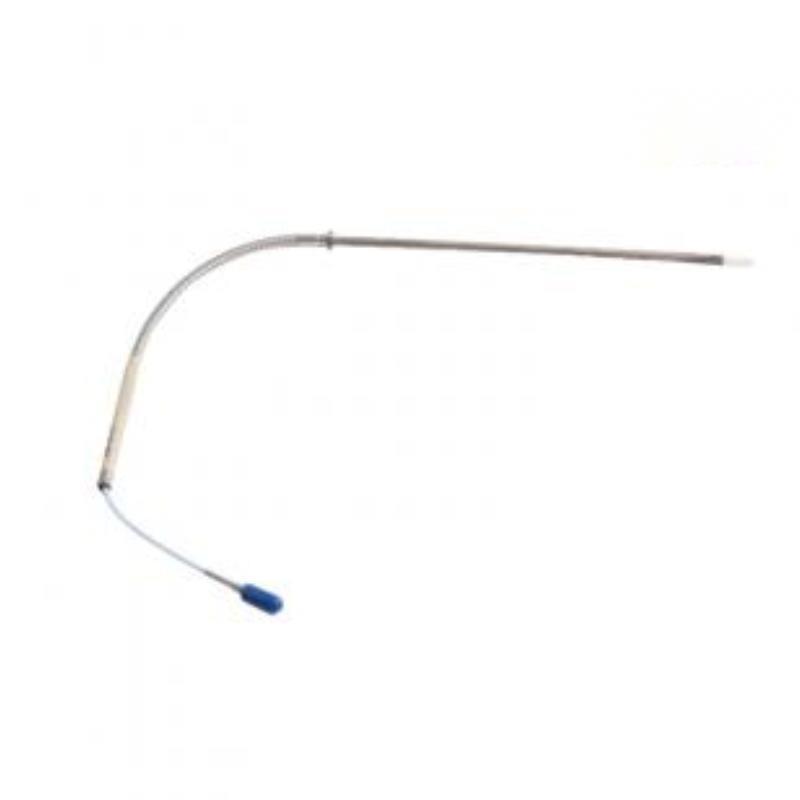

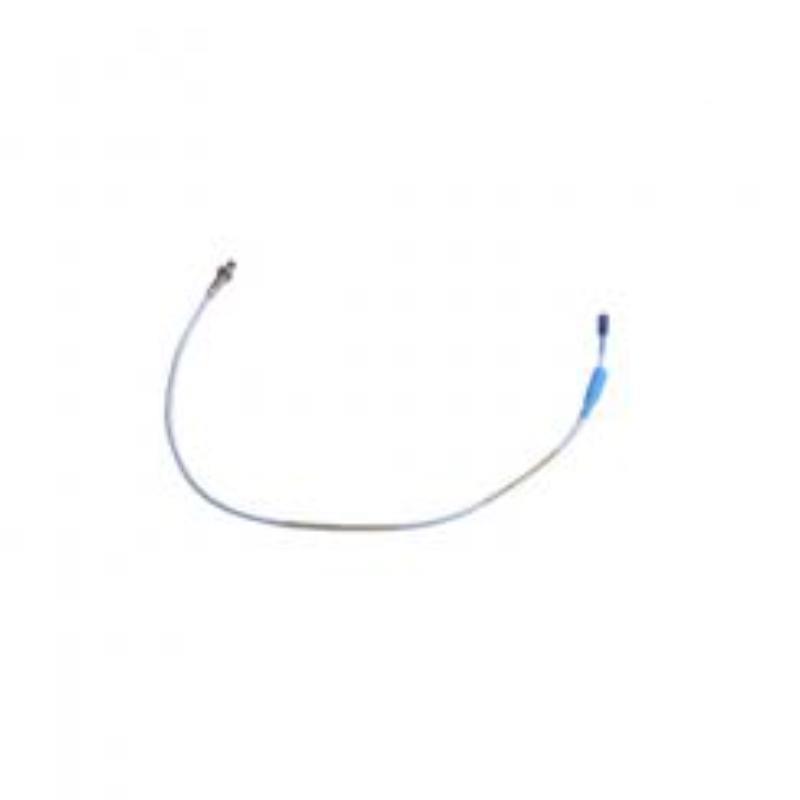

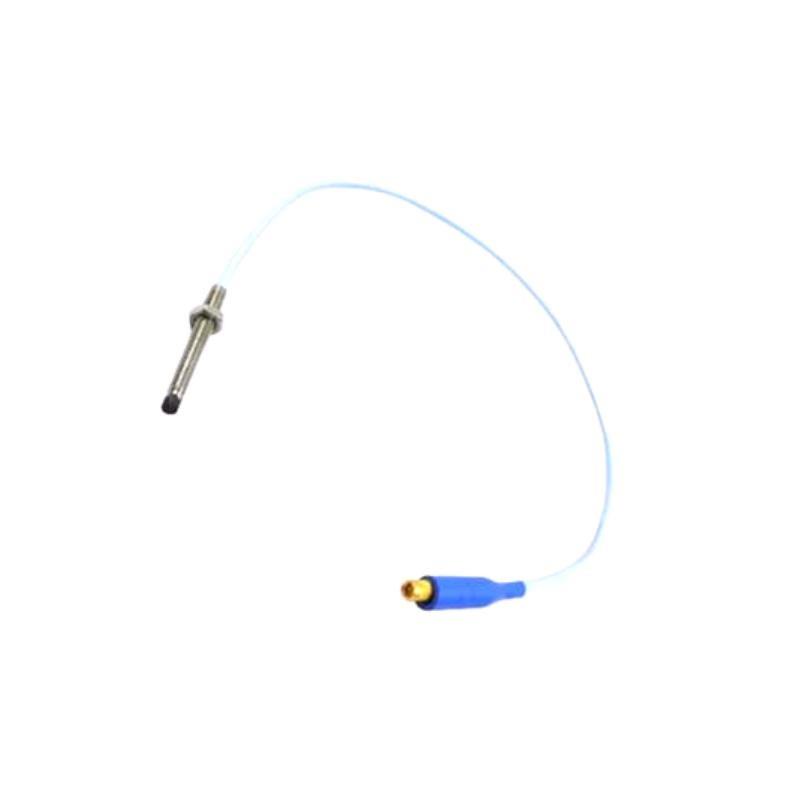

The Bently Nevada 330903-00-04-05-02-CN 3300 NSv Proximity Probe is a high-performance proximity sensor designed for machinery monitoring and protection applications. As part sur the 3300 NSv (Narrow Side-view) series, this probe is specifically engineered for environments where space constraints and high-precision shaft vibration or position measurement are required. It is widely integrated into turbine generators, compressors, pumps, and industrial rotating equipment to provide continuous condition monitoring, ensuring machinery reliability and preventing catastrophic failures.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | 330903-00-04-05-02-CN 3300 NSv Proximity Probe |
| Probe Type | 3300 NSv Proximity Probe |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Extension Cable | Compatible with 330130 extension cables |
| Compatible Driver | 3300 NSv Proximitor Sensor |
| Temperature Range | -35 °C to +177 °C |
| Poids | 0.15 kg |
| Total Length | 0.5 m |
| Material | Stainless steel housing, ceramic tip |
| Connector Type | Miniature coaxial connector |
| Compliance | API 670 compliant, CE certified |
Product Applications
-
Shaft vibration and displacement monitoring in turbines, compressors, and pumps
-
Axial position measurements for thrust bearing protection
-
Rotor dynamic studies in machinery diagnostics
-
Continuous machine condition monitoring in hazardous or space-limited environments
-
Integration with Bently Nevada 3500 and 3300 monitoring systems
Product Advantages
-
Compact Design: Optimized for narrow spaces and tight installation conditions.
-
High Precision: Provides accurate and reliable displacement and vibration measurements.
-
Broad Compatibility: Fully compatible with 3300 NSv Proximitor Sensors and extension cables.
-
Durability: Built with stainless steel housing and robust ceramic sensing tip for long-term operation.
-
Wide Operating Range: Performs reliably across a broad temperature range.
-
API 670 Compliance: Meets industry standards for machinery protection systems.
FAQ
Q1: What is the primary function sur the 330903 NSv probe?
A1: Its main function is to measure shaft vibration and displacement in rotating machinery for monitoring and protection.
Q2: Can this probe operate with standard 3300 XL systems?
A2: The probe is designed specifically for the NSv system and should be used with its dedicated NSv Proximitor sensor, not directly with standard XL systems.
Q3: What is the sensitivity rating sur this probe?
A3: It has a sensitivity sur 7.87 mV/µm (200 mV/mil).
Q4: How does it differ from the standard 3300 XL probe?
A4: The NSv version is optimized for applications with narrow gaps and limited clearance, unlike the standard XL probes.
Q5: Is the probe suitable for axial position monitoring?
A5: Yes, it is widely used for thrust position monitoring in turbines and compressors.
Q6: What is the frequency response range sur this probe?
A6: It supports DC to 10 kHz frequency response.
Q7: Does the probe require calibration after installation?
A7: Factory calibration ensures accuracy, but system verification and loop checks are recommended after installation.
Q8: Can it withstand high-temperature environments?
A8: Yes, it is rated to operate from -35 °C up to +177 °C.
Q9: What type sur signal does the probe generate?
A9: It generates a voltage signal proportional to shaft displacement, which is processed by the Proximitor sensor.
Q10: Is it API 670 compliant?
A10: Yes, it fully meets the API 670 standards for machinery protection.
Same Series or Related Modèles
| Modèle Number | Description |
|---|---|
| 330903-00-03-10-11-05 | NSv probe with alternative cable length |
| 330903-00-02-10-12-05 | NSv probe variant with different mounting option |
| 330903-00-03-10-11-CN | NSv probe customized for China market |
| 330903-00-04-05-02-RU | NSv probe variant customized for Russia market |
| 330103-00-07-10-02-00 | Standard 3300 XL 5 mm probe |
| 330104-00-08-10-02-00 | Standard 3300 XL 8 mm probe |
Popular Modèles from the Same Marque
| Modèle Number | Description |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/32M | Relay Module for machinery protection |
| 3500/25 | Keyphasor Module for phase reference |
| 330104-00-10-10-02-00 | 8 mm Proximity Probe (3300 XL series) |
| 330106-05-30-10-02-00 | 11 mm Proximity Probe (3300 XL series) |
| 330130-040-00-00 | Extension Cable for Proximity Probes |
| 330180-91-05 | Proximitor Sensor for 3300 XL series |
