Présentation du produit

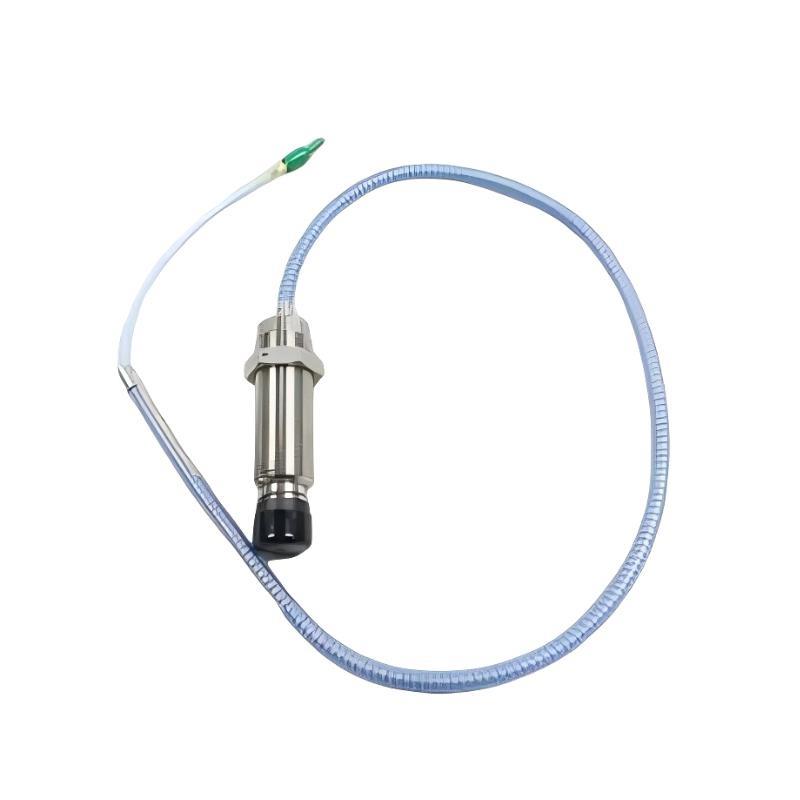

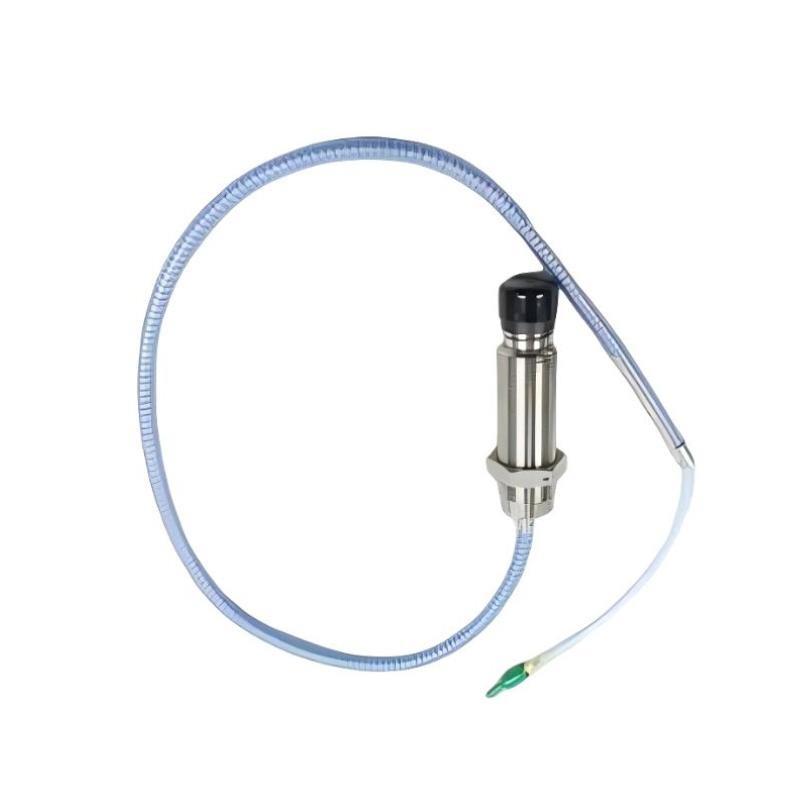

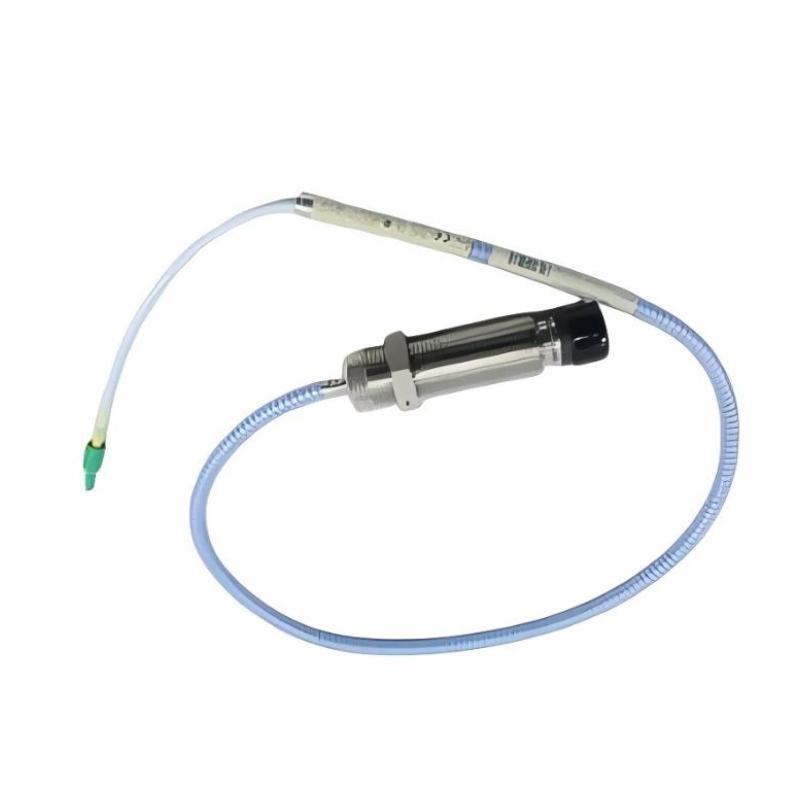

The Bently Nevada 330851-05-000-040-10-00 3300 XL 25 mm Proximity Probe is a precision-engineered, non-contact displacement transducer designed for continuous machinery monitoring and protection. As part sur the Bently Nevada 3300 XL Series, it represents the industry standard for reliability, stability, and accuracy in proximity measurement technology.
This probe is specially optimized for large shaft and heavy-duty machinery applications, providing a 25 mm linear measurement range that allows accurate vibration and displacement detection in turbines, generators, compressors, and large electric motors. Utilizing the eddy current principle, it converts shaft motion into a proportional voltage signal, which is processed by the matching proximity sensor and extension cable to provide real-time measurement feedback.
The 330851-05-000-040-10-00 model is manufactured to meet API 670 requirements, ensuring high measurement integrity, repeatability, and interchangeability across systems. It is built from corrosion-resistant stainless steel and designed for harsh industrial environments, with high immunitéy to electromagnetic interference (EMI) and radio-frequency interference (RFI).
The probe forms a key component in the Bently Nevada 3300 XL 25 mm Transducer System, which includes the probe, extension cable, and proximity sensor. Together, they provide a standard system output sur 7.87 V/mm (200 mV/mil), making it fully compatible with Bently Nevada’s 3500 Monitoring System and other protection platforms used in rotating equipment diagnostics.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | 330851-05-000-040-10-00 |
| Series | Bently Nevada 3300 XL 25 mm Proximity Probe |
| Fabricant | Bently Nevada (GE Measurement & Control) |
| Measurement Principle | Eddy current, non-contact displacement measurement |
| System Compatibility | Bently Nevada 3300 XL Transducer System |
| Linear Range | 25 mm (1000 mils) |
| System Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 5 kHz |
| Nominal Gap (Target Distance) | 2.5 mm (100 mils) |
| Linearity | ±1% sur full-scale output |
| Target Material | AISI 4140 steel or equivalent conductive material |
| Probe Tip Diameter | 25 mm |
| Thread Size | M30 × 1.5 or 1-1/8-12 UNF |
| Cable Length | 4.0 meters (fixed) |
| Extension Cable Modèle | 330855 or 330856 series |
| Total Length | 1.0 meter |
| Temperature Range (Probe) | -35°C to +180°C |
| Temperature Range (Cable) | -35°C to +150°C |
| Storage Temperature | -50°C to +200°C |
| Environmental Protection | Hermetically sealed, corrosion and oil resistant |
| Electrical Connector Type | Coaxial connector with keyway |
| Material | Stainless steel housing, PEEK sensing tip |
| Power Requirements | Supplied via proximity sensor (no external source) |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Shock Resistance | 500 g peak, 11 ms half-sine |
| Vibration Tolerance | 50 g, 10–2000 Hz |
| Mounting Type | Threaded mount or probe holder assembly |
| Protection Rating | IP68 (probe and cable assembly) |
| Compliance Standards | API 670, CE, RoHS |
| Poids | 0.23 kg |
Product Applications
The Bently Nevada 330851-05-000-040-10-00 probe is designed for high-precision vibration, position, and displacement monitoring in industrial rotating machinery. Its extended 25 mm linear range makes it ideal for large shaft and high-amplitude displacement applications.
Typical applications include:
-
Steam and Gas Turbines: Monitoring shaft axial position, vibration amplitude, and differential expansion.
-
Compressors and Expanders: Measuring shaft movement, bearing vibration, and rotor displacement under varying load conditions.
-
Hydrogenerators and Large Motors: Detecting misalignment, shaft eccentricity, and rotor thermal expansion.
-
Centrifugal Pumps and Blowers: Tracking mechanical stability and bearing wear over time.
-
Petrochemical and Refinery Machinery: Providing early warning sur abnormal shaft behavior or vibration.
-
Power Generation Equipment: Ensuring real-time protection and condition monitoring sur high-value assets.
Because sur its rugged construction and high temperature tolerance, this probe can operate continuously in harsh field conditions while maintaining measurement integrity.
Product Advantages
-
Extended Linear Measurement Range: Provides up to 25 mm range for large shaft and slow-speed equipment.
-
High Accuracy and Linearity: Maintains ±1% accuracy across the entire range for precise vibration detection.
-
Rugged Industrial Construction: Stainless steel body ensures mechanical durability in extreme environments.
-
Temperature-Resistant Design: Reliable operation at probe temperatures up to +180°C.
-
API 670 Compliance: Fully meets international standards for machine protection systems.
-
Excellent EMI/RFI Immunitéy: Minimizes interference from surrounding electrical equipment.
-
Non-Contact Measurement Principle: Prevents mechanical wear and extends equipment lifespan.
-
Interchangeable Components: Fully compatible with other 3300 XL probes, cables, and sensors.
-
Easy Installation and Alignment: Threaded body allows fast and secure mounting on various machinery housings.
-
Proven Reliability: Widely adopted in industries worldwide for its stability, repeatability, and robustness.
FAQ
-
What measurement method does the 330851 probe use?
It uses the eddy current principle to measure the displacement between the probe and a conductive target surface. -
What is the standard system output sur this proximity probe?
The system provides a standard sensitivity sur 7.87 V/mm (200 mV/mil). -
Can this probe operate in high-temperature conditions?
Yes, the probe is designed to operate reliably at temperatures up to +180°C. -
Is the probe compatible with Bently Nevada 3500 monitoring systems?
Yes, it is fully compatible with the 3500 and 3300 XL series systems. -
What kind sur target material ensures accurate calibration?
The probe is factory-calibrated for AISI 4140 steel or equivalent conductive materials. -
Does it require an external power supply?
No, the probe receives excitation voltage from the associated proximity sensor. -
What is the vibration resistance capability sur this probe?
It can withstand vibrations up to 50 g across a frequency range sur 10–2000 Hz. -
Can this probe be used for slow-speed rotating equipment?
Yes, the 25 mm range is ideal for large, slow-moving shafts such as hydrogenerator rotors. -
How is the probe protected against contamination or oil ingress?
The probe is hermetically sealed and rated IP68 for full protection against dust, oil, and water. -
Does the probe system require factory matching sur components?
Yes, for accurate calibration, the probe, extension cable, and proximity sensor must be factory-matched.
Related Modèles (Same Series or Equivalent)
| Modèle | Description | Measurement Range | Sensitivity | Temperature Range |
|---|---|---|---|---|
| 330851-04-002-010-00-05 | 25 mm Probe, Short Cable | 25 mm | 7.87 V/mm | -35°C to +180°C |
| 330851-02-000-10-02-05 | 25 mm Probe, Compact Type | 25 mm | 7.87 V/mm | -35°C to +180°C |
| 330852-00-012-10-02-00 | Extended Range Probe | 50 mm | 7.87 V/mm | -35°C to +180°C |
| 330855-02-12-00-00 | Extension Cable for 25 mm Probe | — | — | -35°C to +150°C |
| 330856-04-12-00-00 | Heavy-Duty Extension Cable | — | — | -35°C to +150°C |
| 330180-90-00 | Proximity Sensor (Driver Module) | — | 200 mV/mil | -35°C to +180°C |
Popular Bently Nevada Modèles (Same Marque)
| Modèle | Description | Product Type | Key Feature |
|---|---|---|---|
| 330103-00-07-10-02-05 | 8 mm Proximity Probe | Displacement Sensor | Standard probe for general machinery monitoring |
| 3500/42M | Vibration Monitor | Monitoring Module | Measures shaft vibration in X/Y axes |
| 3500/22M | Transient Data Interface | Communication Module | High-speed waveform and event capture |
| 3500/25 | Keyphasor Module | Phase Reference Module | Provides shaft phase and speed reference |
| 330130-040-00-00 | Extension Cable | Cable Assembly | Standard 4 m coaxial extension cable |
| 330180-91-05 | Proximity Sensor | Driver Module | Converts probe signals into conditioned output |
