Présentation du produit

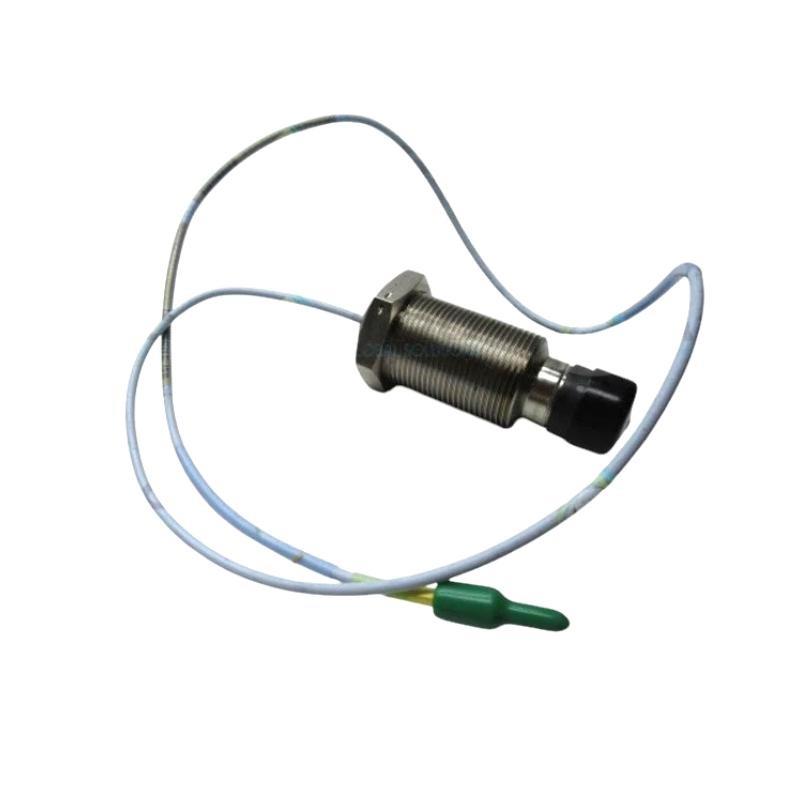

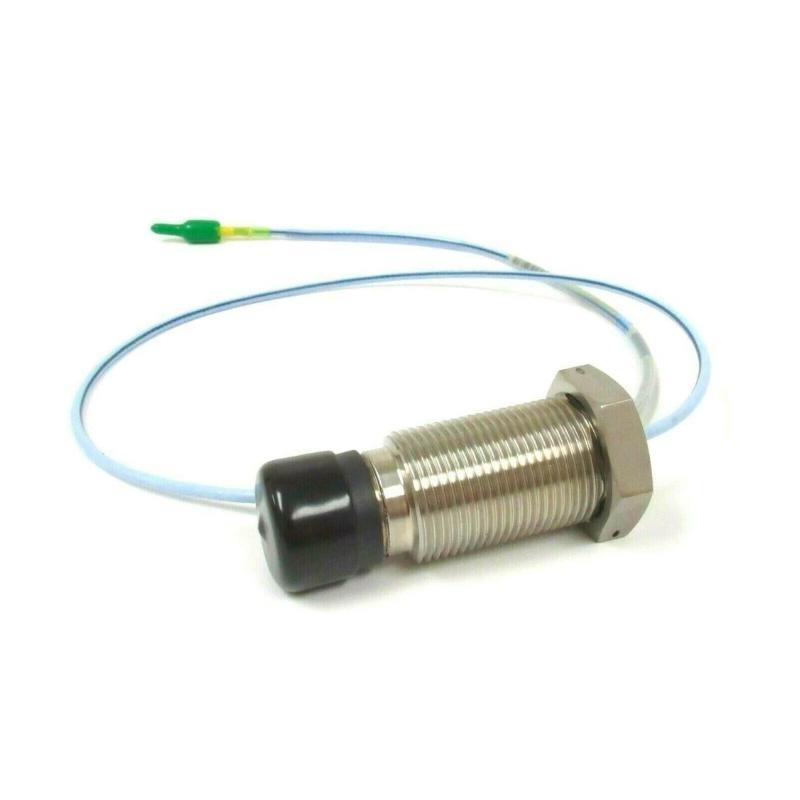

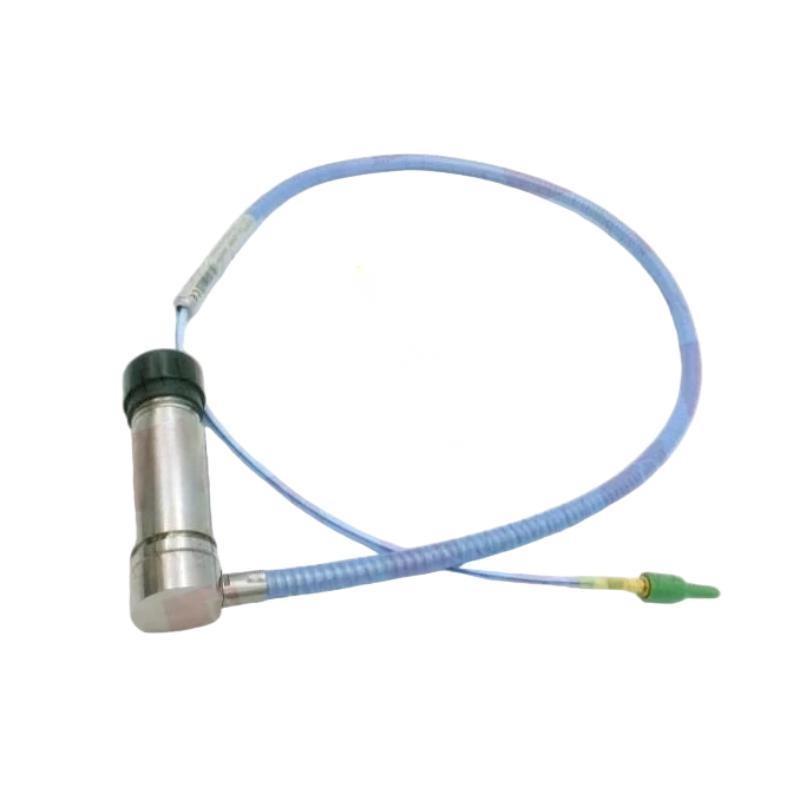

The Bently Nevada 330851-02-000-110-10-00-00 3300 XL 25 mm Proximity Probe is part sur the renowned 3300 XL series, designed for high-precision machinery monitoring in critical industrial applications. This probe provides accurate shaft vibration measurements and radial displacement detection for rotating equipment, ensuring reliable early-warning detection sur machinery issues. Its robust construction and high repeatability make it suitable for use in severe environments, including turbines, compressors, and generators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | 330851-02-000-110-10-00-00 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Probe Gap | 25 mm |
| Measurement Range | Up to 25 mm |
| Output Signal | AC/DC voltage proportional to displacement |
| Total Length | 1 m |
| Poids | 0.23 kg |
| Operating Temperature | -40°C to +120°C |
| Connector Type | Standard Bently connector |
| Sensor Material | Stainless steel tip, armored cable |
| Mounting Style | Threaded or push-fit per Bently standard |
| Environmental Rating | IP65 / NEMA 4 equivalent |
| Response Time | <1 ms |
| Linearity | ±1% sur full scale |
Applications
-
Steam and gas turbines for shaft vibration monitoring
-
Centrifugal and reciprocating compressors
-
Electric motors and generators
-
Pumps and critical rotating machinery
-
Process plants requiring precise shaft position sensing
Advantages
-
High Accuracy: Provides precise displacement measurements for early detection sur misalignment and imbalance.
-
Durable Construction: Stainless steel and armored cable allow operation in harsh environments.
-
Reliable Repeatability: Minimal signal drift ensures consistent long-term performance.
-
Easy Integration: Compatible with standard 3300 XL series monitoring systems.
-
Fast Response: Less than 1 ms response time for real-time monitoring.
-
Wide Operating Range: Works effectively across extreme temperatures and environmental conditions.
FAQ
-
Q: What is the maximum vibration frequency this probe can accurately measure?
A: The probe supports vibration frequencies up to 10 kHz without loss sur signal fidelity. -
Q: Can this probe operate in high humidity environments?
A: Yes, it is rated for IP65, suitable for high humidity and wet conditions. -
Q: What type sur output signal does the 3300 XL probe provide?
A: It provides an AC/DC voltage output proportional to shaft displacement. -
Q: Is the probe compatible with older 3300 series monitor systems?
A: Yes, it is backward compatible with previous 3300 series monitors. -
Q: Can the probe measure non-metallic shaft surfaces?
A: No, it requires a conductive surface to induce the eddy-current signal. -
Q: What is the recommended gap setting for optimal performance?
A: The probe is calibrated for a 25 mm measurement gap; operating outside ±10% may reduce accuracy. -
Q: How is the probe signal affected by temperature fluctuations?
A: The probe is designed to compensate for temperature effects, maintaining linearity across -40°C to +120°C. -
Q: Can this probe be used in explosive environments?
A: Yes, when used with certified 3300 XL intrinsically safe monitors, it can operate in hazardous locations. -
Q: How should the probe be installed for minimal interference?
A: It should be mounted per Bently’s guidelines, with proper grounding and shielding to avoid EMI interference. -
Q: Does the probe require calibration before use?
A: It comes factory-calibrated; periodic field verification is recommended for critical applications.
Related Modèles
| Modèle | Description |
|---|---|
| 330851-02-000-060-10-00-00 | 3300 XL 25 mm Proximity Probe, shorter cable |
| 330851-02-000-070-10-00-00 | 3300 XL 25 mm Proximity Probe, medium length cable |
| 330851-02-000-080-10-00-00 | 3300 XL 25 mm Proximity Probe, armored cable option |
| 330851-02-000-090-10-00-00 | 3300 XL 25 mm Proximity Probe, extended temperature range |
| 330851-02-000-100-10-00-00 | 3300 XL 25 mm Proximity Probe, high sensitivity version |
| 330851-02-000-110-20-00-00 | 3300 XL 25 mm Proximity Probe, connector variant |
