Présentation du produit

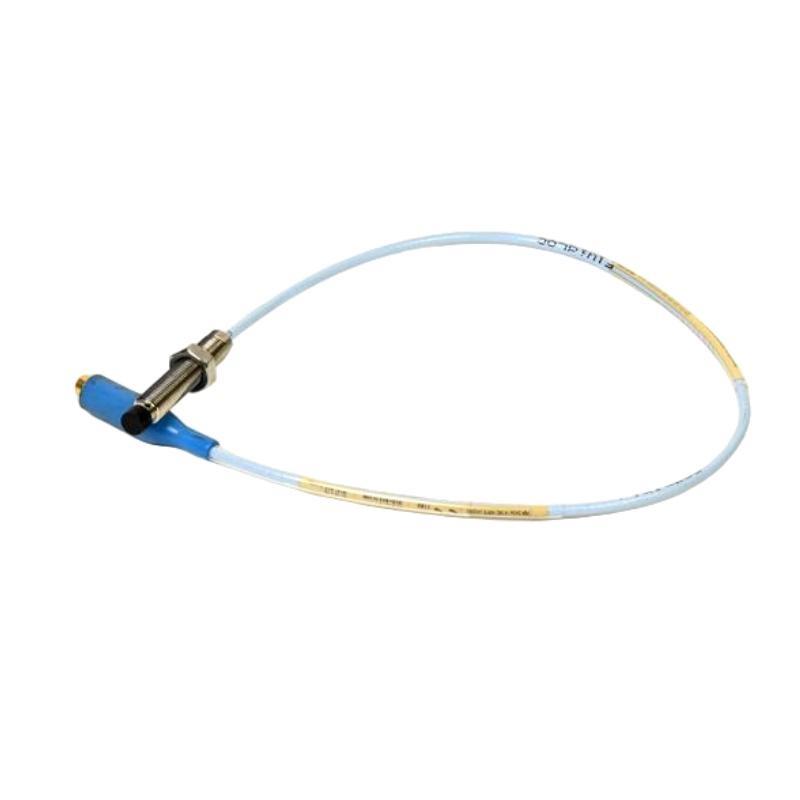

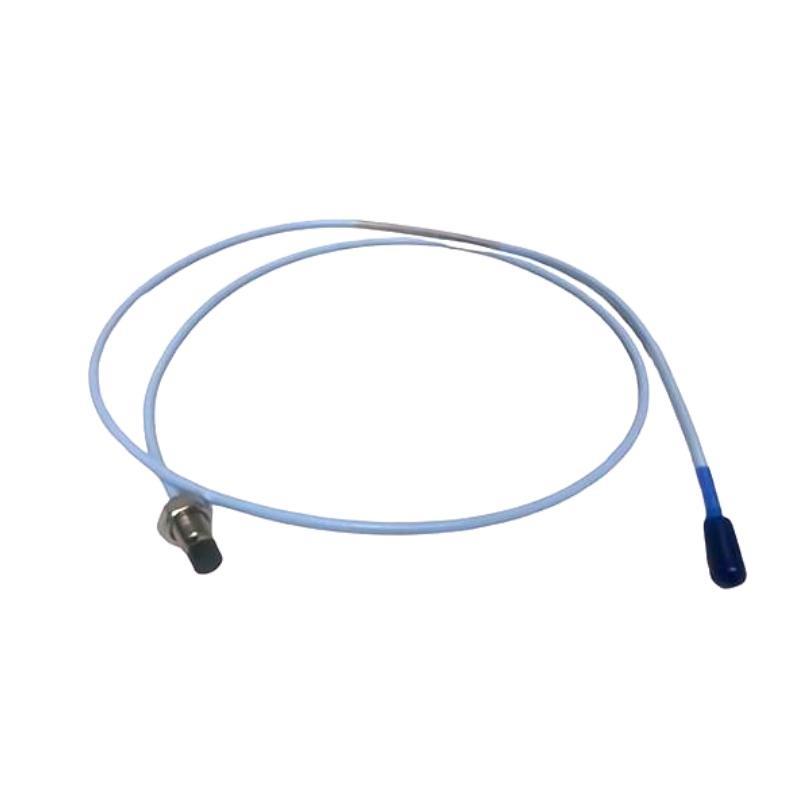

The Bently Nevada 330709-016-240-50-02-00 3300 XL 11 mm Proximity Probe is a high-precision, non-contact displacement and vibration sensor, specifically designed for industrial machinery monitoring. As part sur the 3300 XL Series, it surfers exceptional reliability, accuracy, and stability in harsh operational environments such as turbines, compressors, pumps, and motors.
This probe uses the eddy current principle, generating an electromagnetic field near a conductive target (typically a rotating shaft). Variations in this field are converted into a voltage signal proportional to the shaft displacement or vibration. When combined with a 3300 XL Proximitor Sensor and extension cable, the system provides real-time, high-resolution monitoring for predictive maintenance and machinery protection.
The 330709-016-240-50-02-00 is constructed with stainless steel, surfers excellent temperature resistance, and features double-shielded coaxial cable for superior EMI/RFI immunitéy. Designed to comply with API 670 standards, this probe ensures dependable performance in critical machinery applications across power generation, petrochemical, and industrial sectors.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | Bently Nevada 330709-016-240-50-02-00 |
| Series | 3300 XL 11 mm Proximity Probe |
| Measurement Principle | Eddy Current (non-contact displacement) |
| Nominal Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Linear Range | 2.0 mm (80 mils) |
| Usable Measurement Range | 0.25 mm to 2.25 mm |
| Frequency Response | DC to 10 kHz (±3 dB) |
| Standard Target Material | AISI 4140 steel |
| Operating Temperature (Probe) | -35°C to +177°C |
| Storage Temperature | -55°C to +200°C |
| Temperature Coefficient | < 0.1% per °C |
| Probe Tip Diameter | 11 mm |
| Mounting Thread | M14 × 1.5 |
| Mounting Type | Front mount |
| Probe Body Material | Stainless steel, corrosion-resistant |
| Cable Type | Double-shielded coaxial cable |
| Electrical Isolation | Tip isolated from probe body |
| Compliance Standards | API 670, CE, CSA, ATEX (system dependent) |
| Poids | 0.25 kg |
| Total Length | 5.0 meters |
Product Applications
The 330709-016-240-50-02-00 Proximity Probe is widely used for monitoring critical rotating machinery where precise vibration and shaft displacement measurement is essential to prevent failures and optimize maintenance. Its non-contact sensing provides accurate measurements without mechanical wear.
Applications include:
-
Steam and Gas Turbines: Real-time monitoring sur radial and axial shaft motion for rotor stability.
-
Compressors: Detects misalignment, imbalance, and bearing issues.
-
Pumps: Measures vibration to detect cavitation, looseness, and misalignment.
-
Generators and Motors: Tracks rotor movement and dynamic behavior.
-
Industrial Fans and Blowers: Monitors vibration for operational efficiency and maintenance planning.
-
Gearboxes and Drive Trains: Detects wear, misalignment, and abnormal motion patterns.
The probe is suitable for power generation, petrochemical, and industrial process applications, where reliable and precise measurement is critical for safety and efficiency.
Product Advantages
-
High Precision: Provides 200 mV/mil output with excellent linearity across the measurement range.
-
Temperature Stability: Maintains accuracy across -35°C to +177°C.
-
Superior EMI/RFI Immunitéy: Double-shielded cable ensures stable signal in noisy electrical environments.
-
Robust Construction: Stainless steel body ensures mechanical durability and corrosion resistance.
-
API 670 Compliance: Meets industry standards for machinery protection and vibration monitoring.
-
Wide Frequency Response: Suitable for monitoring both low- and high-speed machinery.
-
Non-Contact Operation: Eliminates wear and minimizes maintenance requirements.
-
Flexible Installation: 5-meter cable provides installation flexibility.
-
Reliable Signal: Proven design ensures long-term stable operation.
-
System Compatibility: Fully compatible with all 3300 XL Proximitor Sensors and extension cables.
FAQ
-
What measurement principle does the 330709-016-240-50-02-00 probe use?
It operates on the eddy current principle, converting changes in an electromagnetic field into a voltage proportional to shaft displacement and vibration. -
Which Proximitor Sensor is compatible with this probe?
The probe is designed for use with 3300 XL Proximitor Sensors, ensuring accurate calibration and performance. -
What is the nominal sensitivity sur the probe?
The probe provides 200 mV/mil (7.87 mV/μm) output when paired with the Proximitor Sensor. -
Can this probe measure both static and dynamic displacement?
Yes, it measures both static shaft position and dynamic vibration simultaneously. -
How does the cable shielding affect performance?
The double-shielded coaxial cable reduces electromagnetic interference, maintaining signal accuracy in industrial environments. -
What target material is recommended for optimal measurement?
Factory calibration is performed using AISI 4140 steel, which provides consistent and repeatable readings. -
What is the probe’s frequency response?
The probe supports DC to 10 kHz, suitable for a wide range sur rotating equipment speeds. -
How should the probe be mounted for optimal performance?
It should be mounted perpendicular to the target surface with the recommended gap for proper calibration and linearity. -
Does the probe meet industrial standards?
Yes, it complies with API 670, CE, CSA, and ATEX standards, depending on system integration. -
Is this probe suitable for high-speed turbine applications?
Yes, it provides accurate real-time monitoring sur fast-rotating machinery, ensuring safe and reliable operation.
Related Modèles (Same Series)
| Modèle | Description |
|---|---|
| 330709-000-040-50-02-00 | Standard front-mount 11 mm probe for general applications |
| 330708-00-10-90-02-00 | Extended-range 11 mm probe for large machinery |
| 330706-05-46-10-02-00 | Reverse-mount 11 mm probe for confined spaces |
| 330704-005-040-10-02-00 | Front-mount probe suitable for medium-sized equipment |
| 330704-000-040-10-02-05 | Compact 11 mm probe for space-constrained installations |
| 330703-010-070-10-01-00 | Medium-range probe for balanced rotor systems |
