Product Overview

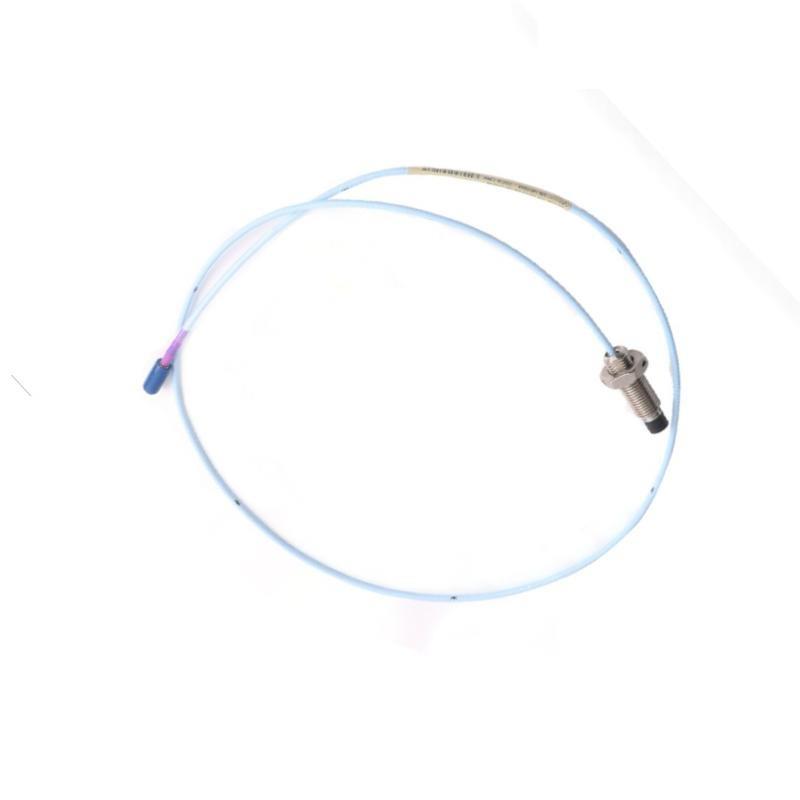

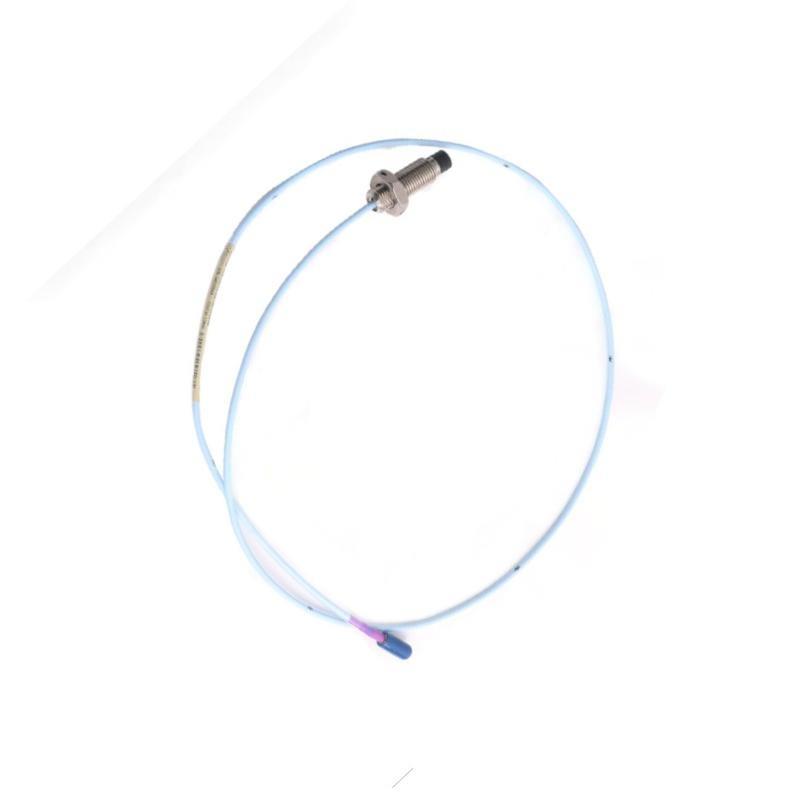

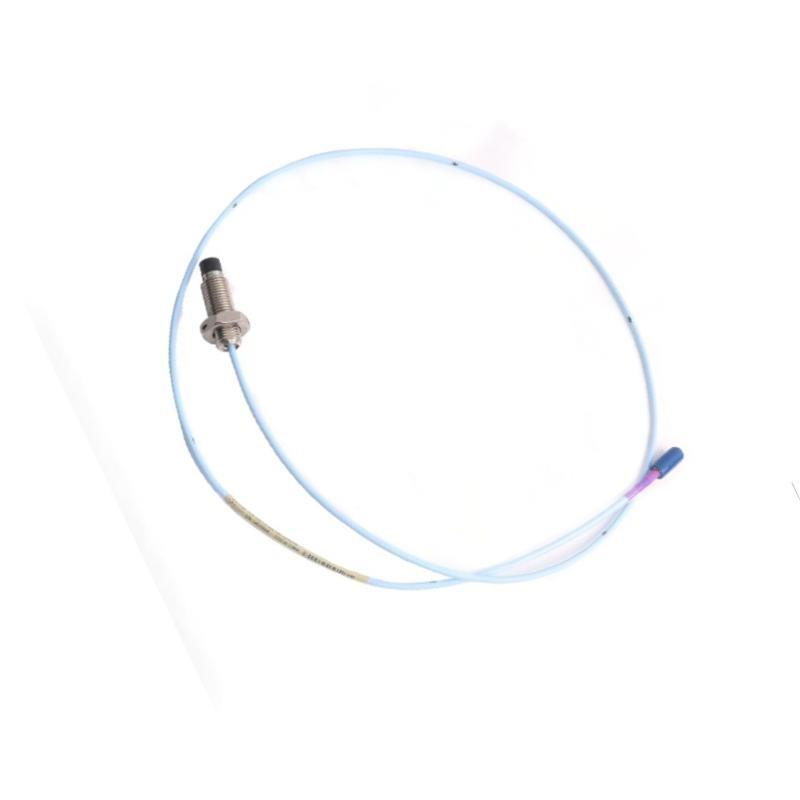

The Bently Nevada 330703-00-050-10-02-00 is an 11 mm 3300 XL proximity probe designed for precise, non-contact measurement sur vibration and axial position in large or heavily insulated rotating machinery. With its extended linear range and robust mechanical design, this probe is ideal for critical industrial applications requiring high accuracy and durability.
Part sur the 3300 XL series, this probe integrates seamlessly with matching extension cables and Proximitor sensors to provide a reliable, field-proven vibration monitoring system.
Key Features
-
Large 11 mm tip for extended linear range
-
Highly accurate non-contact shaft vibration and position monitoring
-
Corrosion-resistant stainless steel body
-
Designed for long-term industrial use in harsh environments
-
Fully compatible with 3300 XL extension cables and Proximitor® sensors
-
Ideal for large steam turbines, compressors, and gearboxes
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximity Probe |
| Modèle Number | 330703-00-050-10-02-00 |
| Probe Tip Diameter | 11 mm |
| Dimensions | Length : 1.0 meter |
| Measurement Range | 0 to 4 mm (typical) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Thread Size | 3/8-24 UNF |
| Material | Stainless steel |
| Environmental Rating | IP67 |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Poids | 0.255 kg |
| Compliance | CE, RoHS, ISO 9001 |
Industry Applications
-
Large Steam and Gas Turbines
-
Industrial Compressors
-
Generator Monitoring
-
Heavy-duty Pumps and Motors
-
Gearbox and Clutch Assemblies
-
Marine and Power Plant Machinery
Advantages
-
Extended linear range suitable for larger shaft diameters and insulation layers
-
High durability in demanding operating environments
-
Wide compatibility with Bently Nevada 3300 XL monitoring systems
-
Precision monitoring for critical machine protection
-
Reduced maintenance needs with long-life rugged construction
-
Easy integration with threaded mount and modular system
Questions fréquentes (FAQ)
-
What is the purpose sur an 11 mm probe?
It provides a longer linear range for measuring large shaft displacements and machinery with insulation or protective coatings. -
Is the 330703-00-050-10-02-00 compatible with 3300 XL Proximitor sensors?
Yes, it is fully compatible with 3300 XL sensors and extension cables. -
What cable lengths are included in this configuration?
50 ft probe, 10 ft extension cable, and a 2 ft connector are included. -
Can this probe be used in high-temperature areas?
Yes, it is rated for operation up to 177°C. -
Is recalibration needed after installation?
No, it is factory calibrated for immediate use. -
What is the sensitivity sur the probe?
It maintains a standard 7.87 mV/μm sensitivity. -
Can I mount this probe in hazardous areas?
Yes, with proper system certification and installation. -
What is the IP rating sur this probe?
It has an IP67 rating for dust and water resistance. -
What material is the probe constructed from?
It is made from high-grade stainless steel. -
Does this probe come with documentation?
Yes, it includes factory calibration data and technical documentation.
Related Bently Nevada Probes
| Modèle Number | Description |
|---|---|
| 330703-00-060-10-02-00 | 11 mm Probe, 60 ft probe cable |
| 330104-00-12-10-02-05 | 8 mm XL Probe, standard configuration |
| 330173-00-06-10-02-05 | 5 mm XL Probe for tight installations |
| 330130-045-00-00 | Extension Cable for XL Series, 4.5 m |
| 330101-00-20-10-02-05 | 3300 XL 8 mm Probe, 20 ft cable |
Popular Bently Nevada Monitoring Components
| Modèle Number | Description |
|---|---|
| 3300 XL Proximitor Sensor | Interface module for proximity probes |
| 3500/42M | Vibration Monitor Module |
| 3500/22M | Transient Data Interface |
| 330101-00-14-10-02-05 | 8 mm XL Series Proximity Probe |
| 330104-01-08-50-01-CN | 8 mm XL Probe with extended cable |
