Présentation du produit

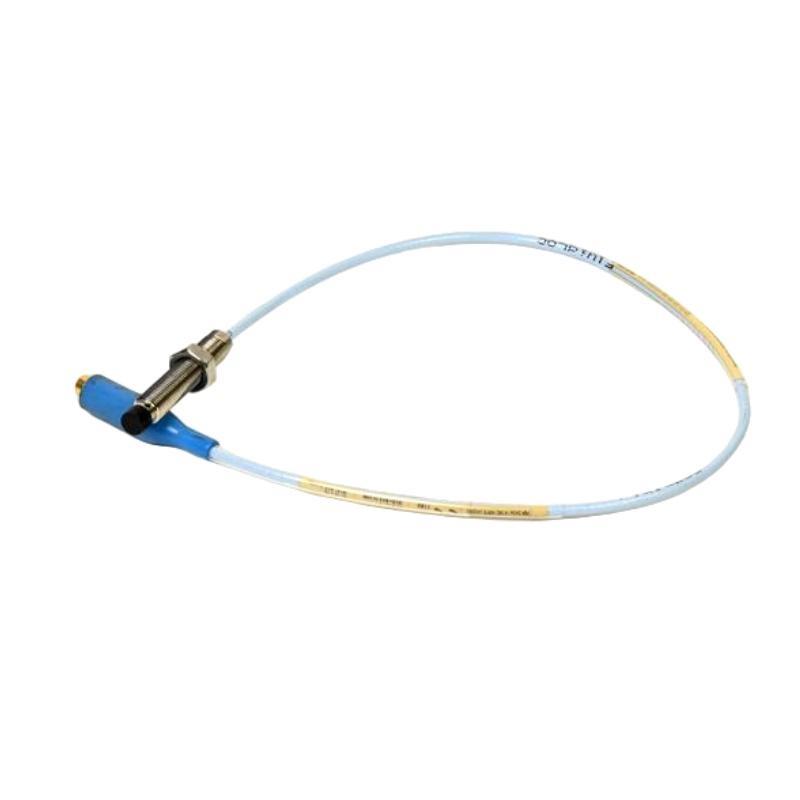

The Bently Nevada 330703-00-00-60-10-02-00 is a high-precision 11 mm proximity probe from the 3300 XL series, engineered for accurate monitoring sur rotating machinery. This probe provides reliable measurements sur shaft displacement and vibration, which are critical for ensuring the safe and efficient operation sur turbines, compressors, generators, and pumps. The 3300 XL series is widely regarded in the industry for its robust signal stability, durability, and consistent performance under challenging industrial conditions. The 330703-00-00-60-10-02-00 model is built with a stainless-steel housing, surfering resistance to corrosion, mechanical stress, and temperature extremes while maintaining high-fidelity measurement performance essential for predictive maintenance programs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 330703-00-00-60-10-02-00 |
| Series | 3300 XL |
| Probe Diameter | 11 mm |
| Measurement Type | Proximity / Vibration |
| Operating Temperature | -40°C to 120°C |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 50 mV/mil nominal |
| Housing Material | Stainless Steel |
| Cable Type | Shielded |
| Connector Type | 2-pin connector |
| Total Length | Optional |
| Poids | 0.07 kg |
| Maximum Gap | 0.25 mm |
| Electrical Configuration | Differential / Single-ended |
Applications
The 330703-00-00-60-10-02-00 proximity probe is used in:
-
Monitoring turbine, generator, and compressor shafts for precise vibration and position measurement
-
Detecting misalignment, imbalance, and eccentricity in rotating machinery
-
État monitoring sur pumps, motors, and industrial drives
-
Integration with Bently Nevada 3300 XL monitoring systems for real-time diagnostics
-
Supporting predictive maintenance strategies to minimize unplanned downtime in industrial plants
Advantages
The 3300 XL 11 mm proximity probe provides multiple advantages:
-
Reliable operation in harsh industrial environments, resistant to temperature extremes and contamination
-
Stable, low-noise signal ensures accurate measurement sur shaft movements
-
Durable stainless-steel housing provides mechanical strength and corrosion resistance
-
Compact 11 mm design allows installation in confined spaces
-
Full compatibility with 3300 XL monitoring systems ensures seamless integration
-
Accurate detection sur both slow and fast shaft vibrations for comprehensive monitoring
-
Supports predictive maintenance programs through early detection sur potential equipment issues
FAQ
-
What is the maximum operating temperature sur this probe?
The probe operates reliably from -40°C to 120°C, suitable for extreme industrial environments. -
What is the maximum probe-to-shaft gap that can be measured?
It can measure a shaft displacement sur up to 0.25 mm. Exceeding this limit may reduce measurement accuracy. -
Is this probe compatible with all 3300 XL series monitoring modules?
Yes, it is fully compatible with standard 3300 XL monitoring modules for both vibration and displacement monitoring. -
What type sur signal output does this probe provide?
The probe provides differential or single-ended voltage output proportional to shaft movement, compatible with 3300 XL monitoring systems. -
What is the frequency response sur the probe?
It supports DC to 10 kHz frequency response, allowing accurate measurement sur low- and high-frequency vibrations. -
Can this probe detect both axial and radial vibration?
Yes, when installed correctly, it can measure both radial and axial shaft movements for comprehensive machinery monitoring. -
What materials are used in the probe housing?
The housing is stainless steel, surfering durability, corrosion resistance, and protection against mechanical impact. -
Is the probe resistant to electrical noise?
Yes, the shielded cable design minimizes electromagnetic and radio frequency interference, ensuring stable signal transmission. -
What is the nominal sensitivity sur the probe?
The probe has a nominal sensitivity sur 50 mV/mil, enabling precise detection sur small displacements crucial for early fault detection. -
Can this probe be used in hazardous areas?
While suitable for standard industrial environments, its use in explosive or hazardous areas should comply with applicable safety regulations.
Related Modèles (3300 XL Series or Compatible)
| Modèle Number | Diameter | Frequency Response | Operating Temperature |
|---|---|---|---|
| 330703-000-040-10-02-CN | 11 mm | DC to 10 kHz | -40°C to 120°C |
| 330703-000-040-50-12-00 | 11 mm | DC to 10 kHz | -40°C to 120°C |
| 330703-000-050-10-01-CN | 11 mm | DC to 10 kHz | -40°C to 120°C |
| 330703-000-050-10-12-CN | 11 mm | DC to 10 kHz | -40°C to 120°C |
| 330703-000-040-15 | 11 mm | DC to 10 kHz | -40°C to 120°C |
| 330703-000-060-10 | 14 mm | DC to 10 kHz | -40°C to 120°C |
Popular Bently Nevada Modèles
| Modèle Number | Series | Diameter | Application |
|---|---|---|---|
| 3300 XL 330703-000-010-10 | 3300 XL | 11 mm | Turbine monitoring |
| 3300 XL 330703-000-020-10 | 3300 XL | 11 mm | Generator monitoring |
| 3300 XL 330703-000-030-10 | 3300 XL | 11 mm | Compressor monitoring |
| 3300 XL 330703-000-040-10 | 3300 XL | 11 mm | Pump monitoring |
| 3300 XL 330703-000-050-10 | 3300 XL | 12 mm | High-speed shaft monitoring |
| 3300 XL 330703-000-060-10 | 3300 XL | 14 mm | Industrial machinery monitoring |
