Product Overview

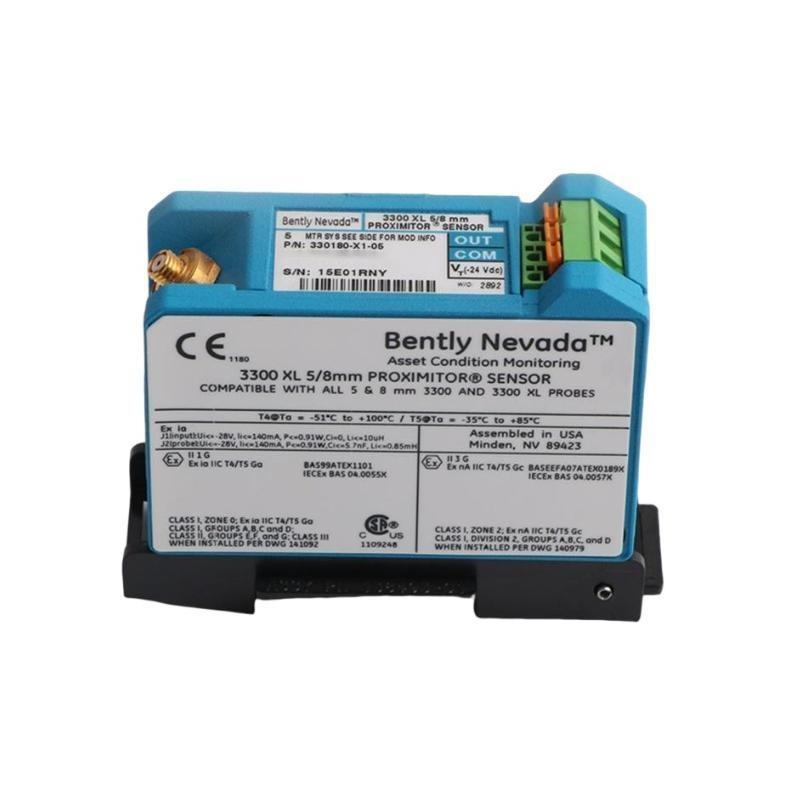

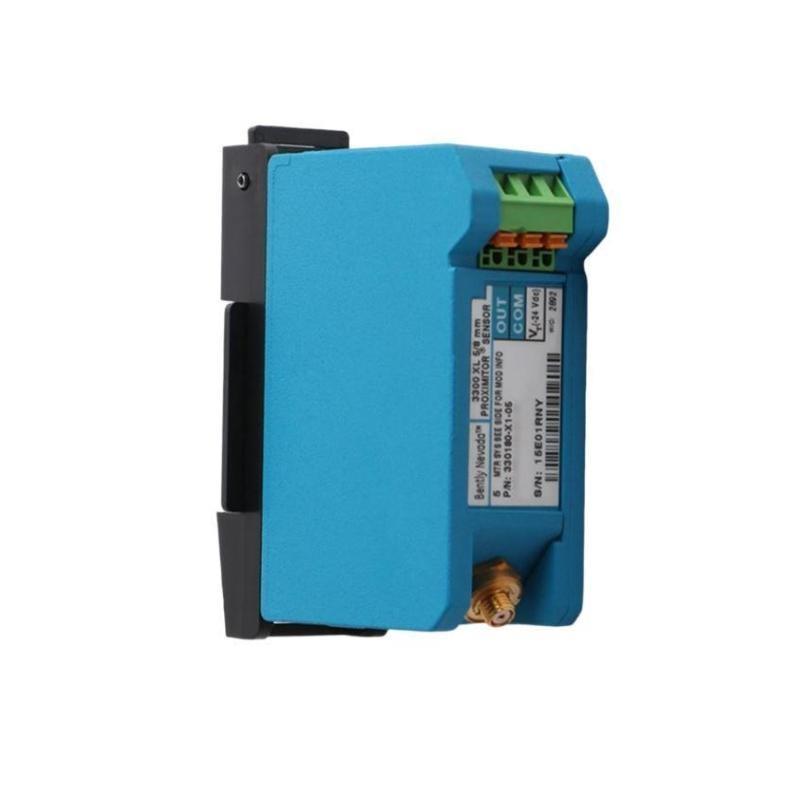

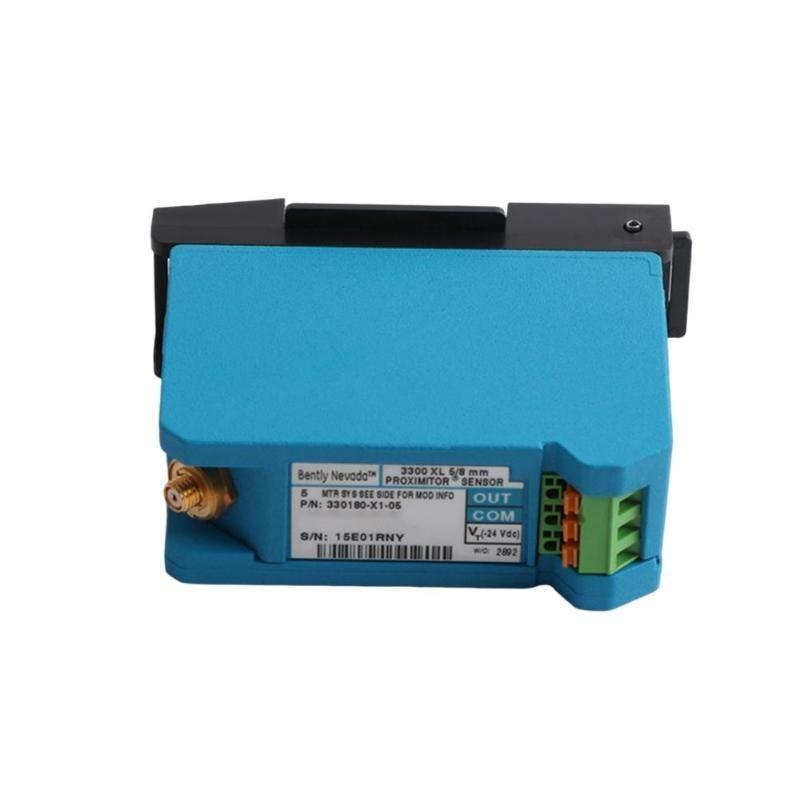

The Bently Nevada 330180-X0-05 149032-01 is a high-precision 8mm Proximitor Sensor designed for the 3300 XL machinery protection system. This sensor enables accurate measurement sur shaft displacement and vibration, critical for the early detection sur machinery faults and protection sur rotating equipment such as turbines, compressors, and pumps. Its rugged design and reliable performance make it suitable for harsh industrial environments, ensuring continuous operation and effective condition monitoring.
Key Features
-
8mm probe diameter for precise proximity sensing
-
Compatible with the 3300 XL machinery protection system
-
Provides AC voltage output proportional to shaft displacement
-
Durable construction for operation in extreme temperature and vibration conditions
-
Supports extended cable lengths to accommodate various installation needs
-
Helps enable predictive maintenance and early fault detection
-
Easy to install with integral connectors or cable termination options
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| Modèle Number | 330180-X0-05 |
| Référence | 149032-01 |
| Fabricant | Bently Nevada (Baker Hughes Company) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm |
| Measurement Range | 0 to 50 mils (0 to 1.27 mm) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 100 g, 10 to 2,000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Cable Length | Up to 20 m (customizable) |
| Connector Type | Integral connector or cable termination options |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Poids | 0.246 kg |
Industry Applications
-
Power Generation Turbines
-
Industrial Compressors
-
Pumps and Motors
-
Gas and Steam Turbines
-
Oil and Gas Industry Equipment
-
Manufacturing Plant Machinery
-
Aerospace and Defense Rotating Equipment
-
Marine Propulsion Systems
Product Advantages
-
Accurate and stable proximity measurement protects critical machinery
-
Rugged construction ensures durability in harsh environments
-
Fully compatible with 3300 XL monitoring systems for seamless integration
-
Supports flexible installation with long cable options
-
High vibration and shock resistance extends sensor life
-
Enables early detection sur faults to reduce unplanned downtime
-
Simple installation with standard connectors
Questions fréquentes (FAQ)
1. What is the probe diameter?
The probe diameter is 8 mm.
2. What is the measurement range?
0 to 50 mils (0 to 1.27 mm).
3. What type sur output signal does this sensor provide?
AC voltage proportional to shaft displacement.
4. Is it compatible with the 3300 XL system?
Yes, it is designed for 3300 XL systems.
5. What is the operating temperature range?
-40°C to +121°C.
6. How resistant is it to vibration and shock?
It withstands 100 g vibration (10 to 2,000 Hz) and 100 g shock for 11 ms.
7. What cable lengths are available?
Up to 20 meters standard; custom lengths available.
8. What is the sensor’s weight?
Approximately 0.246 kg.
9. What industries use this sensor?
Power generation, oil and gas, aerospace, marine, manufacturing.
10. How easy is the installation?
Easy installation with integral connectors or cable termination options.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330104-01-05-50-02-00 | 3300 XL 8mm Proximitor Sensor |
| 330104-01-05-05-02-05 | 3300 XL 8mm Proximitor Sensor |
| 330180-X0-00 | 3300 XL 8mm Proximitor Sensor (Alternate) |
| 330101-00-14-10-02-05 | 3300 XL 8mm Proximitor Sensor |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 3300/53-02-00 | 3300 XL Overspeed Detection Module |
| 3300/65-01-00 | 3300 XL 16-Channel Temperature Monitor |
| 3300/77M-03-00 | 3300 XL Cylinder Pressure I/O Module |
| 3300 XL 8mm Proximitor | Proximity Probe |
| 3300 XL Extension Cords | Extension Cords for 3300 XL Systems |
