Product Overview

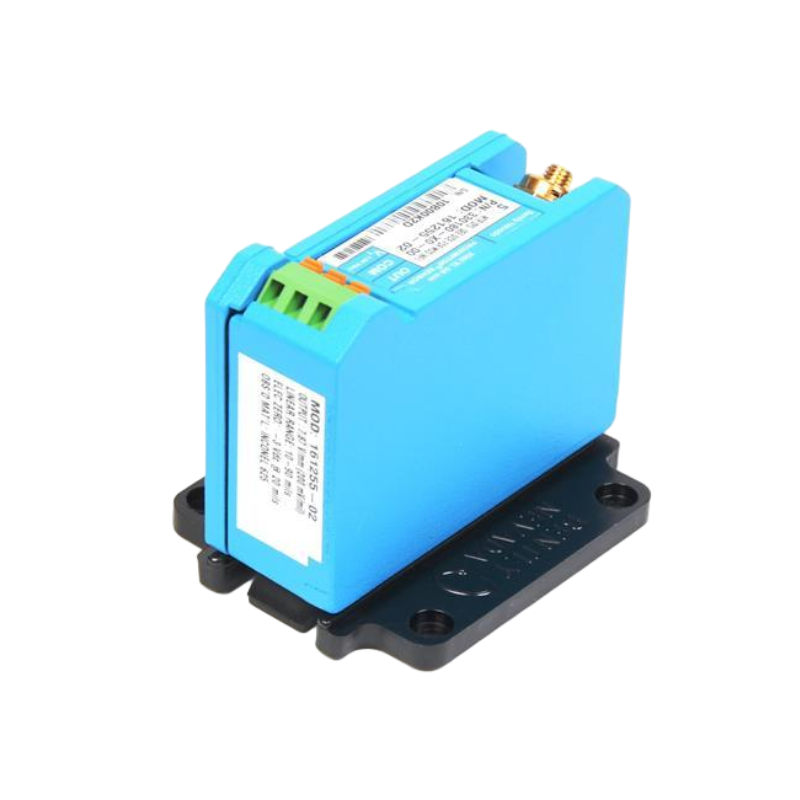

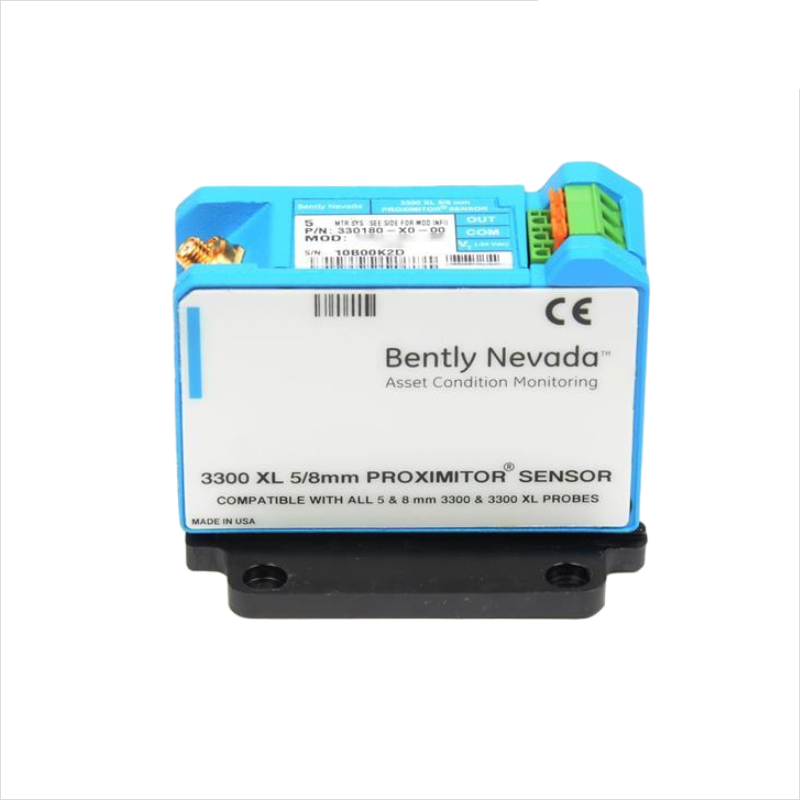

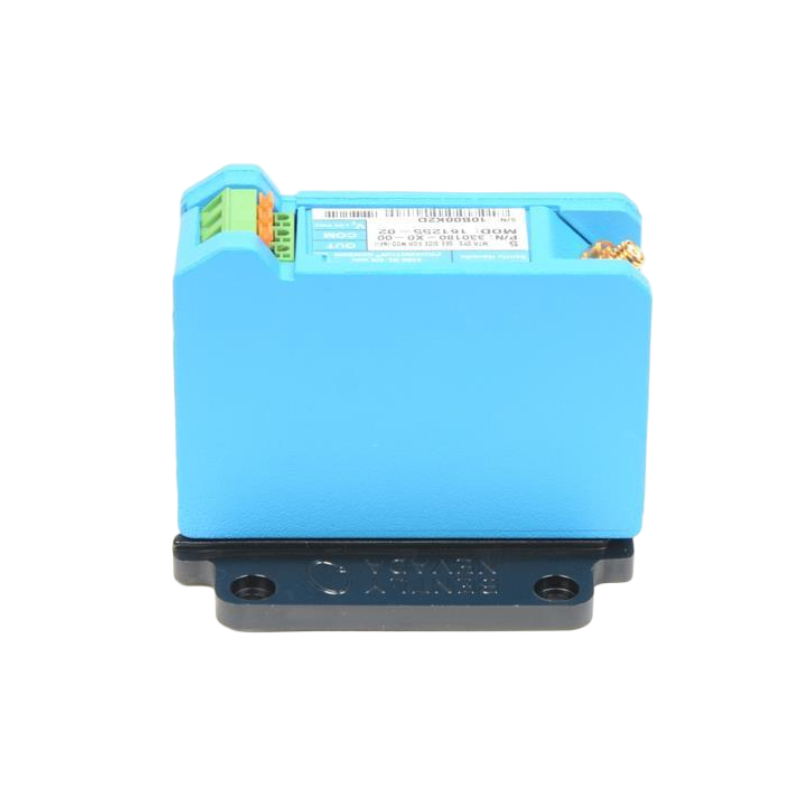

The Bently Nevada 330180-X0-00 145004-99 is a rugged and highly reliable 8mm Proximitor Sensor designed for the 3300 XL series machinery protection system. This sensor provides precise proximity measurement for rotating machinery, enabling early detection sur shaft displacement, vibration, and other mechanical conditions. Engineered for demanding industrial environments, it ensures accurate monitoring and protection sur critical assets in turbines, compressors, pumps, and generators.
Key Features
-
8mm probe diameter for precise and consistent measurement
-
Compatible with 3300 XL monitoring systems
-
High-resolution and stable output signal
-
Robust industrial design with durable materials
-
Suitable for harsh environments with wide temperature and vibration tolerance
-
Long cable length support for flexible installation
-
Simplifies condition monitoring and machinery diagnostics
-
Reliable shaft position and vibration measurement
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| Modèle Number | 330180-X0-00 |
| Référence | 145004-99 |
| Fabricant | Bently Nevada (a Baker Hughes Company) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm |
| Measurement Range | 0 to 50 mils (0 to 1.27 mm) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 100 g, 10 to 2,000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Cable Length | Up to 20 m (customizable) |
| Connector Type | Integral connector or cable termination options |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Poids | 0.246 kg |
Industry Applications
-
Power Generation Turbines
-
Industrial Compressors
-
Pumps and Motors
-
Gas and Steam Turbines
-
Oil and Gas Industry Equipment
-
Manufacturing Plant Machinery
-
Aerospace and Defense Rotating Equipment
-
Marine Propulsion Systems
Product Advantages
-
Precise and repeatable proximity measurements improve machinery protection
-
Durable construction suitable for extreme industrial environments
-
Compatible with 3300 XL systems for seamless integration
-
Long cable options allow flexible sensor placement
-
Supports predictive maintenance by early detection sur mechanical issues
-
High vibration and shock resistance ensure reliability in harsh conditions
-
Simple installation and calibration
Questions fréquentes (FAQ)
1. What is the probe diameter sur this sensor?
The probe diameter is 8 mm.
2. What is the measurement range?
It measures displacement up to 50 mils (1.27 mm).
3. What type sur output signal does the sensor provide?
It provides an AC voltage proportional to the displacement.
4. Is the sensor compatible with the 3300 XL monitoring system?
Yes, it is designed specifically for 3300 XL systems.
5. What is the operating temperature range?
-40°C to +121°C.
6. How resistant is the sensor to vibration and shock?
It withstands 100 g vibration (10 to 2,000 Hz) and 100 g shock for 11 ms.
7. What cable lengths are available?
Standard cable lengths up to 20 m; custom lengths can be requested.
8. How heavy is the sensor?
Approximately 0.246 kg.
9. What industries typically use this sensor?
Power generation, oil and gas, manufacturing, aerospace, marine, and more.
10. How easy is it to install?
It surfers straightforward installation with integral connectors or cable termination options.
