Product Description

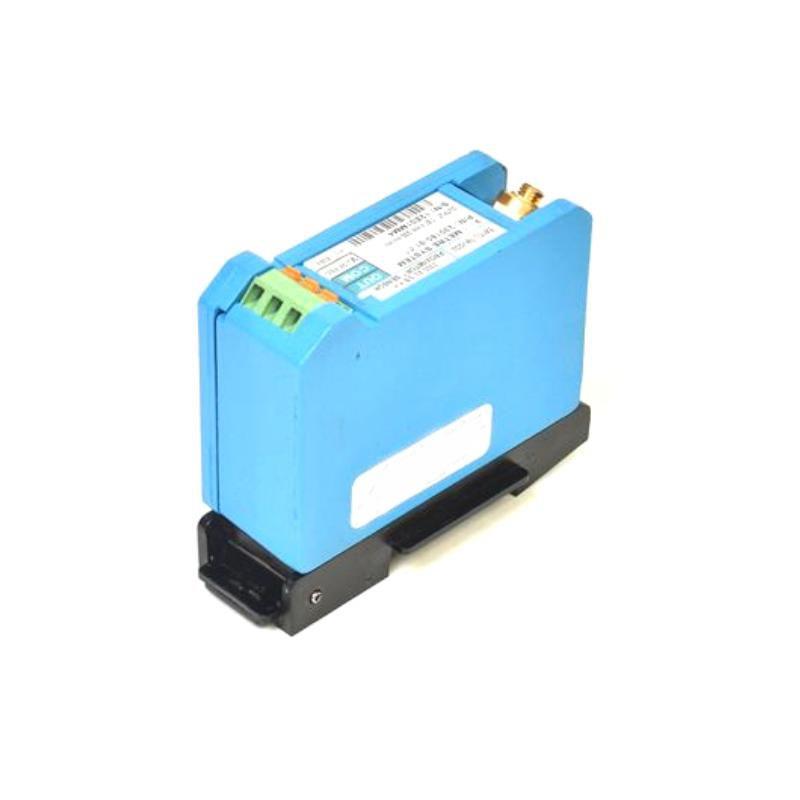

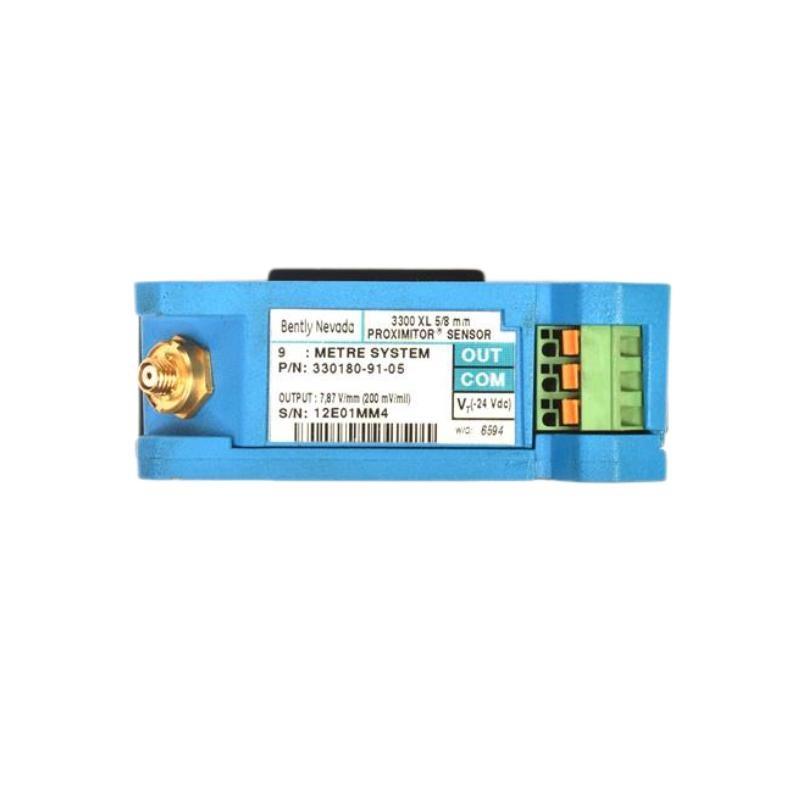

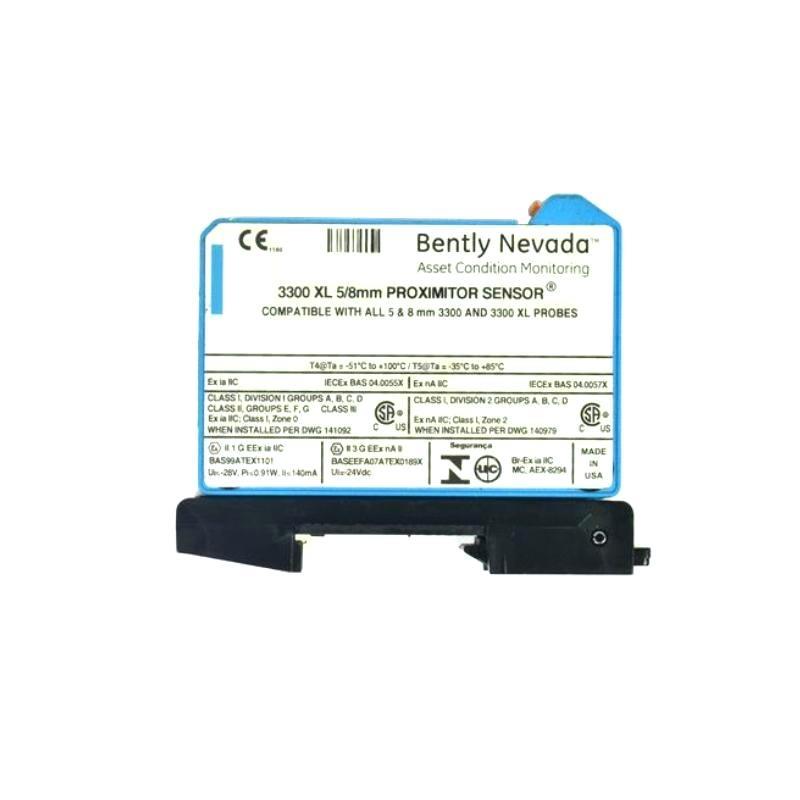

The Bently Nevada 330180-91-05 is a high-performance Proximitor Sensor from the 3300 XL 8 mm transducer series. It enables precise non-contact measurement sur shaft vibration and position, supporting long-distance configurations up to 9 meters. The device is designed for industrial reliability, suitable for DIN or panel mounting, and meets API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Length | 9.0 meters |
| Poids (Total) | 0.246 kg |
| Linear Range | 0.25 – 2.3 mm (10 – 90 mils) |
| Output Scale Factor | 7.87 V/mm ±6.5% (200 mV/mil) |
| Supply Voltage | -17.5 VDC to -26 VDC |
| Output Resistance | 50 Ω |
| Operating Temp (Sensor) | -52°C to +100°C |
| Operating Temp (Probe) | -52°C to +177°C (standard), +218°C (ETR) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Mounting | DIN rail / panel mount |
| Certifications | CE, RoHS, ATEX, IECEx, CSA, SIL 2/3 |
Product Applications
-
Vibration monitoring sur rotating equipment
-
Shaft position tracking on fluid-film bearing machines
-
Keyphasor reference and speed signal generation
-
Suitable for hazardous areas and harsh industrial environments
-
Compatible with turbines, compressors, motors, and pumps
Product Advantages
-
Full Interchangeability: Probe, cable, and sensor are field-swappable
-
Robust ClickLoc™ Connectors: Secure and tool-free
-
API 670 Compliance: Ensures reliability and performance
-
Enhanced EMI Immunitéy: For demanding installations
-
Wide Temperature Range: ETR option supports up to +260°C
-
Simplified Mounting: Supports DIN rail and panel mounting
Questions fréquentes (FAQ)
Q1: What is the main function sur this sensor?
A1: It measures shaft vibration and position without physical contact.
Q2: What system length does the 330180-91-05 support?
A2: It is a 9.0-meter system including probe and extension cable.
Q3: Does it meet API 670 standards?
A3: Yes, fully compliant for linear range, accuracy, and stability.
Q4: Is the sensor approved for hazardous environments?
A4: Yes, it has CSA, ATEX, IECEx certifications.
Q5: Can I replace components without recalibration?
A5: Yes, all components are fully interchangeable and pre-calibrated.
Q6: What connector type does it use?
A6: Gold-plated ClickLoc™ miniature coaxial connectors.
Q7: What material is the probe tip made sur?
A7: PPS (Polyphenylene Sulfide), known for heat and chemical resistance.
Q8: Is it compatible with older 3300 series components?
A8: Yes, with limited performance based on the lowest-rated part.
Q9: What is the minimum recommended shaft diameter?
A9: 76.2 mm (3 inches) for optimal performance.
Q10: What is the output signal format?
A10: Analog voltage, proportional to distance from the target surface.
Related Modèles (Same Series)
| Modèle Number | Description | System Length | Poids (kg) |
|---|---|---|---|
| 330180-91-00 | DIN mount, no agency approval | 9.0 m | 0.246 |
| 330180-91-50 | Panel mount, standard approval | 9.0 m | 0.246 |
| 330180-91-92 | No hardware, standard approval | 9.0 m | 0.246 |
| 330180-51-05 | DIN mount, with agency approval | 5.0 m | 0.230 |
| 330180-11-05 | DIN mount, with agency approval | 1.0 m | 0.210 |
| 330180-10-00 | Panel mount, no approval | 1.0 m | 0.210 |
Popular Bently Nevada Modèles
| Modèle Number | Description | Application | Poids (kg) |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor/Seismic Monitor | Shaft Vibration Monitoring | 0.32 |
| 3500/22M | Transient Data Interface | Data Acquisition | 0.28 |
| 3500/40M | Proximitor Monitor | Rotor Dynamics | 0.31 |
| 330103-00-05-10-02 | 8 mm Probe, M10 Thread | Probe for 3300 XL Series | 0.12 |
| 330104-00-05-50-02 | 8 mm Probe, Armored Metric | Harsh Environments | 0.15 |
| 330130-080-00-00 | Extension Cable 8.0 m | For XL Probe System | 0.27 |
