Overview

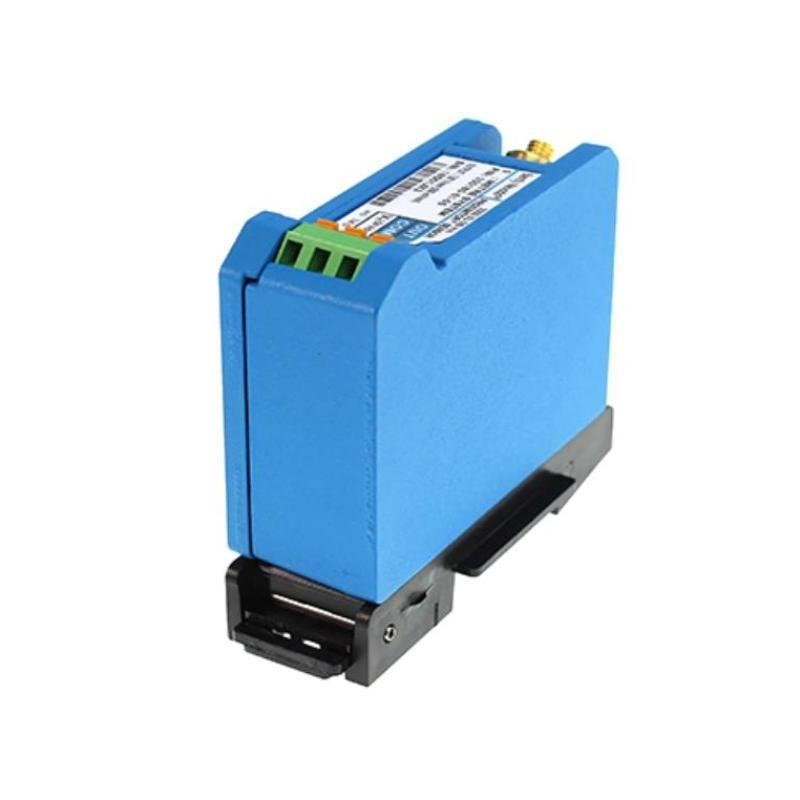

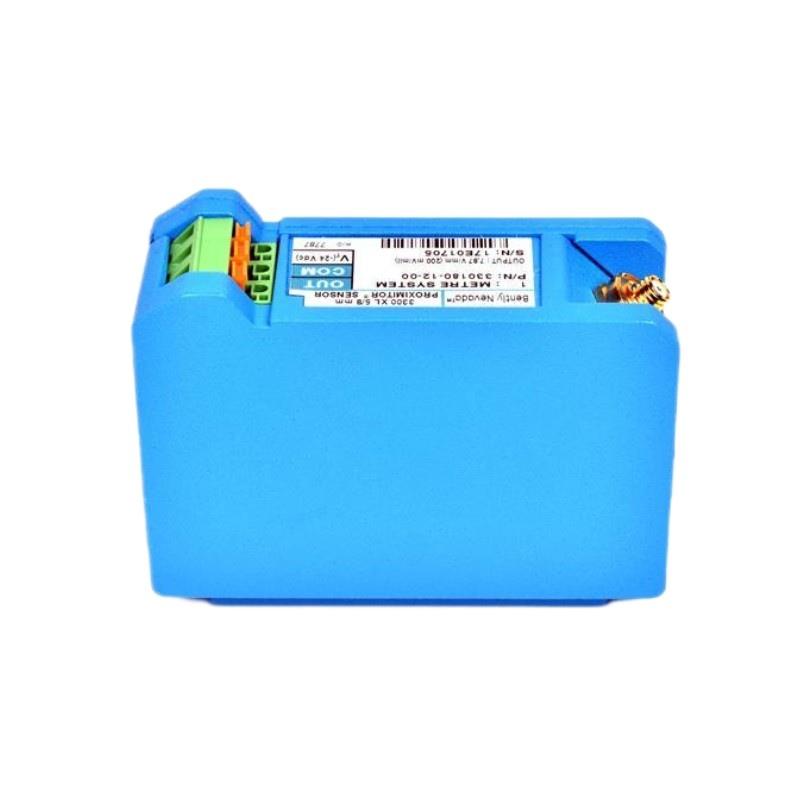

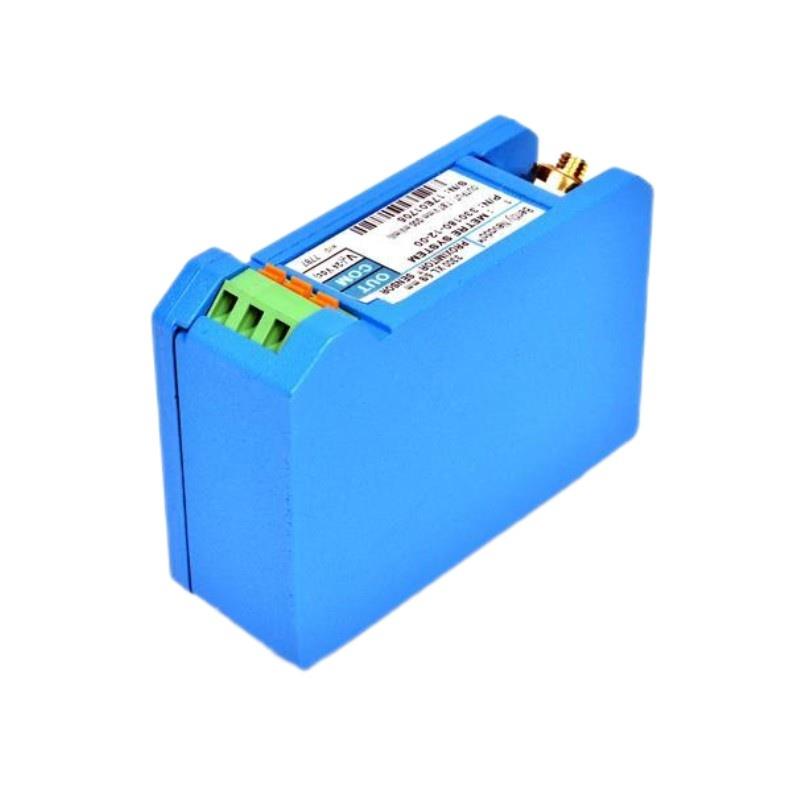

The Bently Nevada 330180-12-00 3300 XL Proximitor Sensor is a high-performance eddy current proximity transducer system used for accurate vibration and position measurements. Designed for use with fluid-film bearing machines, it delivers superior reliability and complies fully with API 670 standards.
Applications
-
Monitoring vibration in turbines, compressors, and motors
-
Shaft position and displacement detection
-
Speed and Keyphasor reference signal acquisition
-
Suitable for hazardous and high-temperature industrial environments
Advantages
-
API 670 compliant (mechanical and performance)
-
Interchangeable probe, cable, and sensor components
-
Excellent immunitéy to EMI/RFI, no shielded conduit required
-
Supports both DIN-rail and panel mounting
-
No need for individual calibration
-
Optional FluidLoc cables prevent oil ingress
-
Finger-tight ClickLoc connectors simplify installation
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | Eddy Current Proximity Transducer |
| Probe Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Gap Voltage Setting | -9 VDC (≈ 1.27 mm) |
| Scale Factor | 200 mV/mil ±5% (5 m), ±6.5% (9 m) |
| Power Supply | -17.5 VDC to -26 VDC, max 12 mA |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Operating Temp (Sensor) | -52°C to +100°C |
| Operating Temp (Probe) | -52°C to +177°C (standard), up to +218°C (ETR) |
| Cable Temp Range | -52°C to +177°C (standard), up to +260°C (ETR) |
| Minimum Target Size | 15.2 mm diameter |
| Minimum Shaft Diameter | 50.8 mm (recommended 76.2 mm) |
| Conformité environnementale | CE, RoHS, SIL2/SIL3, FCC, ATEX, IECEx |
| Material (Sensor Housing) | A308 Aluminum |
| Material (Probe Case) | Stainless Steel AISI 303 or 304 |
| System Total Length | 1.0 meter |
| Total Poids | 0.246 kg |
FAQs
Q1: Can I use the 330180-12-00 with non-XL 3300 components?
A1: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q2: Does this sensor require calibration?
A2: No, components are fully interchangeable and do not require calibration.
Q3: Is the product certified for hazardous environments?
A3: Yes, it holds multiple ATEX, CSA, and IECEx approvals.
Q4: Can it be DIN-rail mounted?
A4: The -12-00 version includes no hardware, but supports DIN or panel mounting.
Q5: What is the output sensitivity?
A5: 200 mV/mil or 7.87 V/mm over the linear range.
Q6: What’s the recommended installation cable length?
A6: Max 305 meters between sensor and monitor using proper wiring.
Q7: How durable is the connector system?
A7: ClickLoc connectors are corrosion-resistant, finger-tight, and vibration-prosur.
Q8: Can I use this system for Keyphasor signals?
A8: Yes, it supports Keyphasor and tachometer signal applications.
Q9: What is FluidLoc, and is it necessary?
A9: FluidLoc prevents fluid leakage through cables; recommended in oil environments.
Q10: How is the system affected by temperature extremes?
A10: It surfers ETR variants rated up to +260°C for cable and +218°C for probe tips.
Related 3300 XL Series Modèles
| Modèle Number | Description | Cable Length | Poids |
|---|---|---|---|
| 330180-10-00 | 1.0 m, panel mount | 1.0 m | 0.246 kg |
| 330180-11-00 | 1.0 m, DIN rail mount | 1.0 m | 0.246 kg |
| 330180-50-00 | 5.0 m, panel mount | 5.0 m | 0.700 kg |
| 330180-51-00 | 5.0 m, DIN rail mount | 5.0 m | 0.700 kg |
| 330180-90-00 | 9.0 m, panel mount | 9.0 m | 0.700 kg |
| 330180-91-00 | 9.0 m, DIN rail mount | 9.0 m | 0.700 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Application Type | Poids |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.75 kg |

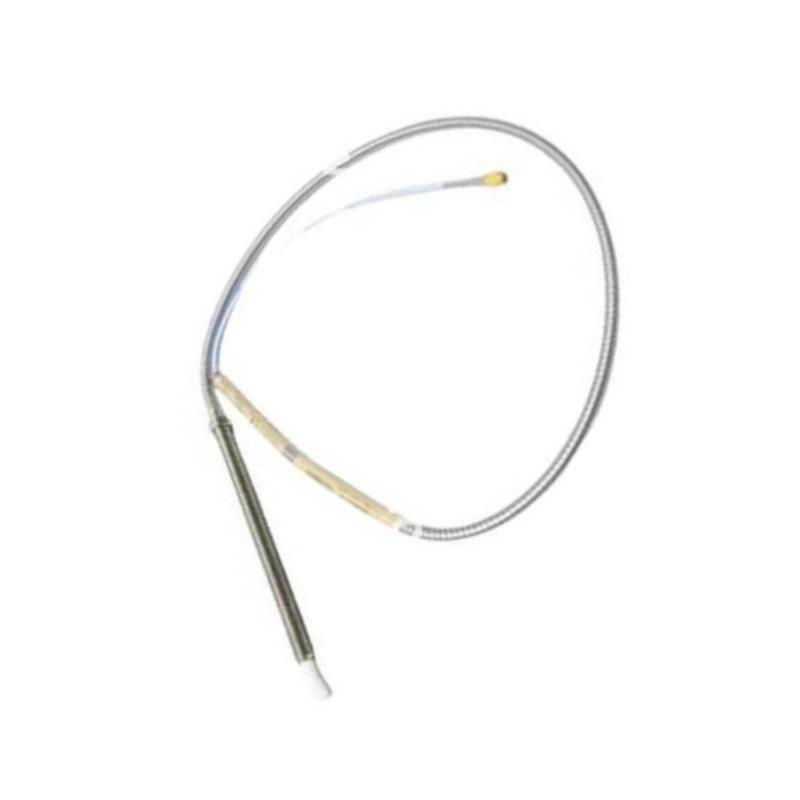

| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Position Sensing | 0.19 kg |
| 330104-00-06-50-01-00 | 8 mm Probe with Armor | Harsh Environments | 0.22 kg |
| 3500/22M | Transient Data Interface Module | Data Acquisition | 0.85 kg |
| 330130-080-00-05-00 | Extension Cable 8.0 m | Cable Assembly | 0.30 kg |
| 330780-91-05 | Sensor Interface Module | Communications | 0.26 kg |
