Présentation du produit

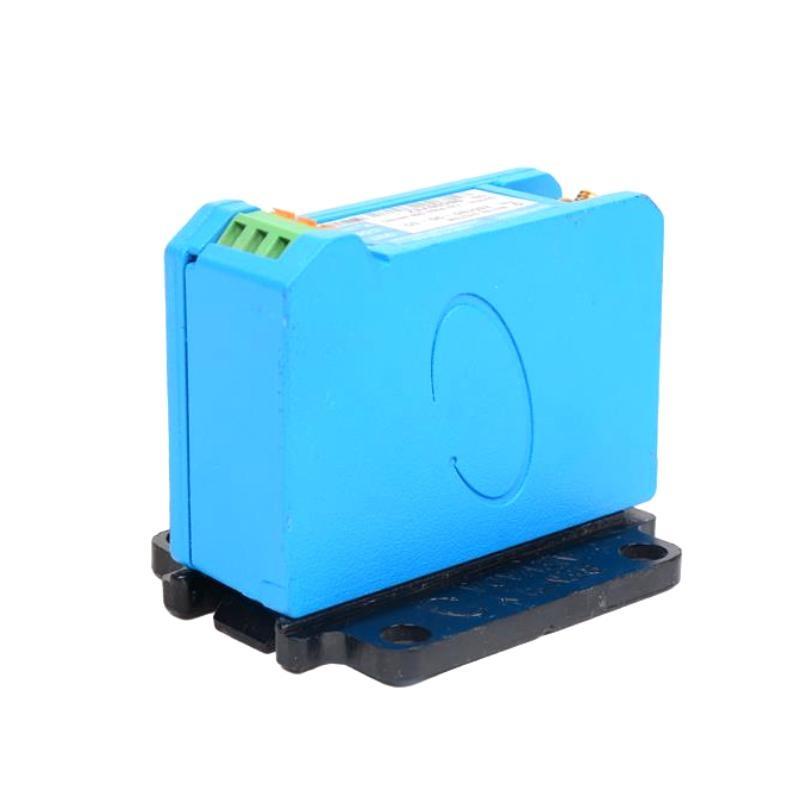

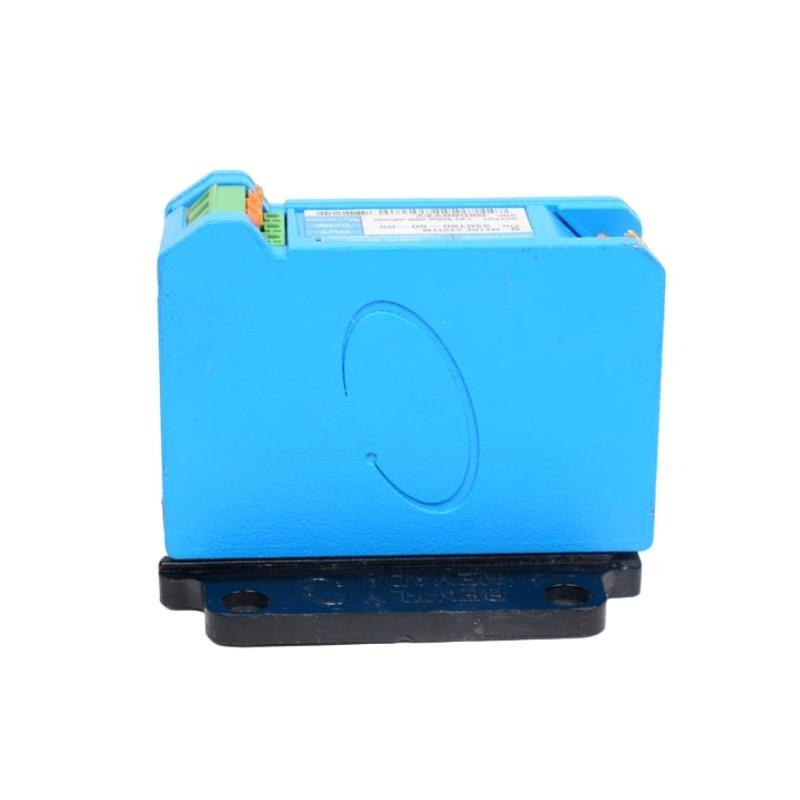

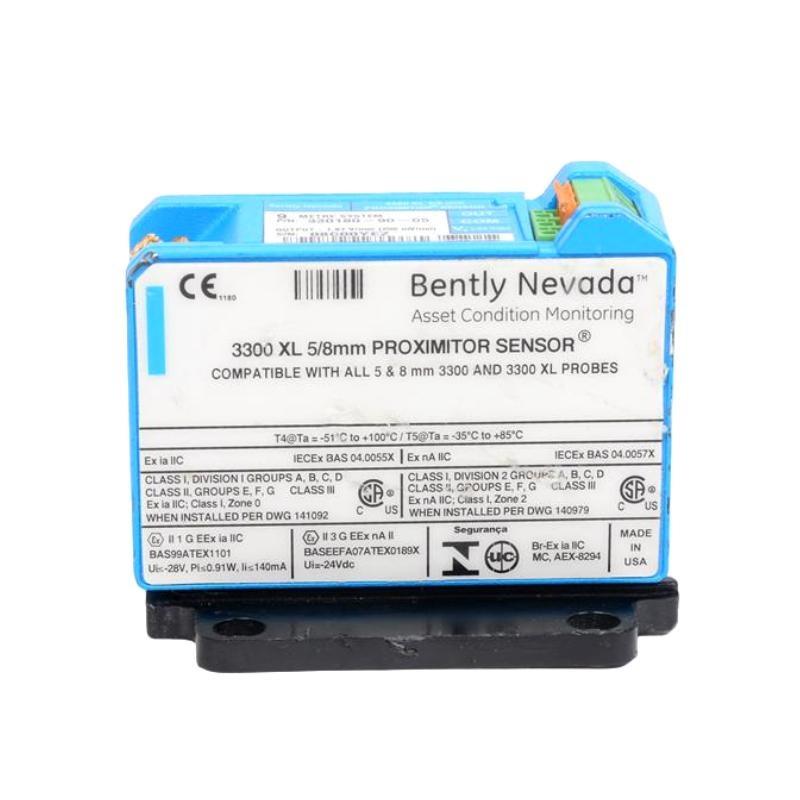

The Bently Nevada 330180-080-01-00 is a part sur the renowned 3300 XL 8mm Proximitor Sensor System, designed for high-performance proximity measurements in industrial machinery monitoring. This system includes a probe, extension cable, and Proximitor sensor. The model 330180-080-01-00 specifically refers to the Proximitor sensor unité, which works with 8mm eddy current probes to accurately measure the position and vibration sur rotating machinery shafts relative to their bearing housings.
Engineered to deliver precise displacement data, the 3300 XL Proximitor Sensor is widely recognized for its durability, reliability, and compliance with API 670 standards. It is a vital component in condition monitoring systems, providing critical inputs for real-time machine protection and diagnostics. Its rugged construction allows it to function in harsh environments such as oil refineries, power generation plants, and chemical processing facilities.
Spécifications du produit
| Parameter | Value |
|---|---|
| Modèle Number | 330180-080-01-00 |
| Product Type | Proximitor Sensor (part sur 3300 XL 8mm system) |
| Input Signal | From 3300 XL 8mm proximity probe via extension cable |
| Output Signal | -200 mV/mil (±10%) |
| Linear Range | 80 mils (2 mm) nominal |
| Non-Linearity | ≤ ±0.75% sur full-scale output |
| Frequency Response | 0 to 10 kHz (typical) |
| Power Supply Requirements | –24 Vdc nominal (provided by monitor rack) |
| Operating Temperature Range | –35°C to +100°C |
| Storage Temperature Range | –51°C to +177°C |
| Humidity | 95% non-condensing |
| Mounting Method | DIN rail or panel mount with mounting clips |
| Certifications | CE, CSA, ATEX, IECEx, RoHS |
| Enclosure Type | Epoxy-coated, hermetically sealed enclosure |
| Electrical Connector | Standard 3-pin connector for extension cable |
| Compatibility | Compatible with 3300 XL 8mm probe and extension cables |
| System Compliance | Meets API 670 requirements |
| Total Length | 8 meters |
| Poids | 0.246 kg |
Product Applications
The 330180-080-01-00 Proximitor Sensor is widely implemented in rotating machinery for real-time shaft vibration and position monitoring. Typical applications include:
-
Steam and Gas Turbines
For shaft radial vibration and axial thrust position monitoring. -
Centrifugal Compressors
Detecting rotor imbalance, misalignment, and bearing wear. -
Electric Motors
Providing data on shaft runout and mechanical looseness. -
Gearboxes and Pumps
Ensuring early detection sur mechanical degradation or imbalance. -
Fans and Blowers
Monitoring shaft alignment and dynamic displacement.
The sensor’s high accuracy and reliability make it an integral part sur machinery protection systems, allowing operators to detect developing faults before they lead to unplanned shutdowns or catastrophic failures.
Product Advantages
The Bently Nevada 330180-080-01-00 Proximitor Sensor surfers multiple operational and technical benefits:
-
API 670 Compliance
Meets the demanding standards for critical machinery protection systems. -
Superior Linearity
Delivers consistent output across a wide range, enhancing diagnostic precision. -
Robust Construction
Engineered for high resistance to vibration, dust, moisture, and corrosive environments. -
Modular Compatibility
Seamlessly integrates with 3300 XL probes and extension cables for system flexibility. -
Simplified Installation
Standardized connectors and mounting options support faster deployment. -
Long-Term Stability
High thermal stability and minimal signal drift even under continuous use. -
Non-contact Measurement
Enables wear-free operation with no mechanical coupling to the shaft. -
Buffered Outputs Disponible
Enables portable analyzers or control systems to access real-time sensor data.
Questions fréquentes (FAQ)
-
What is the output sensitivity sur the 330180-080-01-00 Proximitor sensor?
The output sensitivity is –200 mV/mil (±10%). -
Is this sensor compatible with all 3300 XL 8mm probes?
Yes, it is designed to work with any 3300 XL 8mm proximity probe and extension cable. -
What is the linear measurement range sur this sensor?
It provides a nominal linear range sur 80 mils (2.0 mm). -
Does the sensor support buffered output for data acquisition systems?
Yes, it includes buffered outputs for real-time signal access. -
What power supply does the sensor require?
It requires a –24 Vdc nominal power supply, typically provided by the monitoring rack. -
Can this sensor be used in high-vibration environments?
Yes, its rugged design and shock-resistant enclosure are ideal for harsh industrial conditions. -
What is the non-linearity sur this sensor?
The non-linearity is within ±0.75% sur the full-scale output. -
What types sur faults can it help detect in rotating machinery?
It can detect imbalance, misalignment, eccentricity, shaft bow, and bearing degradation. -
Does it require calibration after installation?
While factory-calibrated, fine-tuning or verification may be needed depending on the system. -
What is the typical frequency response sur this sensor?
It provides a typical frequency response up to 10 kHz, supporting high-speed monitoring applications.
Related Modèles from the Same Series
| Modèle Number | Description |
|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8mm Proximity Probe – 8 mm tip, 2 m cable |
| 330103-00-05-10-02-00 | 3300 XL 8mm Proximity Probe – 5 m cable |
| 330130-040-00-00 | 3300 XL Extension Cable – 4 m |
| 330180-050-00-00 | 3300 XL Proximitor Sensor – 50 mm system length |
| 330180-091-00-00 | 3300 XL Proximitor Sensor – 91 mm system length |
| 330180-081-05-00 | 3300 XL Proximitor Sensor – Panel mount |
Popular Modèles from the Same Marque
| Modèle Number | Description |
|---|---|
| 3500/42M 176449-02 | Proximitor Seismic Monitor |
| 3500/22M 288055-01 | System Interface Module |
| 3500/60 164470-01 | Temperature Monitor Module |
| 3300 XL 330103-00-05 | 8mm Proximity Probe – Extended Cable |
| 3500/15E 133292-01 | High-Performance Power Supply |
| 330730-040-00-00 | Velomitor Piezo-Velocity Sensor |
