Présentation du produit

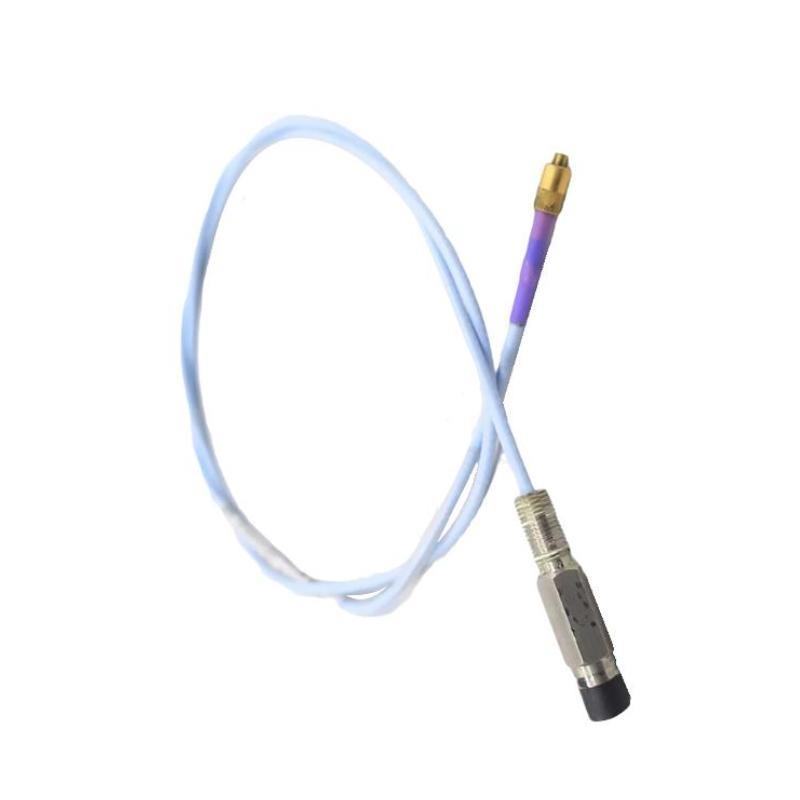

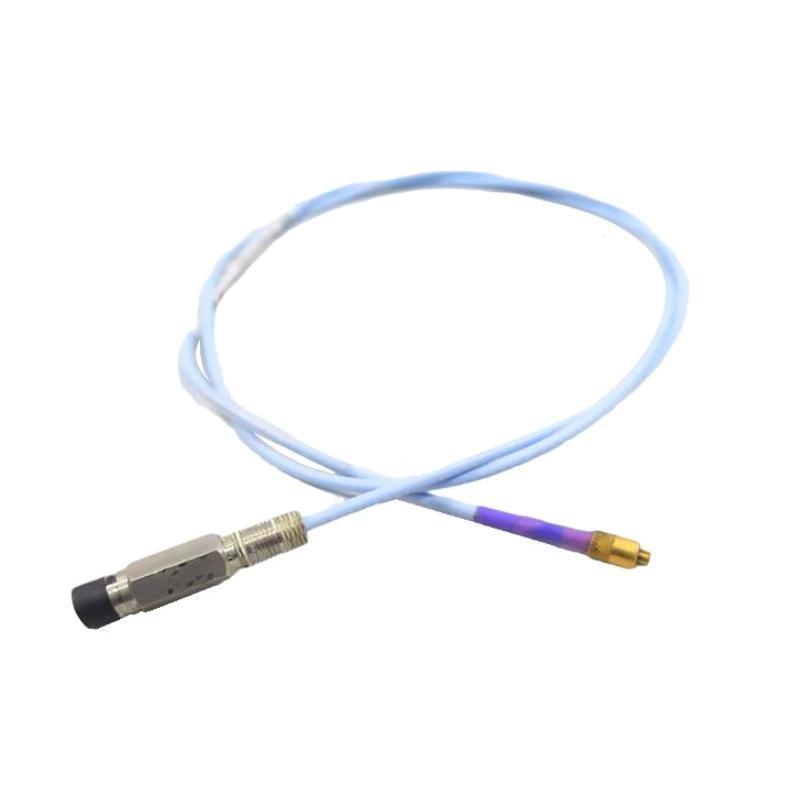

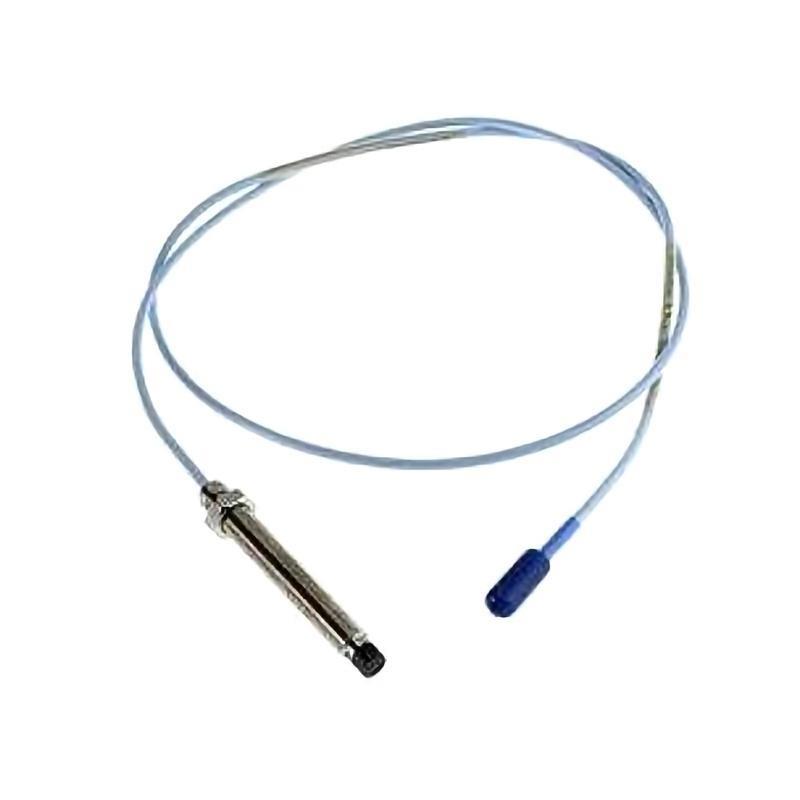

The Bently Nevada 330174-00-06-10-02-CN 3300 5mm Proximity Probe is a high-precision, non-contact measurement device designed for monitoring the position and vibration sur rotating machinery. Part sur the 3300 Series, this probe is widely recognized for its reliability, durability, and superior measurement accuracy in demanding industrial applications.
The probe utilizes eddy current technology to detect shaft displacement, providing continuous feedback for machinery health monitoring. It is engineered to perform under extreme temperatures, high vibration, and harsh industrial environments, making it a trusted component in turbines, compressors, generators, and other critical rotating equipment.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 330174-00-06-10-02-CN |
| Series | 3300 Proximity Probe |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy Current |
| Measurement Range | 0–5 mm (standard) |
| Linearity | ≤ ±1% sur full scale |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +125°C |
| Relative Humidity | 0–95%, non-condensing |
| Protection Class | IP67 |
| Material | Stainless steel probe housing |
| Mounting | Threaded or clamp mounting |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10–2000 Hz |
Applications
The Bently Nevada 3300 5mm Proximity Probe is suitable for a variety sur industrial and safety-critical applications:
-
Rotating Machinery Monitoring – Continuous monitoring sur shaft displacement and vibration in turbines, compressors, and generators.
-
État-Based Maintenance – Detects early signs sur misalignment, imbalance, and bearing wear to prevent unplanned downtime.
-
Power Generation – Used in hydro, gas, and steam turbines for rotor position measurement.
-
Petrochemical and Refinery Equipment – Monitors pumps, motors, and compressors under high-speed conditions.
-
Research and Development – High-precision measurements for machinery testing and experimental setups.
-
Industrial Automation – Integrated into monitoring systems for real-time machinery health diagnostics.
Advantages
The Bently Nevada 330174-00-06-10-02-CN 3300 Probe surfers multiple benefits for industrial applications:
-
High Accuracy – Ensures precise measurement sur shaft displacement and vibration.
-
Non-Contact Sensing – Eliminates mechanical wear, ensuring long-term reliability.
-
Fast Response – Detects high-frequency vibrations and rapid shaft movements.
-
Robust Construction – Resistant to shock, vibration, and extreme industrial conditions.
-
Wide Temperature Range – Operates effectively from -40°C to +120°C.
-
IP67 Protection – Protects against dust and moisture, suitable for harsh environments.
-
Flexible Mounting – Supports threaded or clamp installation for versatile setups.
-
Industry Standard – Compatible with Bently Nevada 3300 Series monitoring systems.
FAQ
-
What principle does the 330174-00-06-10-02-CN probe use for measurement?
It operates on eddy current technology, providing non-contact measurement sur shaft displacement and vibration. -
What is the standard measurement range sur this probe?
The probe measures 0–5 mm, which is suitable for typical rotating machinery applications. -
What is the frequency response sur this probe?
It supports DC to 10 kHz, allowing accurate detection sur both slow and fast shaft vibrations. -
Can the probe operate in high-temperature environments?
Yes, it functions reliably between -40°C and +120°C, making it suitable for industrial machinery. -
What mounting options are available for this probe?
The probe supports threaded or clamp mounting, enabling flexible installation on various equipment. -
Is the probe resistant to shock and vibration?
Yes, it is rated for 50 g shock and 20 g vibration, ensuring durability in harsh industrial conditions. -
Does the probe provide continuous measurement for predictive maintenance?
Yes, it continuously monitors shaft displacement and vibration, supporting condition-based maintenance strategies. -
What is the protection rating sur this probe?
The probe has an IP67 rating, which ensures resistance to dust and water ingress. -
What type sur signal output does the 3300 probe provide?
It provides voltage or current output compatible with Bently Nevada 3300 Series monitoring systems. -
Can this probe be used for high-speed rotating machinery?
Yes, it is designed to accurately monitor high-speed turbines, compressors, and generators, providing reliable real-time data.
Related or Same-Series Modèles
| Modèle Number | Description |
|---|---|
| 330174-00-06-10-01-CN | 3300 Series 5mm Proximity Probe alternate range |
| 330174-00-06-10-03-CN | 3300 Series 5mm Probe with reinforced housing |
| 330174-00-06-10-04-CN | 3300 Series 5mm High-temperature Probe |
| 330174-00-06-10-05-CN | 3300 Series 5mm Probe optimized for turbines |
| 330174-00-06-10-06-CN | 3300 Series 5mm Probe with extended frequency response |
| 330174-00-06-10-07-CN | 3300 Series 5mm Probe for specialized industrial machinery |
Popular Bently Nevada Marque Modèles
| Modèle Number | Description |
|---|---|
| 330174-00-06-10-08-CN | 3300 Series 10mm Proximity Probe |
| 330174-00-06-10-09-CN | 3300 Series 12mm Proximity Probe |
| 330174-00-06-10-10-CN | 3300 Series 5mm Probe with cable assembly |
| 330175-00-06-10-01-CN | 3300 Series 5mm Probe for high-speed turbines |
| 330175-00-06-10-02-CN | 3300 Series 5mm Probe with analog output |
| 330175-00-06-10-03-CN | 3300 Series 5mm Probe optimized for compressors |
