Product Overview

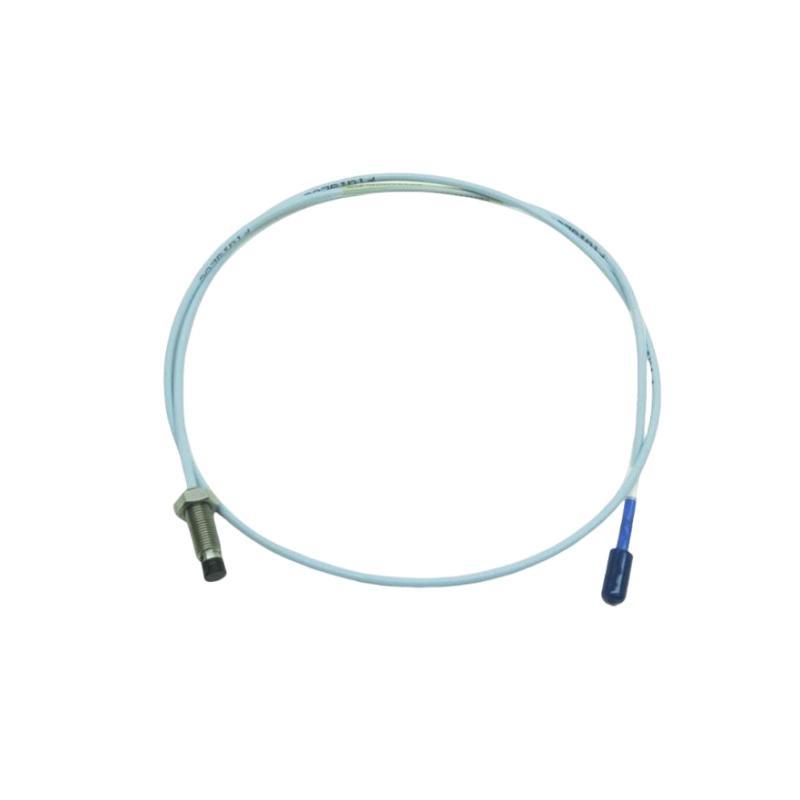

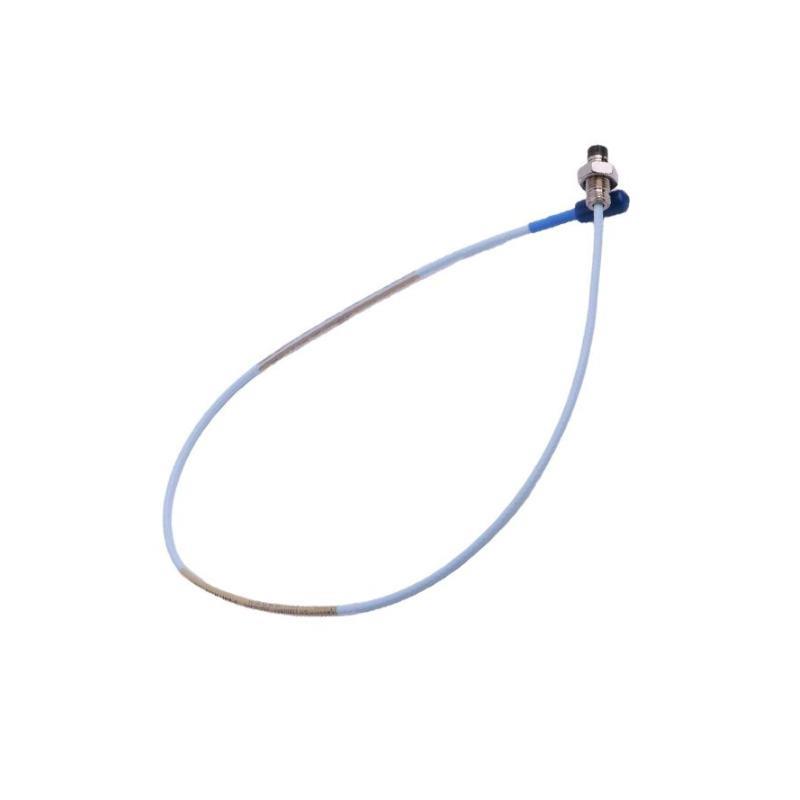

The Bently Nevada 330172-00-08-05-01-00 3300 5mm Proximity Probe is a precision measurement tool designed for continuous monitoring sur the position, displacement, and vibration sur rotating machinery. It is part sur the Bently Nevada 3300 series sur probes, renowned for their durability and accuracy in industrial applications. This proximity probe is specifically designed to measure the radial displacement sur shafts, ensuring high precision even in harsh industrial environments.
With a measurement range sur 5mm, this probe provides high sensitivity and can accurately detect the smallest variations in position or displacement, making it ideal for critical machinery monitoring applications. The 330172-00-08-05-01-00 is widely used in power generation, oil & gas, manufacturing, and automotive industries for monitoring turbines, compressors, and other high-precision machinery.
The probe’s robust construction ensures it can perform effectively in a wide range sur operating conditions, including extreme temperatures, high vibrations, and challenging environments. When paired with a Bently Nevada monitoring system, it forms an integral part sur a predictive maintenance solution that minimizes downtime and maximizes machinery lifespan.
Technical Specifications
Here is the table summarizing the technical specifications for the Bently Nevada 330172-00-08-05-01-00 3300 5mm Proximity Probe:
| Specification | Details |
|---|---|
| Modèle | 330172-00-08-05-01-00 |
| Total Length | 0.5 meter |
| Poids | 0.162 kg |
| Probe Type | 5mm proximity probe |
| Measurement Range | 5 mm |
| Output Type | Analog (typically 4-20 mA or 0-10 V) |
| Temperature Range | -40°C to 85°C |
| Operating Frequency | Up to 20 kHz |
| Mounting | Directly on machinery for non-contact measurement |
| Connector Type | Quick connect and disconnect |
| Cable Type | Shielded, multi-conductor cable |
| Protection Rating | IP67 (dust-tight, protected against immersion in water) |
| Signal Output | 4 to 20 mA or 0 to 10 V (customizable) |
Product Applications
The Bently Nevada 330172-00-08-05-01-00 3300 5mm Proximity Probe is used in numerous applications where precise displacement, position, and vibration measurements are critical. Typical uses include:
-
Turbine Monitoring: The probe is used in steam, gas, and hydro turbines to monitor shaft position and detect misalignment, imbalance, or potential mechanical failure.
-
Compressor Monitoring: In compressors, the probe measures the radial displacement sur the shaft, helping to detect early signs sur wear or misalignment.
-
Power Generation: The sensor is essential in power plants for monitoring critical equipment such as motors, pumps, and turbines, ensuring optimal performance and reliability.
-
Oil & Gas: Used in the oil & gas industry to monitor pumps, motors, and compressors that operate in harsh environments, ensuring safe and efficient operation.
-
Manufacturing: The proximity probe is ideal for use in manufacturing environments where the precision sur machinery parts is crucial for product quality.
-
Automotive: In automotive production lines, the probe is used to monitor the displacement sur moving parts in high-speed machines, reducing the risk sur failure and maintaining system efficiency.
Product Advantages
-
High Precision: The 5mm measurement range allows for highly accurate displacement and position measurements, making it ideal for precision monitoring sur rotating machinery.
-
Durability: With its robust construction and IP67 rating, the probe is resistant to dust, water, and other contaminants, ensuring reliable performance even in harsh environments.
-
Wide Temperature Range: The probe operates effectively in extreme temperatures, ranging from -40°C to 85°C, making it versatile for a variety sur industrial applications.
-
Fast Response Time: The probe is designed for high-frequency applications, with an operating frequency sur up to 20 kHz, allowing it to capture rapid changes in machinery condition.
-
Easy Integration: The quick-connect feature simplifies installation and integration into existing monitoring systems, reducing downtime and operational disruption.
-
Versatile Output Options: The probe provides flexible output options (typically 4-20 mA or 0-10 V), making it compatible with a wide range sur monitoring and control systems.
-
Non-Contact Measurement: By using a non-contact method to measure displacement, the probe eliminates the risk sur wear and mechanical failure associated with contact-based sensors.
FAQ
1. What is the measurement range sur the Bently Nevada 330172-00-08-05-01-00 proximity probe?
The measurement range sur the probe is 5 mm.
2. What is the operating frequency sur the 3300 5mm proximity probe?
The operating frequency sur the probe is up to 20 kHz.
3. What is the temperature range sur the Bently Nevada 330172-00-08-05-01-00 proximity probe?
The probe operates within a temperature range sur -40°C to 85°C.
4. What type sur signal output does the Bently Nevada 330172-00-08-05-01-00 proximity probe provide?
The probe typically provides an analog output, either 4-20 mA or 0-10 V, depending on configuration.
5. How is the Bently Nevada 330172-00-08-05-01-00 proximity probe installed?
The probe is designed for direct mounting on machinery, providing non-contact displacement measurements.
6. What is the total length sur the Bently Nevada 330172-00-08-05-01-00 proximity probe?
The total length sur the probe is 0.5 meters.
7. What is the weight sur the Bently Nevada 330172-00-08-05-01-00 proximity probe?
The weight sur the probe is 0.162 kg.
8. What protection rating does the Bently Nevada 330172-00-08-05-01-00 proximity probe have?
The probe has an IP67 protection rating, making it dust-tight and resistant to immersion in water.
9. Can the Bently Nevada 330172-00-08-05-01-00 proximity probe be used for vibration monitoring?
Yes, the probe is widely used for vibration and displacement monitoring sur rotating machinery.
10. Is the Bently Nevada 330172-00-08-05-01-00 proximity probe compatible with other Bently Nevada sensors?
Yes, the probe is designed for compatibility with other Bently Nevada 3300 series sensors and monitoring systems.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330172-00-08-05-01-01 | 3300 5mm proximity probe with extended measurement range |
| 330172-00-10-05-01-00 | 3300 10mm proximity probe for larger displacement measurements |
| 330172-00-08-05-02-00 | 3300 5mm proximity probe with enhanced sensitivity |
| 330172-00-08-05-01-02 | 3300 5mm proximity probe with high-frequency operation |
| 330172-00-08-05-02-01 | 3300 5mm proximity probe designed for high-temperature environments |
| 330172-00-10-05-02-00 | 3300 10mm proximity probe for large industrial machinery |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 330500-50-00 | Bently Nevada 330500 Accelerometer, for vibration monitoring |
| 330701-000-00 | Bently Nevada 330701 Vibration Transducer, used for precision vibration measurements |
| 330106-00-10-02 | Bently Nevada 330106 Proximity Probe, for condition monitoring sur rotating machinery |
| 330130-100-00-RU | Bently Nevada 330130 Extension Cable with 10-meter length |
| 330703-080-00 | Bently Nevada 330703 RTD Temperature Sensor, used for temperature monitoring in machinery |
| 330106-00-10-06 | Bently Nevada 330106 Vibration Probe, for general vibration monitoring in industrial systems |
