Présentation du produit

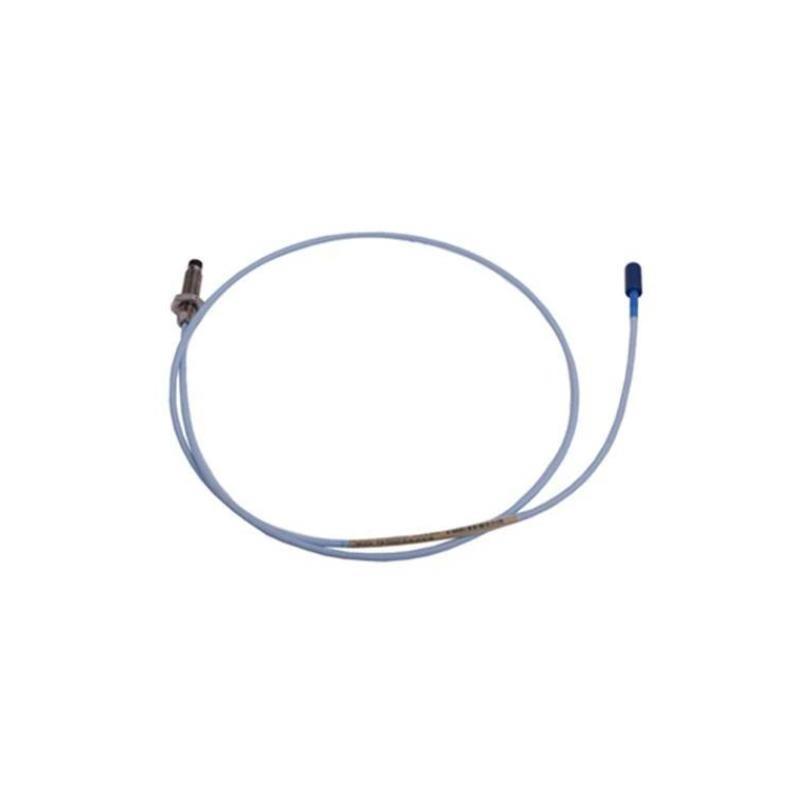

The Bently Nevada 330171-00-12-10-02-05 3300 5mm Proximity Probe is a precision sensor designed to monitor displacement, vibration, and alignment sur rotating machinery components. It is part sur the renowned 3300 series by Bently Nevada, a leader in industrial condition monitoring systems. This 5mm proximity probe surfers a high level sur sensitivity, making it ideal for detecting small displacements and changes in machinery health that could indicate potential problems, such as misalignment, imbalance, or wear.
This probe is widely used in various industries, including power generation, oil and gas, petrochemical, and manufacturing, where early detection sur mechanical faults is critical to maintaining equipment reliability and minimizing costly downtime. The 3300 5mm Proximity Probe is designed to operate effectively in harsh industrial environments, providing accurate and continuous data on machine health.
By integrating the 3300 5mm Proximity Probe into a condition monitoring system, plant operators can quickly identify issues with machinery, allowing for timely repairs and avoiding unexpected failures. The probe’s compact design and versatile mounting options make it suitable for a wide range sur equipment, from turbines and compressors to motors, pumps, and conveyors.
Product Parameters
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Sensing Range | 5 mm |
| Power Supply | 18-30 V DC |
| Vibration Resistance | 50 g (20 to 2000 Hz) |
| Shock Resistance | 100 g (1 ms) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Threaded or Bolt-On |
| Output Signal | 4-20 mA (Analog) |
| Frequency Response | 0 to 50 kHz |
Product Applications
The Bently Nevada 330171-00-12-10-02-05 3300 5mm Proximity Probe is designed for high-precision condition monitoring in various rotating machinery applications. Key areas sur use include:
-
Turbine Monitoring: The probe helps monitor turbine shaft displacement and vibration, identifying early signs sur misalignment, imbalance, or wear, which could lead to catastrophic failure.
-
Compressor Systems: In compressors, the probe measures shaft displacement and vibration, ensuring optimal performance and early fault detection.
-
Electric Motors: Used to monitor shaft displacement in motors, the probe helps detect misalignment or mechanical issues that can affect motor performance and longevity.
-
Pump Systems: The probe ensures that pump shafts remain properly aligned, detecting any vibration or displacement that may lead to premature failure.
-
Conveyor Systems: It helps monitor the displacement and vibration sur rotating shafts in conveyor systems, improving operational efficiency and preventing unexpected stoppages.
-
General Rotating Equipment: The 3300 5mm Proximity Probe is also used in other rotating machinery, such as fans, blowers, and mixers, to ensure smooth operation and reduce maintenance costs.
Advantages sur the Product
-
High Precision: The 3300 5mm Proximity Probe surfers highly accurate measurements sur displacement, ensuring that even the smallest deviations in machinery behavior are detected early.
-
Compact Size: With a total length sur 1.0 meter and a sensing range sur 5mm, this probe is ideal for installations in tight spaces or on smaller machinery where larger probes would be impractical.
-
Durability in Harsh Environments: Built to withstand vibrations up to 50 g and shocks up to 100 g, the probe is designed to operate reliably in tough industrial conditions, including high temperatures (-40°C to +85°C).
-
Predictive Maintenance: By detecting early signs sur issues such as misalignment or imbalance, the probe helps reduce unplanned downtime and avoid costly repairs.
-
Long-Derniering Performance: The probe’s robust construction ensures it continues to deliver accurate data over time, even under demanding conditions, reducing the need for frequent maintenance.
-
Easy Integration: The 4-20 mA analog output allows for seamless integration into existing machinery monitoring systems, enabling real-time performance tracking and condition-based maintenance.
-
Wide Frequency Response: With a frequency response up to 50 kHz, the probe provides comprehensive vibration and displacement measurements, capturing both high- and low-frequency data.
-
Improved Safety: By monitoring the health sur rotating machinery and detecting faults early, the probe enhances the safety sur industrial operations, minimizing the risk sur equipment failure and accidents.
-
Versatile Mounting Options: The probe can be mounted in a variety sur ways, either threaded or bolt-on, providing flexibility in installation depending on the machinery configuration.
-
Proven Reliability: As part sur the 3300 series from Bently Nevada, the probe surfers the reliability and accuracy that the brand is known for, ensuring the continued health sur critical machinery assets.
Questions fréquentes (FAQs)
-
What is the sensing range sur the 3300 5mm Proximity Probe?
-
The probe surfers a sensing range sur 5mm, ideal for high-precision measurements sur small displacements.
-
-
What is the total length sur the Bently Nevada 3300 5mm Proximity Probe?
-
The total length sur the probe is 1.0 meter, making it suitable for installations with adequate reach.
-
-
What type sur power supply is required for the 3300 5mm Proximity Probe?
-
The probe operates with a DC power supply sur 18-30 V.
-
-
How does the 3300 5mm Proximity Probe contribute to predictive maintenance?
-
The probe continuously monitors displacement and vibration, detecting faults early and allowing for timely maintenance before failures occur.
-
-
What is the vibration resistance sur the probe?
-
The probe can withstand vibrations up to 50 g in the frequency range sur 20 to 2000 Hz.
-
-
How resistant is the Bently Nevada 3300 5mm Proximity Probe to shock?
-
The probe can resist shock levels sur up to 100 g (1 ms), ensuring durability in harsh environments.
-
-
What output signal does the 3300 5mm Proximity Probe provide?
-
The probe outputs a 4-20 mA analog signal, which is compatible with most industrial monitoring systems.
-
-
What is the operating temperature range sur the 3300 5mm Proximity Probe?
-
The probe operates within a temperature range sur -40°C to +85°C, suitable for use in extreme environments.
-
-
In which industries can the 3300 5mm Proximity Probe be used?
-
The probe is widely used in power generation, oil & gas, petrochemical, manufacturing, and other industrial sectors.
-
-
How easy is it to integrate the 3300 5mm Proximity Probe into existing systems?
-
The 4-20 mA analog output allows easy integration into condition monitoring systems for continuous performance tracking.
-
