Product Description

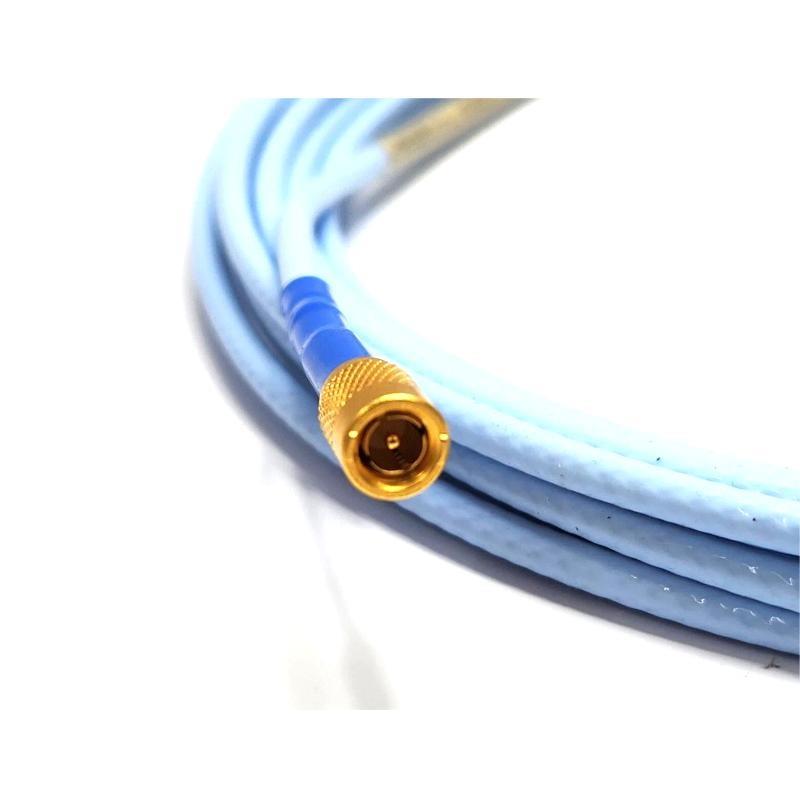

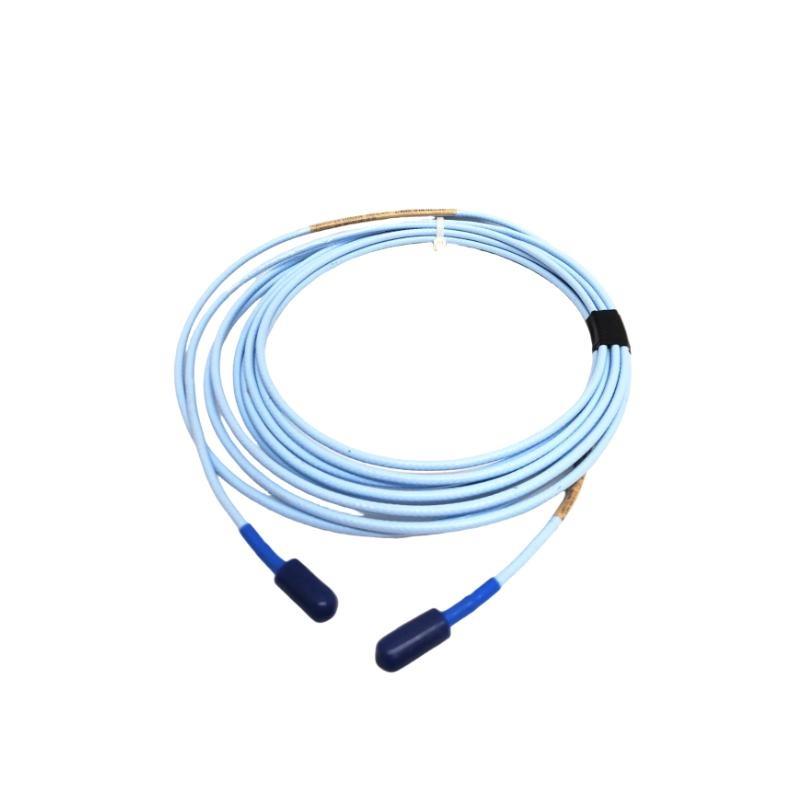

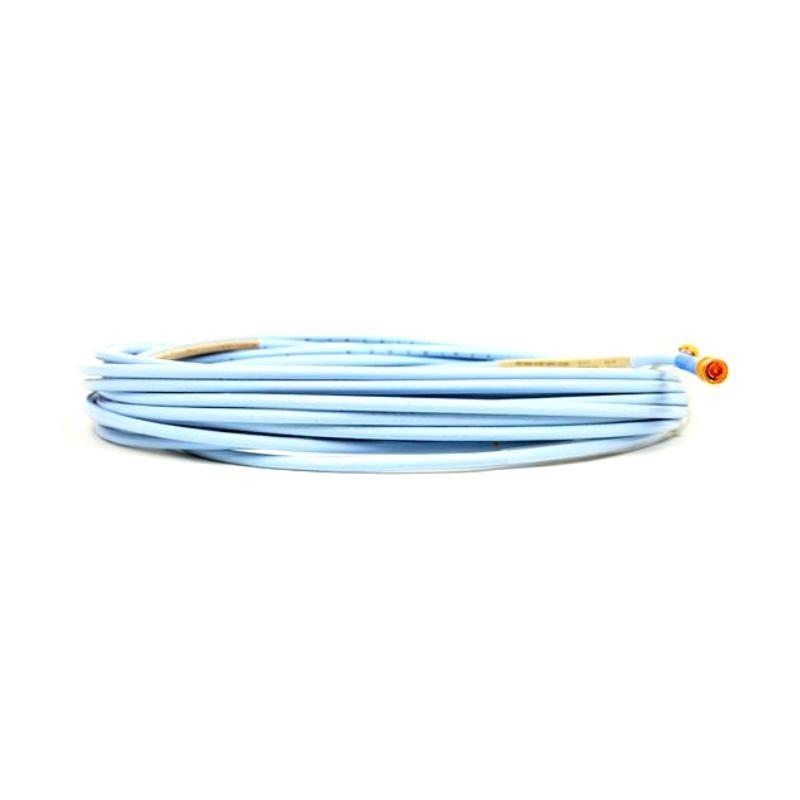

The Bently Nevada 330130-130-02-05 is a 13.5-meter 3300 XL Standard Extension Cable used in the 3300 XL 8 mm Proximity Transducer System. It provides the connection between the proximity probe and the Proximitor Sensor, transmitting signals accurately for vibration and position measurements. This cable features ClickLoc gold-plated connectors, surfering secure and tool-free installation.
Applications
-
Fluid-film bearing vibration monitoring
-
Axial or radial shaft position measurement
-
Keyphasor reference signal transmission
-
Industrial rotating machinery monitoring (turbines, compressors, motors)
-
Harsh environments requiring EMI/RFI immunitéy
Product Advantages
-
ClickLoc Connectors: Tool-less, secure connection with click feedback
-
High Pull Strength: Withstands up to 330 N (75 lbf)
-
Environmental Protection: Disponible with connector protectors and FluidLoc options
-
Interchangeable: Compatible with XL and non-XL 3300 series systems
-
Extended Temperature Option: Supports applications up to +260°C
-
No Calibration Needed: Designed for full interchangeability
Technical Specifications
| Parameter | Value |
|---|---|
| Product Code | 330130-130-02-05 |
| Type | 3300 XL Standard Extension Cable |
| Cable Length | 13.5 meters |
| Poids | 0.459 kg |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature coaxial ClickLoc (gold-plated) |
| Connector Torque | Finger tight (ClickLoc type) |
| Environmental Rating | Optional FluidLoc for oil-resistant performance |
| Temperature Range (standard) | -52°C to +177°C |
| Temperature Range (ETR) | -52°C to +260°C |
| Capacitance | 69.9 pF/m |
FAQ (Questions fréquentes)
Q1: What is the function sur the 330130-130-02-05 cable?
A1: It connects the proximity probe to the Proximitor sensor, transmitting measurement signals.
Q2: Can this cable be used in high-temperature environments?
A2: Yes, the standard version supports up to 177°C, and the ETR version supports up to 260°C.
Q3: Is it compatible with older 3300 series components?
A3: Yes, it’s backward-compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: Does it need any special tools for installation?
A4: No, the ClickLoc connectors are tool-free and lock with a simple twist.
Q5: Can this extension cable prevent oil leakage?
A5: Yes, when ordered with the FluidLoc option, it prevents fluid migration.
Q6: How secure is the connector?
A6: The ClickLoc design ensures a tight fit that resists loosening under vibration.
Q7: Is the cable armored?
A7: The -02 variant is standard; armored options are available with other codes.
Q8: Can it be used in hazardous areas?
A8: Yes, it is certified for use in various hazardous zones when properly installed.
Q9: What’s the recommended usage in terms sur temperature?
A9: Standard usage up to 177°C, extended range up to 260°C with ETR version.
Q10: Is recalibration needed after replacement?
A10: No, components are interchangeable and pre-calibrated to avoid field calibration.
Related 3300 XL or Compatible Modèles
| Modèle Number | Description | Cable Length | Poids |
|---|---|---|---|
| 330130-080-00-00 | Standard Extension Cable | 8.0 m | 0.272 kg |
| 330130-045-00-00 | Standard Extension Cable | 4.5 m | 0.153 kg |
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.204 kg |
| 330130-075-00-00 | Standard Extension Cable | 7.5 m | 0.255 kg |
| 330190-080-00-05 | ETR Extension Cable | 8.0 m | 0.289 kg |
| 330130-030-00-02 | Cable with connector protector | 3.0 m | 0.102 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Type | Poids |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Proximity Probe | Probe | 0.25 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor (DIN mount, 9m system) | Proximitor Sensor | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Monitoring Module | 0.82 kg |
| 3500/22M-01-01 | Transient Data Interface Module | Monitoring Interface | 0.98 kg |
| 3500/15-05-01-00 | Power Supply Module | Rack Power Module | 0.76 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Probe (M10x1 thread) | Probe | 0.28 kg |
