Product Overview

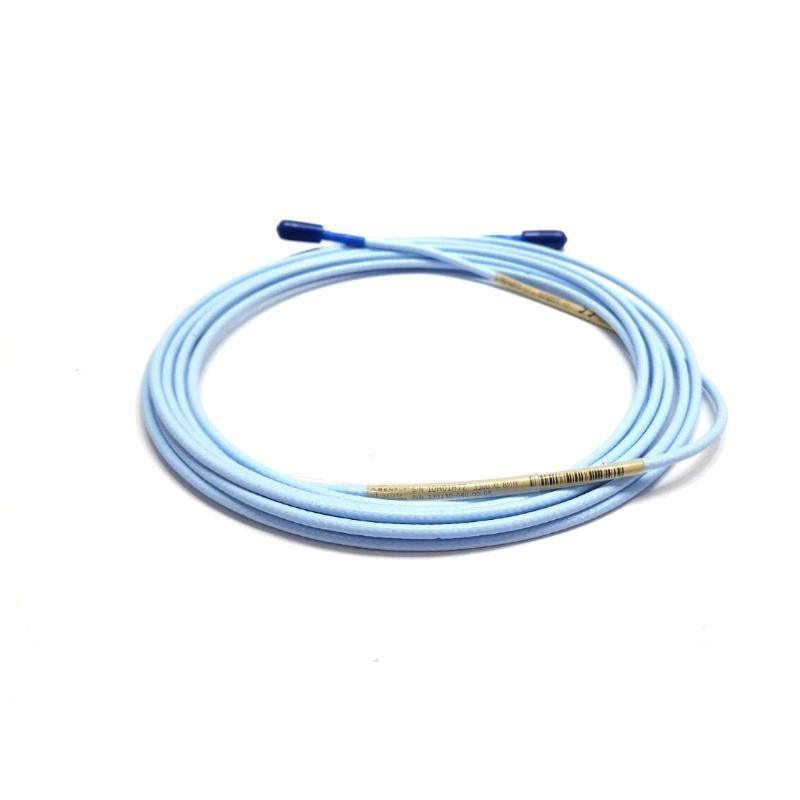

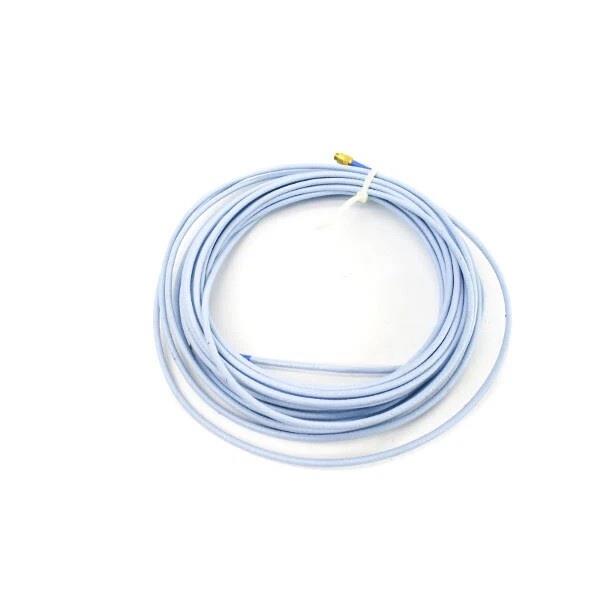

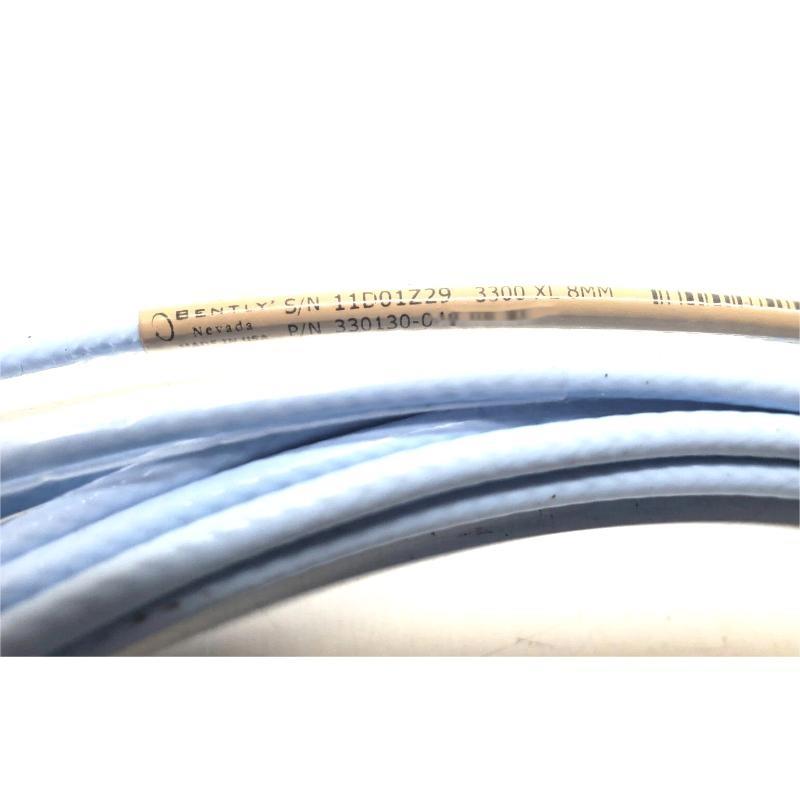

The Bently Nevada 330130-090-10-00 is part sur the 3300 XL 8 mm Proximity Transducer System. This extension cable connects the proximity probe to the Proximitor sensor, ensuring accurate vibration and position measurements in critical rotating machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | 330130-090-10-00 |
| Product Type | Extension Cable for 3300 XL System |
| Application | Connects probe to Proximitor Sensor |
| Cable Length | 9.0 meters |
| Poids | 0.306 kg |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Max Connector Torque | 0.565 N•m (5 in•lbf) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature | -52°C to +177°C (Standard) |
| Extended Temp Option | -52°C to +260°C (with ETR cable) |
Applications
-
Vibration monitoring in fluid-film bearing machines
-
Shaft position detection in rotating equipment
-
Keyphasor and speed measurement setups
-
État monitoring in turbines, compressors, and motors
-
Critical protection systems in petrochemical and power plants
Key Advantages
-
High Interchangeability: Fully compatible with all 3300 XL 8 mm probes and Proximitor sensors
-
Robust Connection: Patented CableLoc ensures 330 N (75 lbf) pull strength
-
Reliable Performance: Designed for high EMI/RFI environments without signal degradation
-
Environmental Protection: ClickLoc connectors surfer corrosion resistance and secure locking
-
Extended Temperature Operation: ETR variant supports high-temperature installations
-
No Special Tools Needed: Finger-tight connector installation with locking feedback
FAQ
Q1: What is the purpose sur the 330130-090-10-00 cable?
A1: It links the proximity probe to the Proximitor sensor in Bently Nevada’s transducer systems.
Q2: Is this extension cable compatible with older 3300-series probes?
A2: Yes, it is backward compatible with non-XL 3300 8 mm and 5 mm components.
Q3: What is the cable’s operating temperature range?
A3: -52°C to +177°C for the standard version; up to +260°C for the ETR variant.
Q4: Does it require calibration with the probe or sensor?
A4: No, it supports interchangeability without individual calibration.
Q5: How is the connector secured?
A5: It uses a ClickLoc mechanism that locks in place with finger-tight torque.
Q6: What is the minimum bend radius sur the cable?
A6: The minimum allowable bend radius is 25.4 mm (1.0 inch).
Q7: What cable length does the “090” in the part number signify?
A7: It refers to a 9.0-meter total cable length.
Q8: Can the extension cable be armored?
A8: Yes, armored versions are available with FEP jackets.
Q9: Does it support high-humidity environments?
A9: Yes, it’s designed to function in industrial conditions with proper connector protection.
Q10: Is FluidLoc available for this cable model?
A10: Yes, the FluidLoc option helps prevent oil ingress and leakage.
Related Modèles from the Same Series
| Modèle Number | Description | Cable Length | Poids |
|---|---|---|---|
| 330130-030-00-00 | Standard Extension Cable | 3.0 m | 0.102 kg |
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.204 kg |
| 330130-085-00-00 | Standard Extension Cable | 8.5 m | 0.289 kg |
| 330190-090-00-00 | ETR Extension Cable (High Temp) | 9.0 m | 0.306 kg |
| 330130-040-00-00 | Standard Extension Cable | 4.0 m | 0.136 kg |
| 330130-075-00-00 | Standard Extension Cable | 7.5 m | 0.255 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Application Type | Poids |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe | Proximity Measurement | 0.145 kg |
| 330180-91-00 | 3300 XL Proximitor Sensor (9 m DIN mount) | Signal Étating | 0.246 kg |
| 330104-00-05-10-02-00 | 3300 XL Probe with M10 Thread | Position Sensing | 0.140 kg |
| 330105-02-12-10-02-00 | 3300 XL Reverse Mount Probe | Shaft Monitoring | 0.142 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.7 kg |
| 330103-00-05-10-02-00 | 3300 XL 8 mm Probe, Metric | Narrow Space Applications | 0.140 kg |
