Product Overview

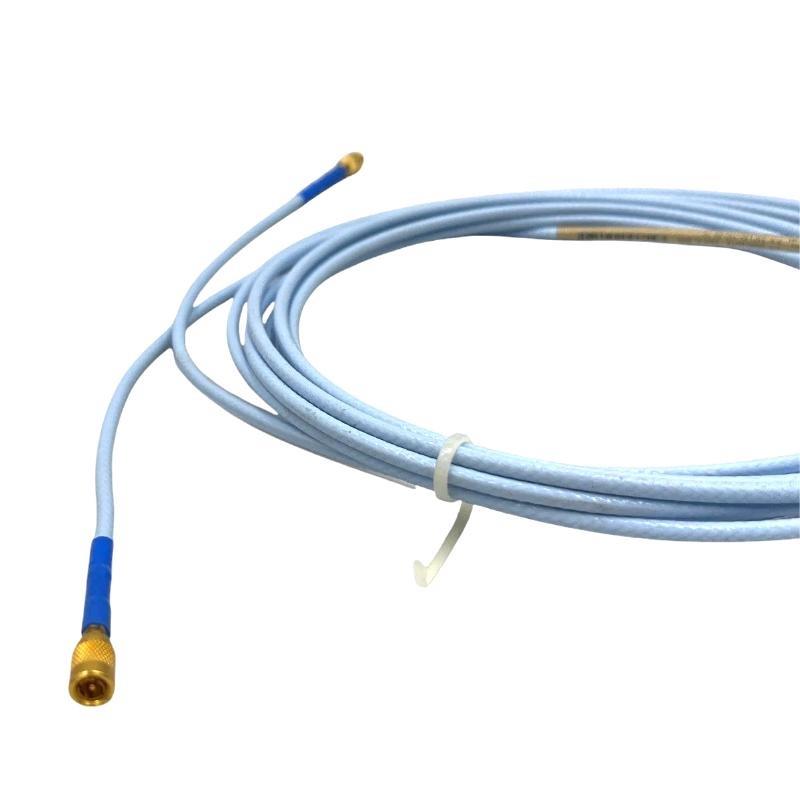

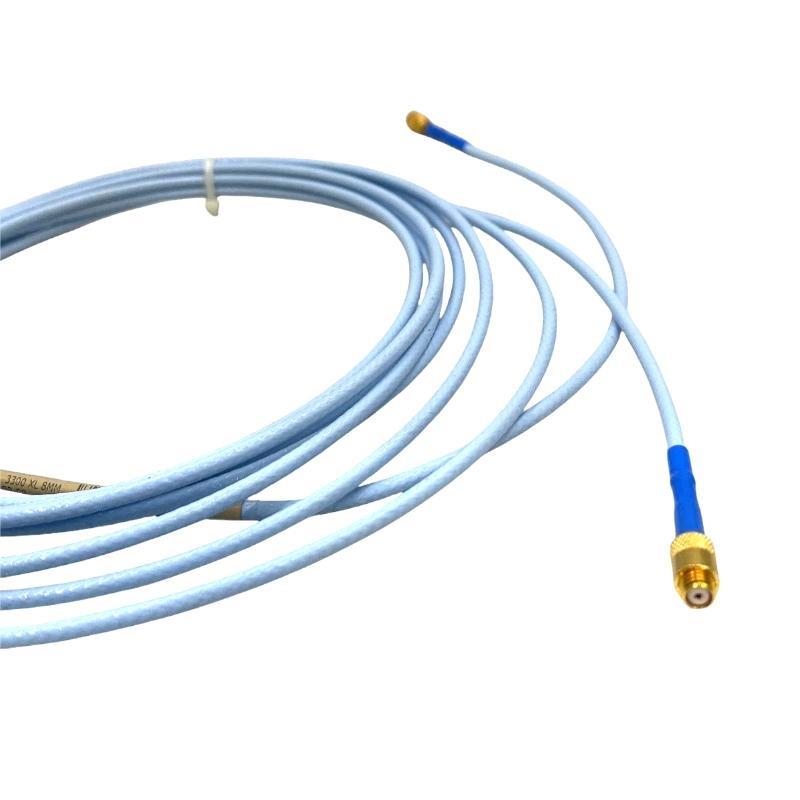

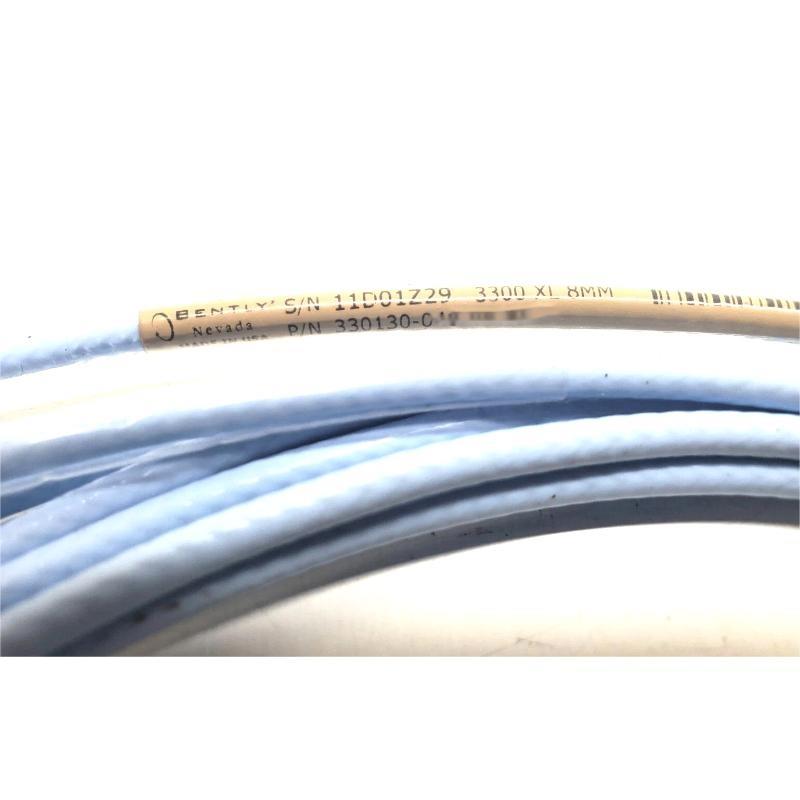

The 330130-075-02-05 is a 7.5-meter extension cable used in the Bently Nevada 3300 XL 8 mm Proximity Transducer System. It links the proximity probe to the Proximitor Sensor, ensuring reliable transmission sur vibration and position signals for rotating machinery monitoring.
Applications
-
Vibration monitoring in fluid-film bearing machines
-
Shaft position measurements
-
Keyphasor reference signal transmission
-
High-temperature industrial environments
-
Machinery health diagnostics in turbines, compressors, and motors
Product Advantages
-
ClickLoc Connectors – Secure, tool-free connection with a positive “click” to confirm proper mating
-
CableLoc Design – Withstands 330 N (75 lbf) sur pull strength
-
FluidLoc Optional Cable – Prevents oil migration through the cable
-
High RFI/EMI Immunitéy – Suitable for harsh industrial and radio-sensitive environments
-
Full Compatibility – Interchangeable with other 3300 XL system components without recalibration
-
Extended Temperature Range Compatibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 330130-075-02-05 |
| Cable Type | Standard 75Ω triaxial FEP insulated |
| Cable Length | 7.5 meters |
| Cable Poids | 0.255 kg (255 g) |
| Capacitance | 69.9 pF/m (typical) |
| RCORE (Center Conductor) | 1.65 ± 0.25 Ω |
| RJACKET (Outer Conductor) | 0.49 ± 0.10 Ω |
| Min. Cable Bend Radius | 25.4 mm |
| Operating Temperature (Standard) | -52°C to +177°C |
| Operating Temperature (ETR) | -52°C to +260°C |
| Connector Type | Miniature ClickLoc (gold-plated) |
| Pull Strength | 270 N at cable connectors |
Questions fréquentes (FAQ)
Q1: What is the function sur the 330130-075-02-05 extension cable?
A1: It connects the proximity probe to the Proximitor Sensor, ensuring signal integrity in vibration and position monitoring.
Q2: Can I use this cable in high-temperature environments?
A2: Yes, it supports up to 177°C (standard) or 260°C (with ETR version).
Q3: Does the cable come with connector protection?
A3: Yes, the “02” option includes a standard cable with connector protector.
Q4: Is it compatible with older 3300 non-XL systems?
A4: Yes, it is physically and electrically compatible with non-XL 3300 8 mm systems.
Q5: What type sur connector is used?
A5: The cable uses a gold-plated ClickLoc connector requiring only finger-tight torque.
Q6: What is the maximum length allowed for field wiring?
A6: Up to 305 meters (1,000 feet) between Proximitor Sensor and monitor.
Q7: Is FluidLoc available on this cable?
A7: Not on this model; FluidLoc is available on different part number options (e.g., –10 or –12).
Q8: What is the typical application for this cable?
A8: It is used in turbine, compressor, and motor condition monitoring systems.
Q9: Is recalibration needed when changing cable lengths?
A9: N° All 3300 XL components are interchangeable without recalibration.
Q10: How is the cable mounted?
A10: It connects via ClickLoc connectors and can be routed through conduits using optional protectors.
Related Modèles (Same Series or Function)
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330130-070-00-00 | Standard Extension Cable | 7.0 m | 0.238 kg |
| 330130-080-00-00 | Standard Extension Cable | 8.0 m | 0.272 kg |
| 330130-075-00-00 | Standard Extension Cable (No protector) | 7.5 m | 0.255 kg |
| 330190-075-00-00 | ETR Extension Cable | 7.5 m | 0.255 kg |
| 330130-060-02-00 | Standard Cable with Connector Protector | 6.0 m | 0.204 kg |
| 330130-045-02-00 | Shorter Extension Cable with Protector | 4.5 m | 0.153 kg |
Popular Modèles from Bently Nevada
| Modèle Number | Description | Function | Poids |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe (Standard) | Vibration Measurement Probe | ~0.3 kg |
| 330180-91-00 | 3300 XL Proximitor Sensor (DIN mount) | Signal Étater | ~0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Vibration Monitoring Module | ~0.4 kg |
| 3500/22M-01-01-00 | Transient Data Interface Module | Communication Interface | ~0.5 kg |
| 330104-00-05-10-02-00 | 3300 XL Probe (M10 x 1 thread) | Probe for compact installs | ~0.3 kg |
| 330400-90-00 | High-Temperature Velomitor Sensor | Velocity Monitoring | ~0.45 kg |
