Product Description

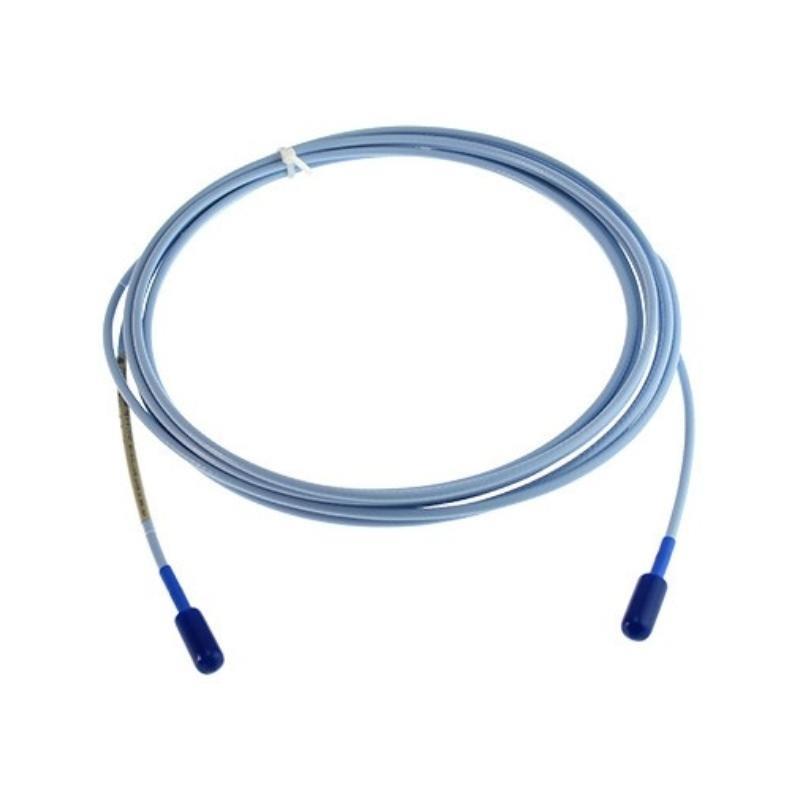

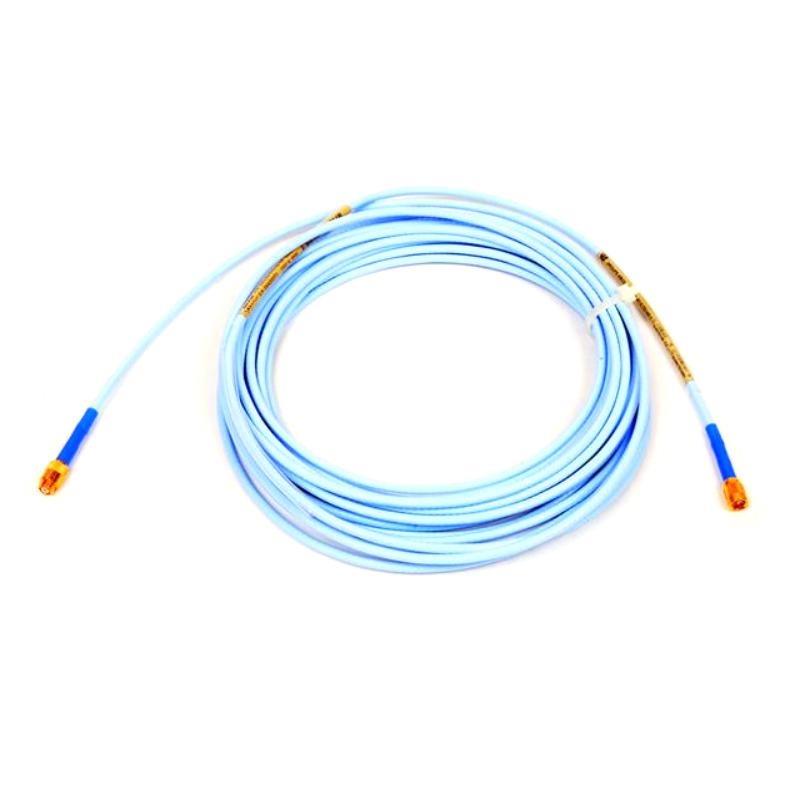

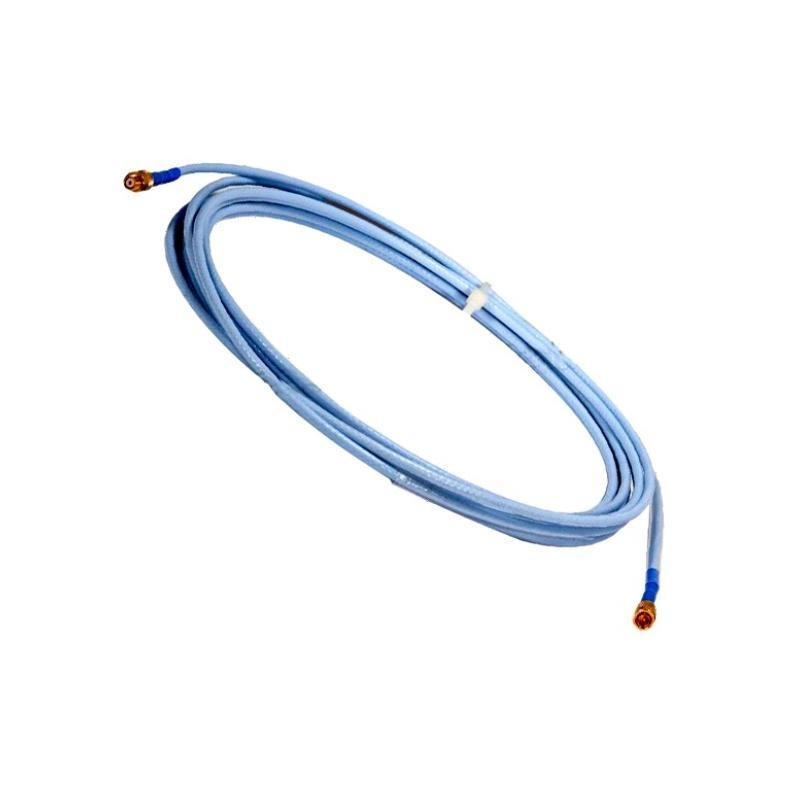

The Bently Nevada 330130-075-00-05 is a 7.5-meter standard extension cable, part sur the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor sensor, maintaining signal fidelity and mechanical durability. This cable is built with high-performance FEP insulation, a robust connector design, and is available with optional armor or environmental protectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 330130-075-00-05 |
| Product Type | Extension Cable |
| Cable Length | 7.5 meters |
| Poids | 0.255 kg |
| Capacitance | 69.9 pF/m (typical) |
| Core Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Insulation Material | FEP (Fluoroethylene Propylene) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass or beryllium copper |
| Max Connector Torque | 0.565 N•m (5 in•lbf) |
| Operating Temperature Range | -52°C to +177°C |
| Storage Temperature Range | -52°C to +177°C |
| Environmental Protection | Optional connector protector or armor |
Applications
-
Used in turbine and rotating equipment monitoring systems
-
Vibration and axial position measurements
-
Keyphasor® and speed detection systems
-
Suitable for high-density installation environments
-
Ideal for high-temperature and oil-prone industrial settings
Product Advantages
-
ClickLoc® Connectors: Prevents accidental loosening, no tools needed
-
FluidLoc Option: Prevents oil leakage through the cable interior
-
High Pull Strength: Patented CableLoc™ provides 330 N pull resistance
-
Flexible Installation: Interchangeable with other 3300 XL and non-XL components
-
Extended Temperature Compatibility: Works with ETR systems for up to 260°C
-
Durable Materials: FEP insulation for chemical and temperature resistance
Questions fréquentes (FAQ)
Q1: What is the function sur the 330130-075-00-05 cable?
A1: It connects the proximity probe to the Proximitor sensor, transmitting signals accurately over a 7.5-meter distance.
Q2: Is this cable compatible with non-XL Bently Nevada systems?
A2: Yes, it is both electrically and mechanically compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: Can this extension cable be used in high-temperature environments?
A3: Yes, it supports operation up to 177°C and can pair with ETR components for up to 260°C.
Q4: What is the significance sur the ClickLoc connector?
A4: It ensures secure and reliable connection with a tactile click, eliminating the need for tools.
Q5: Does this cable come armored?
A5: This specific version is standard; armored versions are available as optional variants.
Q6: Is it suitable for outdoor or harsh environments?
A6: Yes, especially when used with optional connector protectors or armored jackets.
Q7: What materials are used for insulation?
A7: The cable is insulated with FEP, providing high resistance to heat and chemicals.
Q8: What is the expected weight sur the 7.5-meter cable?
A8: Approximately 0.255 kg.
Q9: Is any special tool required for installation?
A9: No, installation can be done by hand due to the ClickLoc connector design.
Q10: Can this cable be used in hazardous areas?
A10: Yes, if installed per the correct standards and drawings, it complies with ATEX and IECEx requirements.
Related Modèles (Same Series)
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330130-070-00-05 | Extension Cable | 7.0 m | 0.238 kg |
| 330130-060-00-05 | Extension Cable | 6.0 m | 0.204 kg |
| 330130-080-00-05 | Extension Cable | 8.0 m | 0.272 kg |
| 330130-085-00-05 | Extension Cable | 8.5 m | 0.289 kg |
| 330130-045-00-05 | Extension Cable | 4.5 m | 0.153 kg |
| 330130-050-00-05 | Extension Cable | 5.0 m | 0.170 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Type | Poids |
|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8 mm Probe with armor (M10) | Proximity Probe | 0.29 kg |
| 330180-90-05 | 3300 XL Proximitor Sensor, 9m system | Proximitor Sensor | 0.246 kg |
| 330101-00-08-10-02-05 | 3300 XL 8 mm Probe (3/8-24, armored) | Proximity Probe | 0.32 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Monitoring Module | 0.45 kg |
| 3500/22M | Transient Data Interface Module | Communication Module | 0.47 kg |
| 3500/15 | Power Supply Module | Power Module | 0.65 kg |
