Product Overview

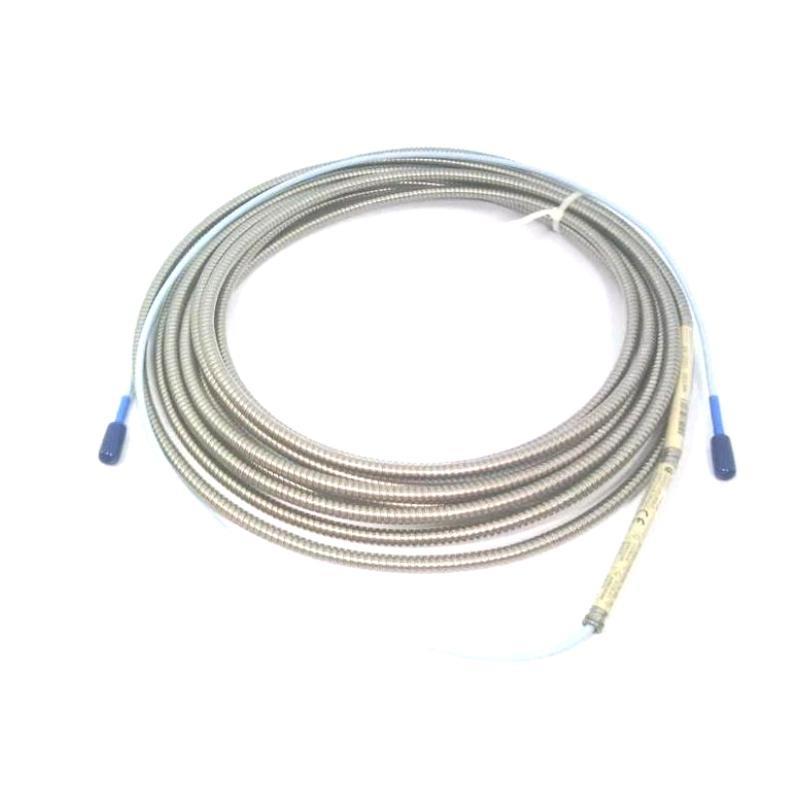

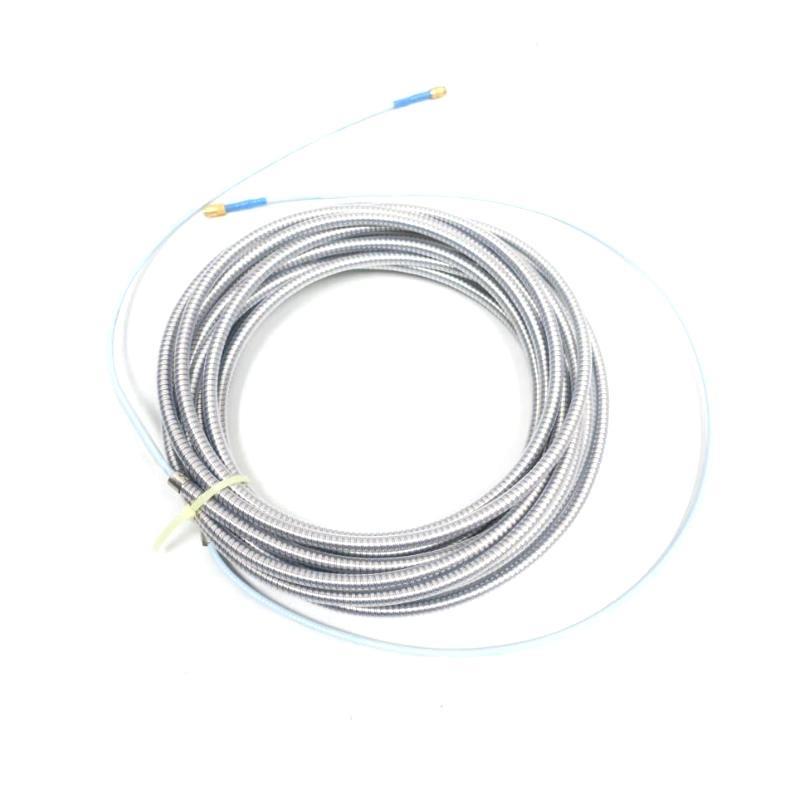

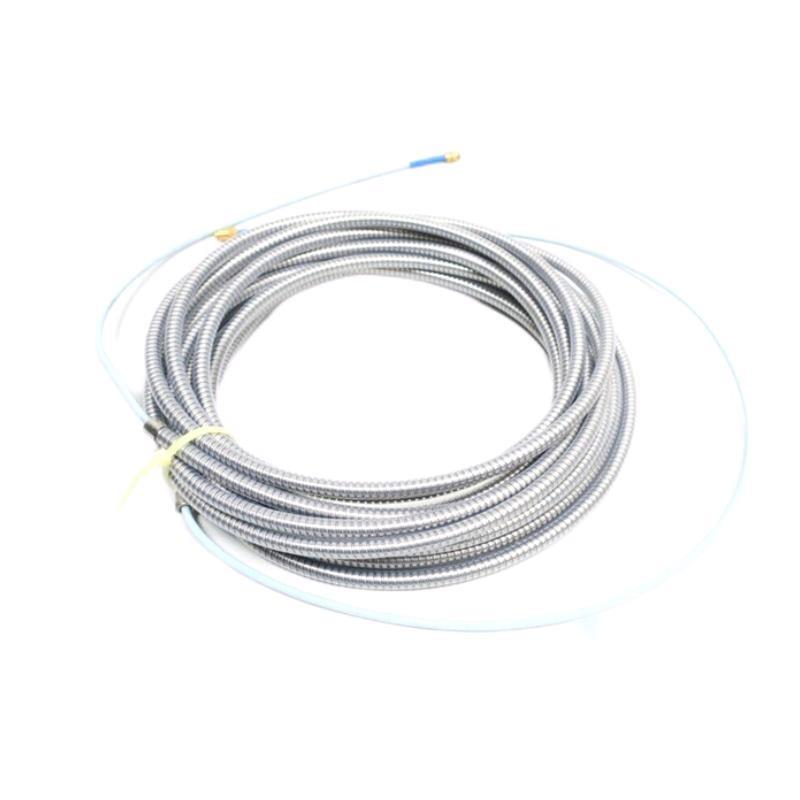

The Bently Nevada 330130-045-03-00 3300 XL Standard Extension Cable is a high-performance extension cable designed to extend the reach sur 3300 XL Proximity Probes. These cables provide an essential connection between the proximity probes and machinery protection systems such as the 3500 Series, ensuring the effective transmission sur signals for accurate machine health monitoring.
This extension cable is engineered for use in industrial environments, where long distances between proximity probes and monitoring systems are common. It allows users to install 3300 XL Proximity Probes in locations that are far from the monitoring equipment, ensuring continuous monitoring sur critical machinery components like turbine shafts, compressors, pumps, and more.
Constructed from high-quality materials, the 330130-045-03-00 extension cable features durable insulation, surfering resistance to harsh environmental conditions such as high temperatures, UV exposure, and chemical corrosion. The cable is designed for easy installation and is compatible with other Bently Nevada systems, providing a seamless and reliable connection for machine vibration and displacement measurement applications.
With its robust construction, the 330130-045-03-00 extension cable ensures that the data transmitted from the proximity probes to the monitoring system remains stable and reliable, facilitating early detection sur faults and minimizing downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | Bently Nevada 330130-045-03-00 |
| Cable Length | 4.5 meters |
| Connector Type | 5-pin connector |
| Operating Temperature | -40°C to +120°C |
| Material | PVC insulation with high-quality copper conductors |
| Poids | 0.464 kg |
| Cable Type | Shielded multi-conductor cable |
| Voltage Rating | 500 VDC max |
| Signal Type | Compatible with 3300 XL Proximity Probes (Eddy current) |
| Flame Resistance | UL rated for flame resistance |
| Certification | CE, RoHS |
| Durability | UV-resistant, corrosion-resistant |
| Compatibility | Works with Bently Nevada 3300 XL Probes and 3500 Series |
| Maximum Current | 10 mA (max operating current) |
Applications
The Bently Nevada 330130-045-03-00 3300 XL Standard Extension Cable is widely used across various industries for applications requiring shaft vibration and displacement monitoring. Some sur the key applications include:
-
Turbine Monitoring: The extension cable allows for the connection sur proximity probes to turbine shafts, helping to monitor vibrations, displacement, and overall shaft health.
-
Compressor Systems: Used to extend the reach sur proximity probes for compressors, ensuring accurate measurement sur shaft displacement and preventing system failures due to imbalance or misalignment.
-
Pump Systems: Essential for connecting proximity probes in pumps to monitoring systems, enabling real-time monitoring sur pump health and preventing issues like wear and mechanical faults.
-
Motors and Generators: Used in motors and generators to extend the cable length from the probes to the machinery protection systems, helping monitor vibrations and ensuring continuous machine performance.
-
Fan Systems: The extension cable facilitates the use sur proximity probes in large fan systems, where long cable runs are required for monitoring shaft displacement and vibrations.
-
Heavy Industrial Machinery: The cable is used to connect proximity probes in heavy-duty machinery such as crushers, mills, and grinders, enabling early fault detection and minimizing downtime.
Key Advantages
-
Flexible Installation: The extension cable provides flexibility in installations where proximity probes are located at a distance from the monitoring system. It allows for easy placement in large machinery or systems with complex layouts.
-
Durability: Made with high-quality PVC insulation and copper conductors, the cable is durable and resistant to harsh industrial conditions such as extreme temperatures, chemicals, and mechanical stress.
-
Signal Integrity: The shielded cable ensures minimal interference, allowing for the reliable transmission sur signals from the proximity probes to the monitoring system, resulting in accurate measurements and data.
-
High Temperature Resistance: The cable operates effectively in temperatures ranging from -40°C to +120°C, making it suitable for a wide range sur industrial applications.
-
Customizable Length: The standard length is 4.5 meters, but the cable can be customized to fit specific installation requirements, ensuring a perfect fit for your system.
-
Flame Resistant: The cable is flame-resistant, making it safe for use in industrial environments where fire hazards may be present.
-
Seamless Integration: The cable is designed for use with Bently Nevada’s 3300 XL Proximity Probes and integrates seamlessly with 3500 Series machinery protection systems.
-
Corrosion-Resistant: The cable’s UV-resistant and corrosion-resistant properties ensure it remains operational in outdoor or corrosive environments, extending its lifespan.
-
Increased Reach: The extension cable enables the connection sur probes in systems with significant distance between the probes and the monitoring equipment, expanding the installation options for larger systems.
-
Cost-Effective Solution: The extension cable allows for simple and cost-effective installations in industrial environments, eliminating the need for costly alterations or modifications to the machinery.
Questions fréquentes (FAQ)
-
What is the length sur the Bently Nevada 330130-045-03-00 extension cable?
The standard length sur the extension cable is 4.5 meters, but custom lengths are available upon request. -
What is the maximum temperature range for this cable?
The cable operates within a temperature range sur -40°C to +120°C, making it suitable for use in extreme industrial environments. -
What is the weight sur the extension cable?
The cable weighs 0.464 kg. -
What material is the extension cable made sur?
The cable is constructed with high-quality PVC insulation and copper conductors, providing excellent durability and electrical performance. -
Can this cable be used in hazardous locations?
Yes, the cable is UL-rated for flame resistance, making it safe for use in hazardous locations where fire and electrical hazards may exist. -
What type sur signal does the cable carry?
The extension cable is compatible with 3300 XL Proximity Probes, which use eddy current sensing technology for vibration and displacement monitoring. -
What certifications does the 330130-045-03-00 cable hold?
The cable is CE and RoHS certified, ensuring compliance with international safety and environmental standards. -
How does the cable maintain signal integrity?
The cable is shielded to protect the signal from interference, ensuring stable and reliable signal transmission from the proximity probes. -
What is the maximum current that can be carried by the cable?
The maximum operating current is 10 mA, which is typical for the low-power requirements sur Bently Nevada probes. -
Can this extension cable be used with other Bently Nevada products?
Yes, the extension cable is designed for use with 3300 XL Proximity Probes and integrates seamlessly with the 3500 Series machinery protection systems.
Related Modèles (Same Series or Variant)
| Modèle | Description | Key Features |
|---|---|---|
| 330130-045-03-01 | 3300 XL 5-meter Extension Cable | Shorter extension for small installations |
| 330130-045-03-02 | 3300 XL 20-meter Extension Cable | Extended reach for large machinery or systems |
| 330130-045-03-04 | 3300 XL High-Temperature Extension Cable | Rated for high-temperature environments |
| 330130-045-03-05 | 3300 XL Low-Voltage Extension Cable | Designed for low-voltage applications |
| 330130-045-03-06 | 3300 XL Shielded Extension Cable | Shielded cable for reduced electrical noise |
| 330130-045-03-07 | 3300 XL Custom Length Extension Cable | Tailored length options for specific needs |
Popular Bently Nevada Modèles (Same Marque)
| Modèle | Description | Primary Use Case |
|---|---|---|
| 3300 12mm Probe | 12mm Proximity Probe for industrial machinery | Ideal for use in pumps, compressors, and motors |
| 3500 Series | Machinery Protection System | Comprehensive system for real-time condition monitoring |
| 7200 Vibration Monitoring System | Advanced vibration monitoring for critical assets | Offers continuous, real-time machinery data |
| 3300 20mm Probe | 20mm Proximity Probe for large industrial equipment | For turbines, large motors, and generators |
| 3500 6-Channel Relay Module | For relay-based control in the 3500 system | Used to control alarms, shutdowns, and safety responses |
| 3300 10mm Probe | 10mm Proximity Probe for medium machinery | Used in compressors, pumps, and motors |
