Présentation du produit

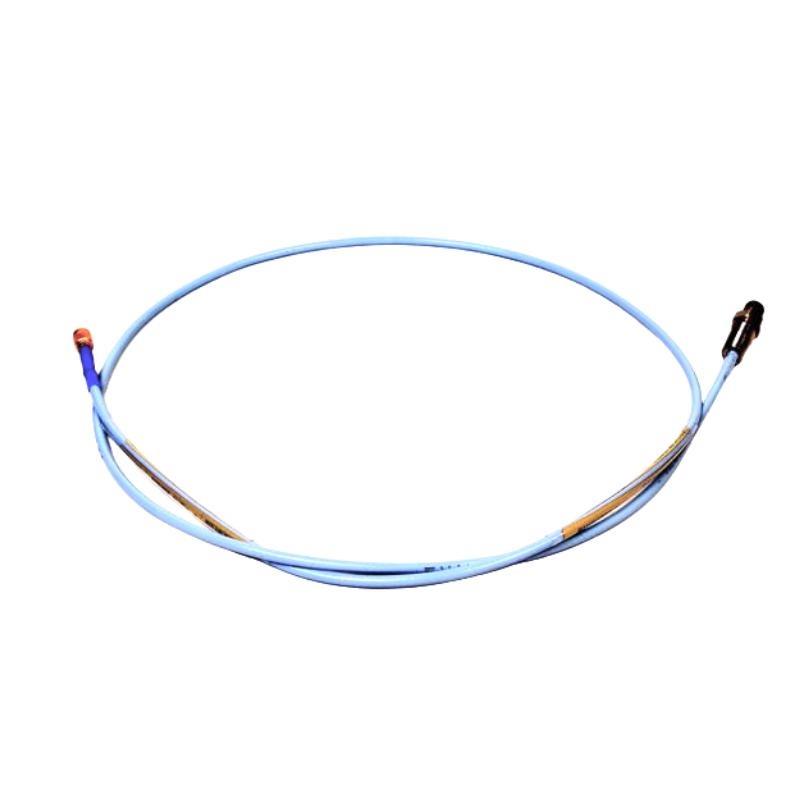

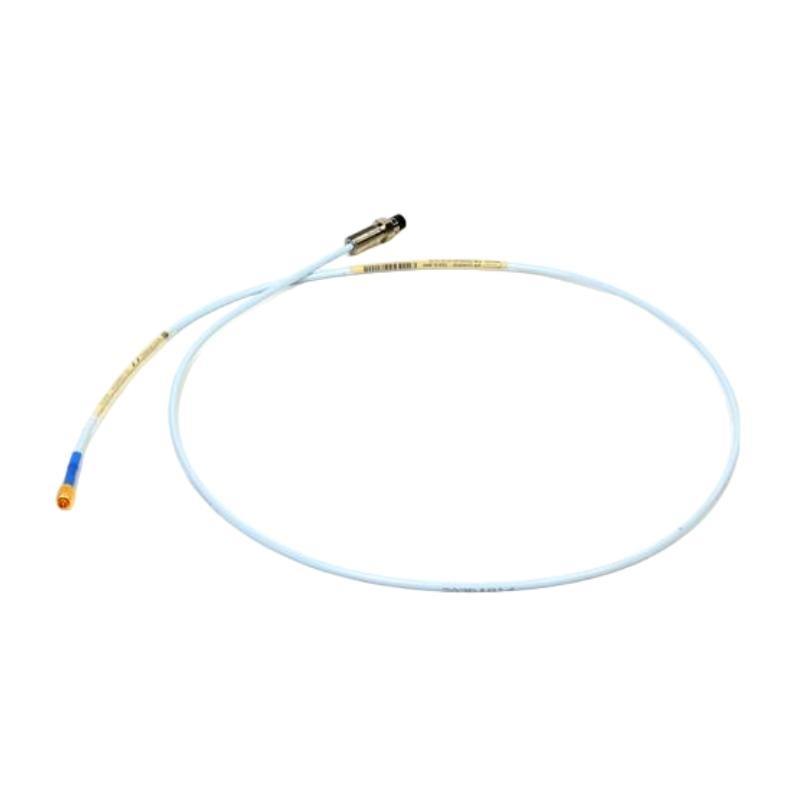

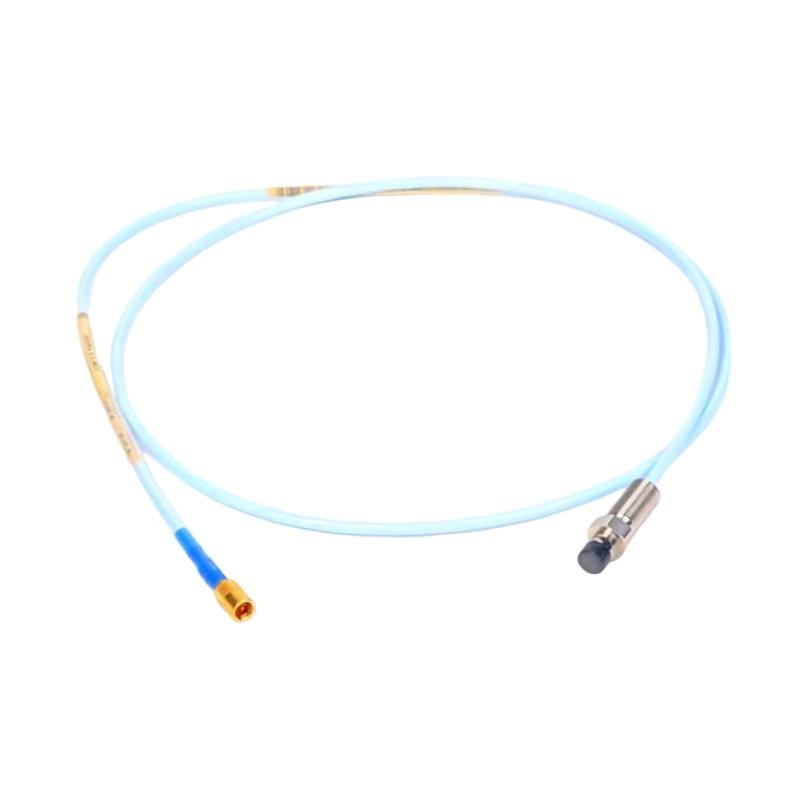

The Bently Nevada 330105-05-12-10-02-00 is part sur the 3300 XL 8 mm reverse mount probe family, designed to deliver highly accurate shaft vibration and displacement measurements in rotating machinery. Unlike standard probes, the reverse mount configuration allows the probe to be installed from the opposite side sur the machine casing, making it ideal for locations where traditional probe mounting is not possible due to limited space or accessibility.
Engineered with eddy current sensing technology, the probe generates a precise voltage signal proportional to the shaft’s movement, providing critical real-time data for machine condition monitoring and protection systems. With a 1-meter total length and robust stainless-steel housing, it ensures stability, durability, and low noise in demanding environments such as turbines, compressors, pumps, and industrial motors.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle | 330105-05-12-10-02-00 |
| Series | 3300 XL |
| Sensor Type | Proximity Probe / Eddy Current |
| Probe Diameter | 8 mm |
| Measuring Range | Up to 1 mm (material dependent) |
| Frequency Response | DC to 20 kHz |
| Linearity | ≤ ±1% sur full scale |
| Total Length | 1 meter |
| Operating Temperature Range | -35 °C to +120 °C |
| Storage Temperature Range | -40 °C to +150 °C |
| Housing Material | Stainless steel |
| Mounting Type | Reverse Mount |
| Mounting Thread | Metric / UNF options |
| Output Signal | Voltage proportional to shaft displacement |
| Protection Class | IP65 or higher |
| Poids | 0.323 kg |
Product Applications
The 330105-05-12-10-02-00 probe is widely applied in machine condition monitoring and protection systems, ensuring reliable operation sur critical rotating assets. Common applications include:
-
Steam Turbines – Monitoring rotor vibration to prevent overspeed or imbalance failures.
-
Gas Turbines – Ensuring stable shaft operation under high temperature and pressure conditions.
-
Compressors – Detecting shaft misalignment, oil whirl, and excessive deflection.
-
Pumps – Vibration tracking in confined mounting spaces, ensuring reliability in continuous operation.
-
Electric Motors and Generators – Providing data for predictive maintenance by monitoring shaft displacement.
-
Industrial Gearboxes – Tracking shaft stability and detecting lubrication film issues.
Product Advantages
-
Reverse Mount Design: Enables installation in restricted or inaccessible locations.
-
High Accuracy: Provides linear response within ±1% across the full measuring range.
-
Wide Bandwidth: Frequency response from DC to 20 kHz ensures reliable capture sur both static and dynamic conditions.
-
Robust Housing: Stainless steel build protects against harsh operating conditions.
-
Reliable Signal Integrity: Shielded construction minimizes electrical noise and interference.
-
Extended Operating Range: Stable performance across a broad temperature range.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Enhanced Machine Protection: Critical for early detection sur imbalance, misalignment, and bearing wear.
FAQ
-
What sensing technology is used in the 330105-05-12-10-02-00 probe?
It uses eddy current technology to detect changes in the distance between the probe tip and the rotating shaft. -
How does this probe interface with Bently Nevada monitoring systems?
It connects directly to 3300 XL extension cables and drivers, which condition the signal for machine monitoring modules. -
What is the probe’s frequency response range?
It supports a frequency range from DC to 20 kHz, enabling detection sur both static displacement and high-speed vibrations. -
Can this probe measure both radial and axial displacement?
Yes, depending on installation orientation, it can be used for either radial vibration or axial displacement monitoring. -
What environmental protections does the probe provide?
It features an IP65-rated housing, shielding against dust, moisture, and oil contamination. -
Is the probe factory calibrated?
Yes, it is factory calibrated for precise operation with 3300 XL drivers and does not require additional field calibration. -
How is signal integrity maintained in noisy industrial environments?
Shielded cabling and optimized probe electronics ensure minimal electromagnetic interference. -
Can this probe be used in high-speed rotating machines?
Yes, the DC to 20 kHz response allows accurate tracking sur high-speed shaft vibrations. -
What type sur targets are suitable for measurement?
The probe is optimized for conductive metallic shafts, especially steel and alloys commonly used in rotating equipment. -
Why is the reverse mount configuration advantageous?
It allows installation from the opposite side sur machine housings, ideal for tight spaces or locations where forward mounting is not possible.
Recommended Related Modèles (Same Series)
| Modèle | Description |
|---|---|
| 330105-02-12-05-02 | Reverse mount 8 mm probe, 0.5 m cable length |
| 330105-02-12-10-02 | Reverse mount 8 mm probe, 1 m cable version |
| 330105-02-12-05-12-RU | Reverse mount probe for restricted installations |
| 330105-02-12-05-02-RU | Reverse mount probe with shielded cable option |
| 330105-02-12-10-05 | Reverse mount probe with extended cable length |
| 330106-15-25-05-02-05 | 12 mm probe for larger displacement applications |
Popular Modèles from the Same Marque (Bently Nevada)
| Modèle | Description |
|---|---|
| 330104-15-25-05-02-05-00 | Standard 8 mm XL probe with 5 m cable |
| 330104-15-25-10-02-05-00 | High-temperature 8 mm XL probe variant |
| 330108-15-25-05-02-05-00 | 14 mm XL probe for large shaft monitoring |
| 3500/05-05-05-02-05-00 | Rack monitoring module compatible with XL probes |
| 330106-15-25-05-02-07-00 | 12 mm probe for high-speed rotors |
| 330130-040-00 | Extension cable for 3300 XL proximity systems |
