Présentation du produit

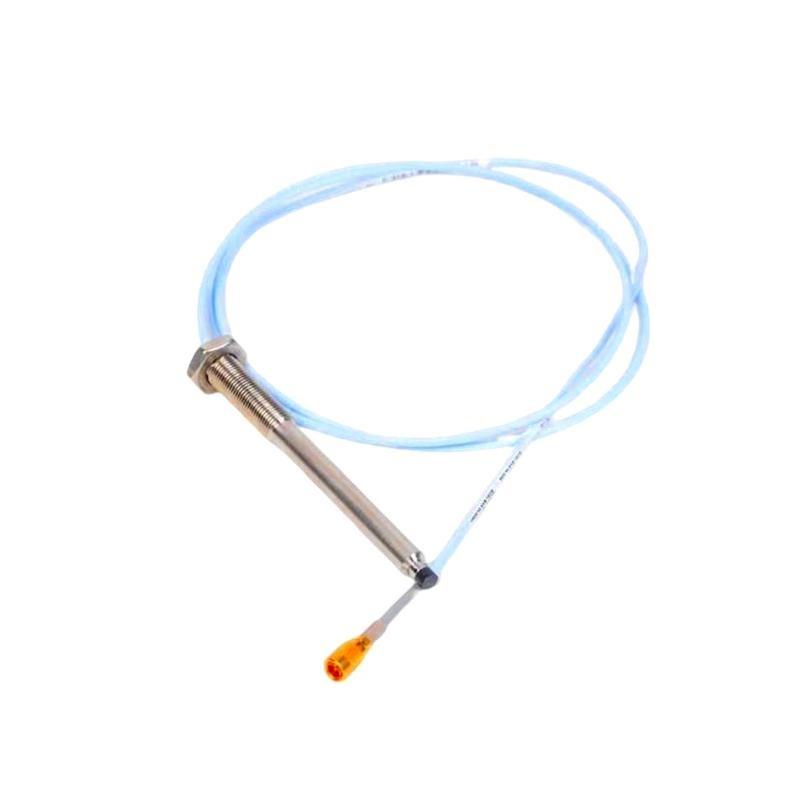

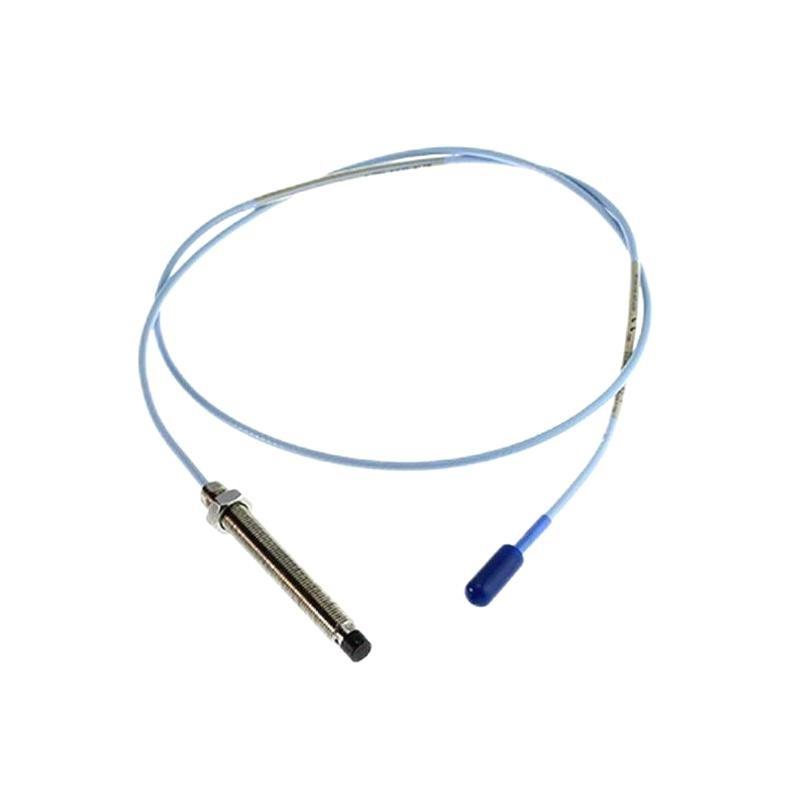

The Bently Nevada 330104-05-10-10-02-CN is a precision-engineered proximity probe from the trusted 3300 XL series, designed to monitor shaft position and vibration in critical rotating machinery. With an 8mm sensing distance, it delivers reliable and accurate measurements essential for machinery condition monitoring and predictive maintenance programs.
This probe is built to perform consistently in harsh industrial environments such as power generation, oil and gas, and manufacturing. Known for its durability and accuracy, the 3300 XL series is widely regarded as a standard in the industry for continuous machinery health monitoring.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 330104-05-10-10-02-CN |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Distance | 8 mm |
| Probe Tip Diameter | 12.7 mm (0.5 inches) |
| Probe Body Diameter | 12.7 mm (0.5 inches) |
| Total Length | 1 meter |
| Poids | 0.323 kg |
| Operating Temperature | -40°C to +120°C |
| Connector Type | MIL-C-26482 or equivalent |
| Output Signal | AC variable voltage proportional to gap |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded mounting (M12 x 1.5) |
Applications
-
Power Generation: Turbine and generator shaft position and vibration monitoring to prevent failures.
-
Oil and Gas Industry: Monitoring compressors, pumps, and other rotating equipment.
-
Manufacturing Plants: État monitoring sur motors, fans, and industrial pumps.
-
Hydroelectric Facilities: Precise shaft position monitoring to ensure safe operation.
-
Aerospace Testing: Equipment monitoring in test rigs and rotating machinery.
-
Mining: Reliable shaft and vibration monitoring in harsh environments.
Advantages
-
Accurate Sensing: 8mm sensing distance provides precise measurement for early fault detection.
-
Robust Design: Stainless steel construction and IP67 rating protect against dust, moisture, and mechanical damage.
-
Wide Temperature Range: Operates reliably from -40°C to +120°C.
-
Secure Electrical Connection: MIL-C-26482 connector ensures vibration-prosur and reliable signal transmission.
-
Ease sur Installation: Threaded M12 x 1.5 mounting allows for quick and secure setup.
-
Customizable Cable Length: Cable lengths can be tailored to specific installation requirements.
-
Proven Reliability: Part sur the industry-standard 3300 XL series with extensive field validation.
-
Consistent Output Signal: Provides a stable AC voltage proportional to the gap between probe and target.
Questions fréquentes (FAQ)
-
What is the sensing distance sur the 330104-05-10-10-02-CN probe?
The sensing distance is 8 mm for precise shaft monitoring. -
Which industries commonly utilize this probe?
Power generation, oil and gas, manufacturing, hydroelectric, aerospace, and mining industries. -
What is the default total length?
The standard total length is 1 meter, with custom lengths available. -
What type sur signal output does this probe generate?
An AC voltage signal that varies proportionally to the probe-to-target distance. -
How is the probe mounted?
It uses a threaded M12 x 1.5 connection for mounting. -
Is this probe suited for harsh environmental conditions?
Yes, it has an IP67 rating and operates between -40°C and +120°C. -
Can this probe be integrated with all 3300 XL systems?
Yes, it is fully compatible with Bently Nevada 3300 XL monitoring systems. -
What maintenance is required?
Periodic inspection and cleaning sur the probe tip to maintain measurement accuracy. -
Are custom cable lengths available?
Yes, cable lengths can be customized to suit installation needs. -
Is this probe suitable for use in hazardous locations?
Yes, when installed with proper certifications and safety measures, it can be used in hazardous environments.
Recommended Related Modèles (Same Series or Related Proximity Probes)
| Modèle Number | Sensing Distance | Probe Diameter | Cable Length | Poids (kg) | Notes |
|---|---|---|---|---|---|
| 330101-00-40-10-12-05 | 8 mm | 12.7 mm | 2 m | 0.3 | Standard 8 mm proximity probe |
| 330103-00-40-10-12-05 | 12 mm | 12.7 mm | 2 m | 0.32 | Extended sensing distance |
| 330106-00-40-10-12-05 | 8 mm | 8 mm | 2 m | 0.28 | Smaller probe diameter |
| 330120-00-40-10-12-05 | 10 mm | 12.7 mm | 3 m | 0.35 | Longer cable option |
| 330130-00-40-10-12-05 | 8 mm | 12.7 mm | 5 m | 0.4 | Extended cable length |
| 330140-00-40-10-12-05 | 15 mm | 12.7 mm | 2 m | 0.36 | Maximum sensing distance in series |
Popular Bently Nevada Modèles (Widely Used Proximity Probes and Monitoring Equipment)
| Modèle Number | Product Type | Sensing Distance | Dimensions (mm) | Poids (kg) | Application Area |
|---|---|---|---|---|---|
| 330101-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 12.7 mm | 0.3 | Standard 3300 XL probe |
| 330103-00-40-10-12-01 | Proximity Probe | 12 mm | 150 x 12.7 mm | 0.32 | Extended sensing distance |
| 330141-00-40-10-12-01 | Proximity Probe | 20 mm | 150 x 12.7 mm | 0.38 | High sensing distance |
| 330200-00-00-00-00-01 | Vibration Transducer | N/A | 40 x 25 x 25 mm | 0.15 | Vibration measurement |
| 3500/05-00-00-00-00-00 | 3500 Series Monitor | N/A | 440 x 600 x 220 mm | 15 | Machinery protection system |
| 330106-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 8 mm | 0.28 | Smaller diameter probe |
