Présentation du produit

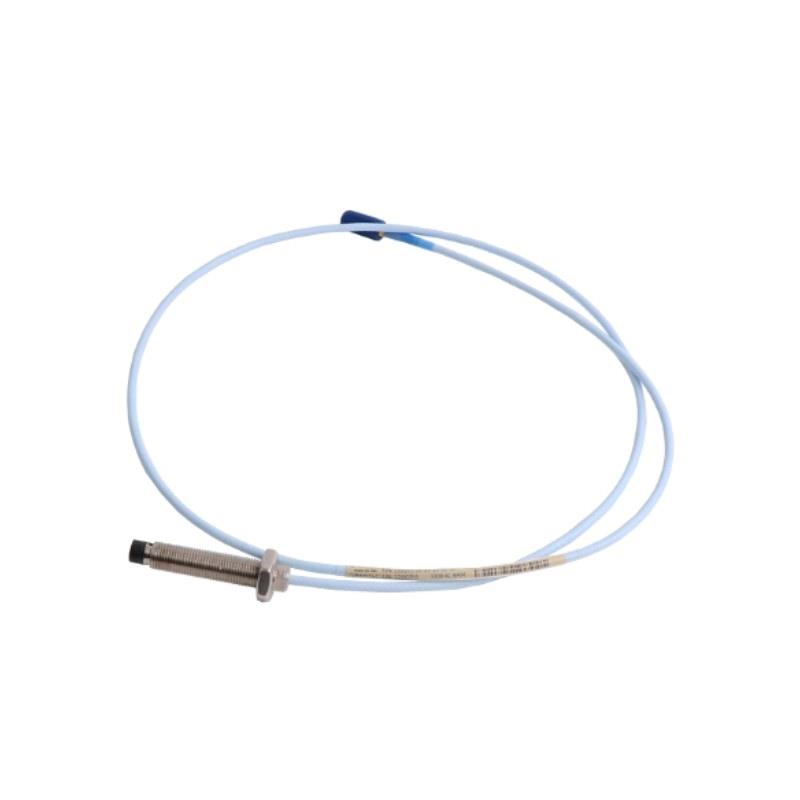

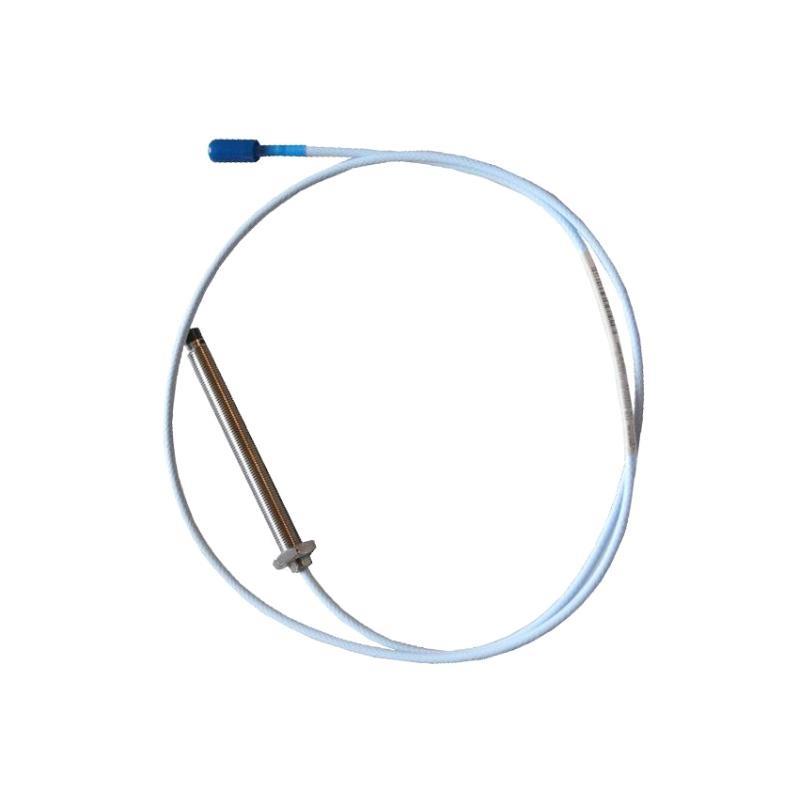

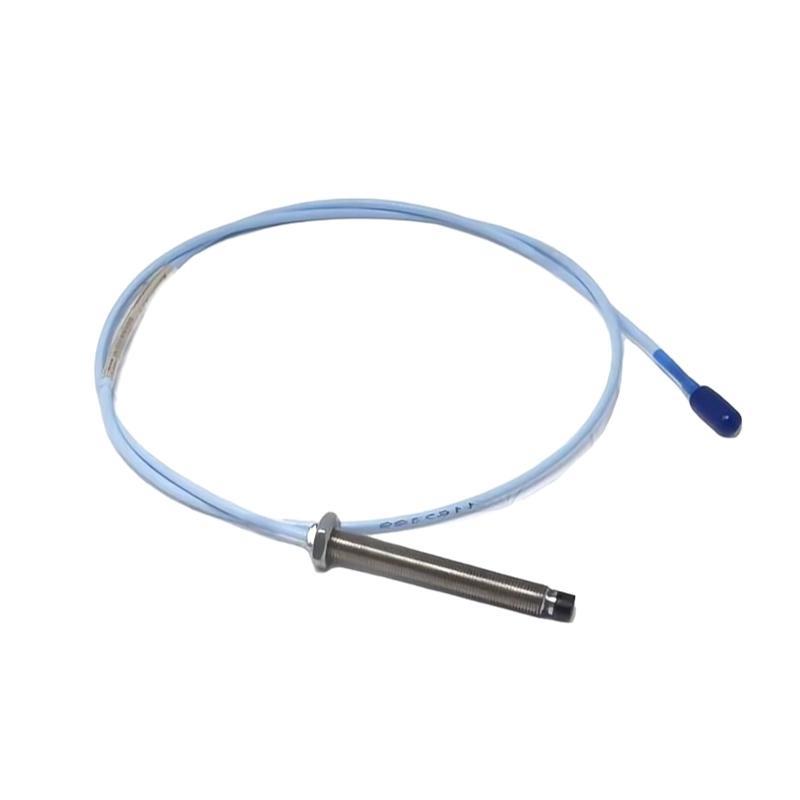

The Bently Nevada 330104-01-05-50-02-02 3300 XL 8 mm Proximity Probe is a high-precision, non-contact eddy current sensor engineered for critical monitoring sur rotating machinery. Part sur the 3300 XL series, this probe delivers precise measurements sur shaft displacement and vibration, providing essential data for machine protection, predictive maintenance, and operational optimization.
With an 8 mm probe diameter and a total cable length sur 5 meters, the probe allows flexible installation in large industrial machinery or complex plant layouts. Its stainless steel housing and mineral-insulated cable ensure reliable operation under vibration, temperature extremes, and electromagnetic interference. Designed for integration with Bently Nevada 3300 XL monitoring systems, it provides continuous, high-fidelity signals essential for early fault detection and machinery protection.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 330104-01-05-50-02-02 |
| Product Type | 8 mm Eddy Current Proximity Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Total Cable Length | 5 meters |
| Measurement Range | Up to 1.27 mm (dependent on system configuration) |
| Linear Range | ±10% sur calibrated gap |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 20 mV/µm (typical with 3300 XL monitoring system) |
| Resolution | <0.5 µm |
| Operating Temperature | -40°C to +120°C (probe head) |
| Storage Temperature | -50°C to +150°C |
| Probe Material | Stainless steel housing with mineral-insulated cable |
| Humidity | 0–95% non-condensing |
| Certifications | CE, UL, CSA |
| Poids | 1.615 kg |
| Mounting | Threaded sleeve or custom machinery mounting |
| Compatibility | Bently Nevada 3300 XL Series Monitoring Systems |
Applications
The 330104-01-05-50-02-02 probe is designed for precise monitoring in industrial machinery where shaft displacement and vibration data are critical:
-
Steam and Gas Turbines – Measures shaft displacement for imbalance, misalignment, and rotor instability detection.
-
Compressors – Monitors rotor vibration and shaft position for safe, efficient operation.
-
Pumps – Detects cavitation, bearing wear, and shaft deflection.
-
Generators and Motors – Ensures smooth operation and early anomaly detection.
-
Petrochemical and Refinery Plants – Performs reliably in harsh and high-vibration environments.
-
Machine Protection Systems – Supports API 670-compliant condition monitoring and protection.
Advantages
The Bently Nevada 330104-01-05-50-02-02 8 mm Probe surfers numerous operational advantages:
-
High Accuracy – Precise measurement sur displacement and vibration with excellent linearity.
-
Rugged Construction – Stainless steel housing and mineral-insulated cable resist harsh industrial conditions.
-
Wide Frequency Response – Detects both low-speed and high-speed vibrations.
-
Seamless Integration – Works directly with 3300 XL monitoring systems for real-time machine protection.
-
Maintenance-Free Operation – Non-contact design reduces wear and maintenance needs.
-
Temperature and Vibration Resistant – Operates reliably in extreme conditions.
-
Predictive Maintenance Support – Early detection sur anomalies prevents unplanned downtime.
-
Flexible Installation – Long 5-meter cable supports installation across large machinery or complex layouts.
Questions fréquentes (FAQ)
-
Which monitoring systems is this probe compatible with?
This probe integrates fully with Bently Nevada 3300 XL monitoring systems, providing linearized displacement and vibration signals. -
What is the nominal sensitivity sur this probe?
The probe has a nominal sensitivity sur approximately 20 mV/µm when used with a 3300 XL monitoring system. -
What frequency range can the probe measure?
It operates from DC to 10 kHz, covering both low-speed and high-speed machinery vibrations. -
What is the operating temperature range sur the probe head?
Reliable operation is maintained between -40°C and +120°C while ensuring measurement accuracy. -
Can this probe be used in high-humidity or industrial environments?
Yes, it is rated for 0–95% non-condensing humidity and designed for harsh industrial conditions. -
What is the linear measurement range?
±10% sur the calibrated gap provides proportional and accurate output. -
Does this probe require external power?
No, power and signal conditioning are provided by the 3300 XL monitoring system. -
Is this probe suitable for API 670-compliant protection systems?
Yes, it integrates seamlessly into API 670-compliant monitoring and protection platforms. -
Does cable length affect measurement accuracy?
The probe is calibrated for its 5-meter cable; proper cable length ensures signal fidelity and accurate readings. -
What mounting options are recommended for installation?
Threaded sleeve or custom machinery mounting is recommended to maintain alignment and calibration.
Related Modèles (Same Series)
| Modèle Number | Probe Type | Description |
|---|---|---|
| 330104-01-05-50-02-01 | 8 mm Proximity Probe | Standard 3300 XL probe with 3-meter cable |
| 330104-01-05-50-02-03 | 8 mm Proximity Probe | High-temperature variant |
| 330104-01-05-50-02-04 | 8 mm Proximity Probe | Extra-flexible cable version |
| 330105-01-05-50-02-02 | 8 mm Proximity Probe | High-sensitivity configuration |
| 330106-01-05-50-02-02 | 8 mm Proximity Probe | API 670-compliant variant |
| 330104-01-05-50-02-05 | 8 mm Proximity Probe | Extended linear range version |
Popular Modèles from the Same Marque (Bently Nevada)
| Modèle Number | Product Type | Description |
|---|---|---|
| 330104-01-05-50-01 | 8 mm Proximity Probe | Standard 3300 XL probe for turbines and compressors |
| 330104-01-05-50-03 | 8 mm Proximity Probe | High-accuracy probe for critical machinery |
| 330105-01-05-50-01 | 8 mm Proximity Probe | High-sensitivity version for vibration monitoring |
| 330130-01-05 | 3300 XL Proximity Probe | Compact probe for smaller machinery |
| 330140-01-05 | 3300 XL Proximity Probe | Extended range probe for large turbines |
| 330150-01-05 | 3300 XL Proximity Probe | API 670-compliant probe for generators |
