Product Overview

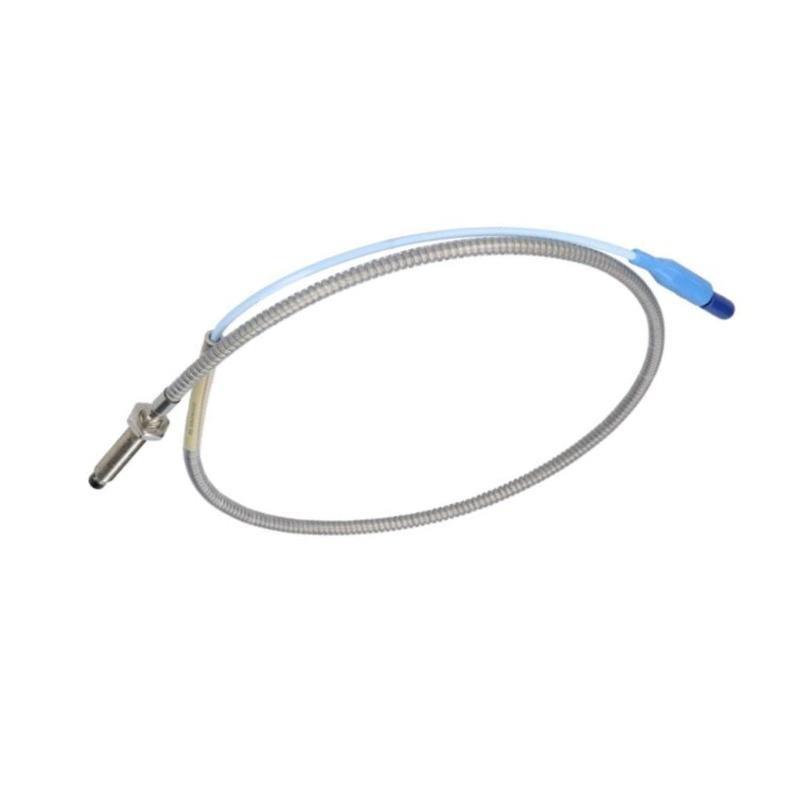

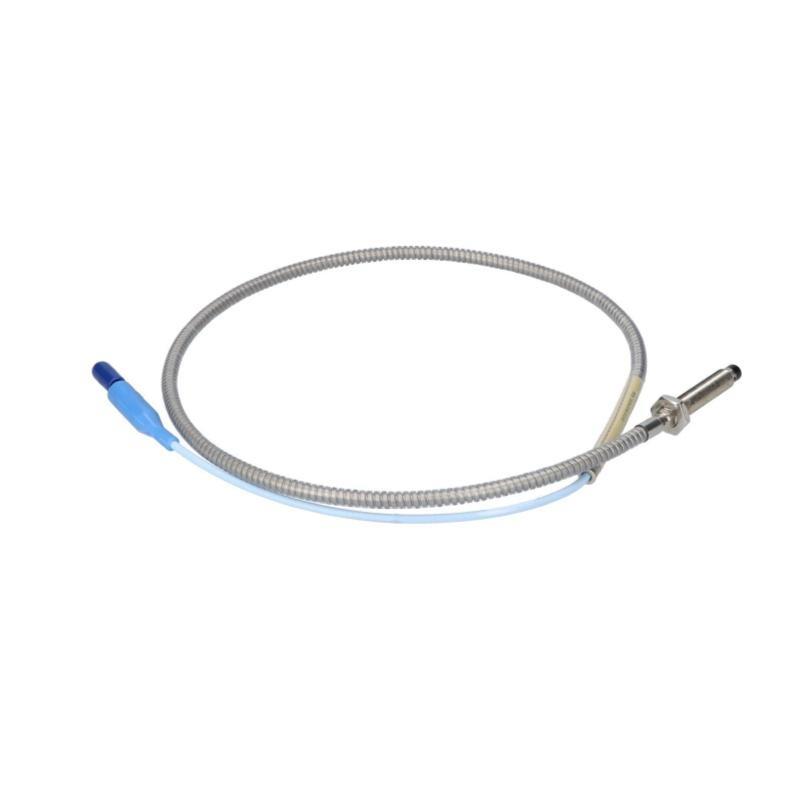

The Bently Nevada 330104-00-25-10-02-CN is a premium proximity probe from the trusted 3300 XL 8 mm series, designed for continuous, non-contact measurement sur shaft vibration and position in rotating machinery. With its reliable eddy current sensing technology and rugged build, it is well-suited for harsh industrial environments and demanding process conditions.
This model is manufactured for the China market (indicated by “CN”) and features a probe cable length sur 25 meters, an extension cable length sur 10 meters, and a connector cable length sur 2 meters, making it ideal for applications that require long-distance monitoring without compromising accuracy.
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | 330104-00-25-10-02-CN |
| Series | 3300 XL |
| Sensing Technology | Eddy Current (Non-contact) |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | -200 mV/mm (typical) |
| Output Voltage | -200 mV to -22 V |
| Frequency Response | Up to 10 kHz |
| Target Material | Calibrated for AISI 4140 steel |
| Connector Type | 3-pin, 3300 XL standard |
| Environmental Rating | IP68, Hermetically Sealed |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Housing Material | AISI 304 Stainless Steel |
| Dimensions | Total Length : 1.0 meter |
| Poids | 0.323 kg |
| Compliance | CE, RoHS (for China market) |
Industry Applications
-
Oil & Gas: Shaft vibration monitoring in turbines and pumps
-
Power Generation: Generator and turbine shaft position analysis
-
Petrochemical Industry: État-based maintenance sur compressors
-
Steel & Mining: Continuous monitoring sur rotating machinery
-
Paper Manufacturing: Roller alignment and bearing displacement
-
Marine Systems: Propulsion shaft diagnostics
Key Advantages
-
Long Probe Length: 25 m cable allows flexible routing and remote monitoring
-
Accurate Vibration Sensing: Reliable -200 mV/mm sensitivity across full range
-
Robust Construction: Designed for high-vibration and high-temperature applications
-
IP68 Protection: Fully sealed for submersion and dusty environments
-
Factory Calibrated: Optimized for AISI 4140 shaft materials
-
China-Specific Modèle: Certified and marked for use in Chinese industrial environments
-
Compatible Design: Integrates with 3300 XL series extension cables and monitors
-
Stable Performance: Minimal drift over time or temperature variations
-
Fast Response Time: Suitable for high-speed rotating machinery
-
Easy to Install: Standard thread, connector, and compact design
Questions fréquentes (FAQ)
-
What are the cable lengths sur this model?
It includes a 25 m probe cable, 10 m extension cable, and 2 m connector. -
What makes this a “CN” model?
The “CN” suffix designates that it is certified and configured for use in China. -
Is this probe suitable for wet environments?
Yes, it is IP68 rated and fully sealed. -
Which material is the probe calibrated for?
It is factory-calibrated for AISI 4140 steel. -
Can this be used with legacy Bently Nevada monitors?
Yes, it is compatible with 3300 XL system components. -
Does this model require recalibration on-site?
No, it comes factory-calibrated for common shaft materials. -
What’s the typical linear measurement range?
From 0.25 mm to 2.0 mm. -
What output voltage does it generate?
From -200 mV up to -22 V, depending on target displacement. -
What industries use this model?
Common in oil & gas, power generation, mining, and manufacturing. -
Is the connector standardized?
Yes, it uses the standard 3-pin 3300 XL connector.
Recommended Related Modèles
| Modèle Number | Description |
|---|---|
| 330104-00-23-10-02-00 | 23 m probe / 10 m extension / 2 m connector |
| 330104-00-22-10-02-CN | 22 m probe / 10 m extension / 2 m connector (China version) |
| 330104-00-20-10-11-05 | 20 m probe / 10 m extension / 11 m connector |
| 330104-00-18-10-02-CN | 18 m probe / 10 m extension / 2 m connector (China version) |
| 330130-045-01-05 | 4.5 m Extension Cable for 3300 XL Probes |
Popular Bently Nevada Modèles
| Modèle Number | Product Name |
|---|---|
| 330104-01-08-50-01-CN | High-temperature 8 mm Probe (China version) |
| 330104-00-07-10-02-05 | 7 m probe / 10 m extension / 2 m connector |
| 330104-04-10-05-02-05 | 3300 XL probe with high-temp protection |
| 330130-080-00-00 | 8 m Extension Cable |
| 3300 XL Monitor | Bently Nevada vibration/displacement monitoring system |
