Product Overview

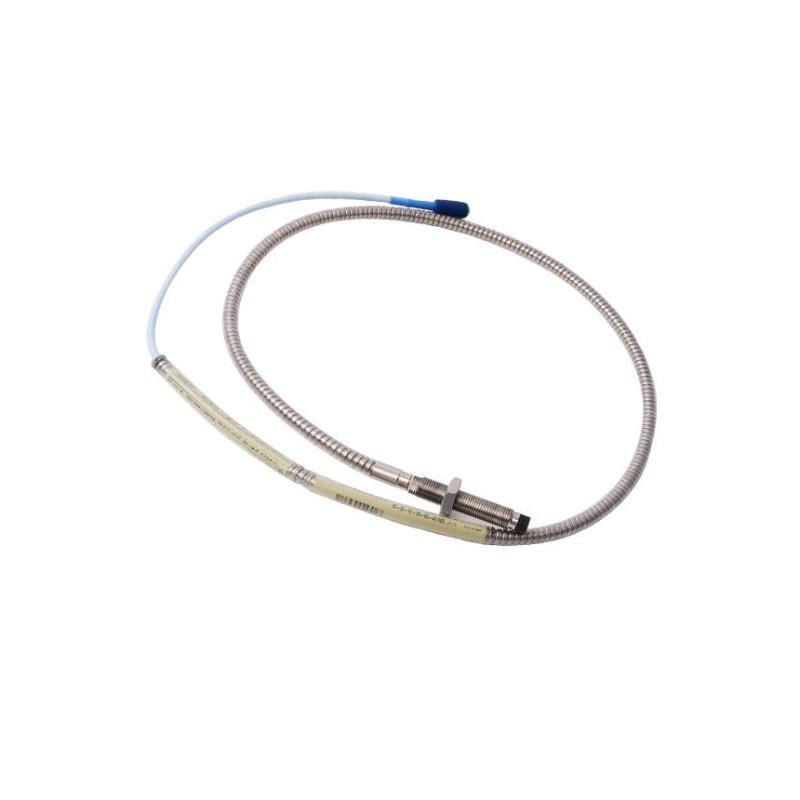

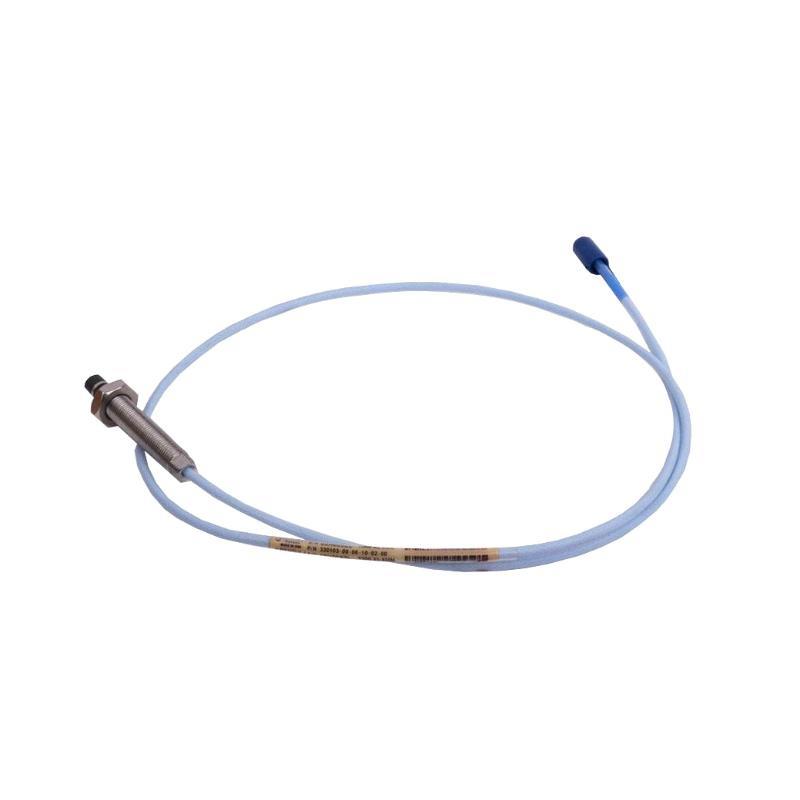

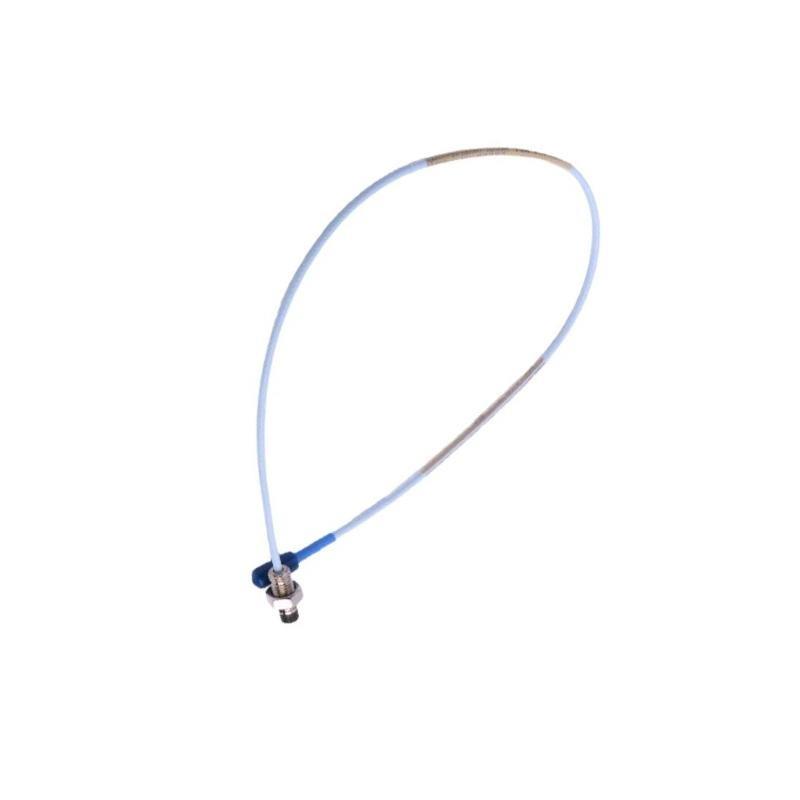

The Bently Nevada 330104-00-16-05-02-05 is a high-reliability proximity probe from the 3300 XL series, designed for precise non-contact measurement sur shaft vibration and position in industrial rotating equipment. Featuring a straight probe body, a 16-meter integral cable, and a ClickLoc™ connector, this model ensures secure, robust connections even in harsh operating environments.
Engineered to meet API 670 standards, it is widely used in power generation, oil and gas, petrochemical, and heavy manufacturing industries for critical machinery protection and condition monitoring.
Key Features
-
Non-contact eddy current sensing for vibration and position monitoring
-
8 mm probe tip diameter with straight body design
-
Long 16-meter integral cable for flexible installation
-
ClickLoc™ keyed connector prevents loosening from vibration
-
1/4-28 UNF-2A threaded mounting for secure installation
-
Operates reliably in harsh industrial environments with high temperature and vibration
-
Fully compatible with Bently Nevada 3300 XL Proximitor Sensors and Extension Cables
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | 330104-00-16-05-02-05 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Body Style | Straight |
| Thread Size | 1/4-28 UNF-2A |
| Cable Length | 16.0 meters |
| Connector Type | ClickLoc™ keyed connector |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil), nominal |
| Frequency Response | 0 to 10 kHz |
| Target Material | Ferromagnetic (e.g., steel shafts) |
| Operating Temperature | –51°C to +177°C (–60°F to +350°F) |
| System Compatibility | Compatible with 3300 XL Extension Cable and Proximitor Sensor |
| Dimensions | Total Length : 0.5 meter |
| Poids | 0.161 kg |
Industry Applications
-
Turbomachinery including gas and steam turbines
-
Compressors, pumps, and motors
-
Petrochemical and refining plants
-
Power generation facilities
-
Industrial gearboxes and rotating equipment
Product Advantages
-
Secure Connections: ClickLoc™ keyed connector prevents accidental disconnection due to vibration
-
Extended Cable Length: 16 meters for flexible sensor placement in large machinery setups
-
High Durability: Designed to perform reliably under extreme temperatures and industrial conditions
-
Precise Measurement: Provides accurate, linear output for vibration and position monitoring
-
API 670 Compliance: Meets industry standards for machinery protection systems
-
Easy Integration: Fully compatible with Bently Nevada 3300 XL system components
Questions fréquentes (FAQ)
-
What is the length sur the integral cable?
The probe has a 16-meter integral cable. -
What connector type is used on this probe?
It features the ClickLoc™ keyed connector. -
Is this probe suitable for high-temperature environments?
Yes, it operates between –51°C and +177°C. -
What is the linear sensing range sur this probe?
The linear range is 2 mm (80 mils). -
What mounting thread does it use?
1/4-28 UNF-2A threaded mounting. -
Can this probe be used with standard 3300 XL Proximitor Sensors?
Yes, it is fully compatible. -
What type sur targets can this probe detect?
Ferromagnetic materials such as steel shafts. -
Does the ClickLoc™ connector improve reliability?
Yes, it prevents loosening and ensures a vibration-resistant connection. -
Is this probe API 670 compliant?
Yes, it meets all relevant standards. -
What industries commonly use this model?
Power generation, petrochemical, oil and gas, and heavy industry.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330104-00-14-10-02-05 | 14-meter cable with ClickLoc™ connector |
| 330104-00-12-10-02-CN | 12-meter cable, China-compliant version |
| 330104-00-08-10-02-05 | 8-meter cable with ClickLoc™ connector |
| 330104-00-07-10-02-05 | 7-meter cable with ClickLoc™ connector |
| 330104-00-05-10-12-05 | 5-meter cable with ClickLoc™ connector |
Popular Bently Nevada Components
| Modèle Number | Description |
|---|---|
| 330130-080-00-00 | 8-meter 3300 XL Extension Cable |
| 330180-90-00 | 3300 XL Proximitor Sensor |
| 3500/42M-01-00 | Proximitor Monitor Module |
| 21000-16-05-00-065-04-02 | 3300 XL Proximity Probe Housing Assembly |
| 330103-00-07-05-12-05 | 7-meter probe with smaller thread and ClickLoc™ |
