Product Overview

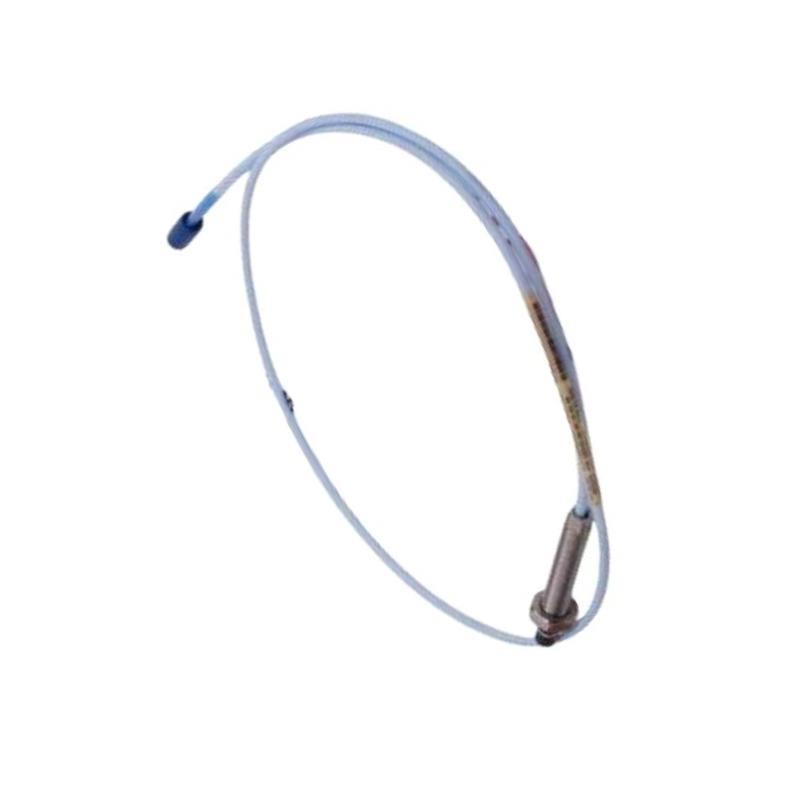

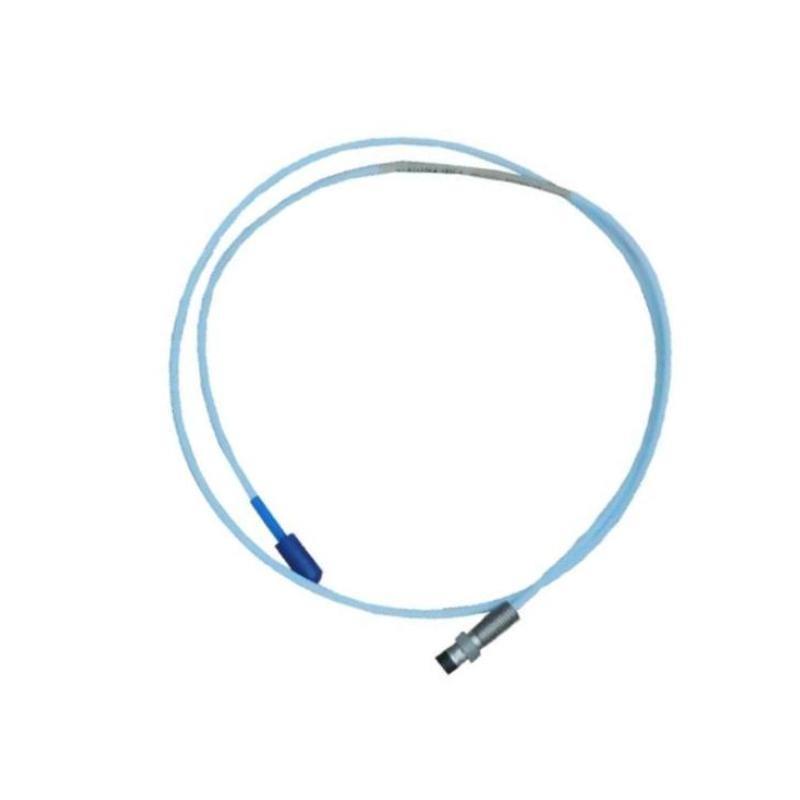

The Bently Nevada 330104-00-12-10-02-05 is a high-performance proximity probe from the 3300 XL 8 mm series, engineered for reliable, non-contact monitoring sur rotating machinery. Designed to deliver precise shaft displacement measurements, this probe plays a critical role in predictive maintenance and machinery protection systems.
Built with robust materials and designed to function in harsh industrial environments, this model ensures stable, linear output across a wide temperature and frequency range. The 330104-00-12-10-02-05 variant includes a 12 ft probe cable and a straight connector configuration, making it suitable for standard mounting applications.
Key Features
-
Non-contact Shaft Monitoring: Utilizes eddy current technology for precise distance measurement between probe and target.
-
8 mm Tip Design: Ensures broad linear range and high sensitivity.
-
Temperature-Resistant: Capable sur operating in extreme industrial conditions up to +177°C.
-
Rugged Housing: Stainless steel construction surfers durability against corrosion and wear.
-
Compatible System Integration: Seamlessly works with 3300 XL extension cables and drivers.
-
Straight Connector Boot: Allows easy routing and installation in constrained spaces.
Technical Specifications
| Item | Specification |
|---|---|
| Modèle | 330104-00-12-10-02-05 |
| Series | 3300 XL |
| Measurement Principle | Eddy current |
| Cable Length | 12 ft (3.66 m) |
| Connector Type | Straight connector boot |
| Output Type | Voltage signal (proportional to shaft gap) |
| Frequency Response | 0 to 4000 Hz |
| Operating Temperature | -40°C to +177°C |
| Mounting Thread | 3/8-24 UNF-2A |
| Material | Stainless steel |
| Ingress Protection | IP66 (when properly sealed) |
| Dimensions | Total Length : 1.0 meter |
| Poids | 0.323 kg |
Industry Applications
The 330104-00-12-10-02-05 probe is widely used in critical industrial settings for continuous machinery health monitoring:
-
Turbomachinery in Power Plants
-
Compressors and Pumps in Oil & Gas Facilities
-
Motors and Fans in Chemical Processing
-
Rolling Equipment in Steel and Metal Manufacturing
-
High-Speed Machines in Pulp & Paper Mills
-
Diesel Engines and Generators in Marine Applications
Advantages
-
Early Fault Detection: Identifies bearing wear, misalignment, or shaft rubs before failure occurs.
-
Reliable Performance: Consistent accuracy across a wide temperature and vibration range.
-
Reduced Downtime: Supports predictive maintenance and operational planning.
-
Flexible Configuration: Works with a range sur drivers and extension cables.
-
Compact Design: Fits into space-constrained applications.
-
Field-Proven Durability: Trusted in long-term industrial deployments worldwide.
Questions fréquentes (FAQ)
-
What is the total cable length included with this model?
The probe includes a 12-foot (3.66-meter) integral cable. -
Can this proximity probe be used in high-temperature environments?
Yes, it operates reliably up to +177°C. -
What type sur connector is used on this probe?
It features a straight connector boot, ideal for direct routing. -
Is this probe suitable for outdoor or harsh environments?
Yes, when installed correctly, it achieves IP66-rated protection. -
What types sur machines can this probe monitor?
It is designed for rotating machinery such as turbines, pumps, motors, and compressors. -
Is the output signal analog or digital?
The probe provides an analog voltage signal proportional to shaft-to-probe distance. -
What is the mounting thread for this model?
The mounting thread is 3/8-24 UNF-2A. -
Does the probe need recalibration?
No recalibration is typically required under normal operating conditions. -
Is this probe backward compatible with older Bently Nevada systems?
Yes, it is compatible with most legacy and current 3300 series systems. -
Can this probe detect both static and dynamic shaft movements?
Yes, it is capable sur monitoring both static shaft position and dynamic vibration.
Related Modèles
| Modèle | Description |
|---|---|
| 330104-00-18-10-02-05 | 18 ft cable, straight connector |
| 330104-01-05-05-02-05 | Enhanced tip probe, short cable |
| 330104-00-07-10-02-00 | Short cable, compact configuration |
| 330104-01-05-50-02-00 | Long-range 3300 XL probe |
| 330104-01-05-05-02-00 | Standard tip, straight boot, 5 ft cable |
| 330130-045-01-05 | Matching 4.5 m 3300 XL extension cable |
