Présentation du produit

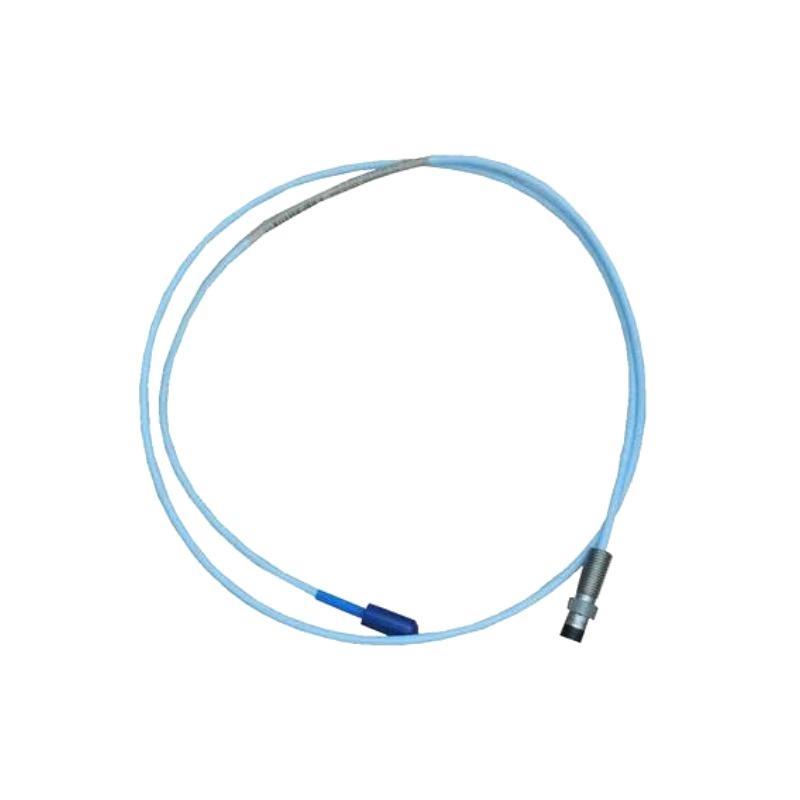

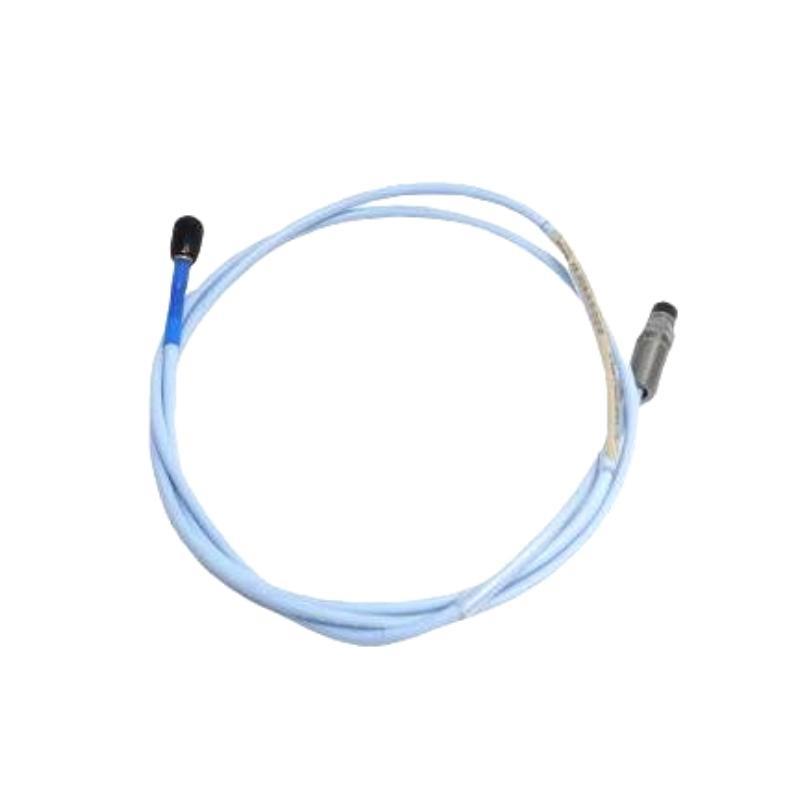

The Bently Nevada 330104-00-06-10-01-05 3300 XL 8 mm Proximity Probe is an advanced vibration monitoring component designed for precision machinery protection and condition monitoring systems. It belongs to the widely used 3300 XL 8 mm proximity probe series, recognized for their stability, accuracy, and durability in harsh industrial environments. This probe is engineered to detect the relative motion and position sur rotating machinery shafts, delivering critical input for predictive maintenance and machine health diagnostics. Its rugged construction, robust shielding against electromagnetic interference, and optimized design make it suitable for use in a broad range sur industrial applications including turbines, compressors, motors, and pumps.
Product Parameters
| Parameter | Description |
|---|---|
| Modèle Number | 330104-00-06-10-01-05 |
| Series | 3300 XL 8 mm Proximity Probes |
| Probe Tip Diameter | 8 mm (standard XL probe design) |
| Total Length | 1 meter |
| Poids | 0.323 kg |
| Probe Body Material | Stainless steel, corrosion-resistant |
| Operating Temperature | -35 °C to +177 °C (probe) |
| Linear Range | 2 mm to 4 mm (depending on configuration) |
| Sensitivity | Nominal 200 mV/mil (7.87 mV/μm) |
| Frequency Range | 0 to 10 kHz |
| Mounting Thread | M10 × 1 or 3/8″-24 UNF (depending on variant) |
| Insulation Resistance | > 10^8 Ω |
| Cable Type | Integral coaxial cable with robust insulation |
| Compliance | Meets API 670 standards for machinery protection |
Product Applications
The Bently Nevada 330104-00-06-10-01-05 probe is applied in critical rotating machinery where high precision shaft vibration and displacement measurements are essential.
-
Turbomachinery: Gas and steam turbines, ensuring real-time monitoring for imbalance, misalignment, or bearing wear.
-
Compressors: Protecting against excessive shaft vibration and preventing mechanical failures.
-
Motors & Generators: Monitoring rotor dynamics to ensure stable operation.
-
Pumps: Detecting cavitation, imbalance, and early-stage mechanical issues.
-
Industrial Gearboxes: Providing diagnostic insight into gear health and shaft movement.
-
Process Equipment: Supporting condition monitoring in petrochemical, power generation, and manufacturing industries.
Product Advantages
-
High Accuracy: Provides precise measurements sur shaft vibration and displacement.
-
Reliability in Harsh États: Resistant to high temperatures, electromagnetic interference, and contamination.
-
Standardized API 670 Compliance: Ensures compatibility with industrial safety and protection standards.
-
Durable Construction: Stainless steel body ensures long service in rugged environments.
-
Wide Compatibility: Fully compatible with 3300 XL extension cables and Proximitor sensors.
-
Predictive Maintenance Support: Enables early fault detection, minimizing downtime and extending equipment life.
FAQ
-
What is the typical sensitivity sur the 3300 XL 8 mm probe?
The probe typically provides a sensitivity sur 200 mV/mil (7.87 mV/μm). -
Can this probe be used with existing 3300 XL extension cables and Proximitor sensors?
Yes, it is designed for full backward compatibility with the 3300 XL family. -
What is the linear measurement range sur this probe?
It supports a linear range sur approximately 2 mm to 4 mm depending on setup. -
How does this probe handle electromagnetic interference?
The probe incorporates robust shielding to minimize EMI, ensuring stable readings. -
Is the probe compliant with API 670 standards?
Yes, it meets API 670 requirements for machinery protection systems. -
What is the maximum operating temperature sur this probe?
The probe can operate up to +177 °C. -
What type sur cable is used with this probe?
It features an integral coaxial cable designed for durability and signal integrity. -
How does this probe improve predictive maintenance strategies?
By providing accurate vibration data, it enables early detection sur imbalance, misalignment, and bearing wear. -
Is it suitable for high-speed rotating machinery?
Yes, its frequency response range (0–10 kHz) supports high-speed applications. -
What mounting options are available for this probe?
It can be mounted using M10 × 1 or 3/8″-24 UNF threaded fittings.
Recommended Related Modèles (Same Series)
| Modèle Number | Description | Cable Length | Poids |
|---|---|---|---|
| 330104-00-05-20-01-05 | 3300 XL 8 mm Proximity Probe | 2 m | 0.646 kg |
| 330104-00-05-50-02-RU | 3300 XL 8 mm Proximity Probe | 5 m | 1.615 kg |
| 330104-00-06-05-01 | 3300 XL 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330104-00-06-05-02-05 | 3300 XL 8 mm Proximity Probe | 0.5 m | 0.162 kg |
| 330104-00-06-10-01-05 | 3300 XL 8 mm Proximity Probe | 1 m | 0.323 kg |
| 330104-00-05-50-12-00 | 3300 XL 8 mm Proximity Probe | 5 m | 1.615 kg |
Recommended Popular Modèles (Same Marque)
| Modèle Number | Description | Application Focus |
|---|---|---|
| 330130-040-00 | 3300 XL 11 mm Proximity Probe | Large shaft vibration monitoring |
| 330103-00-07-10-02-05 | 3300 XL 5 mm Proximity Probe | Compact machinery |
| 3500/42M | Proximitor/Seismic Monitor | Advanced vibration monitoring |
| 3500/22M | Transient Data Interface Module | System communication interface |
| 3500/50 | Tachometer Module | Speed and phase measurement |
| 330780-91-05 | Proximitor Sensor | Compatible with 3300 XL probes |
