Product Overview

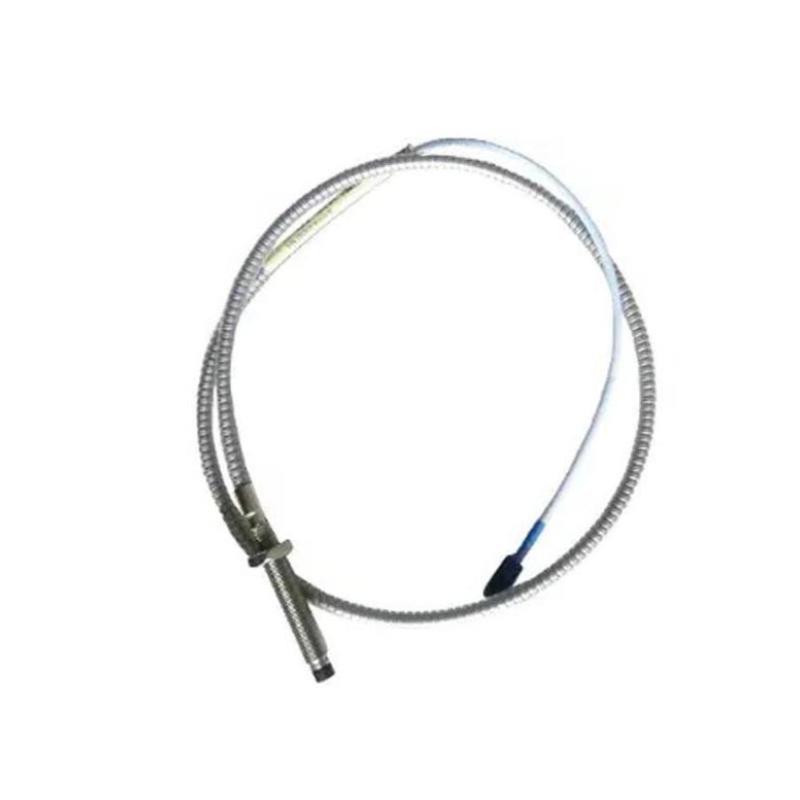

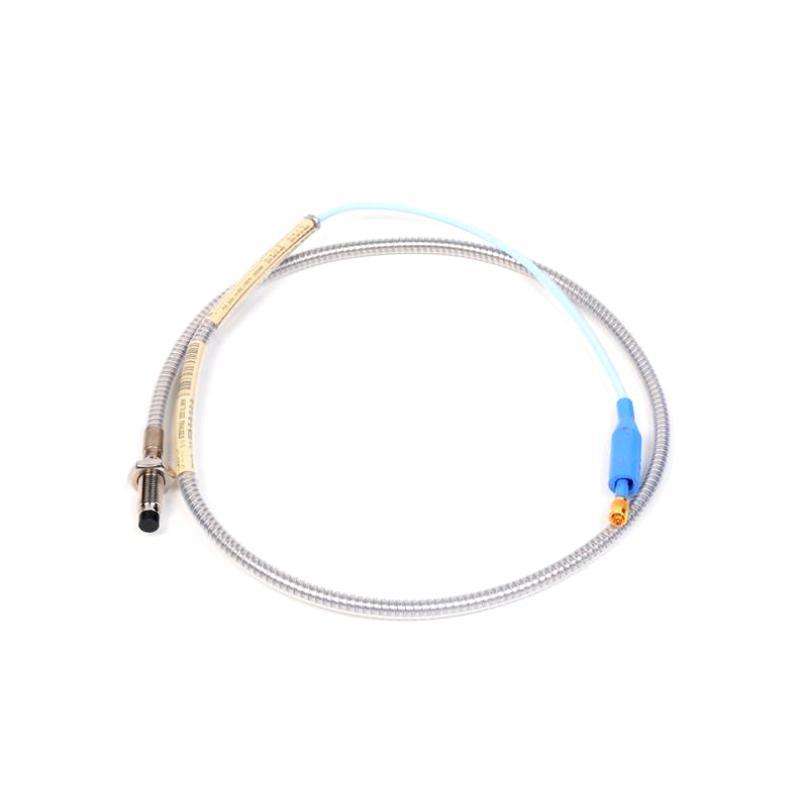

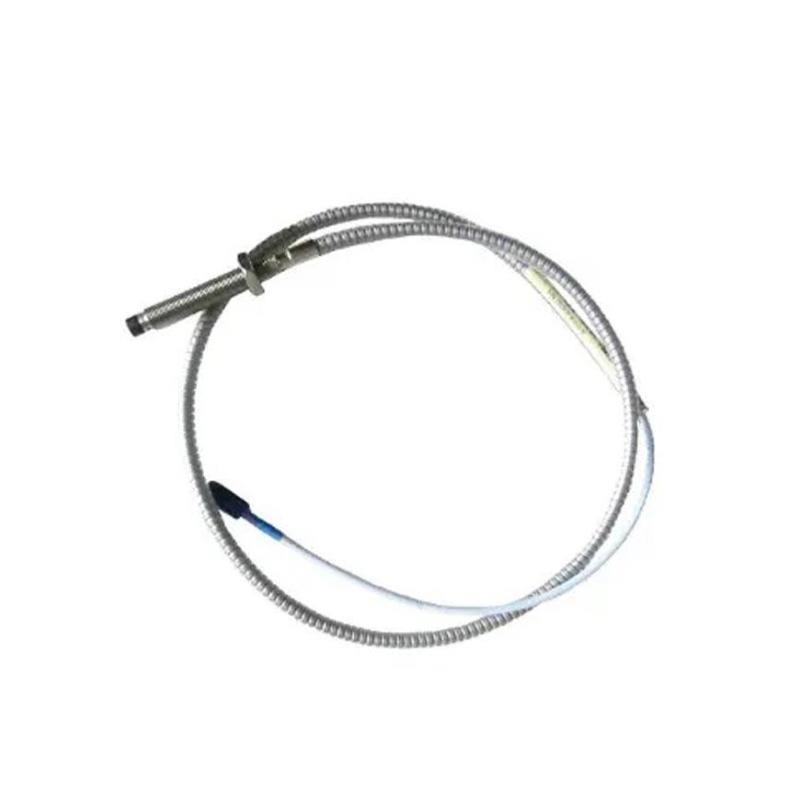

The Bently Nevada 330104-00-06-10-01-00 is a precision 8 mm proximity probe from the trusted 3300 XL series. Designed for non-contact monitoring sur rotating machinery, it provides highly accurate measurements sur shaft displacement and vibration, essential for condition monitoring and predictive maintenance.
Built with durable stainless steel housing and advanced eddy current technology, this probe is engineered to perform reliably in extreme industrial environments. Its compact design and straight connector ensure easy installation and seamless integration with the Bently Nevada 3300 XL monitoring systems.
Key Features
-
Non-contact vibration and shaft position sensing with eddy current technology
-
Standard 8 mm probe tip with rugged 3300 XL design
-
High-temperature tolerance up to +177°C
-
Stainless steel construction for corrosion resistance
-
Straight connector boot for simple cable routing
-
Compatible with 3300 XL extension cables and Proximitor® sensor drivers
-
API 670 compliant for machinery protection systems
Technical Specifications
| Item | Specification |
|---|---|
| Modèle Number | 330104-00-06-10-01-00 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Tip Diameter | 8 mm |
| Mounting Thread Size | M10 x 1 |
| Unthreaded Length | 6 mm |
| Total Length | 100 mm |
| Cable Connector Orientation | Straight |
| Cable Length | 1.0 meter |
| Material | Stainless steel |
| Operating Temperature Range | -35°C to +177°C (-31°F to +350°F) |
| Pressure Rating | Up to 500 psi |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 2 mm (80 mils) |
| System Compatibility | Compatible with 3300 XL extension cables and drivers |
| Insulation Resistance | >10 GΩ |
| Dimensions | Total Length : 1.0 meter |
| Poids | 0.323 kg |
Industry Applications
This probe is suitable for continuous monitoring in a variety sur industries including:
-
Power generation turbines and compressors
-
Oil and gas pumps and motors
-
Chemical processing rotating equipment
-
Steel and metal rolling machinery
-
Pulp and paper machinery
-
Marine engine monitoring
Advantages
-
Provides accurate, stable measurement sur shaft position and vibration
-
High durability with stainless steel housing suitable for harsh environments
-
Long service life with minimal maintenance
-
API 670 compliant ensuring industry-standard protection
-
Easy installation with compact size and straight connector
-
Compatible with existing 3300 XL monitoring infrastructure
-
Enhances predictive maintenance capabilities to prevent costly failures
-
Reduces unplanned downtime by early detection sur machinery faults
Questions fréquentes (FAQ)
-
What is the cable length for this probe?
The probe includes a 1.0 meter cable with a straight connector. -
Is this probe suitable for high-temperature environments?
Yes, it can operate up to +177°C. -
What type sur thread does the probe use?
The probe uses an M10 x 1 thread size. -
Is the probe compatible with older Bently Nevada systems?
It is designed for 3300 XL systems; compatibility with older systems may vary. -
What is the sensitivity sur the probe?
The sensitivity is 7.87 mV/μm (200 mV/mil). -
Can this probe be used for vibration and shaft position measurement?
Yes, it supports both static shaft position and dynamic vibration monitoring. -
What material is the probe housing made sur?
The housing is stainless steel for corrosion resistance. -
Does this probe require calibration?
It is factory-calibrated and generally does not require field recalibration. -
What is the linear measurement range?
The linear range is 2 mm (80 mils). -
What industries commonly use this probe?
It is widely used in power generation, oil & gas, chemical processing, steel, pulp & paper, and marine industries.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330104-00-11-10-01-00 | 8 mm probe, 1.0 m cable, longer unthreaded length |
| 330104-00-12-10-02-05 | 8 mm probe, 2.0 m cable, standard threaded length |
| 330104-00-06-05-02-00 | 8 mm probe, 0.5 m cable, shorter unthreaded length |
| 330104-01-05-05-02-05 | 8 mm probe, 0.5 m cable, metric threaded version |
| 330104-00-18-10-02-05 | 8 mm probe, 2.0 m cable, extended length variant |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 330101-00-14-10-02-05 | 8 mm standard probe, 4.3 m cable |
| 330103-00-13-10-12-05 | 8 mm probe, 4.0 m cable, ruggedized design |
| 330130-040-00-00 | Standard extension cable, 4.0 m length |
| 330180-91-05 | Proximitor sensor, 5 m cable length |
| 330104-01-05-50-02-00 | Long cable probe, 15 m cable length |
