Product Overview

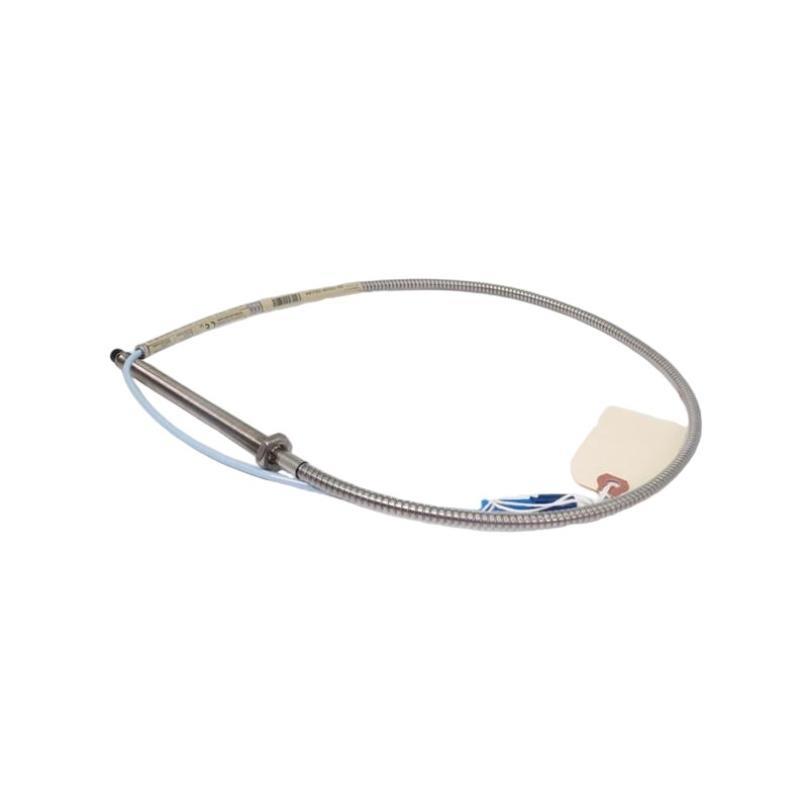

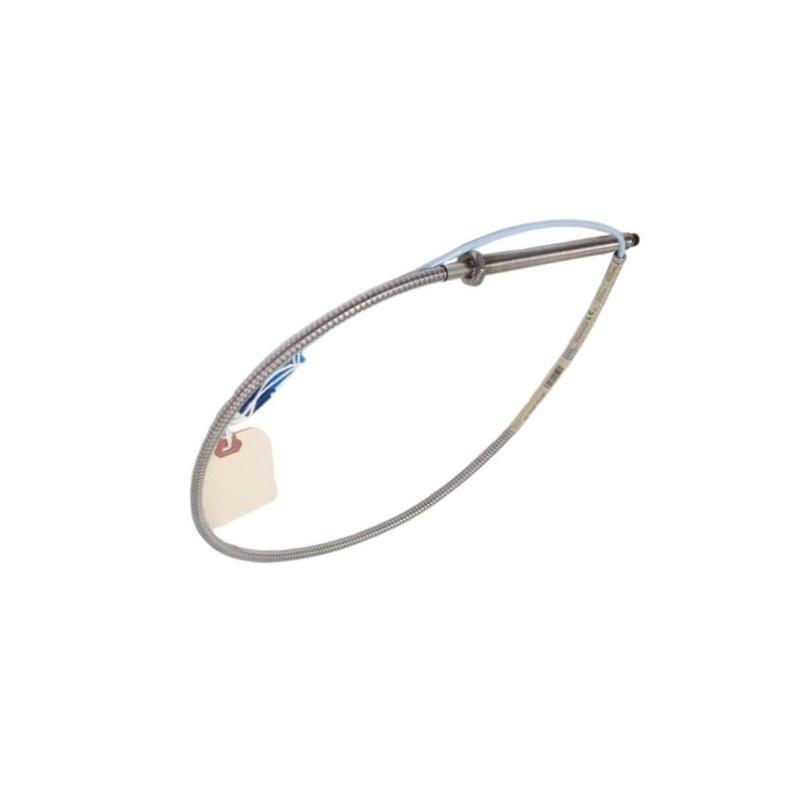

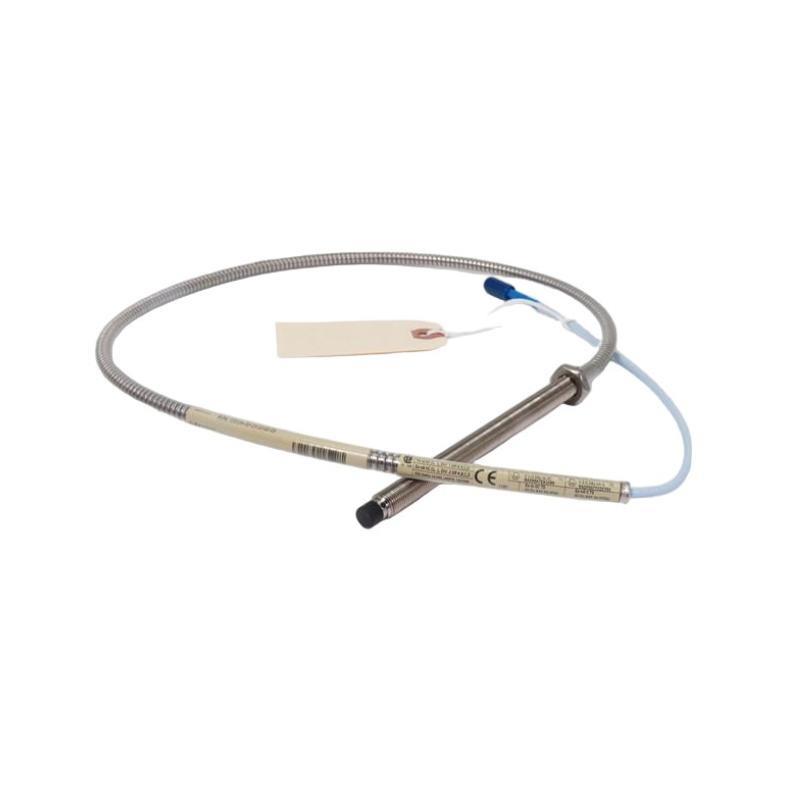

The Bently Nevada 330104-00-03-50-02-00 is a precision 8 mm proximity probe within the 3300 XL series, designed for continuous monitoring sur shaft vibration and position in critical rotating machinery. Manufactured by Baker Hughes, this probe is engineered to deliver accurate, reliable measurements in harsh industrial environments. The model features a 3-foot (0.91 meter) cable length, suitable for installations requiring short sensor-to-connection distances.
Known for its rugged stainless steel construction and advanced EMI/RFI shielding, the 330104 series probe ensures minimal signal interference and long-term durability, making it ideal for turbines, compressors, motors, and other vital machinery monitored under API 670 standards.
Key Features
-
Designed for use with the 3300 XL Proximitor® Sensor system
-
8 mm probe tip diameter for standard proximity sensing
-
3-foot (0.91 meter) cable length suitable for compact installations
-
Robust stainless steel probe body with corrosion resistance
-
High immunitéy to electromagnetic interference
-
Compliance with API 670 machinery protection standards
-
Reverse polarity and overvoltage protection
-
IP68 rating for dust and water ingress protection
-
CE and RoHS certified for global markets
Technical Specifications
| Item | Specification |
|---|---|
| Product Modèle | 330104-00-03-50-02-00 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 3 feet (0.91 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (depending on configuration) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| Poids | 1.615 kg |
| Dimensions | Total Length: 5.0 meters |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and transmission systems
-
Petrochemical and refining plants
-
Power generation facilities
-
Marine propulsion systems
-
General rotating machinery condition monitoring
Product Advantages
-
Durable design for harsh industrial conditions
-
High accuracy and stability with factory-matched components
-
Compact cable length ideal for tight installation spaces
-
Superior EMI/RFI protection ensures clean signal output
-
Compliance with internationally recognized API 670 standards
-
IP68 rating for use in wet or dusty environments
-
Facilitates early fault detection and predictive maintenance
-
Compatible with existing Bently Nevada 3300 XL systems
-
Simplifies installation with standardized connectors and cables
-
Supported by Baker Hughes’ global service network
Questions fréquentes (FAQ)
-
What is the cable length sur this proximity probe?
The cable length is 3 feet (0.91 meters), ideal for compact setups. -
Is this probe compatible with all 3300 XL system components?
Yes, it integrates fully with 3300 XL Proximitor® sensors and extension cables. -
What is the sensing range sur this probe?
The sensing range is 0.5 to 2.0 mm (20 to 80 mils). -
Can this probe be used in harsh environments?
Yes, it is designed for high temperature, vibration, and moisture resistance. -
What type sur connector does it use?
A molded miniature coaxial connector is standard. -
Is the probe IP rated?
Yes, it has an IP68 rating for dust and water ingress protection. -
Does it comply with any industry standards?
It meets API 670 standards for machinery protection systems. -
Is calibration needed before installation?
Factory calibration ensures accuracy, but field verification is recommended. -
What materials are used in the probe construction?
Probe body is stainless steel (AISI 303); tip is polyphenylene sulfide (PPS). -
Can the cable length be customized?
Custom cable lengths may be available through ABB/Baker Hughes upon request.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330104-00-05-50-02-00 | 5 ft cable length proximity probe |
| 330104-00-10-50-02-05 | 10 ft cable length probe with armored cable |
| 330104-00-15-50-02-CN | 15 ft cable length probe |
| 330103-00-03-50-02-00 | Similar 3300 XL probe with 3 ft cable |
| 330103-00-20-50-02-00 | 20 ft cable length probe |
| 330104-00-25-50-02-00 | 25 ft cable length probe |
