Product Overview

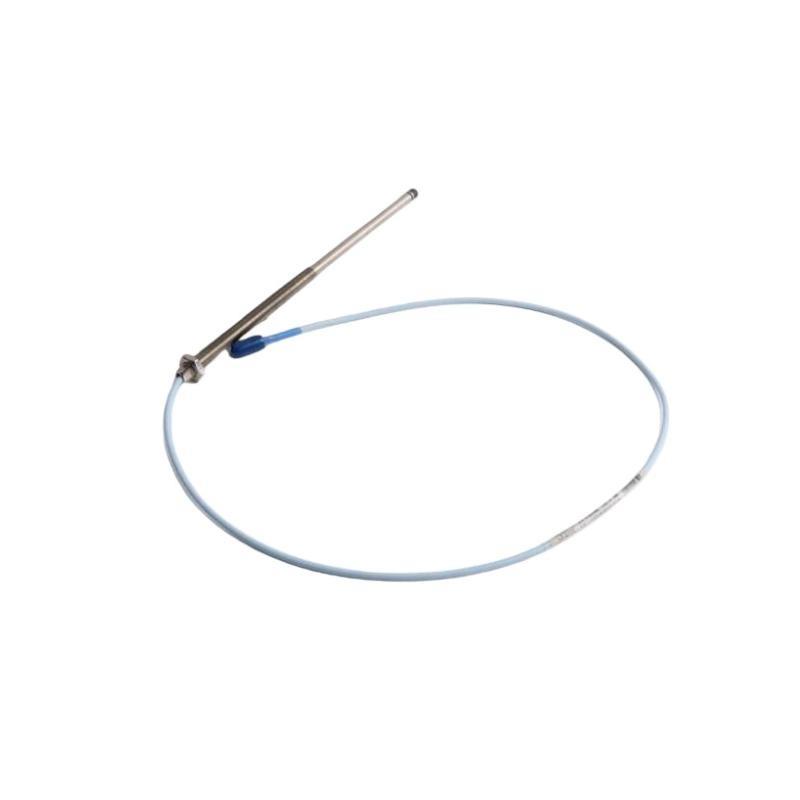

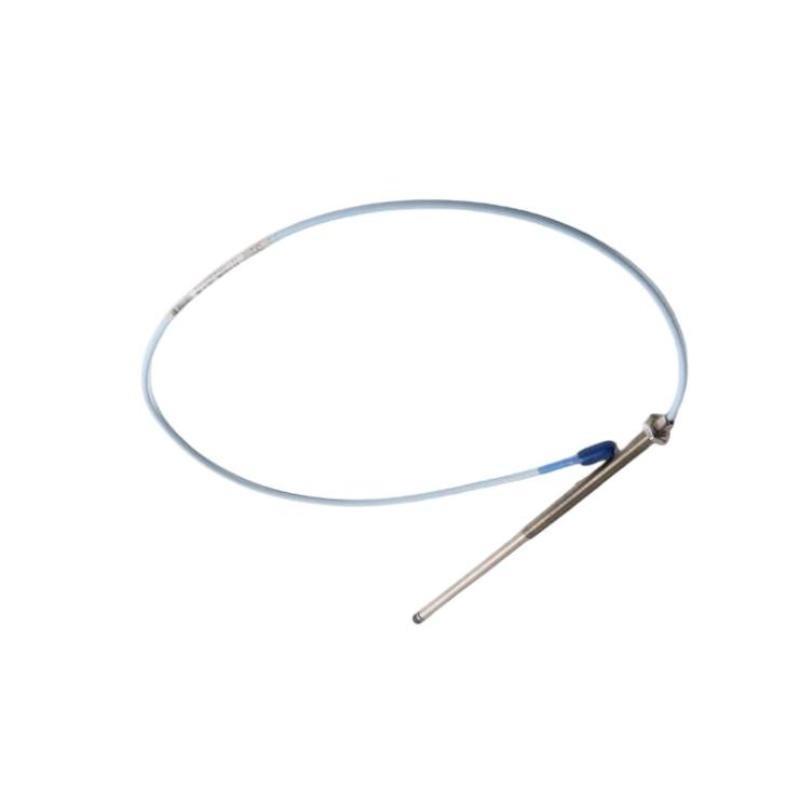

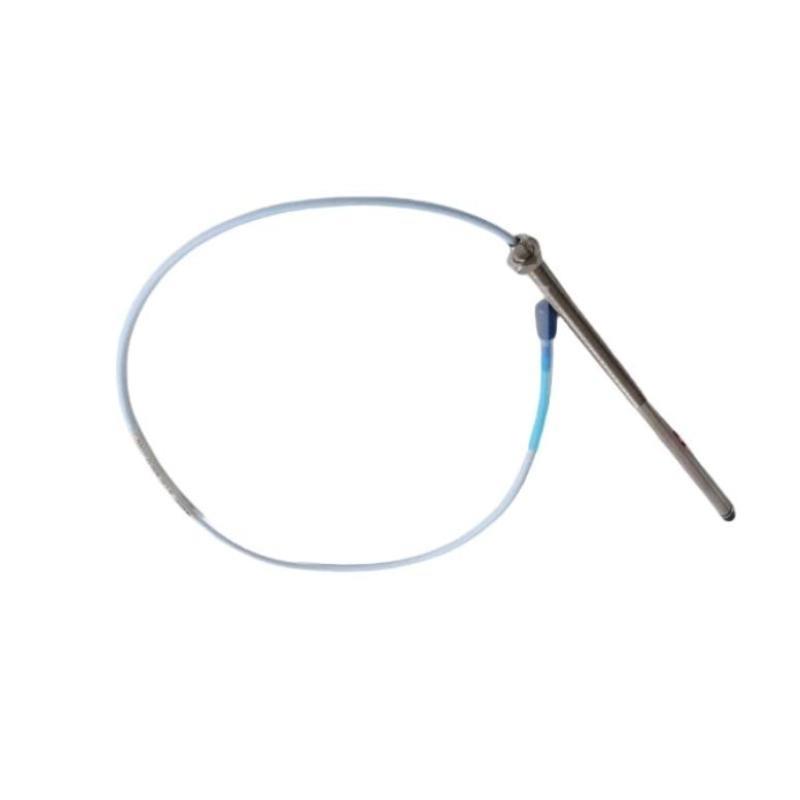

The Bently Nevada 330103-12-25-10-02-00 proximity probe is part sur the renowned 3300 XL 8 mm series designed for non-contact vibration and displacement measurements in rotating machinery. This model integrates a 25-foot molded coaxial cable and features a threaded stainless-steel body for reliable mounting in harsh industrial environments. With high accuracy and durability, it supports precise shaft condition monitoring, crucial for predictive maintenance in critical systems.
Key Features
-
8 mm sensing tip designed for standard proximity measurements
-
25-foot molded cable for long-distance installations
-
Threaded body (3/8-24 UNF) ensures secure fit in probe mounts
-
Compliant with API 670 machinery protection standard
-
High resistance to EMI and RFI interference
-
Non-contact measurement for extended component life
-
Compatible with 3300 XL Proximitor® sensors and extension cables
Technical Specifications
| Item | Specification |
|---|---|
| Product Modèle | 330103-12-25-10-02-00 |
| Series | 3300 XL 8 mm |
| Tip Diameter | 8 mm |
| Cable Length | 25 feet (7.6 meters), factory-molded |
| Connector Type | Coaxial molded connector |
| Mounting Thread | 3/8-24 UNF |
| Measurement Range | 0.5 mm to 2.0 mm (20 to 80 mils) |
| Probe Body Material | AISI 303 Stainless Steel |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g, 10–2000 Hz |
| Shock Limit | 1000 g, 1 ms, half-sine |
| Environmental Rating | IP68 (probe only) |
| Dimensions | Total Length : 1.0 meter |
| Poids | 0.323 kg |
Industry Applications
-
Power generation turbines
-
Gas and steam compressors
-
Electric motors and industrial pumps
-
Fans and blowers in manufacturing plants
-
Petrochemical processing unités
-
Oil & gas refining and transmission
-
Pulp and paper machinery
-
Water treatment plant equipment
Product Advantages
-
Extended cable length for flexible routing in field applications
-
API 670 compliance for high-standard machine protection systems
-
Proven compatibility with Bently Nevada Proximitor® systems
-
Robust design for reliable performance in hazardous locations
-
Minimal signal degradation over long cable distances
-
Ease sur installation due to threaded body and molded connector
-
Reduced maintenance due to wear-free, non-contact operation
-
Global reliability from a trusted name in condition monitoring
Questions fréquentes (FAQ)
-
What is the sensing tip size sur this probe?
It features an 8 mm diameter tip, standard for the 3300 XL series. -
How long is the integrated cable?
This model comes with a 25-foot (7.6 meters) molded coaxial cable. -
What thread type is used for mounting?
It uses a 3/8-24 UNF threaded body for secure mounting. -
Can it be used in high-temperature environments?
Yes, it operates in environments up to +177°C. -
Is the probe suitable for API 670 compliance applications?
Absolutely, it meets API 670 specifications for vibration monitoring. -
What is the typical linear measurement range?
It supports accurate measurements from 0.5 mm to 2.0 mm. -
Can this probe be connected directly to a Proximitor® sensor?
Yes, it is designed for full compatibility with 3300 XL Proximitor® sensors. -
What environmental protection rating does the probe have?
It is rated IP68 for protection against water and dust ingress. -
What type sur connector is provided on the cable?
A molded coaxial connector is included, ensuring secure signal transmission. -
Does the probe resist electrical interference?
Yes, it is built with EMI/RFI shielding to ensure stable operation.
Related Modèles
| Modèle Number | Description |
|---|---|
| 330103-12-23-05-02-00 | 23 ft cable, standard thread |
| 330103-12-16-10-02-05 | 16 ft cable, high-temp tip |
| 330103-11-19-10-02-00 | 19 ft cable, general-purpose |
| 330103-10-20-05-02-CN | 20 ft cable, China region model |
| 330103-08-13-10-02-CN | 13 ft cable, localized configuration |
| 330103-07-18-10-02-00 | 18 ft cable, standard build |
Popular Bently Nevada Modèles
| Modèle | Description |
|---|---|
| 330104-00-04-50-02-05 | 3300 XL Probe with 4 ft cable, standard tip |
| 330104-00-06-90-02-00 | 3300 XL Probe with 6.9 ft cable, extended config |
| 330130-045-01-05 | 4.5 m Extension Cable with standard connector |
| 330105-02-12-05-02-00 | 3300 XL Proximitor® Sensor, 12 ft version |
| 3500/22M-01-01-00 | 3500 System Communication Gateway Module |
| 330180-90-00 | 3300 XL Mounting Bracket, rugged application |
